Photoelectric guide system

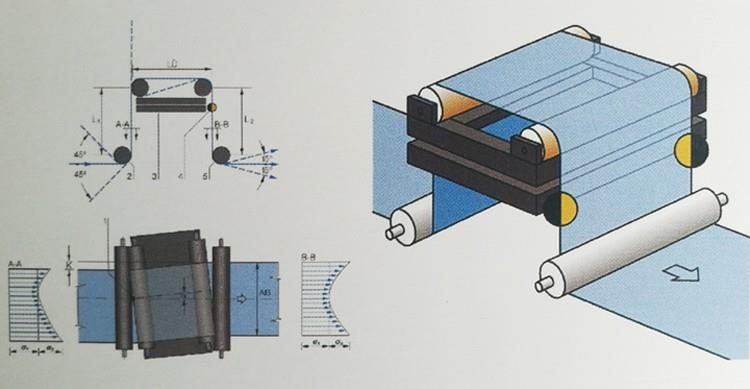

The photoelectric guide system is a system for controlling the horizontal position shift of thin soft materials during the transmission process, and has functions of automatic detection, automatic tracking, automatic adjustment and the like. The photoelectric guide system is widely used in the lateral adjustment of the strip in the flexible packaging production line. The product uses the photoelectric detection head as the sensor, and the rectification function is completed by the synchronous motor through the single chip processing.

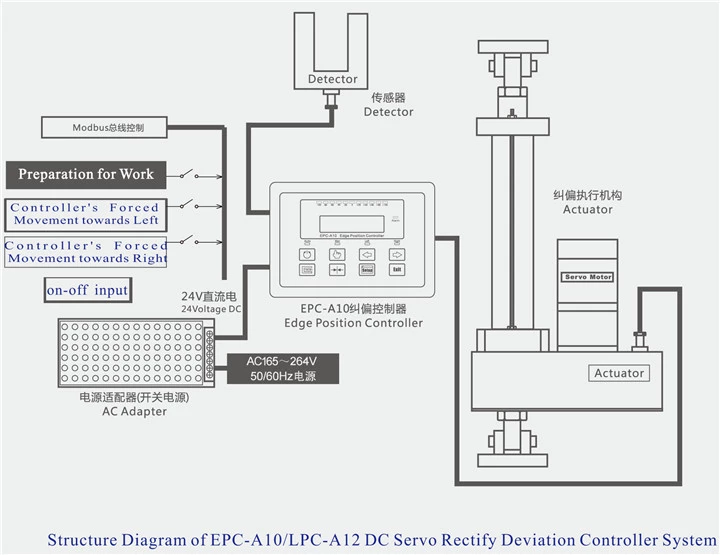

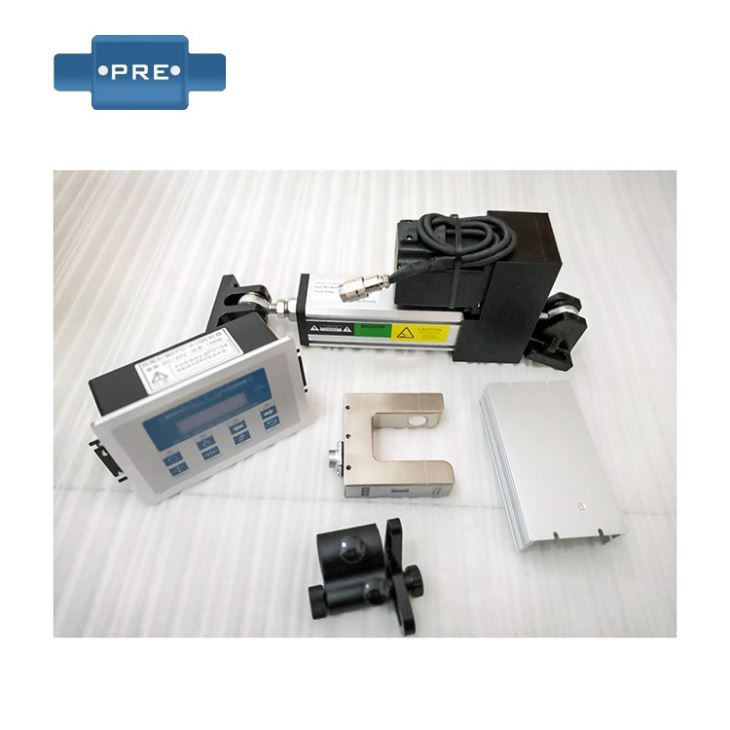

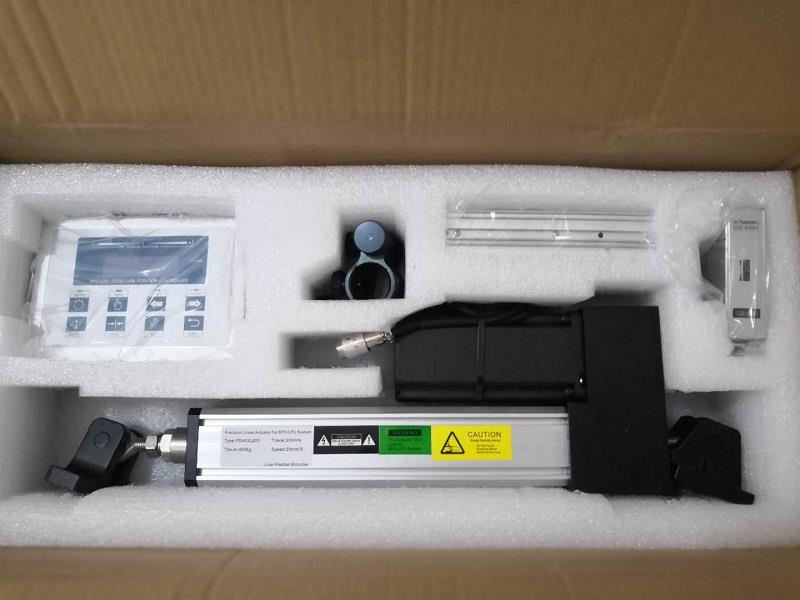

Photoelectric guide system components.

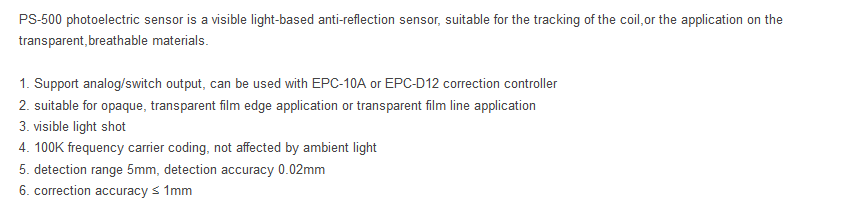

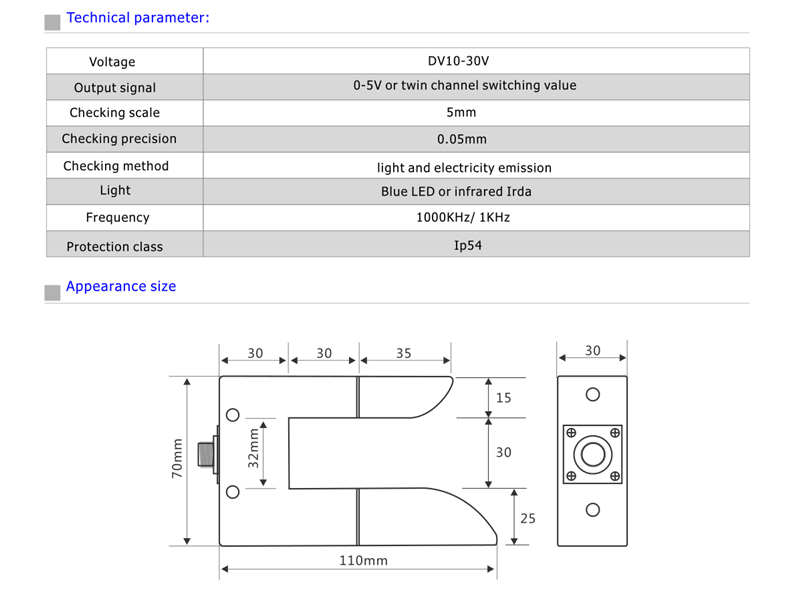

1. Sensor: The photoelectric detection switch is used to detect the deviation of the “line” mark or the “edge” mark.
2. Photoelectric correction instrument: Perform logic operation on the sampling signal and output control signal.
3. Mechanical actuator: It consists of AC synchronous motor, lead screw and carriage. It completes the traction of the material and corrects the deviation of the material during operation.

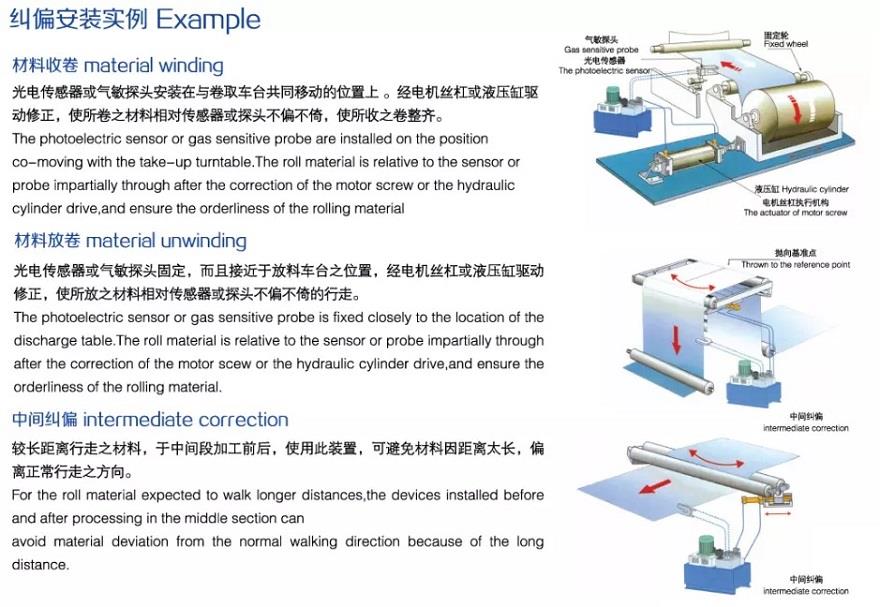

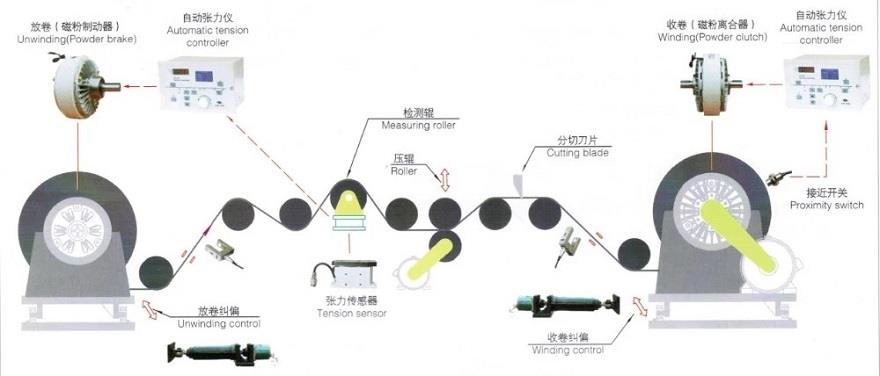

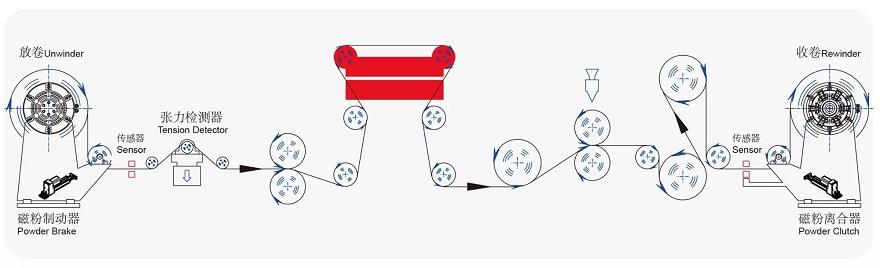

Rewinding and unwinding guide system

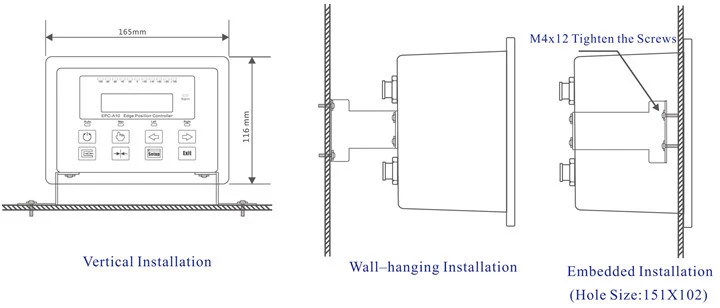

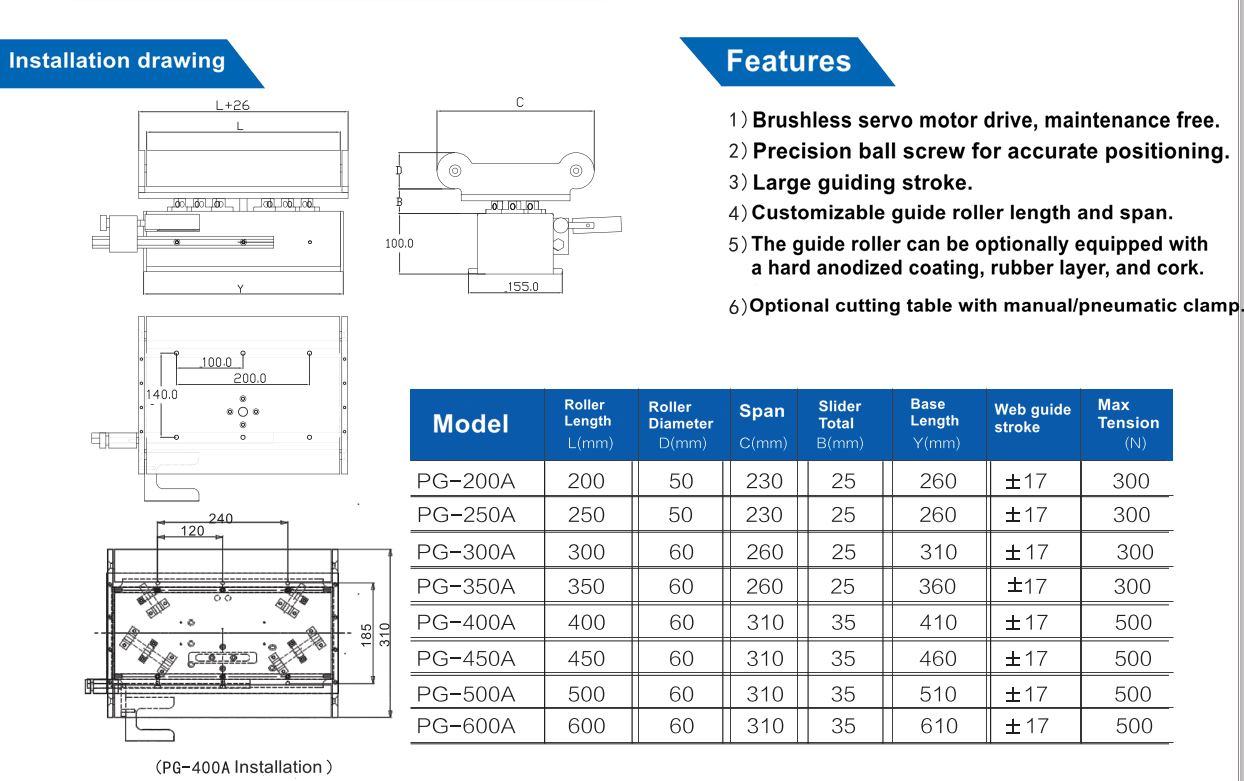

Installation :

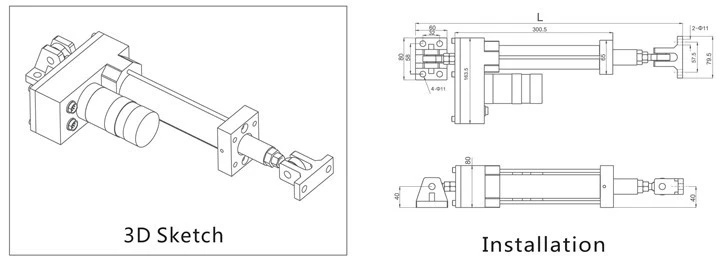

Servo Motor Linear Driver Parameter:

Model	Travel	Thrust	Pushing loading	Max. driving speed
PD-104L80	80mm	100kg	1000kg	40mm/s
PD-204L150	150mm	200kg	2000kg	40mm/s
PD-204L200	200mm	200kg	2000kg	40mm/s
PD-403L150	150mm	400kg	4000kg	30mm/s
PD-403L200	200mm	400kg	4000kg	30mm/s
PD-803L200	200mm	800kg	8000kg	30mm/s

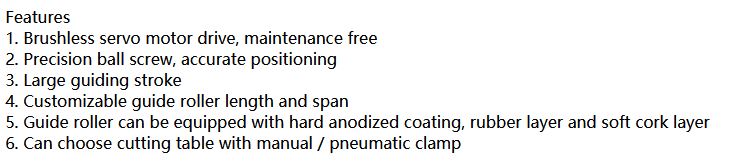

Photoelectric guide system features
1, can adapt to the detection of different materials, the identification of different materials, can be easily solved by calibrating the sensor.

2, a variety of combinations to reduce your investment, photoelectric guide system has multiple series, dozens of products can be combined according to customer needs.

3. IPM intelligent drive module can easily solve heavy load start-up and ensure guiding accuracy. The series adopts IPM intelligent drive module, and the motor starting torque is twice the rated torque, which effectively solves the heavy load.

4. Servo closed-loop control, which can independently realize actuator limit protection and center position setting, long-term trouble-free operation without adding encoder and limit switch.

5. The automatic brake function improves the guide accuracy. The automatic brake function can improve the control accuracy due to the error caused by the inertia when the control point is reached during the avoidance of the deviation correction operation.

Intermediate Guide system

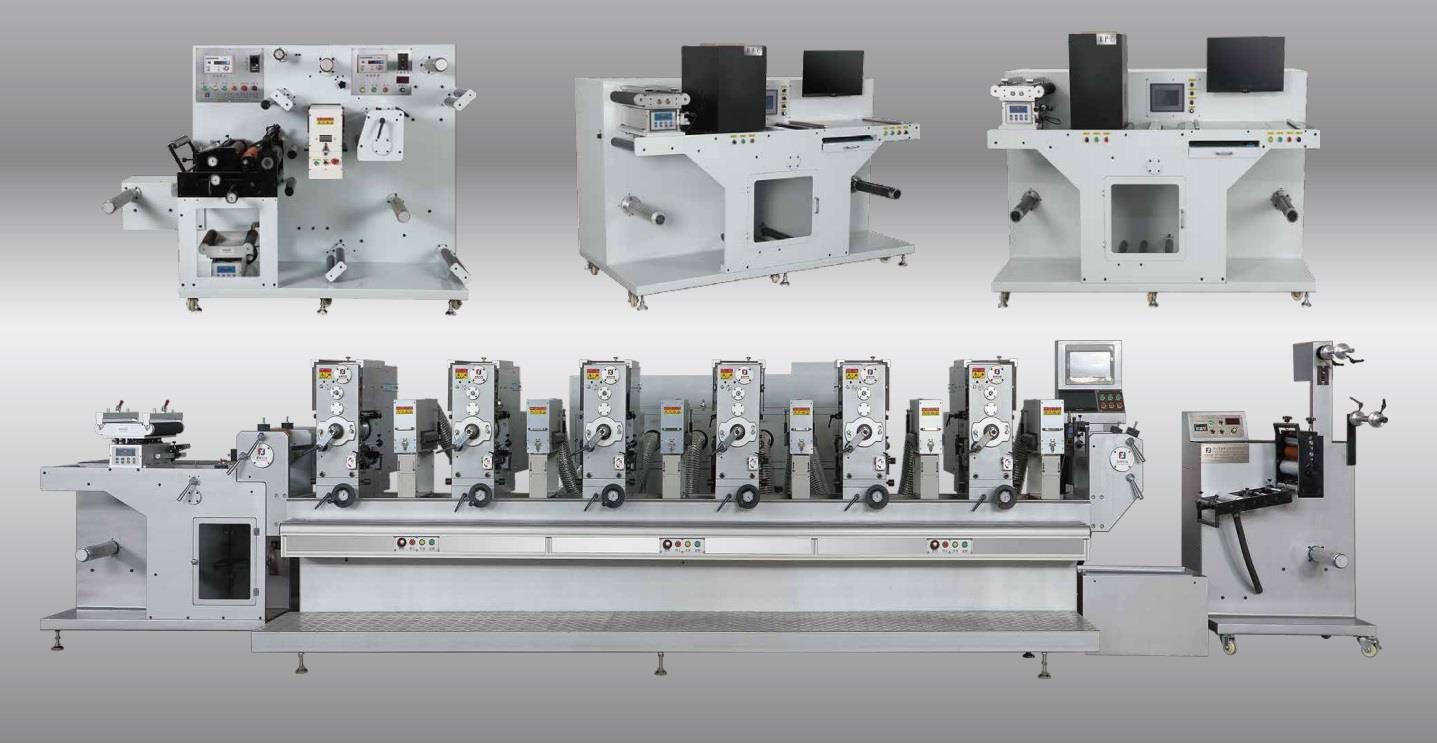

Application
