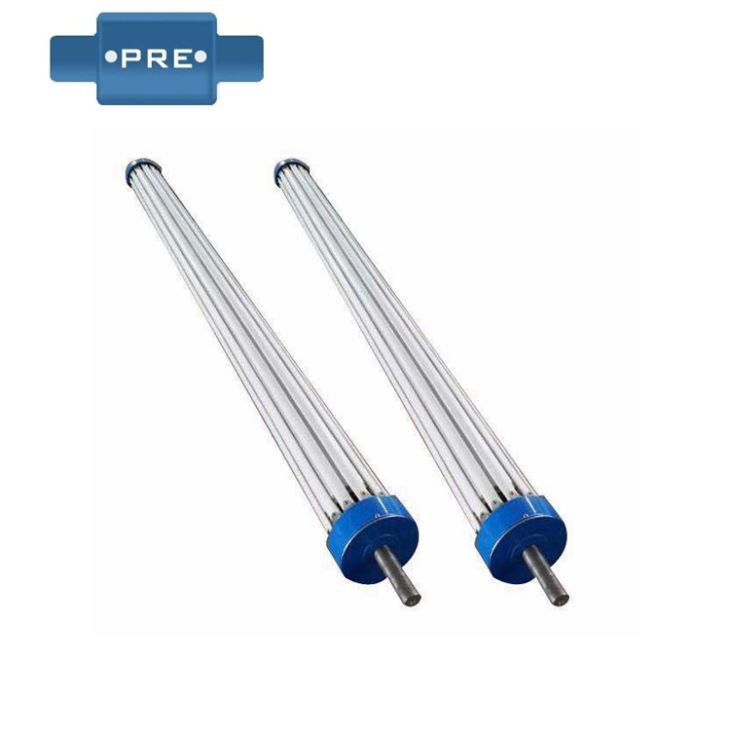

Flattening Roller

The spreader roll is a mechanical device for processing machinery for paper, film, textiles, foils and other products. It prevents wrinkles from stretching and stretching during handling. It is especially suitable for substrates such as PE and PVC.
Stretch roller use:
Structural features:
1, the stretching range is adjustable, and the substrate can be effectively and uniformly stretched;
2, the stretch strip is made of silica gel material, which can effectively keep the surface of the drum clean and avoid damage to the substrate;
3, the roller body has small turning torque and flexible operation;
4. Add rotary power as needed.

Technical parameters

4, ordering instructions
  please note
● Roller length
● Mandrel length
● Roller diameter
● Line speed

What are the advantages of flattening rolls? What is the usage method? How to apply in the printing industry? Please follow the Tianchuang Machinery to understand it.
First, the advantages of flattening roller

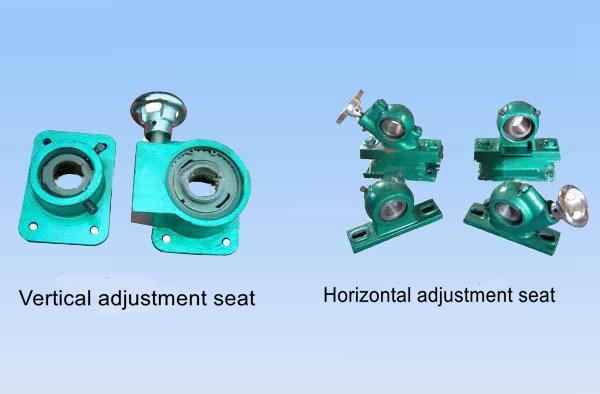

1. There are two types of bearing housings to choose from.
2, safe, reliable, durable, easy to install, easy to repair.
3, the debugging is simple, just turn the mandrel slightly, and the wrinkles caused by various reasons can be eliminated once, no need to adjust frequently.
4, horizontal stretch and flat, strong flattening ability, can withstand the tensile force of larger substrates, can also effectively flatten the thicker substrate.

Second, the application of flattening roller in the printing industry
The flattening roller is a very important equipment in the printing industry. In the printing, the raw material often has wrinkles. At this time, the flattening roller is used for smoothing to ensure the flatness in printing.
The flattening roller is fixed in the printing machine. During the printing, the flattening roller will move left and right or up and down, which can solve the problem of wrinkles in printing. The specific use method of the flattening roller is as follows: when the sheet follows the rotation of the roller body, the sheet drives the tilting wheel to rotate, and the tilting wheel drives the sheet to reciprocate outward and inward. The sheet moves outward from 0° to 180° and moves back from 180° to 360°. When the substrate is wrapped around a sheet of 0°-180°, it is flattened by axial stretching of the outwardly moving sheet.

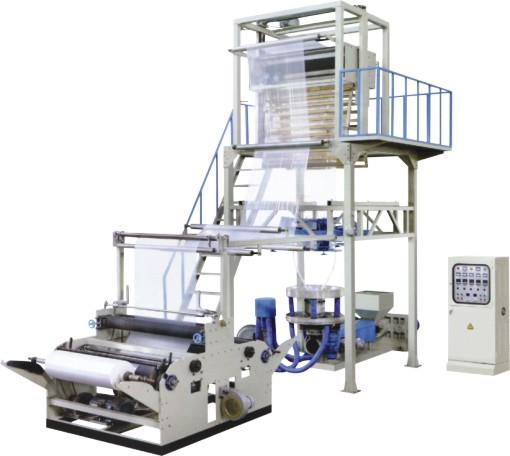

Application

for processing machinery for paper, film, textiles, foils and other products.

Packing

Order Details
