Automatic tension controller with Tension Detector & Hall Switch two roads output printing machine tension controller

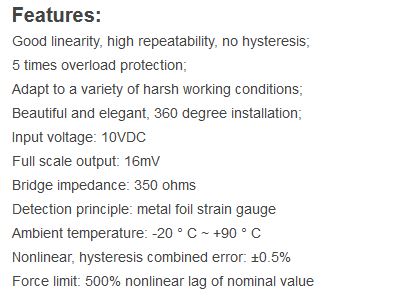

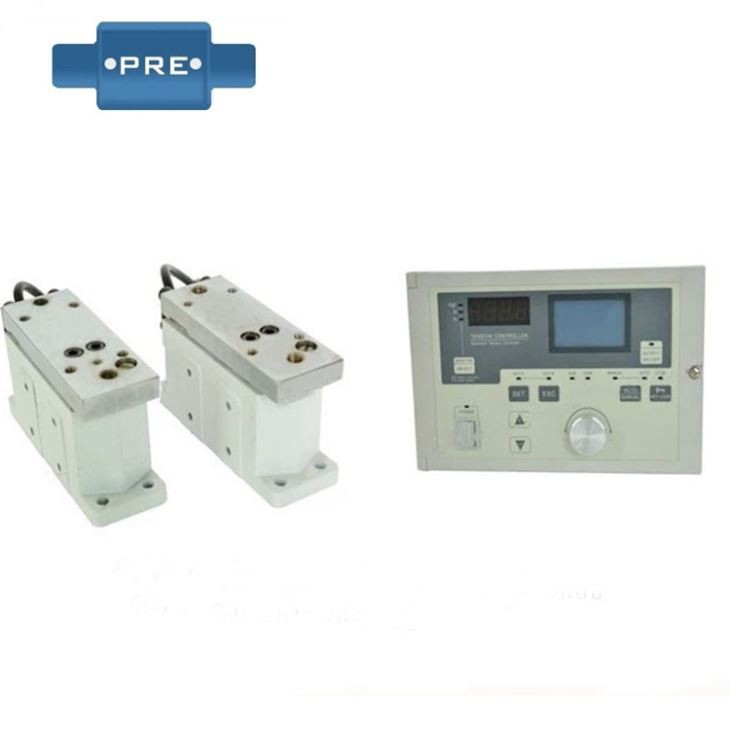

Foot Mounted Tension Sensor

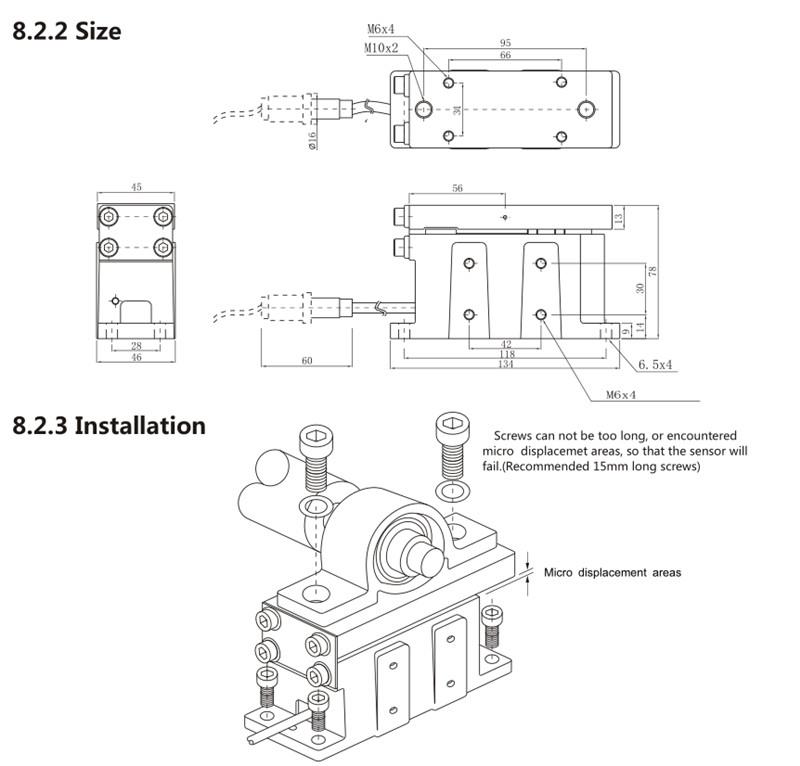

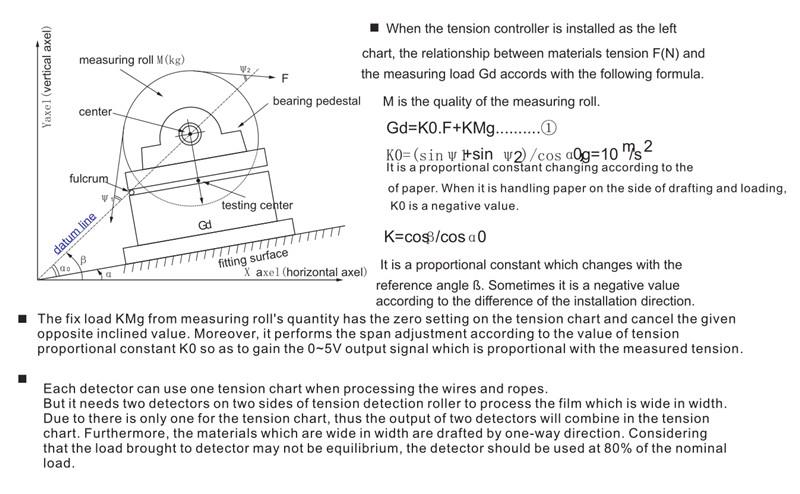

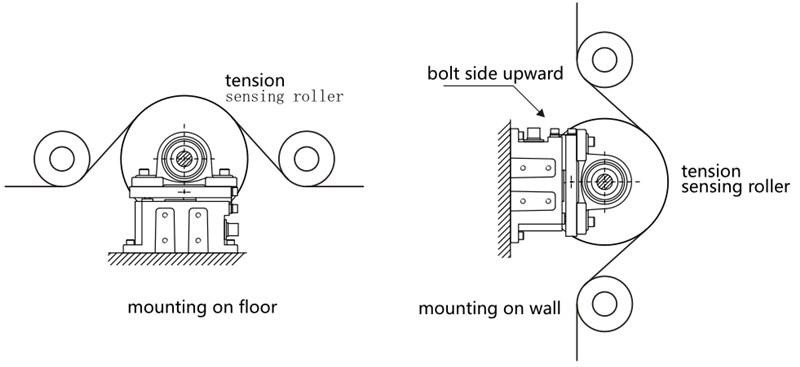

Mounting of Tension Sensors:

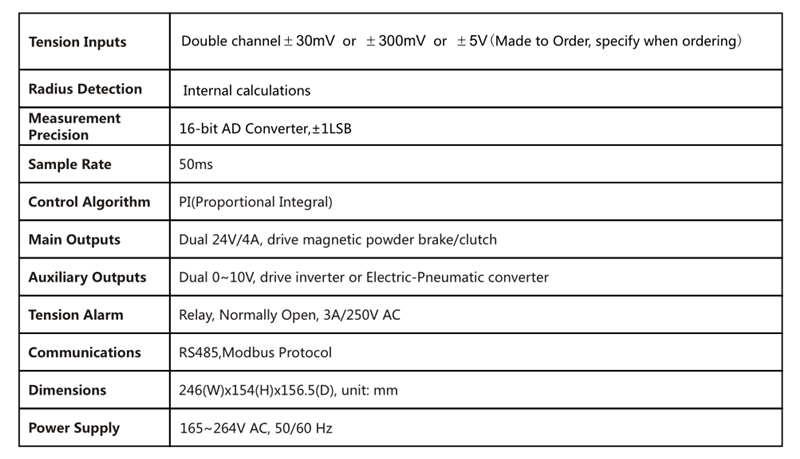

Automatic tension controller is designed for the printing machine. It has two roads of output that can make the duplex location of rewinding of printing machine to realize starting to change the axle in advance and has a function of connecting materials to cut and export automatically. The circuit of controller is designed from revising and upgrading the circuit of KTC-828A type, its performance and technical parameter can consult KTC-828A tension controller.

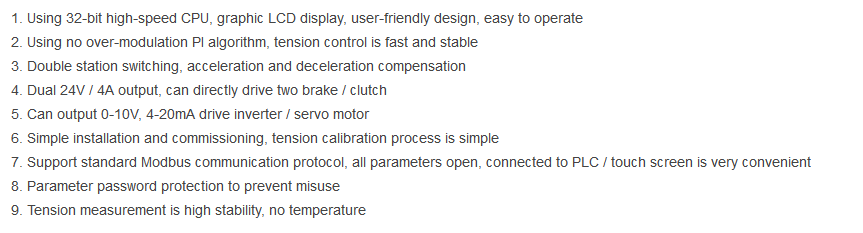

Automatic Tension Controller KTC-828A

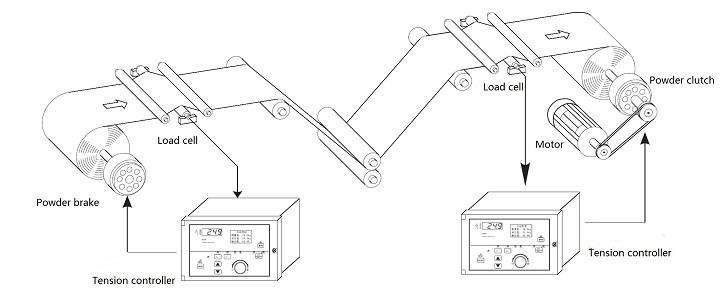

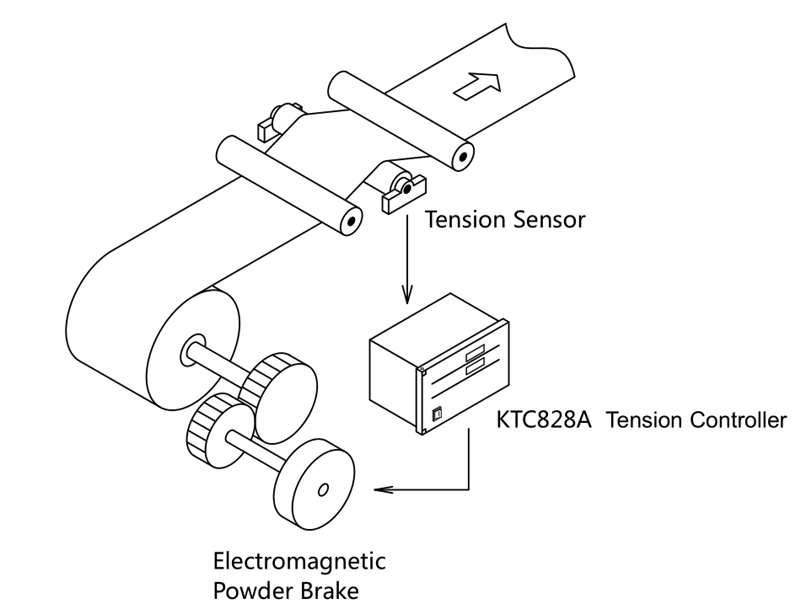

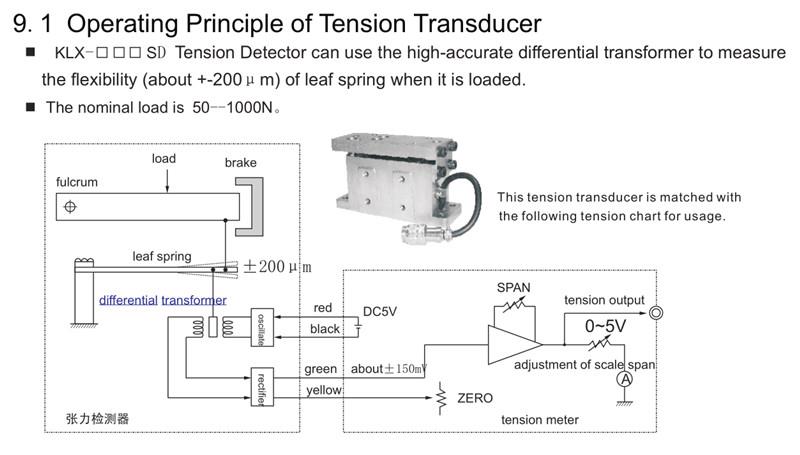

Working Principle:

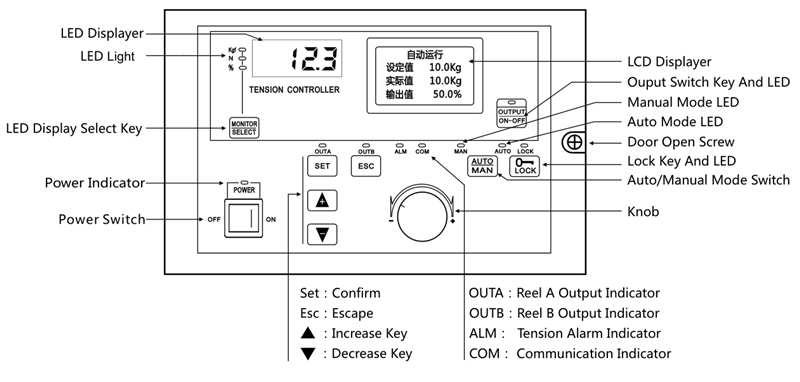

Operating Panel:

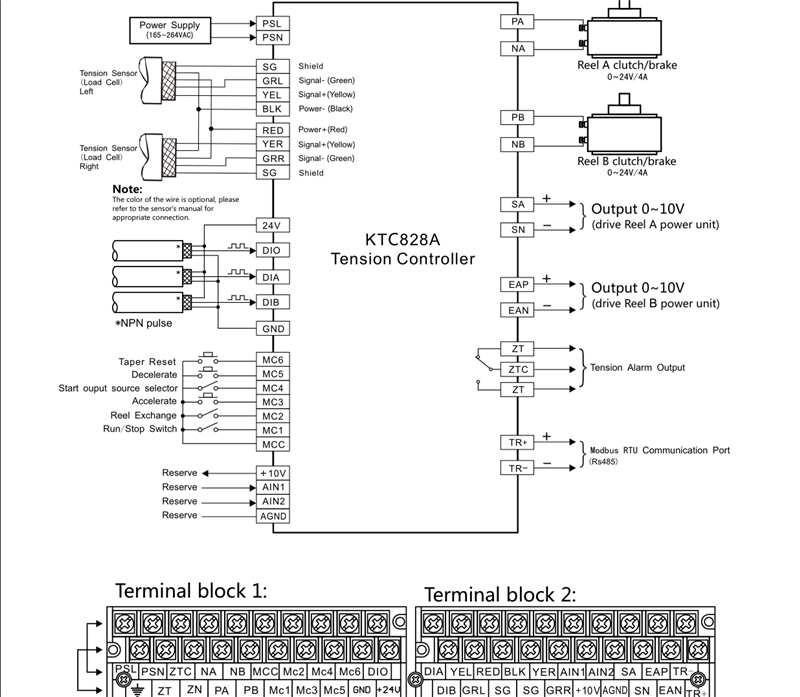

Wiring Diagram:

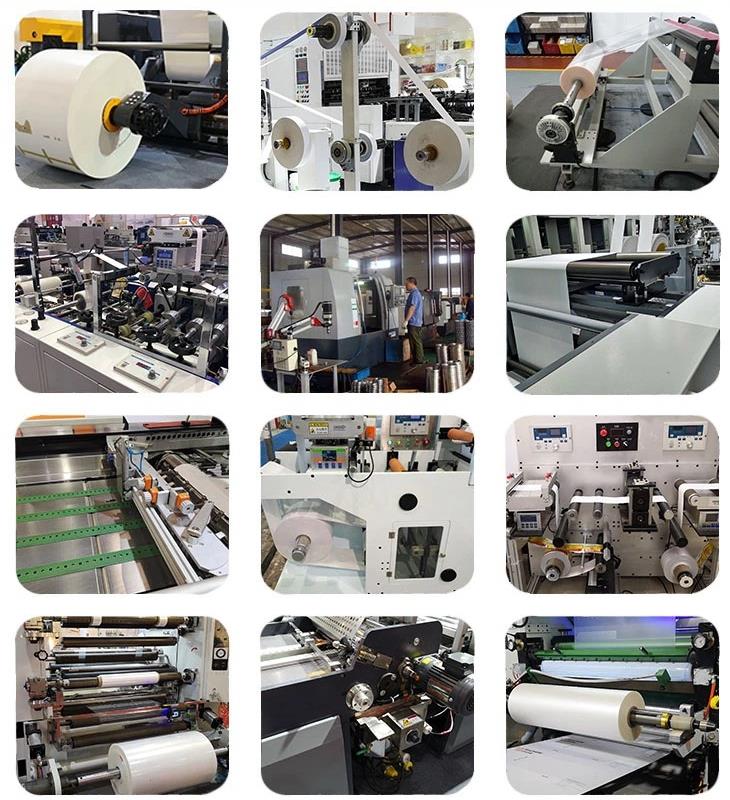

Application

Order Details
