How To Find Accuracy And Precision On Web Handling

The guide system currently includes photoelectric control and ultrasonic control. The detection electric eye has infrared rays, ultrasonic waves, CCD pairs, and mechanical electric eyes.

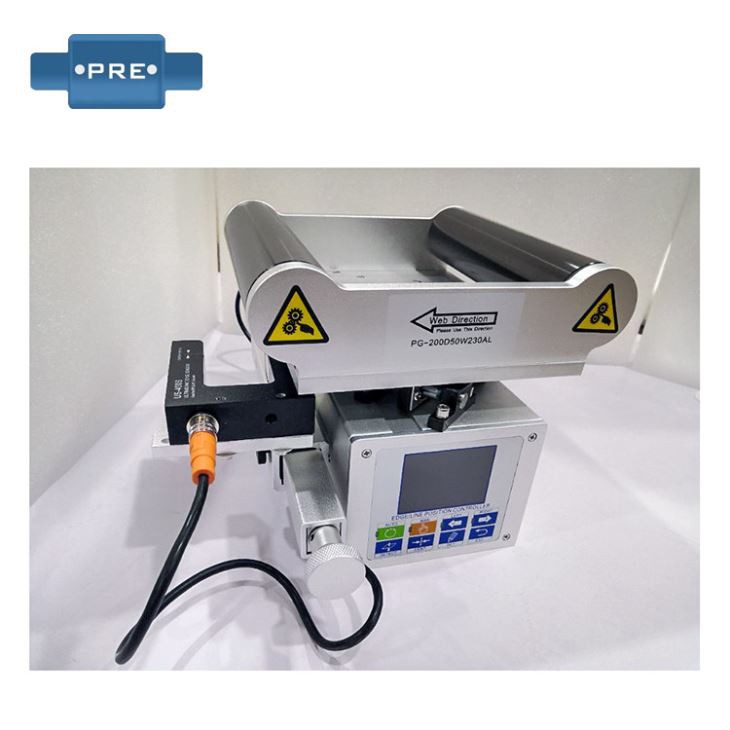

The correction system differs from other brands in the product: the system consists of controller, sensor, sensor bracket, actuator (push rod motor), and return switch.

Process description:
1. The current actual position of the material in production.
2. The current actual position of the material is recorded by one or more sensors and the relevant information is sent to the controller.
3. The controller compares the actual position sent by the sensor with the set position. If it is different, it will send a corrected signal to the servo motor.
4. The servo motor corrects the material to the correct position according to the command issued by the controller.

Features:
1. Advanced technology, easy to detect, install, stable and durable.
2. Excellent material selection, fine workmanship, beautiful and practical, easy to operate.
3. Complete style, easy to choose, and can be improved and customized according to user's special requirements.
4. It is beneficial to improve the running speed and stability of equipment and improve product quality.
5. It is conducive to improving production efficiency, reducing scrap rate and saving production costs.
6. Helps reduce the number of operators and the waste of raw materials.

The guide system is mainly used in the film industry (film blowing machine, stretch film production line, laminating machine, cast film production line, etc.), lithium battery industry (lithium electric coating machine, rolling machine, slitting machine, etc.), tape manufacturing industry ( Tape slitting machine, etc., industrial fabric industry (curtain canvas dipping machine, curtain canvas rewinding machine, etc.), paper industry (paper machine, etc.), pipe industry (pipe making machine, etc.), pharmaceutical industry (film blowing machine) , compound machine, slitting machine, etc.) Industry applications such as building materials industry:

In automated production line operations, materials (paper, film, copper foil, aluminum foil, non-woven fabrics, cord fabrics, etc.) are deflected left and right during transport or during winding, which affects process requirements or Product quality; when some double-layer materials are applied, the upper and lower layers may not be neatly arranged, thus affecting the process requirements. By detecting the actual position of the material, the BST correcting system can correct the deviation position in time and automatically control the material to be transported at the ideal position to meet the process requirements and improve product quality.
