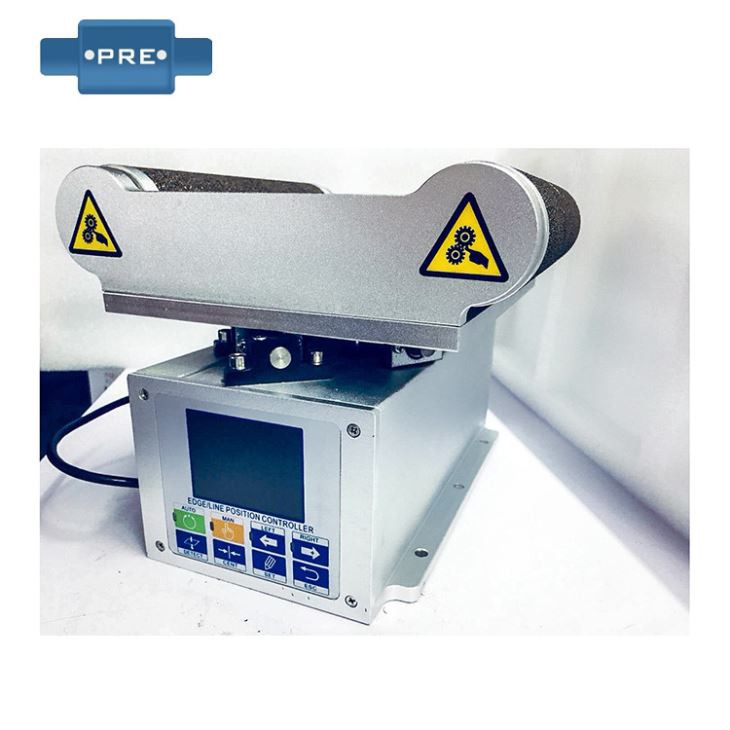

Edge Guide Controls & Control Systems

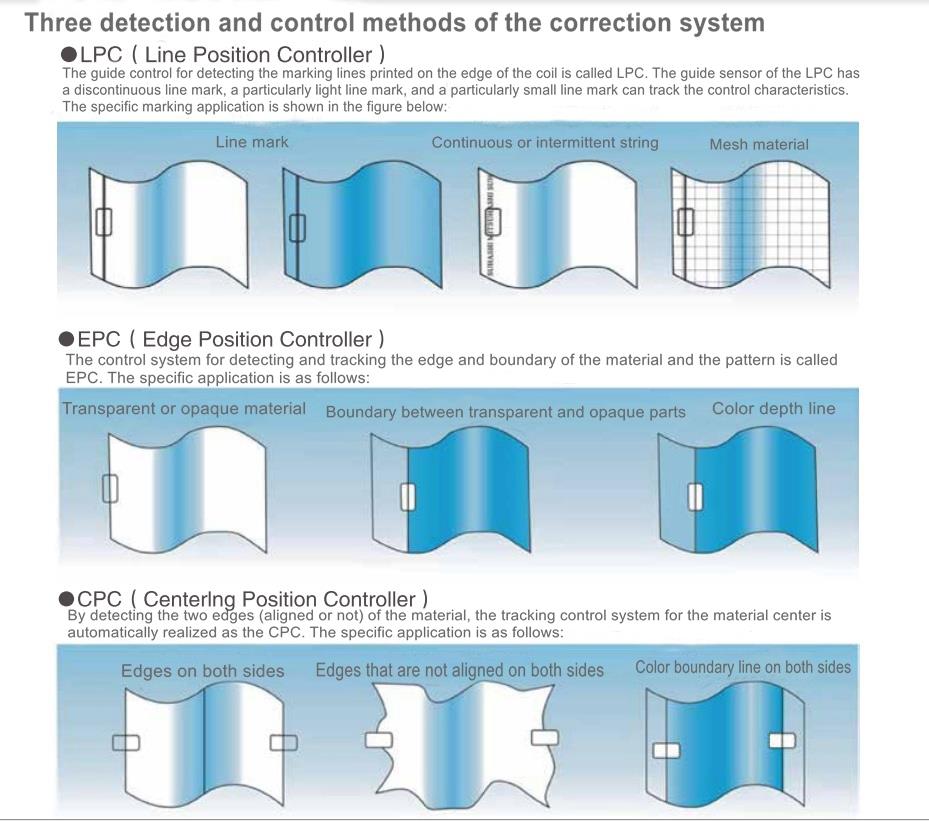

The automated cloth rectification device makes use of a photoelectric sensor to detect the brink position of the coil, and sends the measured position mistakes signal to the controller. after the manipulate unit judges the procedure, the drive motor is controlled to correct the coil at the deviation position to the proper role. . the manual system affords numerous distinct detection methods: aspect detection, follow-up or alignment.
The drive system makes use of low-velocity synchronization, variable frequency speed law, stepping and servo motor drive, and the force stroke and the coil offset are strictly proportional. the device can also be used with exceptional probes to healthy the needs of different coils, which includes: infrared photoelectric, analog infrared photoelectric. the microcomputer virtual controller affords precise manipulate of the device's functions.

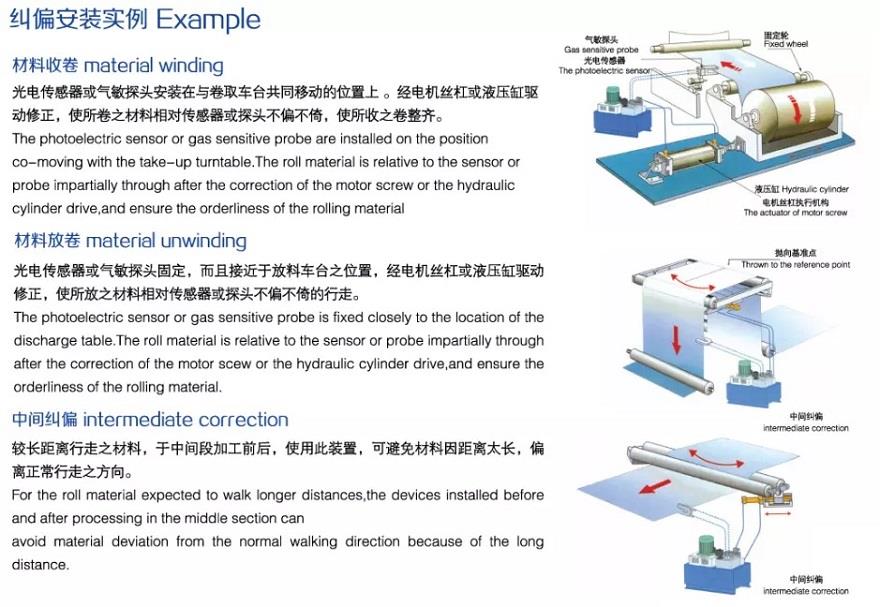

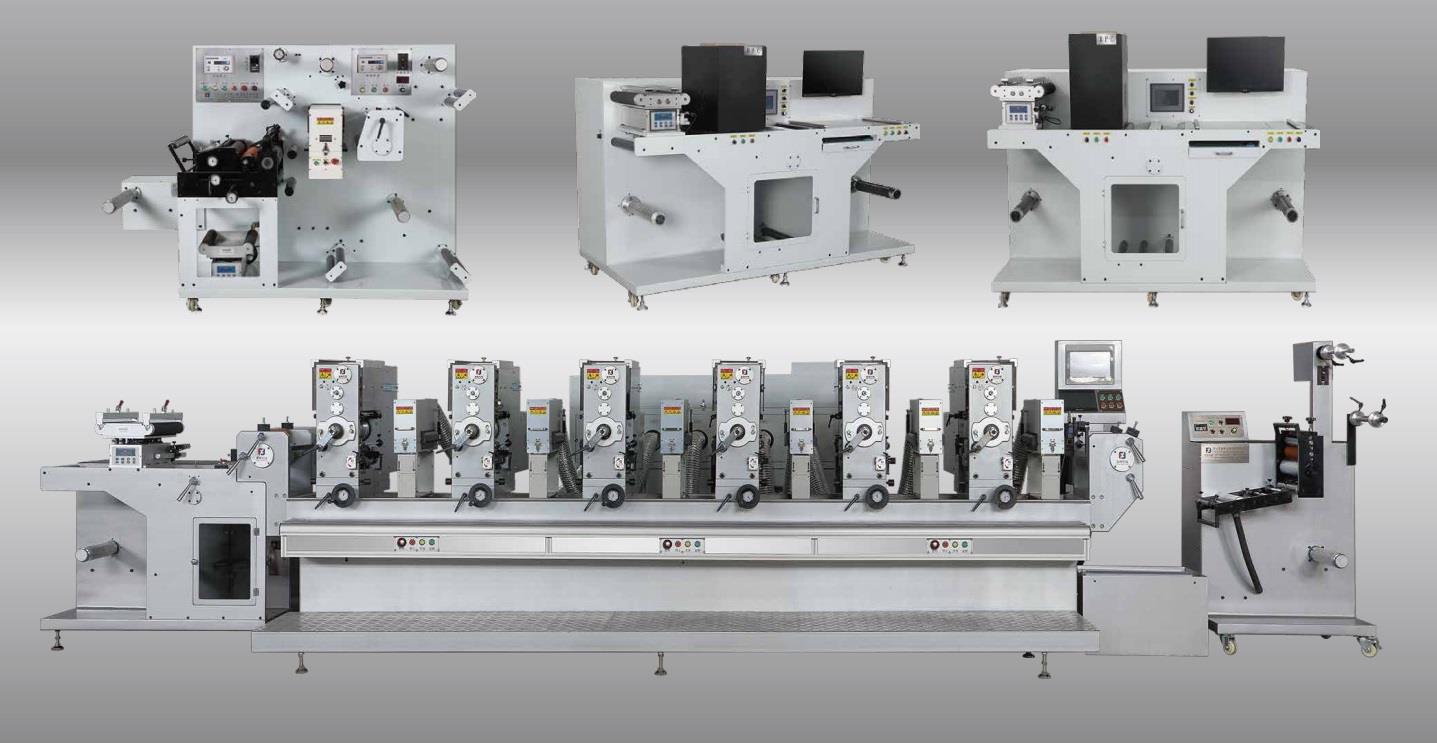

Application

Packing

Order Details
