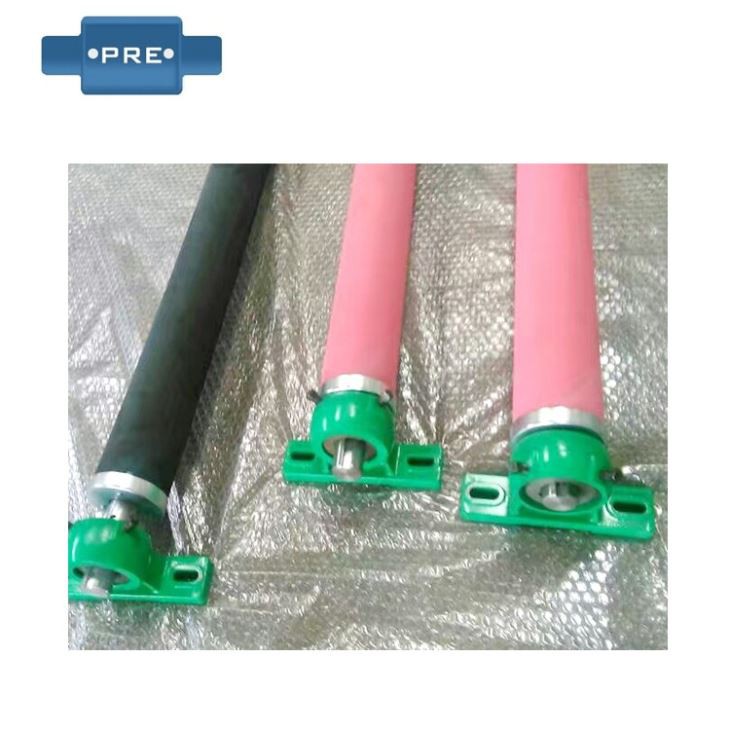

Rubber Curve Flattening Roller
Usage Applied to paper, film, textiles, metal foils and other products processing machinery, it can prevent the bse material wrinkeling in the process and facilitate to be expanded and straightened. Structural characteristics Diameter 80 100 120 125 150 bearing device within rubber tube. Rotary...
Usage
Applied to paper, film, textiles, metal foils and other products processing machinery, it can prevent the bse material wrinkeling in the process and facilitate to be expanded and straightened.

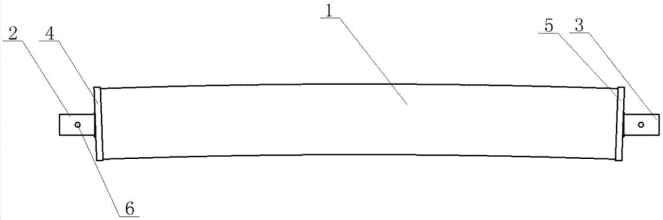

Structural characteristics
Diameter Ø80, Ø100, Ø120, Ø125, Ø150 bearing device within rubber tube. Rotary torque small torque; rubber surface smooth, without adverse effects on the base material; stretch rollers are free to adjust the angle.
The rubber sleeve: Ding Qing, wear-resistant, three yuan, hypalon, silica gel.

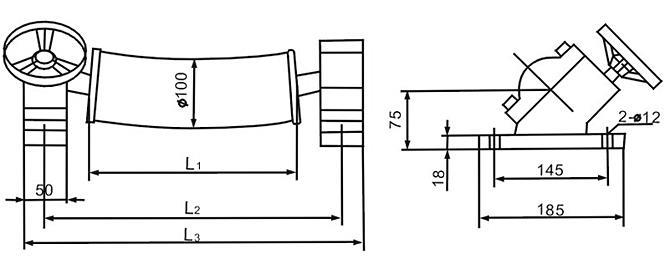

Technical parameters
| No | L1 | L2 | L3 | Remarks |
| 1 | 600 | 710 | 760 | Applied to the base material width of 500mm |
| 2 | 700 | 835 | 885 | Applied to the base material width of 600mm |
| 3 | 1200 | 1320 | 1370 | Applied to the base material width of 1100mm |
| 4 | 1400 | 1488 | 1538 | Applied to the base material width of 1300mm |
| 5 | 1600 | 1690 | 1740 | Applied to the base material width of 1500mm |
| 6 | 1900 | 1985 | 2035 | Applied to the base material width of 1800mm |
| 7 | 2100 | 2180 | 2230 | Applied to the base material width of 2000mm |
| 8 | 2300 | 2353 | 2403 | Applied to the base material width of 2200mm |
Ordering information
The above specification is provide for reference of user, it can be custormized according to user requirements.
Packing
Order Details
Item Name | Rubber Curve Flattening Roller |
MOQ(Minimum Order Quantity) | 1PC |
Lead time | 10-15 days after receiving the deposit |
Calculated Weight | Need to count |
Package | Wooden Box/Pallet packing/according to clients's requirement and demand |
Price Term | EXW,FOB, CIF, etc |
| Payment term | TT,L/C,Western Union |
| Country of Origin | China |
