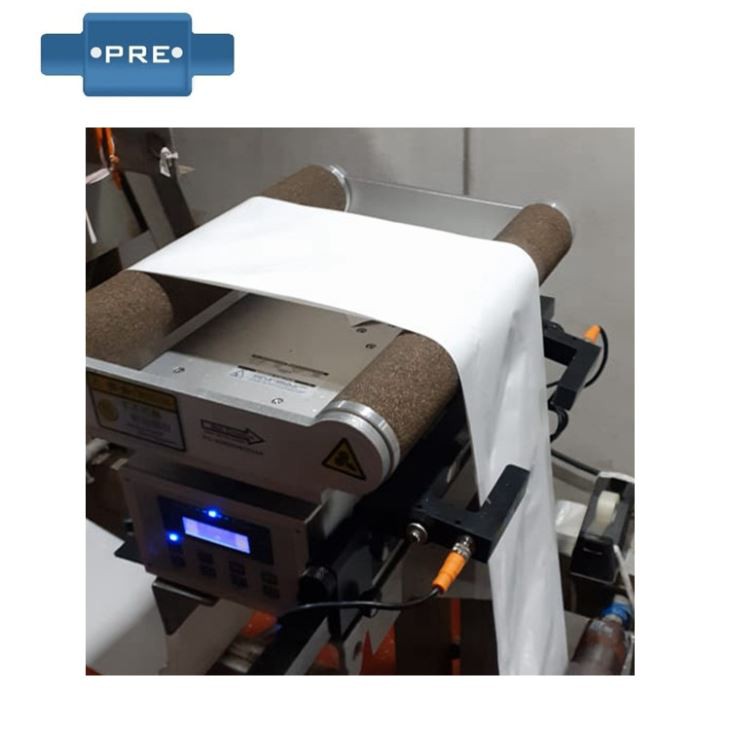

Line Guiding Systems

The EPC servo automatic photoelectric guiding manage system consists of a guiding controller, a guiding motive force, and a sensor. the location of the threshold or line is detected via the photoelectric sensor to pick up the brink or line function deviation sign, after which the placement deviation sign is transmitted to the photoelectric manual controller for common sense operation, and a manage sign is sent to the mechanical actuator to power the mechanical actuator to accurate the cloth operation. the serpentine deviation of the time ensures the linear movement of the cloth. the main purposes are the rectification of the coil and the opposite facet, to save you the deviation of the coil in the system of processing, such as deviation, walking, and many others., to make certain that the coil is correctly and smoothly completed during the processing, as well as winding and slitting neatly. .

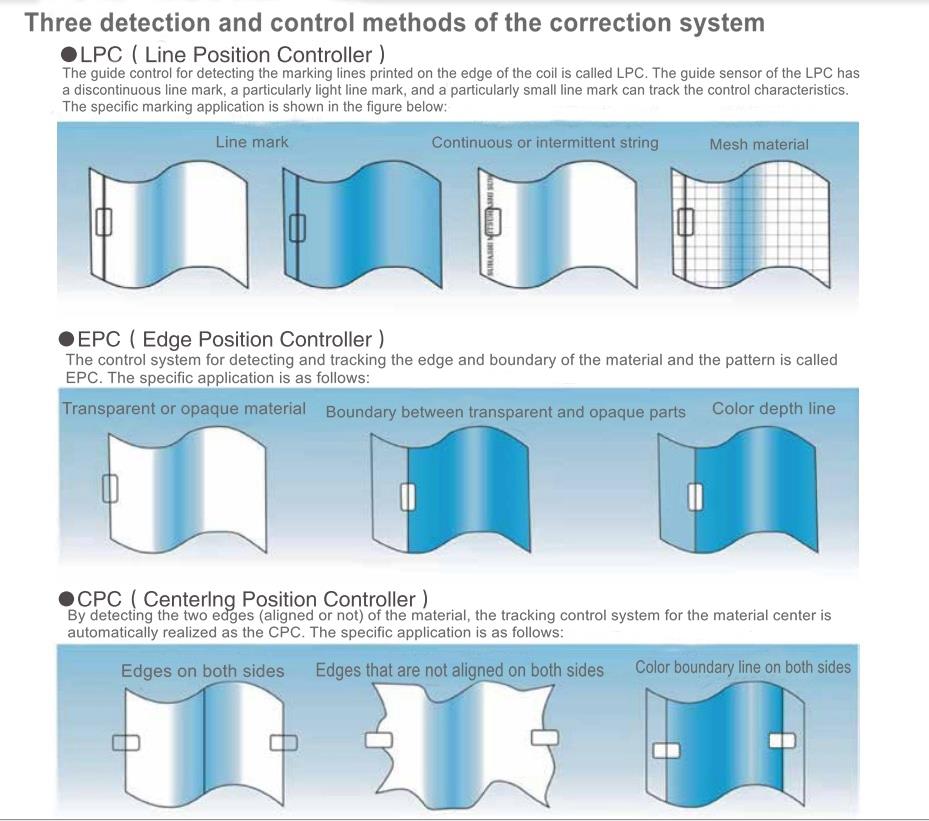

The EPC servo automatic photoelectric guiding control system can accurate the deviation of coils along with net movie, non-woven cloth and woven fabric. it may accurate the deviation of various coil substances together with internet movie, metallic foil, non-woven material and woven cloth. the controller can pick out the heel and follow-up methods in step with the different materials, and freely select unmarried/double electric powered eye detection to satisfy the wishes of various substances.

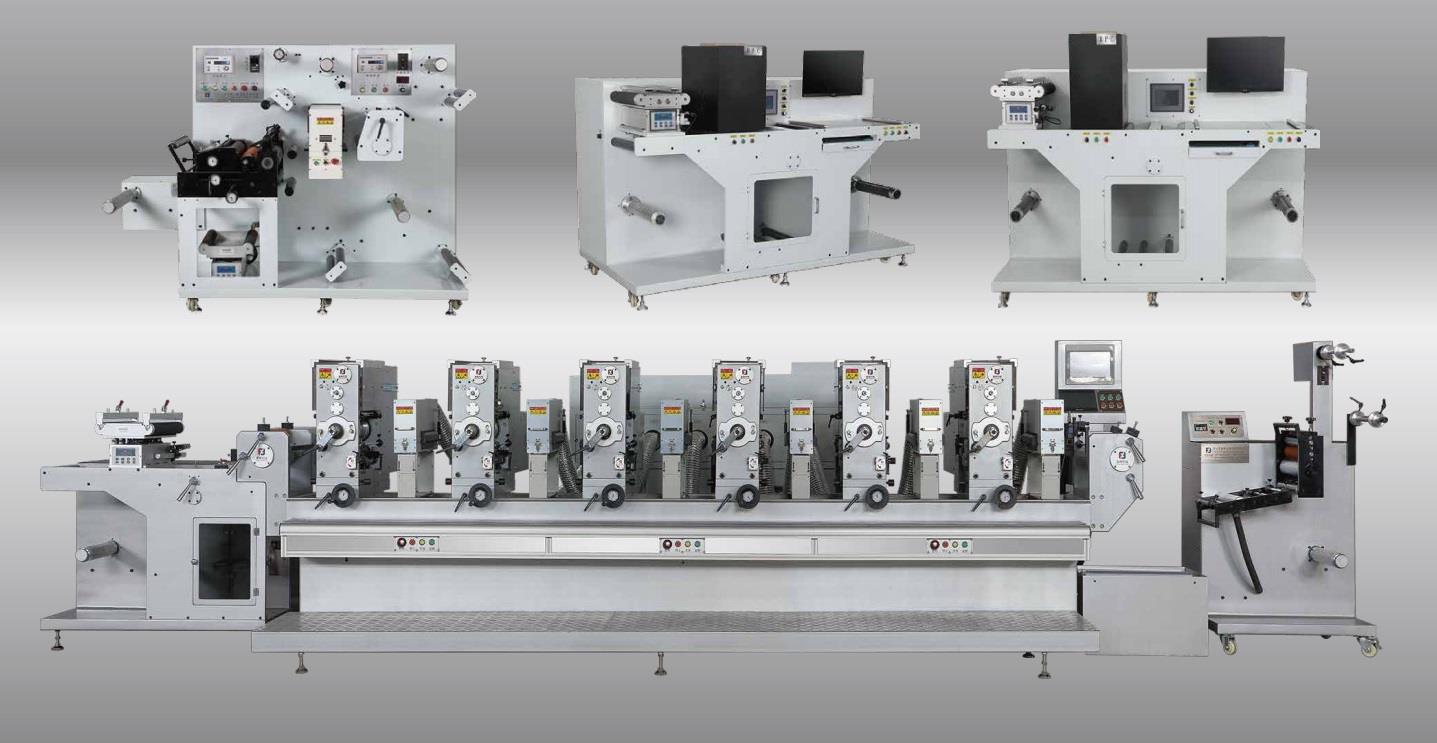

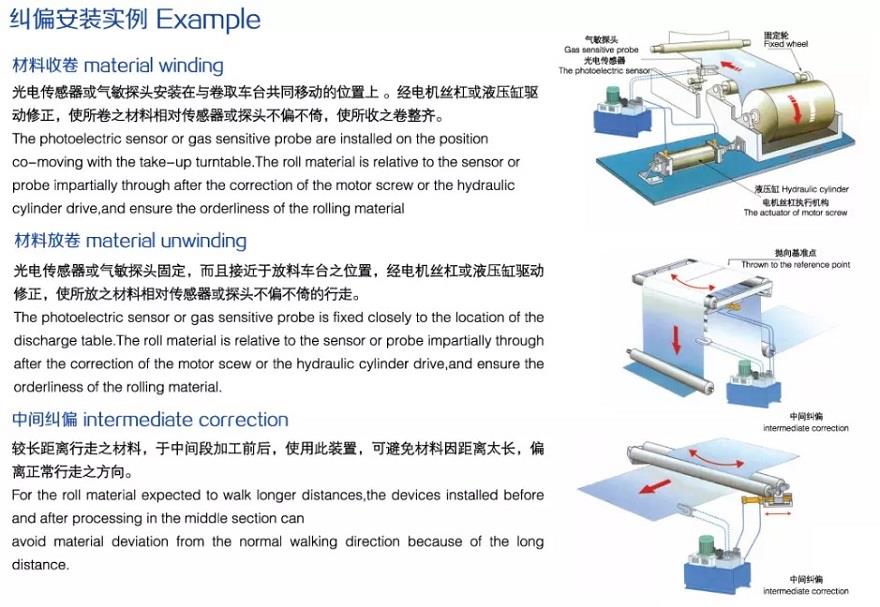

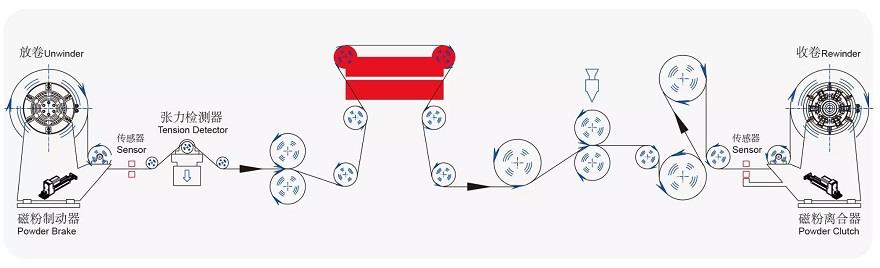

Application

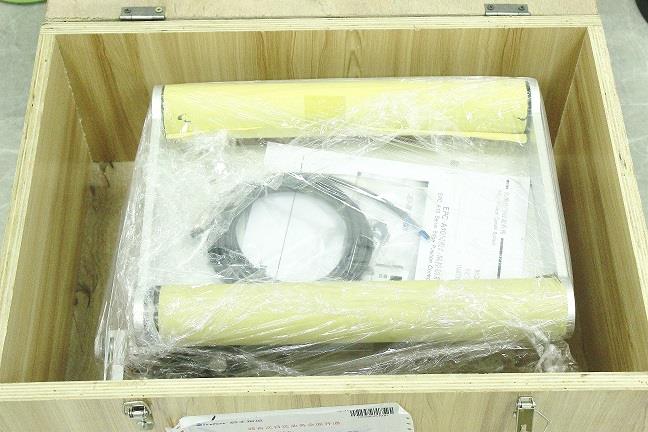

Packing

Order Details
