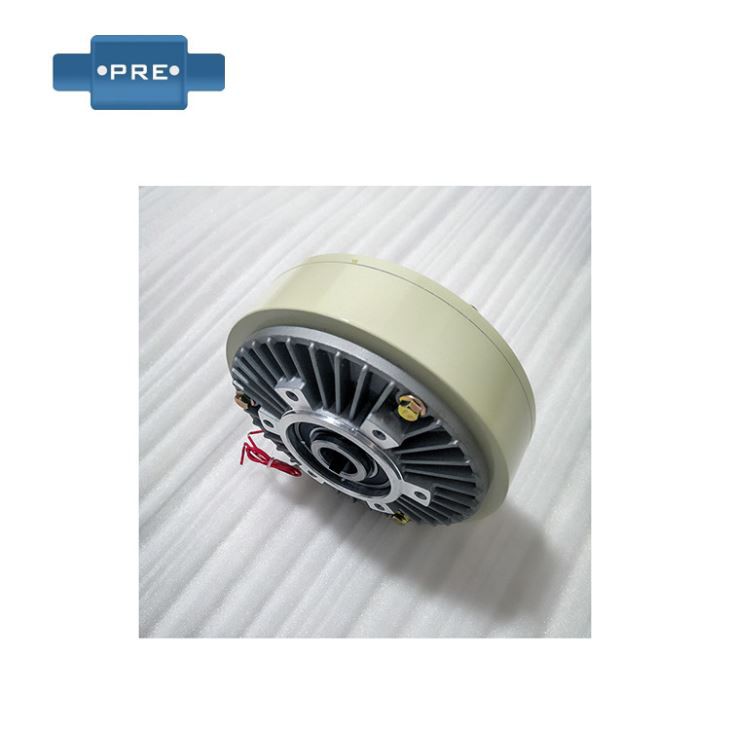

Magnetic Powder Brake Price

The magnetic powder brake and magnetic powder take hold of are an notable computerized manipulate thing. it uses magnetic powder because the operating medium and uses the excitation modern-day as the manipulate method to reap the motive of controlling braking torque or transmitting torque. the output torque has an awesome linear courting with the excitation modern, and has not anything to do with the speed or slip, and has the blessings of speedy reaction velocity and easy shape.
See the subsequent factors for info:
1. excitation modern——torque feature: the excitation present day has an amazing linear dating with the torque. the excitation current can be used to manipulate the torque infinitely.
2. velocity - torque traits: the torque is unbiased of the rate and maintains a set cost. there's no distinction between static torque and dynamic torque. its characteristics are proven in figure b.
Three. load characteristics: the allowable slip strength of the magnetic powder brake is a fixed value whilst the heat dissipation condition is consistent. while it's far constantly walking, the real slip desires to be inside the allowable slip strength. when the use of the excessive velocity, lessen the torque.
Magnetic powder brakes are widely used. the realistic packages include large-scale transmission device, strolling cranes, huge blowers, axial lovers, air compressors, cement kilns, paper machines, rotary effect machines, rolling, rolling machines, twine drawing machines, large-scale fabric, printing and dyeing, printing machinery, and the inching and operation of numerous industrial machinery.

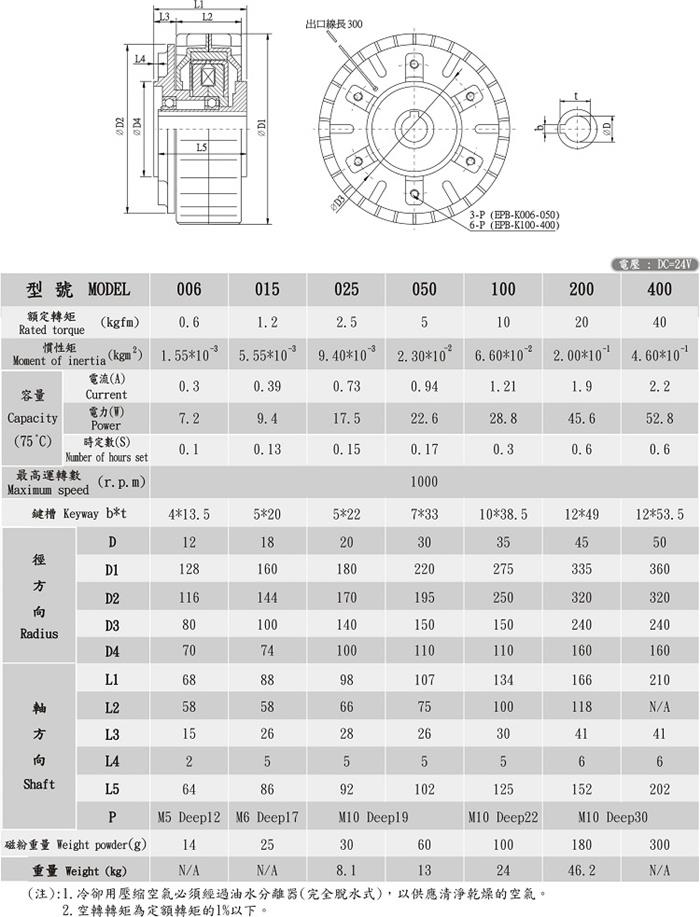

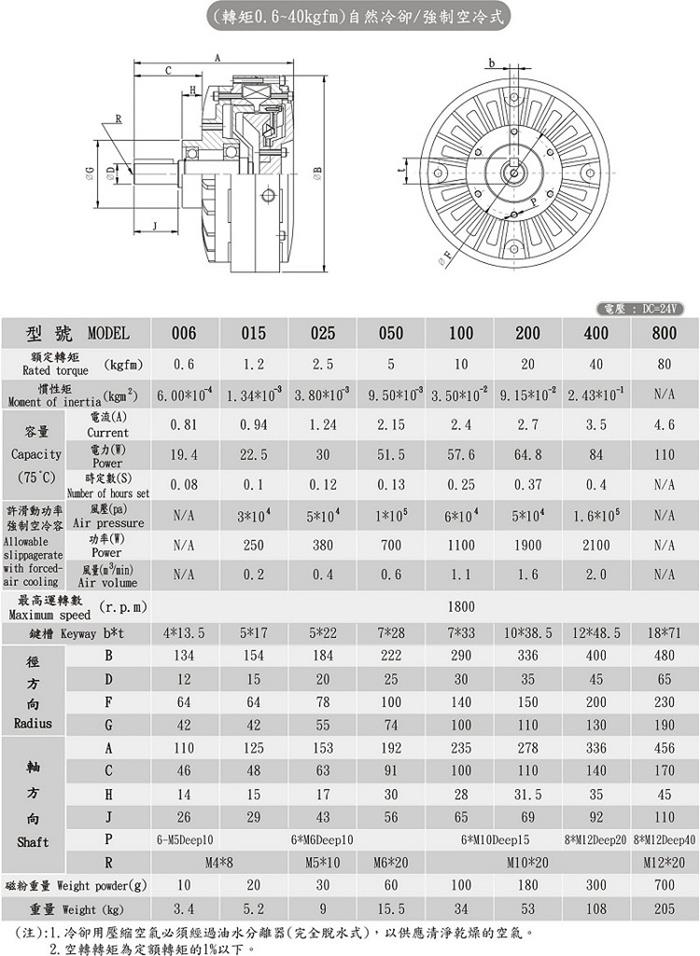

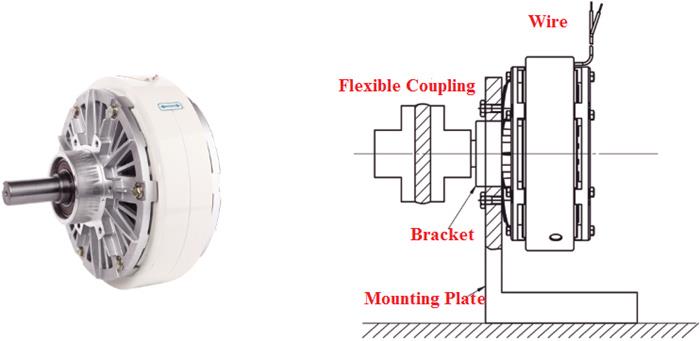

PRE-B Single Shaft Magnetic Powder Brake

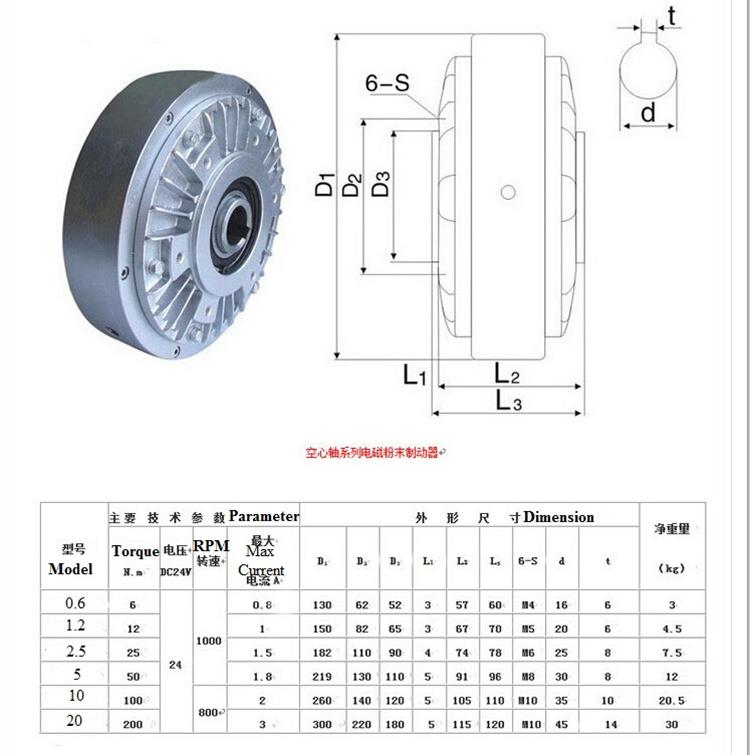

PRE-B1 Hollow Shaft Shell Rotating Magnetic Powder Brake

PRE-B2 Hollow Shaft Inner Shell Rotating Magnetic Powder Brake

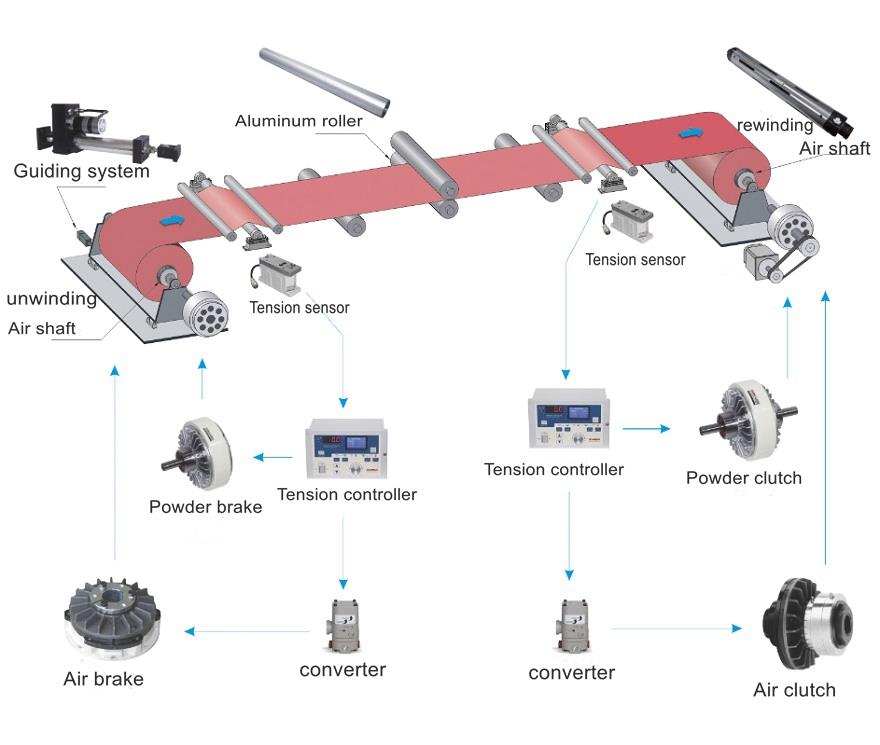

Due to the fact inside the light enterprise of cutting-edge textile, paper, coloration aluminum coating, etc., the processed material is normally wound right into a cylinder shape in the course of or after processing. on this method, the best of the winding will without delay determine the first-class of the product. the roll is too tight, and it is simple to deform or maybe destroy the product; the roll is simply too loose and the product isn't compact, which is not conducive to coping with and packaging. therefore, with the intention to achieve compact winding and make certain the first-rate of the product, it is required to be inside the winding method. apply a certain tension to the fabric and hold the tension at a regular cost. consequently, we need a brake that can accelerate, slow down, forestall or keep the tension controller characteristic, a good way to make certain the secure production of the product.
Magnetic powder brakes had been broadly used in tension controller systems because of their small size, mild weight and precise manipulate characteristics. the magnetic powder brake has this kind of right regular torque characteristic that it's far used as an execution issue of the tension machine, and has been widely used in mild industry along with fabric, printing, and colour aluminum coating. moreover, the magnetic powder brake output torque has a very good linear dating with the magnetic powder coil excitation cutting-edge. as long as the excitation cutting-edge is linearly adjusted, the dynamic manipulate of the sphere tension can be found out, and the overall performance of the magnetic powder brake could be very strong underneath the circumstance of low rotation velocity.
