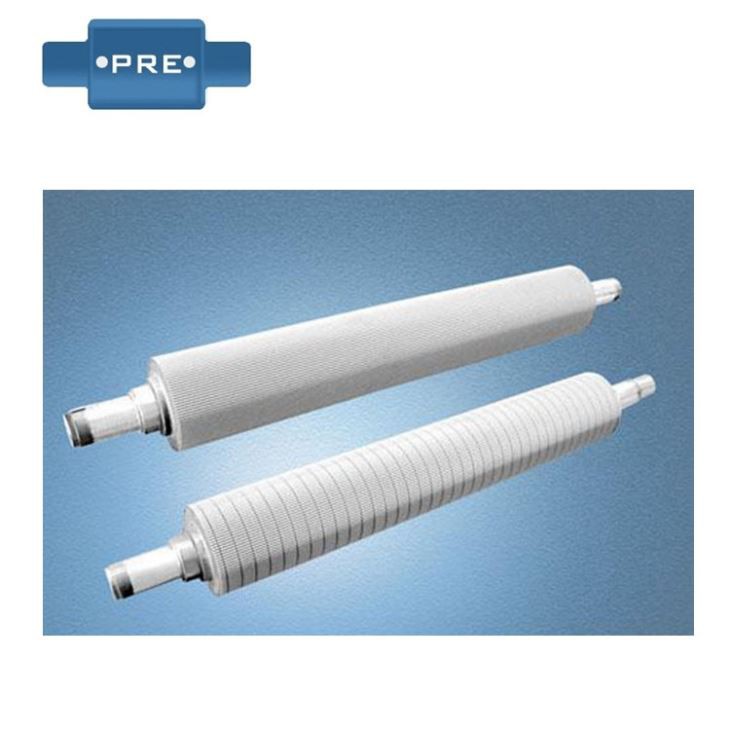

Alloy Steel Material Corrugated Rollers

1.The corrugated roll is made of high quality alloy steel. The technology comes from war industry. 2..Adopt high precision computer control professional grinding machine. 3.It is treated by special corrugated roll surface treated technology. The hardness is very high. 4. High-speed corrugated...

Send Inquiry Chat Now

Product Details

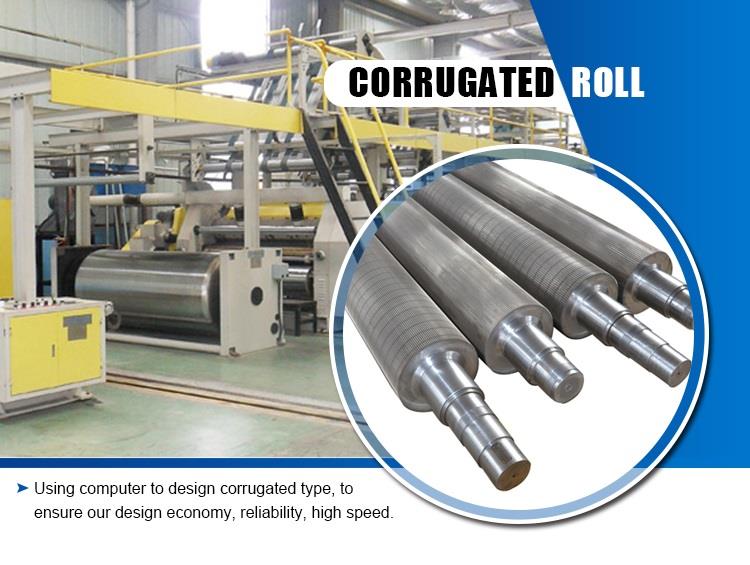

1.The corrugated roll is made of high quality alloy steel. The technology comes from war industry.

2.Adopt high precision computer control professional grinding machine.

3.It is treated by special corrugated roll surface treated technology. The hardness is very high.

4.High-speed corrugated roll with big diameter. The maximum working speed is 300m/min.

5.Gear type: UV,V. Flute type: A, B, C, BC, D, E, F optional.

6.Fingerless suction and inner suction are optional.

7.We are engaging in design ,repair, manufacture all kinds of corrugating roll.

Type of corrugafion	A	C	BC	BC2	B	D	DE	E	F
Shape of corrugafion	UV	UV	UV	UV	UV	UV	UV	UV	UV
Quantity of corrugafion	34±2	38±2 40±2	44±2	48±2	50±2	66±6	75±3	96±4	124±10
Hight of corrugafion	4.6-4.9	3.6-3.9	3.0-3.4	2.8-3.2	2.6-2.9	1.9-2.1	1.5-1.9	1.1-1.8	0.7-0.8
Rate of corrugafion	1.51-1.59	1.44-1.51	1.42-1.49	1.40-1.45	1.36-1.42	1.40-1.41	1.35-1.4	1.29-1.39	1.22-1.26

products

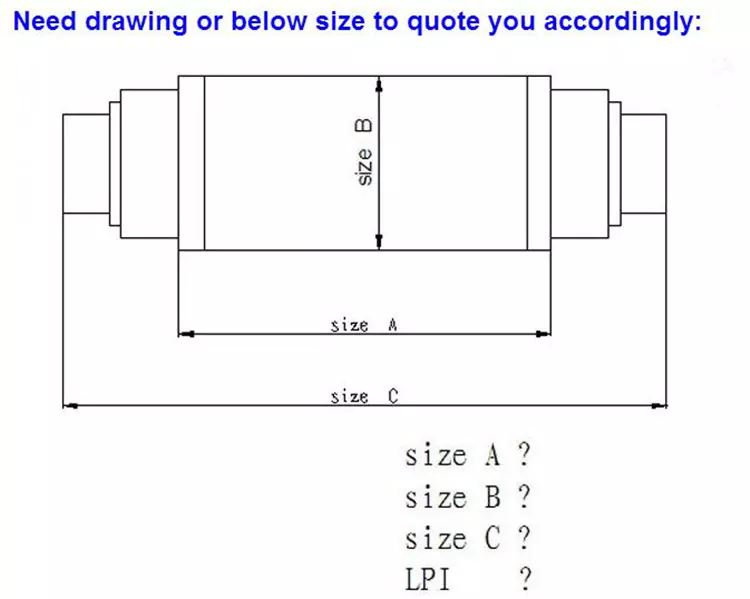

how can we get the price

Order Details

Item Name	Alloy steel material corrugated rollers
MOQ(Minimum Order Quantity)	1Pc
Lead time	15-18 days after receiving the deposit
Calculated Weight	Need to count
Package	Wooden Box
Price Term	EXW,FOB, CIF, etc
Payment term	TT,L/C,Western Union
Country of Origin	China
