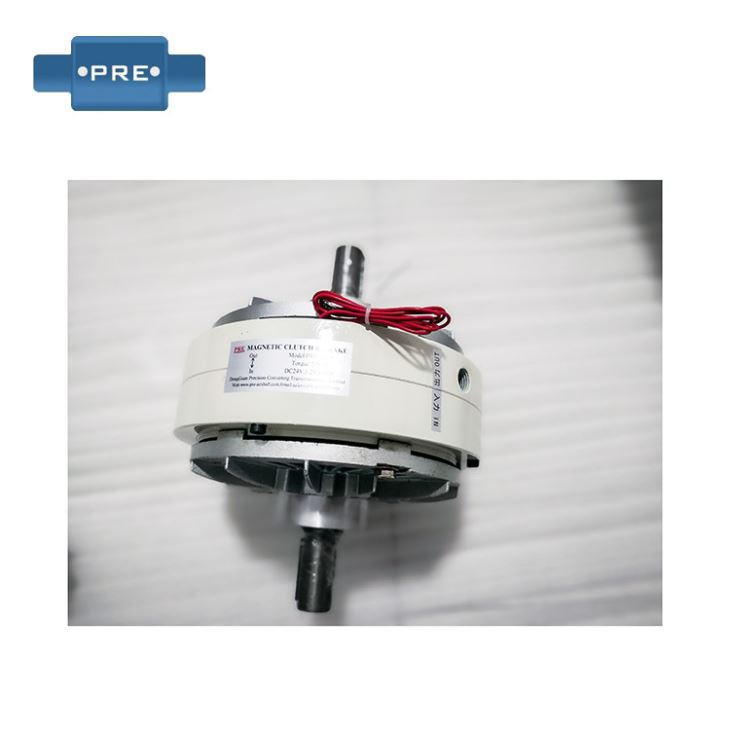

Magnetic Clutch Assembly

Magnetic powder clutch using

1, Buffer start stop
2, Continuous sliding, tension control
3, Torque limiter
4, High-speed response
5, Power absorption
6, Positioning stop
7, For analog load
8, Can be used in the torque transmission process of the cooperation and torque braking.
9. Suitable for constant tension control systems, such as: printing presses, slitting machines, laminating machines, coating machines, paper machines, wire drawing machines and cable winding machines, as well as processing equipment and textile machinery for sheet metal, strip and film. Wait.
10, can replace the ordinary clutch, used for rapid separation of machine tools, numerical control devices, computers, wide-line printers and various precision machinery.
11. As an overload device, it can be applied to mine lifting machinery, lifting machinery, cement, steel and other mechanical equipment, which can make the prime mover start at no load, gradually load, and improve equipment load capacity.
12, Stepless speed regulation, coupled with sensors and control lines can achieve stepless speed regulation, especially for high speed speed fine adjustment and medium and small power speed control system.
13. In the overload protection, when the working system is accidental and the torque is overloaded, the clutch automatically slips, thus protecting the mechanical equipment and the motive power.
Due to the above characteristics, the magnetic powder clutch has been widely used in papermaking, printing, plastics, rubber, textile, printing and dyeing, wire and cable, metallurgy and other related winding and winding tension control. In addition, the magnetic powder clutch can also be used for buffer starting, overload protection, speed regulation and the like.

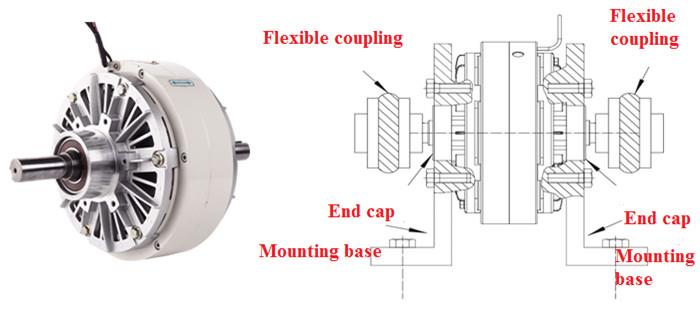

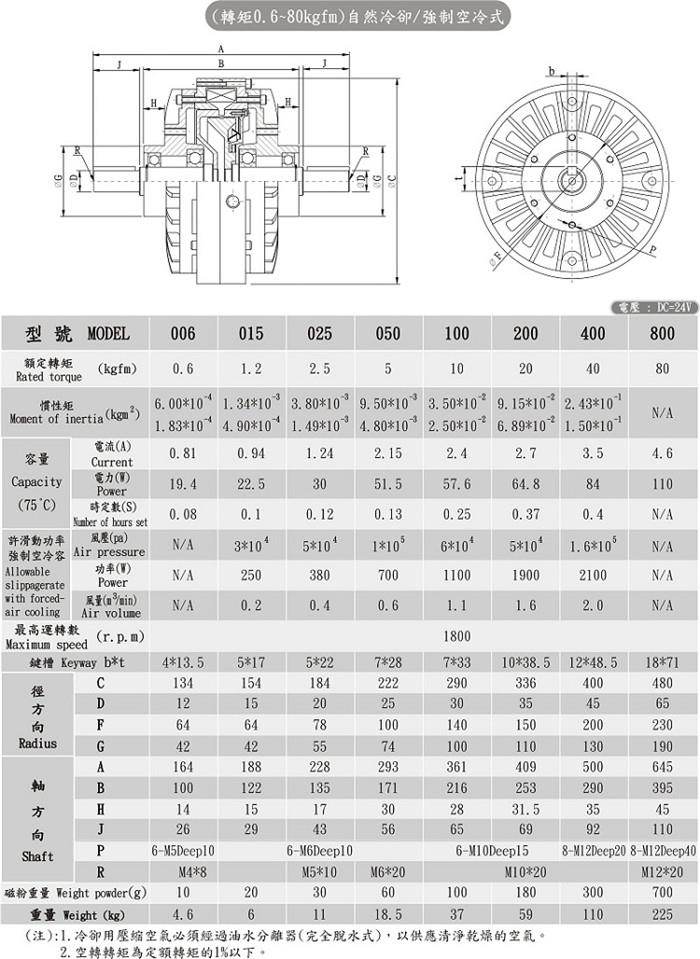

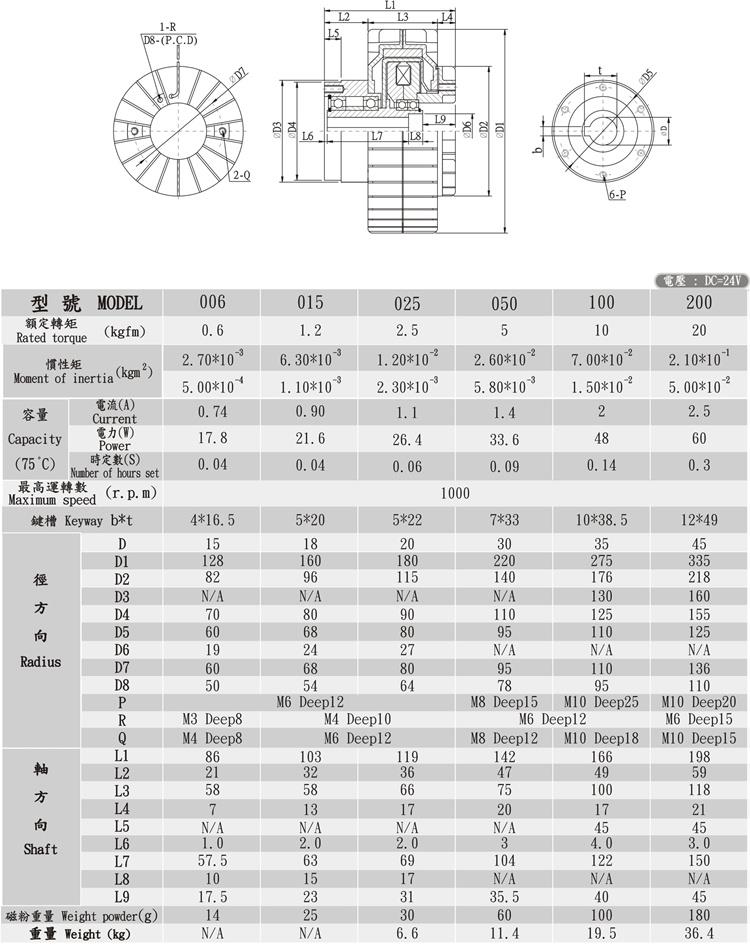

PRE-A Double Shaft Magnetic Powder Clutch

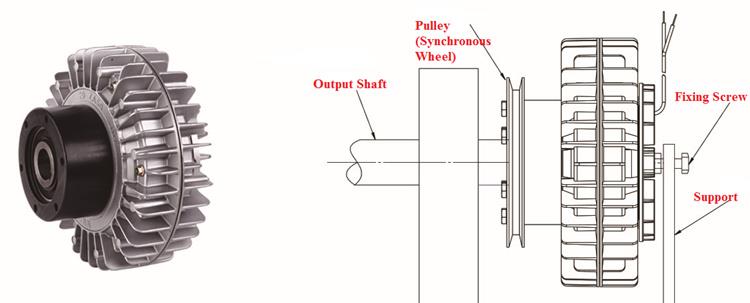

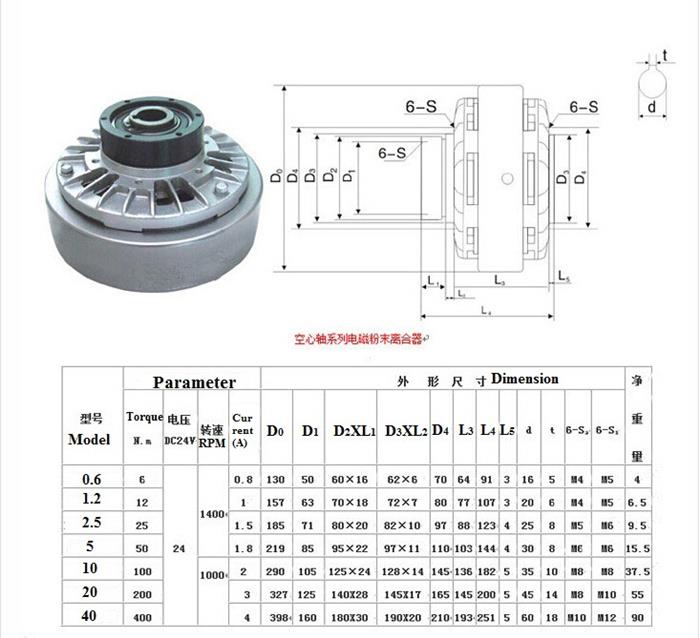

PRE-A1 Hollow Shaft Shell Rotating Magnetic Powder Clutch

PRE-A2 Hollow Shaft Inner Shell Rotating Magnetic Powder Clutch

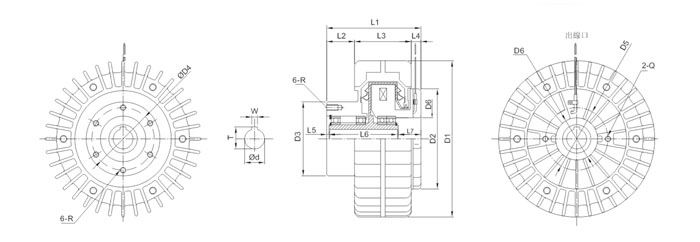

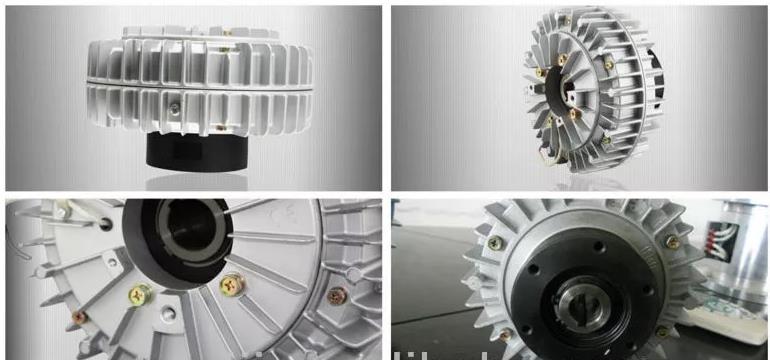

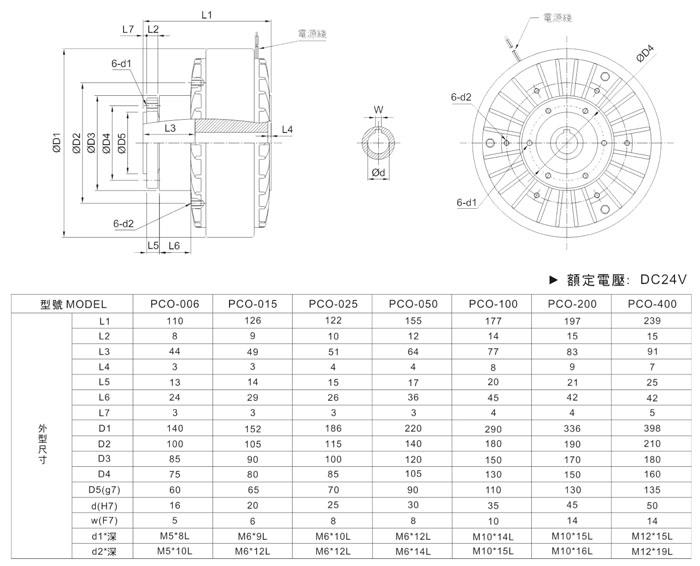

POC rotating magnetic powder clutch

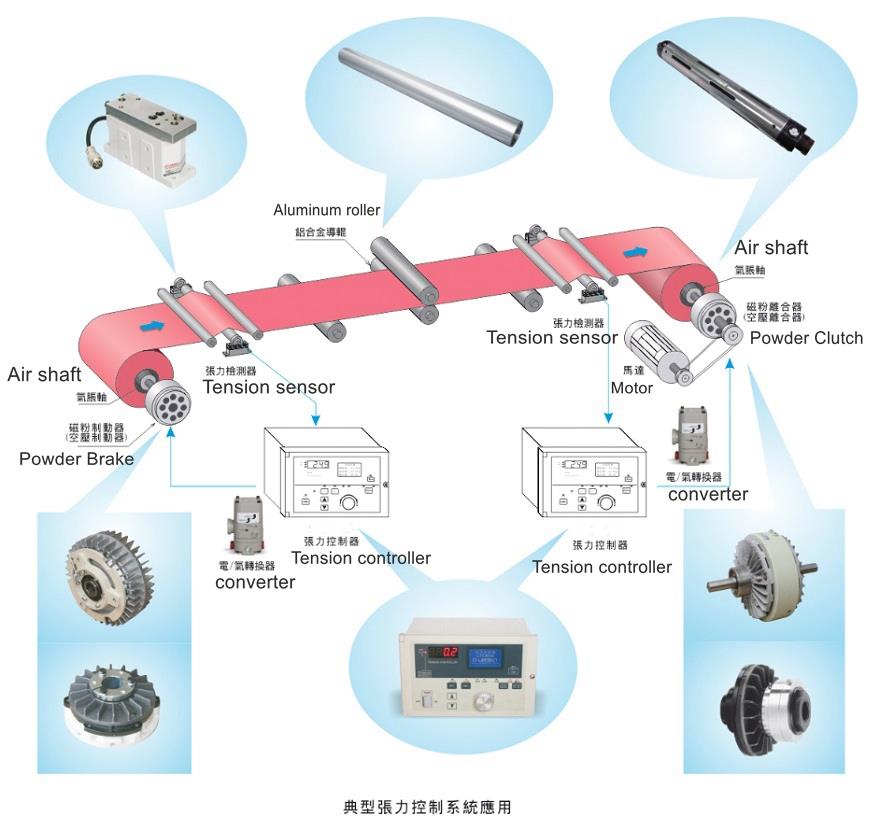

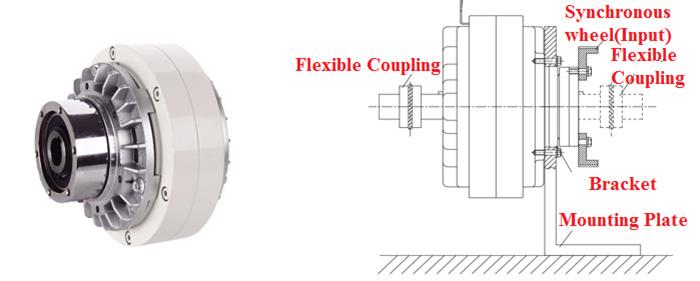

The Schematic Diagram of powder clutch,tension control, web guide system and other parts on equipment.

Magnetic powder clutch application in various industries

In the light industry of modern textile, papermaking, color aluminum coating, etc., the processed material is generally wound into a cylindrical shape during or after processing. In this process, the quality of the winding will directly determine the quality of the product. The roll is too tight, and it is easy to deform or even break the product; the roll is too loose and the product is not compact, which is not conducive to handling and packaging. Therefore, in order to achieve compact winding and ensure the quality of the product, it is required to be in the winding process. Apply a certain tension to the fabric and keep the tension at a constant value. Therefore, we need a brake that can accelerate, decelerate, stop or keep the tension control system function, so as to ensure the safe production of the product. The magnetic powder clutch is a magnetic powder that uses electromagnetic effect to transmit torque. It has the advantages of linear relationship between excitation current and transmission torque, fast response, simple structure, no impact, no vibration, no noise, no pollution, and the like. Light weight and good control characteristics, it is a multi-purpose performance superior to automatic control components, widely used in various industries in the loading, braking and winding system of the winding and unwinding tension control.
