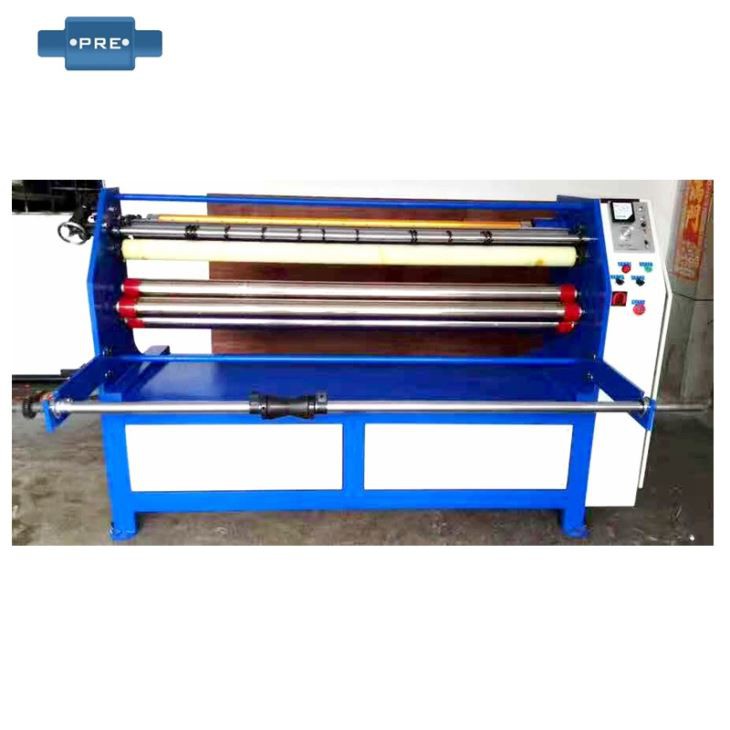

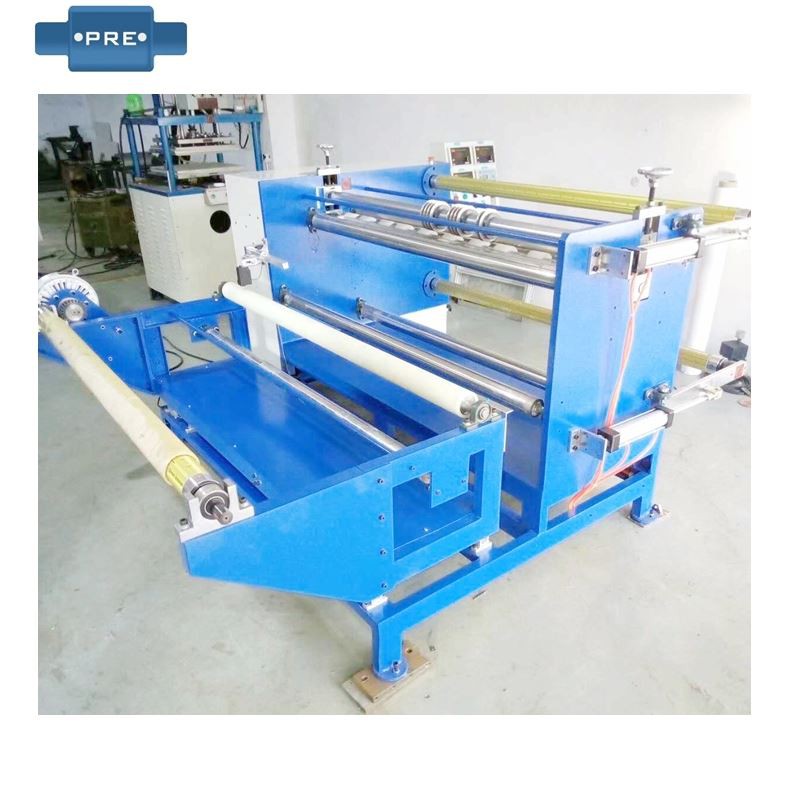

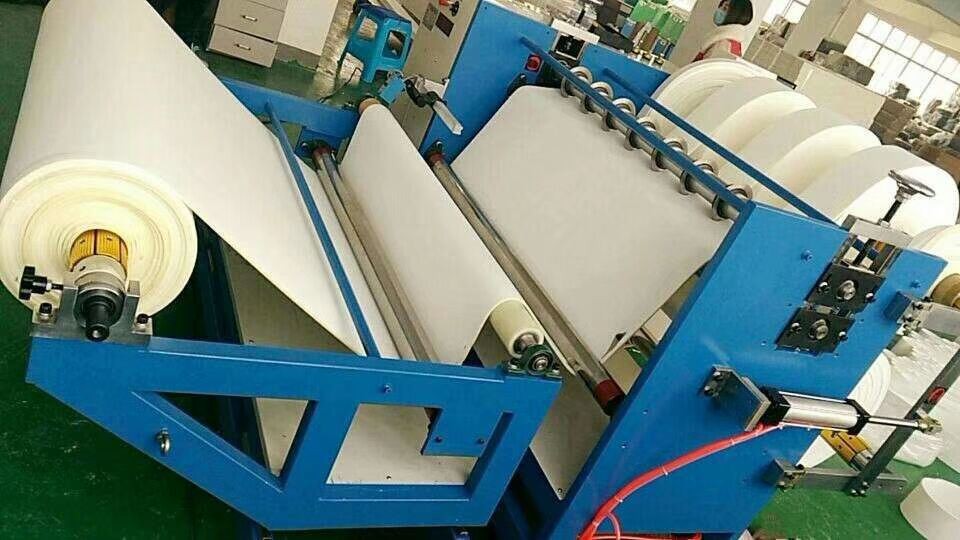

Mask Material Metblown Roll Cutting Slitting Rewinding Machine
Introduction Slitting machine is a mechanical device that cuts wide-width paper, mica tape or film into multiple narrow-width materials. It is commonly used in papermaking machinery, wire and cable mica tape and printing and packaging machinery. The main application of the slitting machine:...
Introduction
Slitting machine is a mechanical device that cuts wide-width paper, mica tape or film into multiple narrow-width materials. It is commonly used in papermaking machinery, wire and cable mica tape and printing and packaging machinery. The main application of the slitting machine: non-woven fabric; mica tape, paper, insulation materials and various film materials, especially suitable for the narrow band (non-woven fabric, paper, insulation materials, mica tape, film, etc.) cut.
Technical parameters
2. Cutting width: adjustable above 20mm
3. The maximum diameter of raw material unwinding: φ600mm
4. The maximum diameter of raw material winding: φ500mm
5. Maximum width of slitting raw materials: 1600mm
6. Diameter of rewinding inflation shaft: ¢ 76m (Leaf type)
7. Air-expansion shaft at the discharge end: ¢ 76mm (Leaf type)
8. Correction accuracy: ± 0.5mm
9. Cutting accuracy: ± 0.5mm
10. Speed: 0-100mm / min
11 Total power: 5kw
12. Body color: blue and white (other colors can be customized)
13. Using ultrasonic automatic photoelectric correction system
14. Equipped with automatic tension controller
15. Magnetic powder brake and magnetic powder clutch
Note: The configuration of the aircraft is different, the price is different. This price is for reference only. Specific price,
please connect with our customer service.
FAQ
Answer: Yes, as long as the material of the product you produce meets the requirements, and the product specification does not exceed the maximum range of product specifications, there is no problem.
Q: I haven't done it before and don't how to operate how can do it?
Answer: Don't worry about this problem at all. The machine we provide to you will take the operation video to you, You can
understand clearly, and there are professional technical personnel to connect. If necessary, we will arrange professional
technicians to provide on-site service.
Q: What if the machine breaks down so far? Is there any guarantee after sale?
Answer: If there is a problem with the machine during the warranty period, we will help solve it in the fastest way. For example, if the parts are broken, we will send you new accessories in the fastest way. If necessary, we will arrange professional technicians to provide on-site service.
Q: How long is the production period?
Answer: Generally 7-15 days, if the machine you ordered is large, the relative delivery time will be extended a little bit.
Packing
