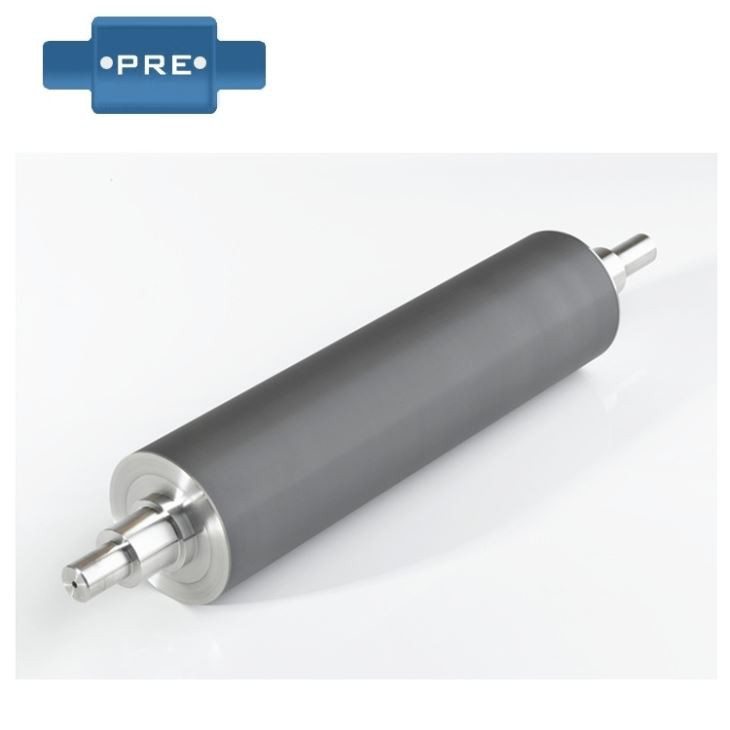

Metal Anilox Roller
Description: Mainly used in printing, sizing, coloring, coating, leather, plastic, metal foil, synthetic rubber sheet and other industries. Advantages and features: Technical Parameters: Number of lines: 6--500 lines/inch; Diameter: Φ30--Φ500mm; Length: ≤4000mm Mesh shape: 1, pyramid type; 2,...
Description:
Mainly used in printing, sizing, coloring, coating, leather, plastic, metal foil, synthetic rubber sheet and other industries.
|
Material |
Staineless steel pipe Carbon steel pipe Alloy steel pipe |
|
Feature |
Pyramid Comby Dot Mess Dot Diamond Hexagon Sloping Line Others |
|
Structure |
Single-layer Multi-layer screw Z flow Others |
|
Surface |
Chroming, 0-300LPI Ceramic, 0-1200LPI |
|
Application |
Plastic films/sheets/plates Textiles Paper Leather Metal foil/sheet/plates Glass Others |
Technical Parameters:
Number of lines: 6--500 lines/inch;
Diameter: Φ30--Φ500mm;
Length: ≤4000mm

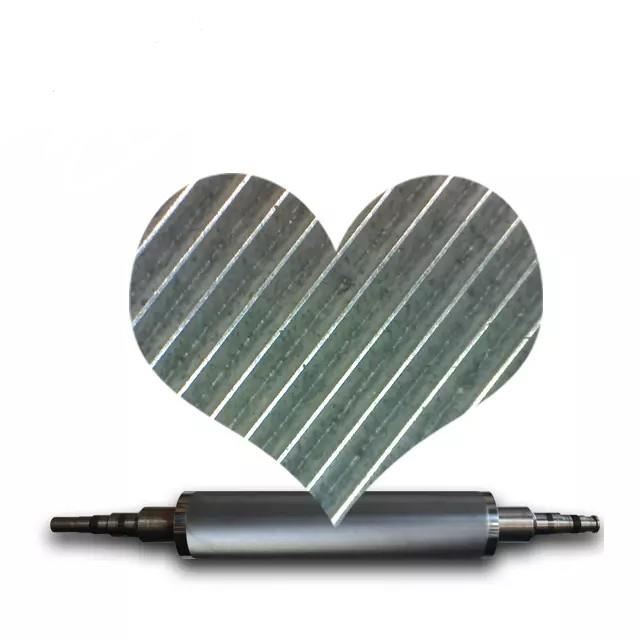

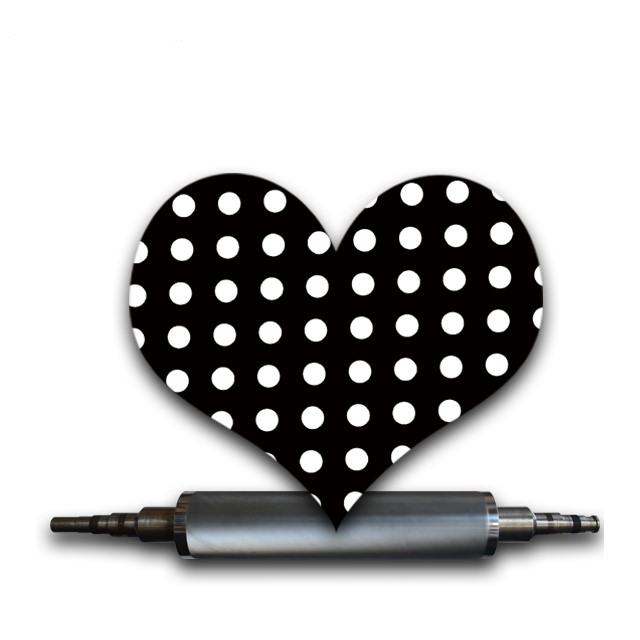

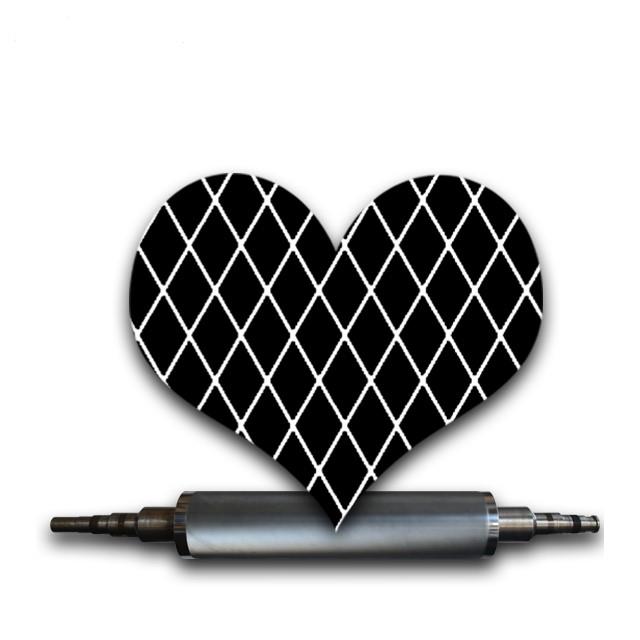

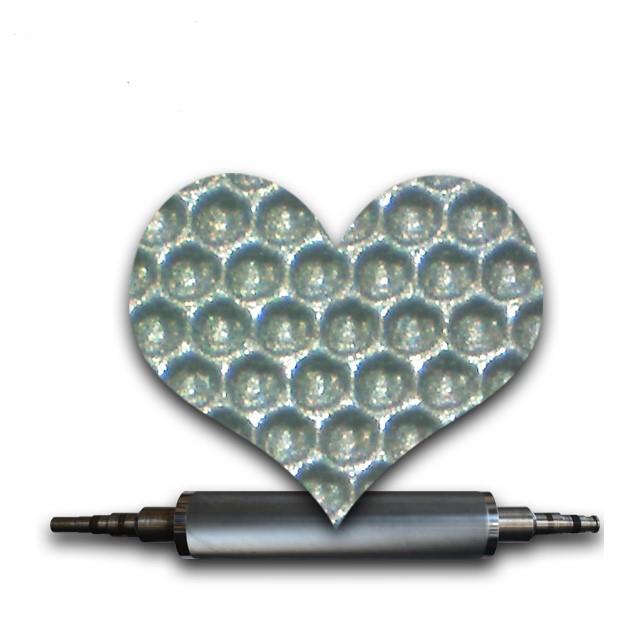

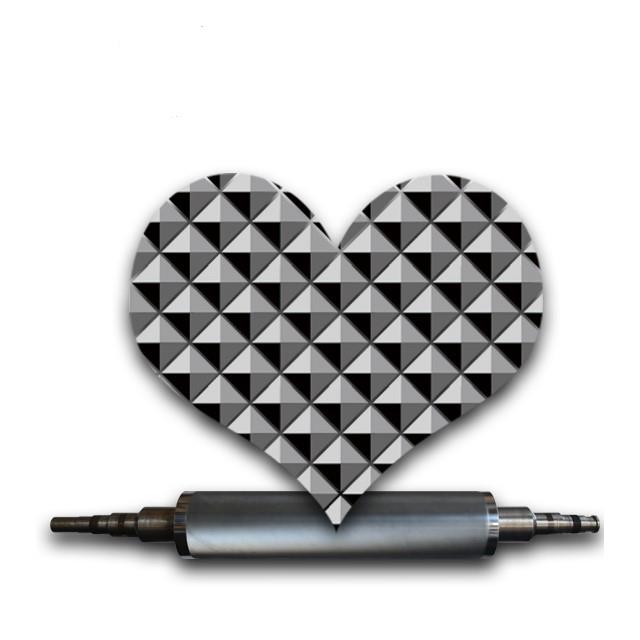

Mesh shape:
1, pyramid type;
2, square pyramid type;
3, square truss type;
4, prism type; dot type;
5, hexagon type;
6, square type and other mesh types;
7,special types are processed according to customer requirements
|
Number of lines / size |
Depth |
Volume |
Number of lines / inch |
Depth |
Volume
|
|
12 |
300 |
98.4 |
17 |
430 |
188 |
|
15 |
290 |
90.6 |
25 |
350 |
161 |
|
32 |
260 |
82.3 |
30 |
260 |
116 |
|
40 |
200 |
68.7 |
35 |
220 |
96.3 |
|
50 |
160 |
62.8 |
45 |
220 |
94.9 |
|
55 |
150 |
50.2 |
55 |
165 |
76 |
|
65 |
110 |
46 |
65 |
150 |
69.4 |
|
75 |
95 |
32.4 |
75 |
135 |
64.6 |
|
90 |
90 |
29.9 |
85 |
120 |
58.1 |
|
100 |
85 |
25.3 |
95 |
100 |
49.8 |
|
110 |
75 |
34.2 |
110 |
95 |
45.3 |
|
120 |
65 |
23.4 |
120 |
85 |
41.1 |
|
130 |
65 |
19.4 |
130 |
75 |
34.1 |
|
140 |
55 |
16.3 |
140 |
70 |
31.6 |
|
150 |
50 |
14.9 |
150 |
60 |
26.7 |
|
165 |
40 |
11.7 |
165 |
55 |
23.5 |
|
180 |
30 |
9.30 |
180 |
45 |
19.2 |
|
200 |
20 |
6.16 |
200 |
30 |
12.0 |
How can we get the price?

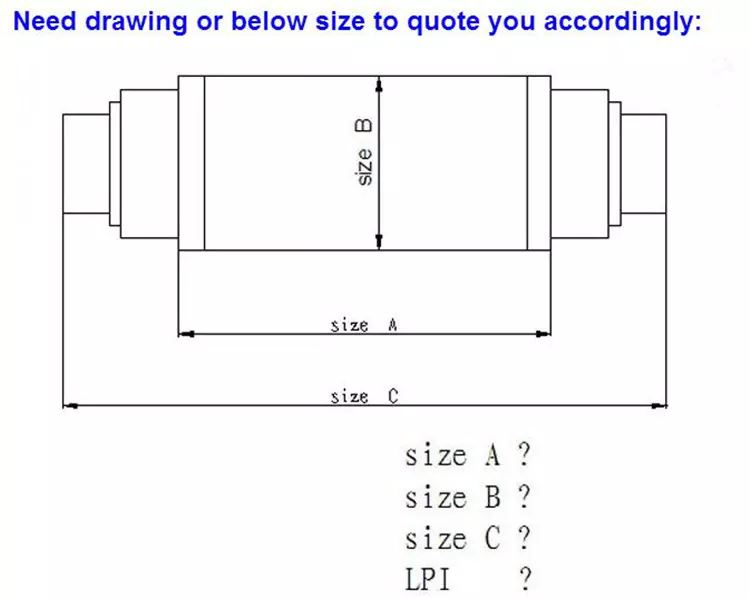

A.The drawing of the ceramic anilox roller if possible(or you can get a estimate price by telling us the total length,effective face length,diameter as the following picture.
B.LPI an BCM
C.Where do you use the ceramic anilox roller?flexo printing machine,coating machine or offset UV unit?
Order Details
|
Item Name |
Metal anilox roller |
|
MOQ(Minimum Order Quantity) |
1PC |
|
Lead time |
15-20 days after receiving the deposit |
|
Calculated Weight |
Need to calculate |
|
Package |
Wooden Box |
|
Price Term |
EXW,FOB, CIF, etc |
|
Payment term |
TT,L/C,Western Union |
|
Country of Origin |
China |
Hot Tags: metal anilox roller, China, manufacturers, suppliers, factory, quotation, pricelist, buy
