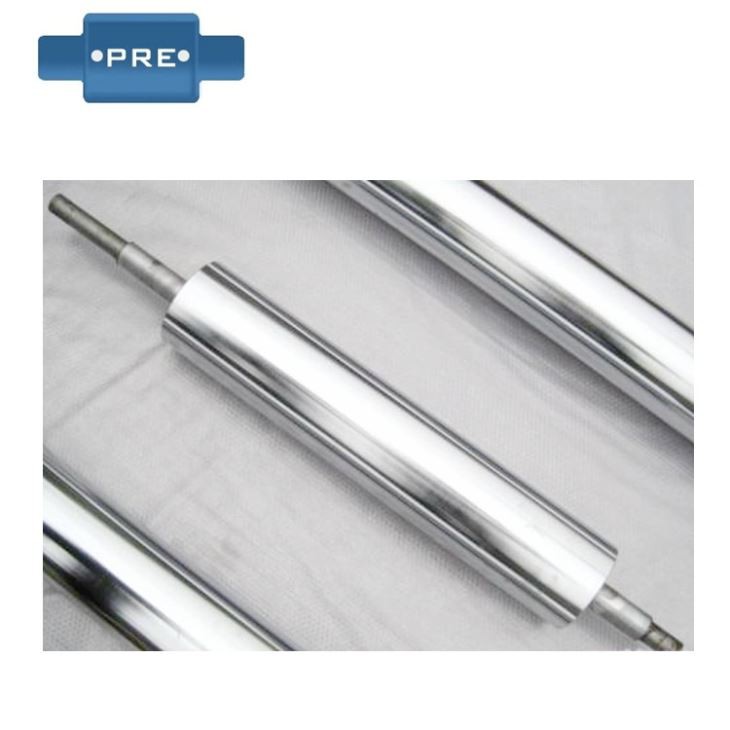

Mirror Roller
strong technical force, advanced production technology, high starting point and strict management. The surface roughness of mirror roller reaches Ra0.025-0.012um. The concentricity and roundness are guaranteed within 0.01mm. φ50-φ1000mm, and the longest length is 8000mm.
|
Product Name |
PRE mirror roller |
|
Material |
Stainless steel pipe/ Carbon steel pipe/ Alloy steel pipe |
|
Surface |
Chroming/ Teflon coating/ ceramic/ Tungsten carbide |
|
Structure |
Single layer/ multiple layer/ others |
|
Process |
CNC engraving, laser engraving, Ectching engraving |
|
Size |
As customized Tube Dia: 25mm, 38mm, 50mm, 60mm etc Pin dia: 8mm, 12mm etc Tube thickness: 1.2mm, 1.5mm, 2mm, 3mm etc Length: Max.8000mm |
|
Color |
As customized |
|
Application |
Printing and Dyeing Industry, Leather Industry, Plastic Industry, Paper Industry, Metallurgical Industry |
|
ITEM |
DISCRIPTION |
TECHNICAL PARAMETER |
|
1 |
Material mirror roller |
45# steel ,alloy seamless steel tube and forging pieces |
|
2 |
Structure iror roller |
All kind of passageways or jacket-type design mirror roller |
|
3 |
Processing or roller |
Ground precisely with 3M USA abrasive materials , treated through advanced heat treatment process for materials multi- destressing ,quenching.surface anti-glossing with automatic sand blaster or matte.highly efficient heef-25 micro -crack hard-chrome plating mirror roller |
|
4 |
Precision mirror roller |
Surface finish: mirror polishing; (also available: sand finish, spray finish, chemical corrosion finish, engraving, laser curving, cutter curving...) Roughness Ra0.01,(smooth finish:level 14),cooling or heating temperature difference <+/-1 degree,temperature distortion<0.01mm , flatness <0.005mm ,pulsation<0.005mm,surface hardness HRC55-58,hardness after chrome plating and polishing HV1000(hrc62) |
|
5 |
Usagemirror roller |
Adaptable to treatment of calendering and flat glossing of plastic ,Coatings mirror roller Metal sheets and metallic foils/films Decorative printing Flexoprinting / packaging Flooring Glass / glass ceramics Derived timber products Automotive / artificial leather Plastics Leather Paper Other applications Tissue Ultrasonic applications Nonwoven / textile Corrugated paper |
Order Details
|
Item Name |
PRE Mirror Roller |
|
MOQ(Minimum Order Quantity) |
1Pc |
|
Lead time |
10-15 days after receiving the deposit |
|
Calculated Weight |
Need to calculate |
|
Package |

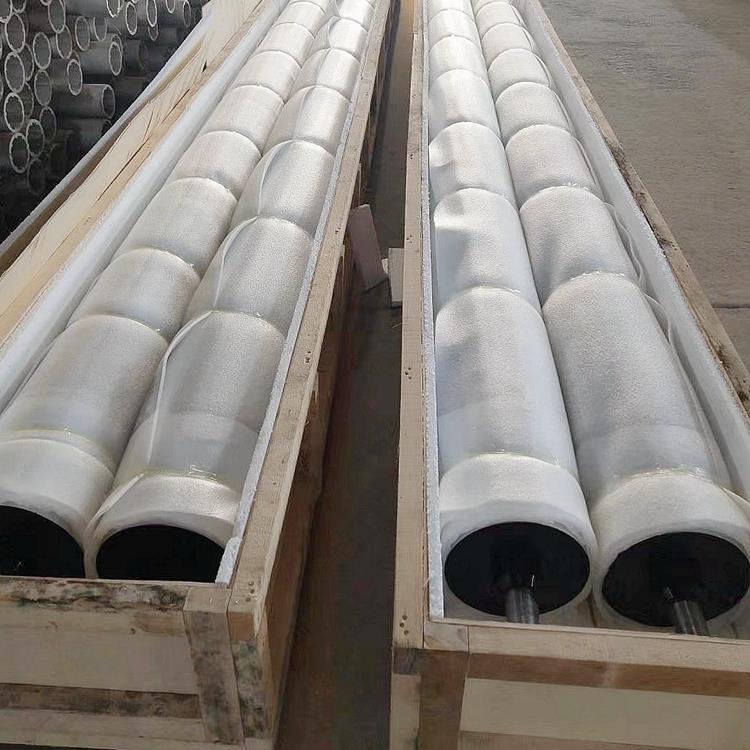

Wooden Box |
|
Price Term |
EXW,FOB, CIF, etc |
|
Payment term |
TT,L/C,Western Union |
|
Country of Origin |
China |
FAQ
Q: How much of each roller?
Re: Always the customers need the offer,but we need the customer to supply some specification as following:
Firstly, the measure of roller ,( the diameter of roller, including the end of roller) , if the drawing is supplied, which is good. Secondly, .the dimension of pattern, for 2 kinds conditions:
1 the dimension of pattern is ruled design,please tell us the size, sequence and the processing depth , etc data)
2 if the dimension of pattern is not ruled design, please supply the drawing or the sample.
Additional, the end use of the roller, and another requirements should be told together.
Q: Can you renovate the former roller and design the pattern?
Re: It is ok, we can renovate, so it can reduce the customer's cost.
Q: How long of the processing time?
Re: It depends on the pattern design, usually the time is 7 to 30days, some complex pattern, it is more long time.
Q: How long of the Guaranty time?
Re: for the whole roller, it is one year( 12 months)
