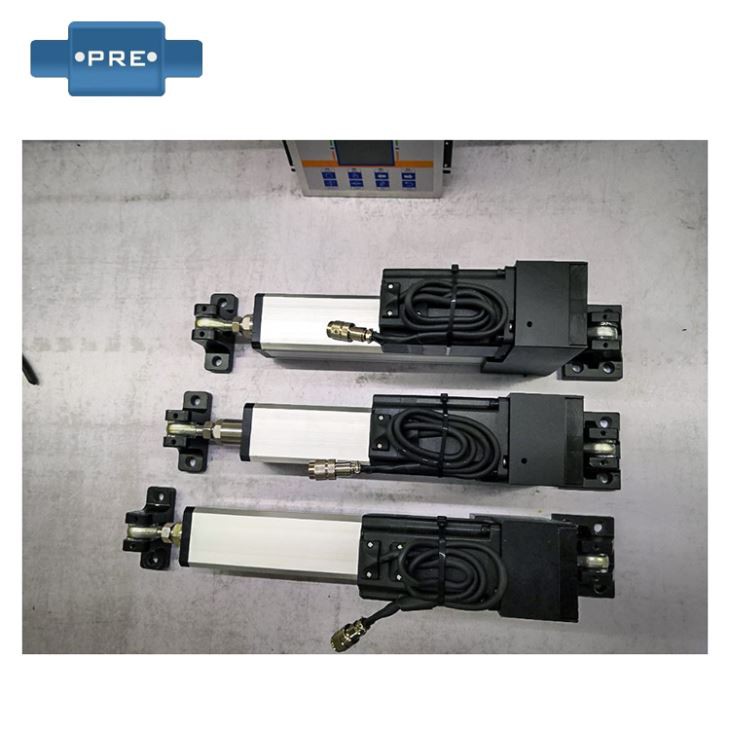

PD-204L200 Web Aligner Actuator
Servo Motor Linear Actuator PD-204L150 uses brushless DC servo motor to drive. Comparing with other motors, it has features of high efficiency, fast speed, short responding time, large torque for start-up, accurate braking and maintenance-free，etc.
Servo Actuator Parameter
Model No | PD-204L200 |
Max thrust N(Kgf) | 200(200) |
Max weight | 2000KG |
Rod Stroke | 200mm(+-75mm) |
Max Driving Speed | 40mm/s |
Servo Motor Linear Actuator PD-204L150 uses brushless DC servo motor to drive. Comparing with other motors, it has features of high efficiency, fast speed, short responding time, large torque for start-up, accurate braking and maintenance-free，etc. The part of driving uses the high-accurate ball screw with high-efficient transmission, less return differences and precise positioning. It is suitable for the high-speed and high-accurate deviation rectification.

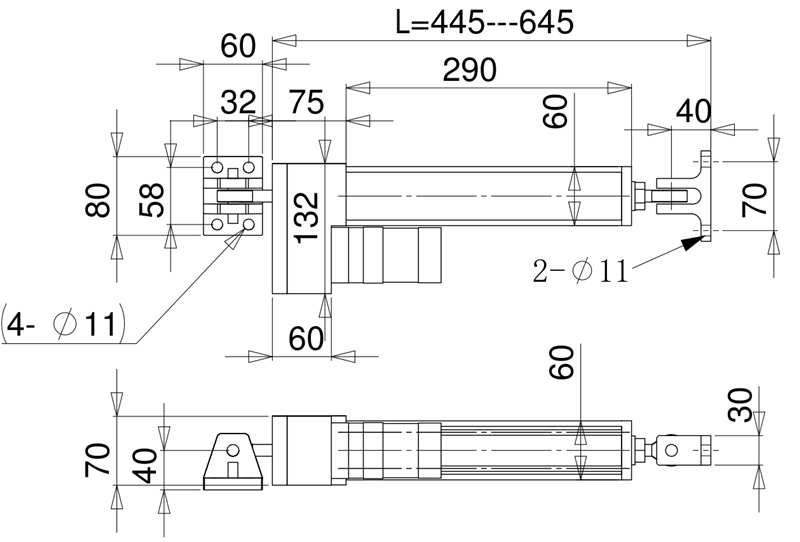

Drawing:

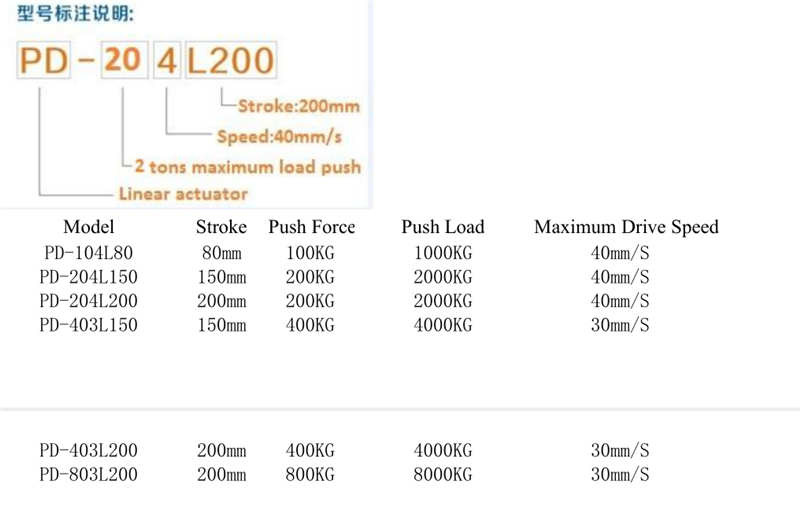

Specification:
1. Brushless servo motor to drive, maintenance-free
2. High-accurate ball screw, precise positioning
3. Without mechanical travel switch, calculate the position by encoder pulse
4. Thrust from 150Kg to 200Kg, the maximum can push the rack of 1.5T to 3T
5. Drive speed is 14mm/s to 400mm/s
Order Details
Item Name | PD-204L200 Web Guide Actuator |
MOQ(Minimum Order Quantity) | 1Set |
Lead time | 2-3 days after receiving the deposit |
Calculated Packing Size | 50cm*20cm*15cm,17kg/set |
Package | Carton/Wooden Box |
Price Term | EXW,FOB, CIF, etc |
Payment term | TT, L/C,Western Union |
Country of Origin | China |
