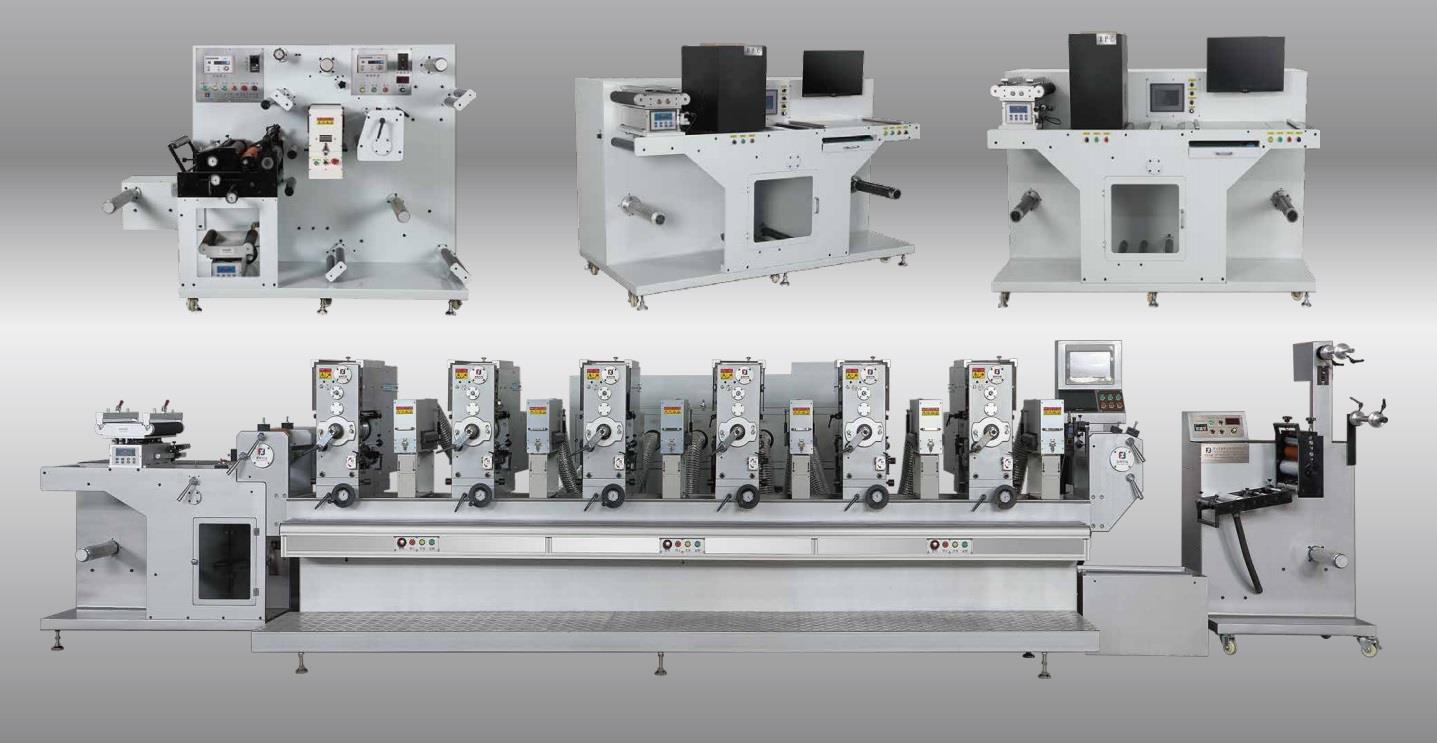

The automatic rectification control system has excellent rectification effect on the high-transparent ultra-thin transparent film, and does not need any adjustment and convenient use, and is suitable for the correction of all non-porous materials, especially the rectification of the high-transparent ultra-thin transparent film, and has a fast response speed. The utility model has the advantages of large thrust and high precision of deviation correction, and can be widely applied to automatic correction control of printing, packaging and other machinery.

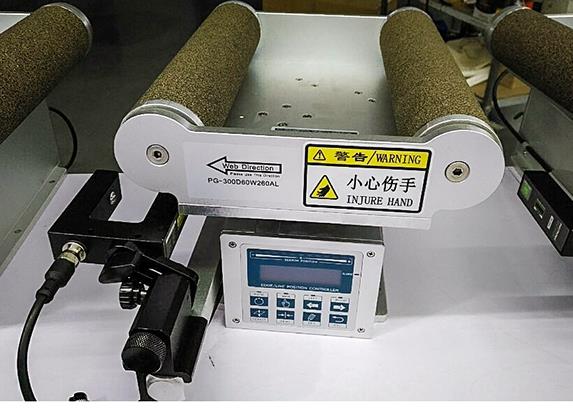

Ultrasonic Guide System

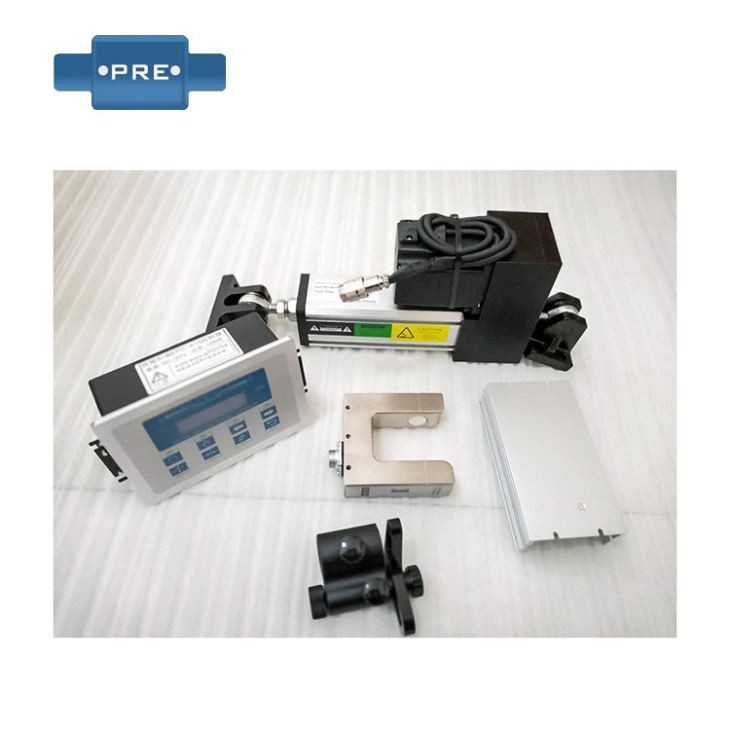

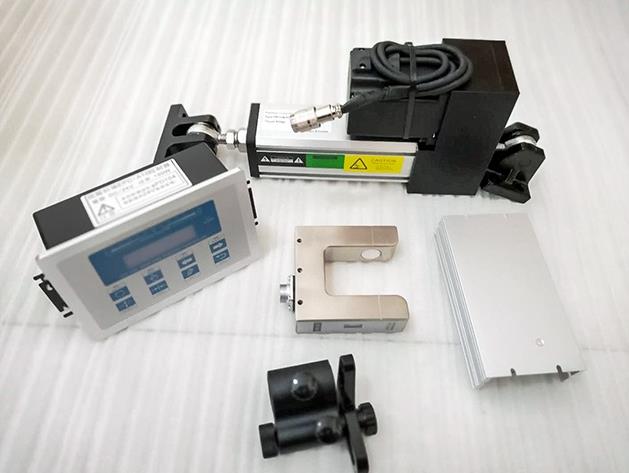

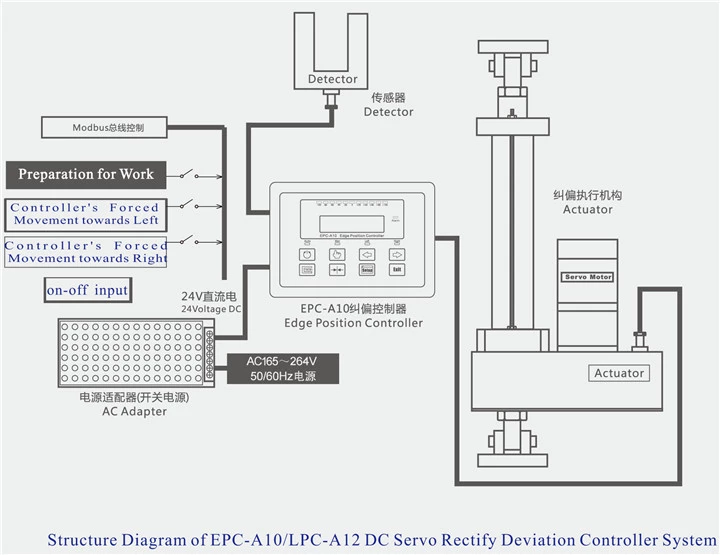

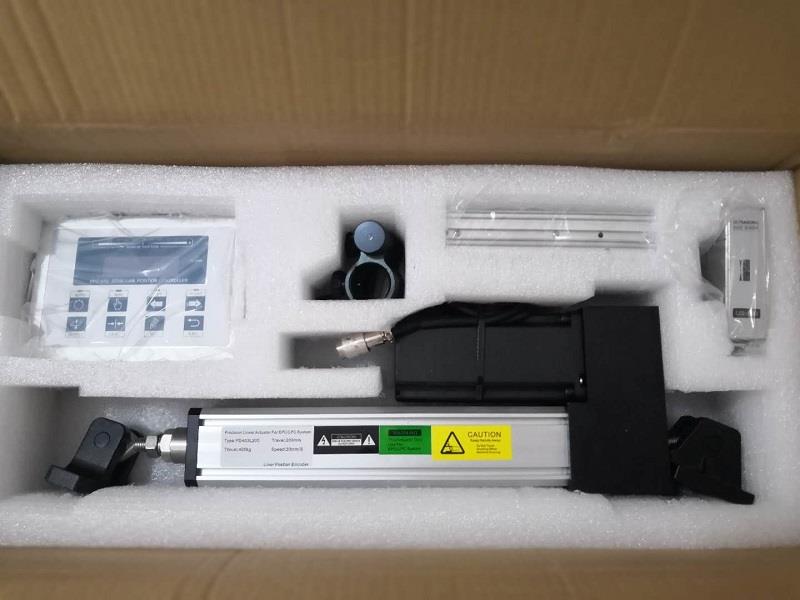

The utility model is composed of a digital guiding controller, an ultrasonic guiding sensor and a stepping motor actuator, wherein the ultrasonic sensor outputs an analog quantity and a switching quantity signal, and is suitable for a non-voiding impervious material such as paper, film, metal, etc., and the ultrasonic sensing head can stably sense the material. The displacement is at least 0.1mm, and the 0-5V digital to analog device can accurately transmit the material displacement signal to the controller;

l The controller adopts all-digital device design, which is resistant to static electricity on site, strong electromagnetic interference capability and stable operation;
l The controller supports switching signal and analog signal conversion, and adapts to a wide range according to the accuracy requirements of different materials;
l The maximum output power of the controller reaches 70W, which can directly drive motors above 70W, and has good heat dissipation performance, which is suitable for long-term working environment requirements;
l The actuator adopts 57 three-phase stepping motor with a torque of 1.5NM, which is equivalent to the torque of 90 synchronous motor, but the stepping motor is easier to control the speed, so it is suitable for correcting small deviation, stopping rotation and acceleration performance. With the ball screw, the maximum thrust of the actuator reaches 200KG, and the horizontal load of the linear guide is about 2000kg. You can try most of the small and medium thrust.

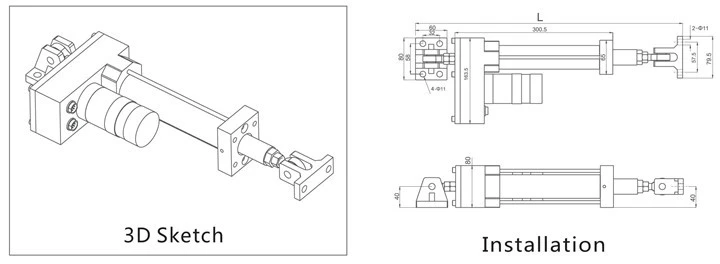

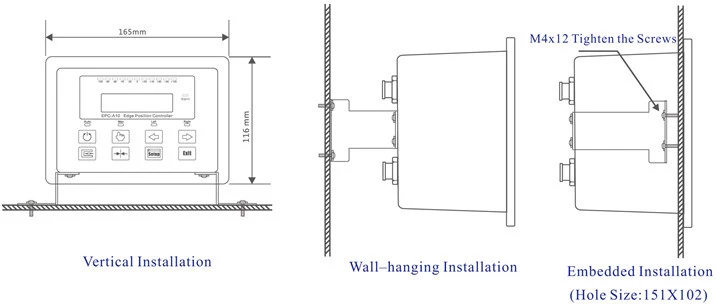

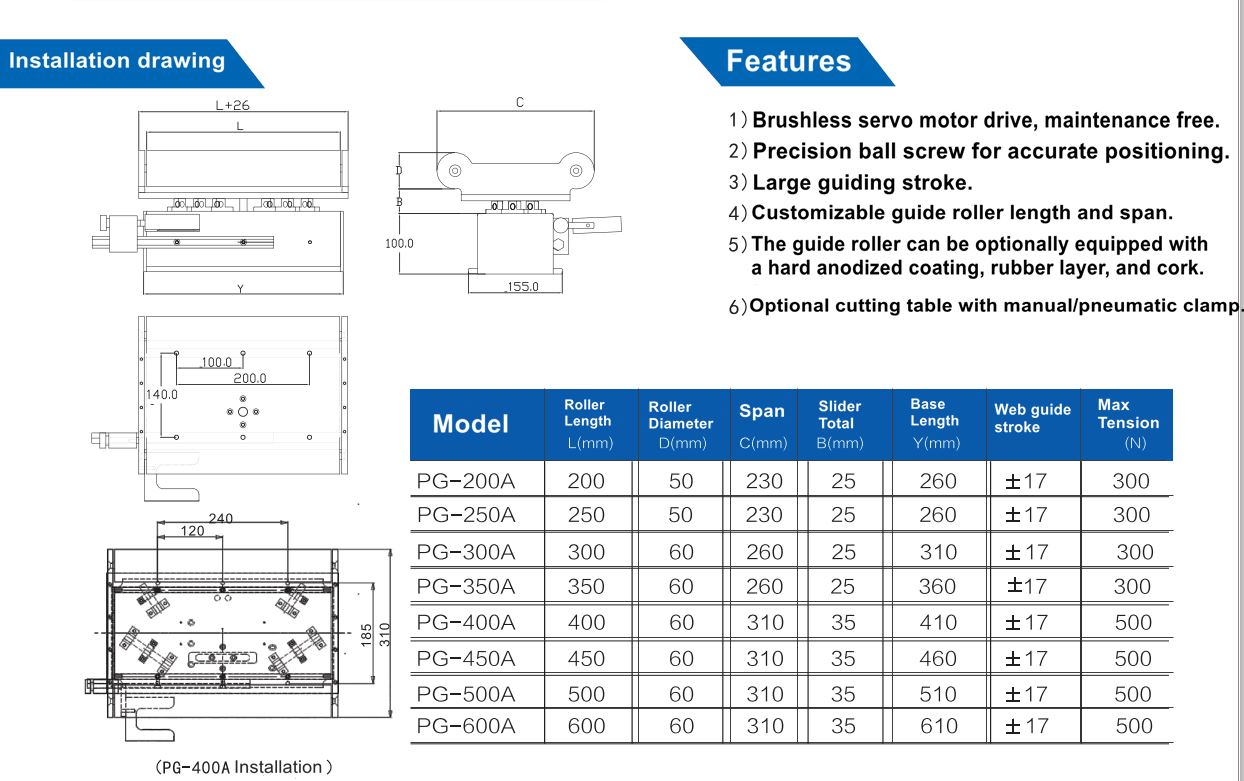

Installation :

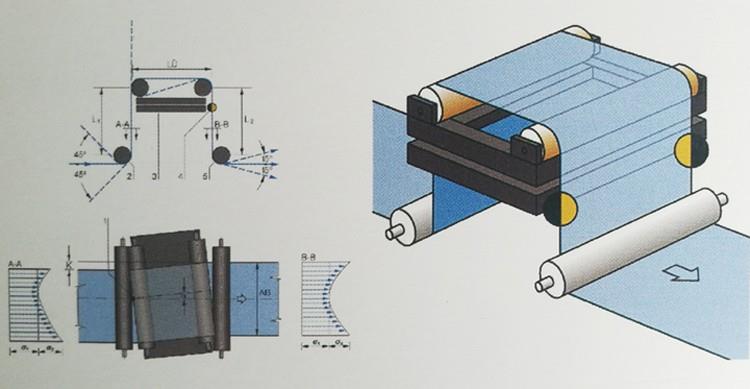

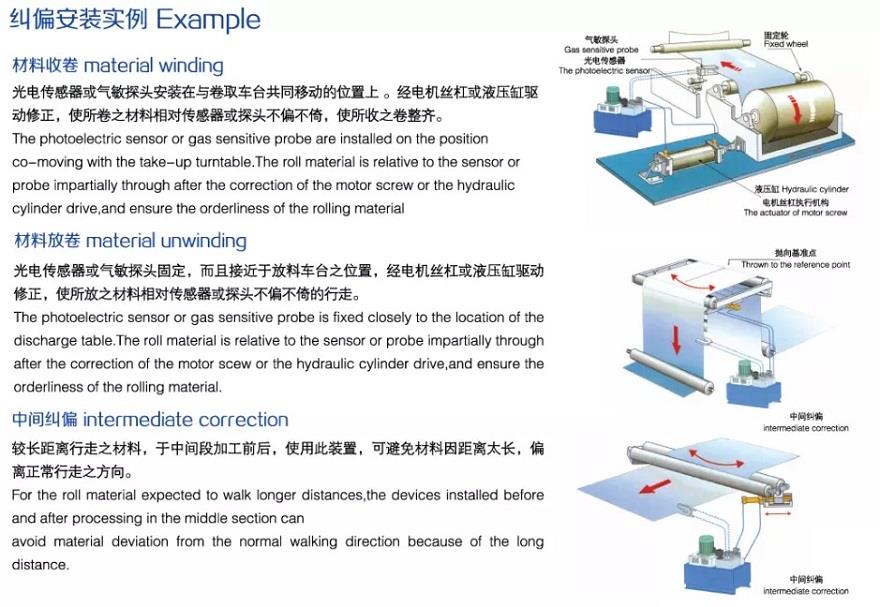

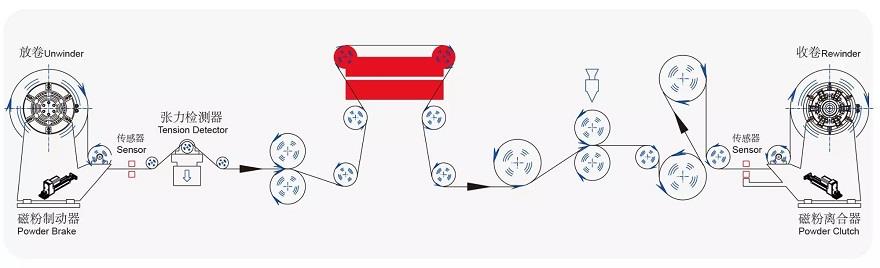

Rewinding and Unwinding guide system

Servo Motor Linear Driver Parameter:

Model	Travel	Thrust	Pushing loading	Max. driving speed
PD-104L80	80mm	100kg	1000kg	40mm/s
PD-204L150	150mm	200kg	2000kg	40mm/s
PD-204L200	200mm	200kg	2000kg	40mm/s
PD-403L150	150mm	400kg	4000kg	30mm/s
PD-403L200	200mm	400kg	4000kg	30mm/s
PD-803L200	200mm	800kg	8000kg	30mm/s

Intermediate Guide system

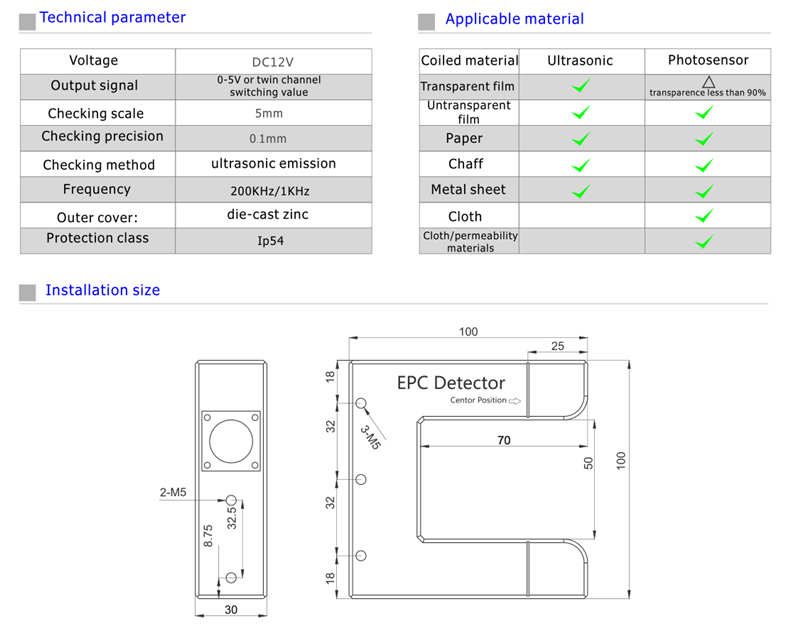

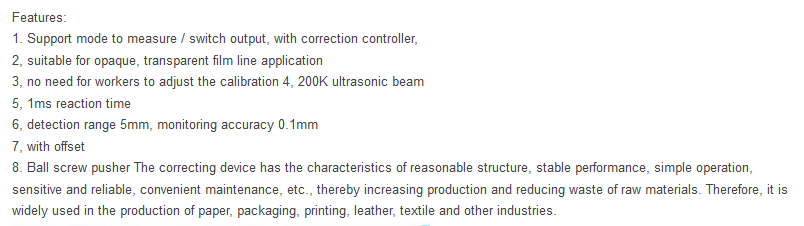

Ultrasonic Web Edge Sensor: US-400S/US-500
