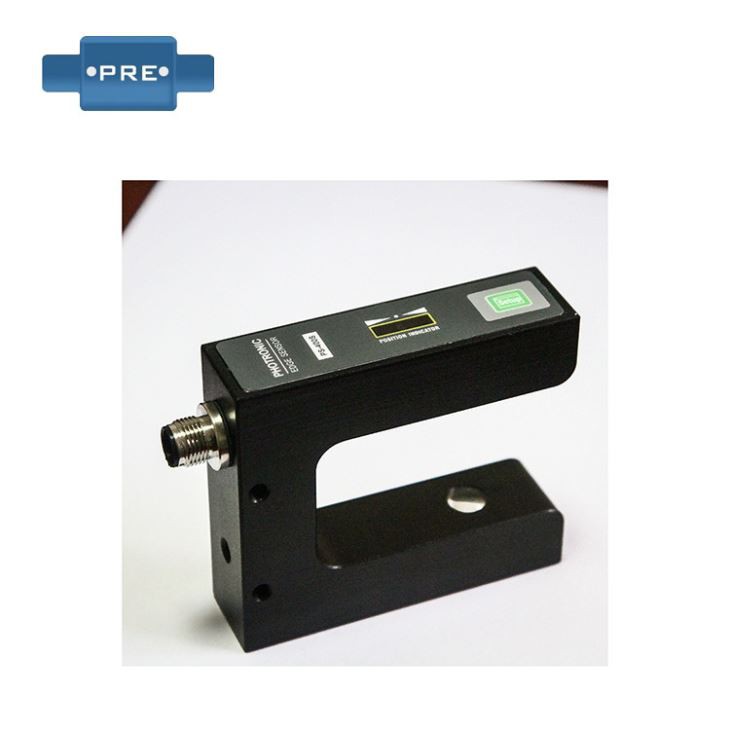

Edge Guide Sensor

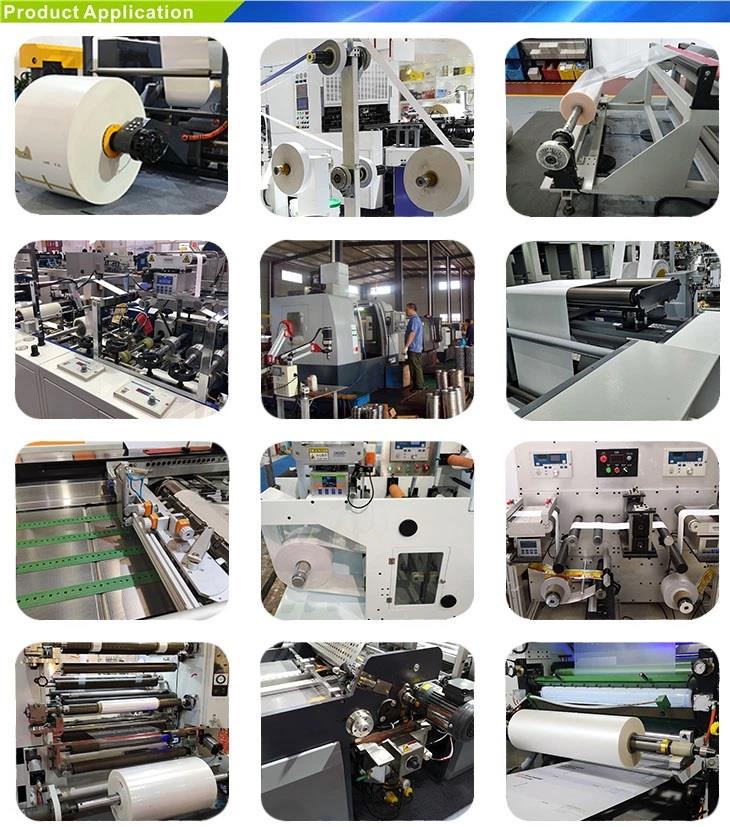

The principle of linear propagation of high frequency ultrasonic wave is applied in the ultrasonic rectification sensor to detect the edge position of coil. Compared with optoelectronic sensor, it is not affected by material transparency, surface dust, wet water mist and so on, so it is very convenient to use without adjustment. It is suitable for edge-tracing applications of impermeable materials (such as plastic film, paper, etc.) (air-permeable materials such as cloth, non-woven fabrics are not applicable).

Detailed description

1. 0-5VDC analog output;

Order Details
