Introduction of DBH Horizontal Mounted Pneumatic Or Air Actuated And Released Clutch Brake

The DBH type Horizontal Type Pneumatic Air Disc Brake is for horizontal-type installation, the air disc brake can provides approximately 2 times of braking powder than vertical installation. Add the expandable shrapnel to guarantee the brake balance, brake-disk thickness also covers from 10mm to 20mm.

Features of DBH Horizontal Mounted Pneumatic Or Air Actuated And Released Clutch Brake

DBG/DBH series of Horizontal Type Pneumatic Air Disc Brakeis mainly powered by braking oil, and can also be powered by air-actuated matched hydraulic booster.
This type of pneumatic air disc brake is for horizontal installation, which can provide approximately 2 times braking powder than that of vertical installation.
It adds the expandable shrapnel to guarantee the brake balance, in which brake disc thickness also covers from 10mm to 20mm.

DBH Pneumatic Brake Options:

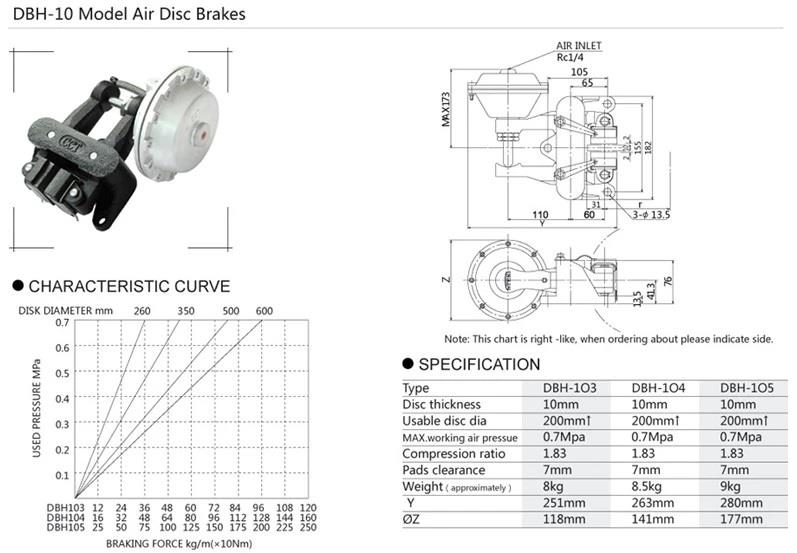

1.DBH-10 (10mm disk thickness)

Type: DBH-103 , DBH-104 , DBH-105

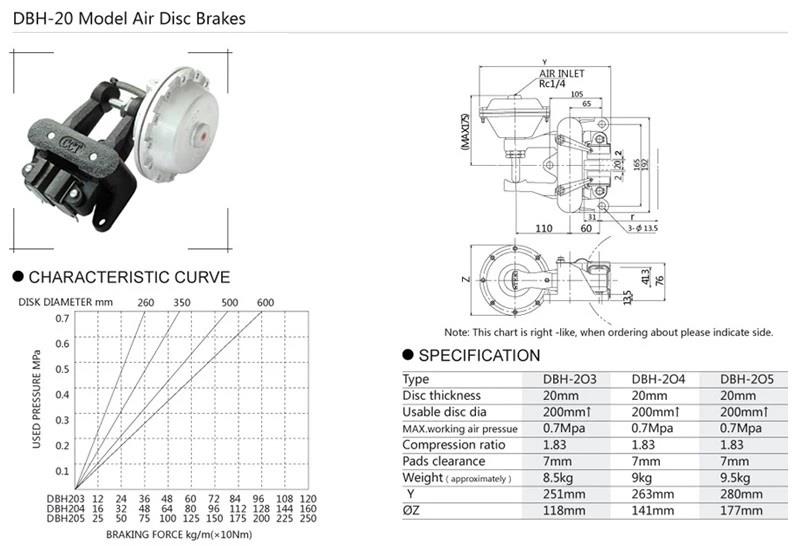

2.DBH-20 (20mm disk thickness)

Type: DBH-203 , DBH-204 , DBH-205

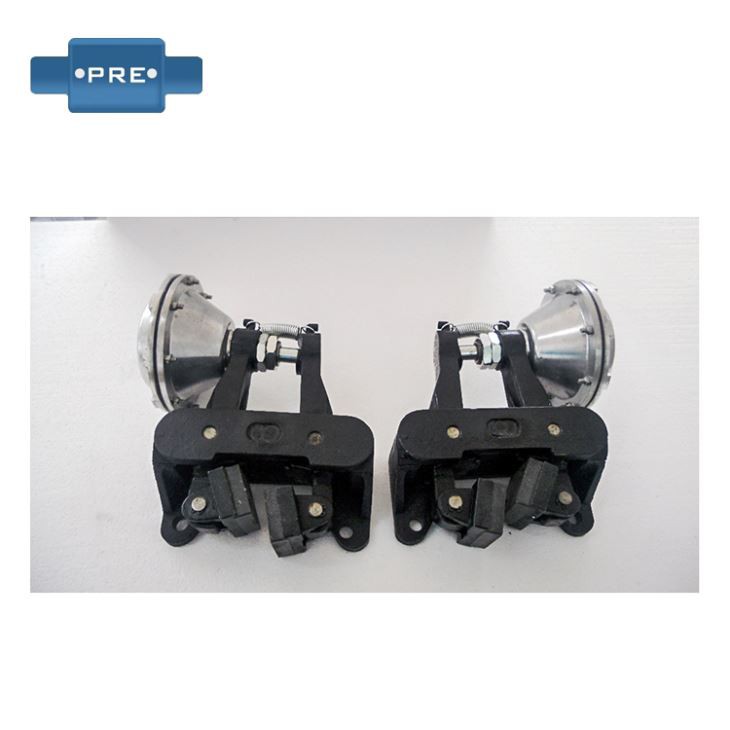

This model air disc brake have "Left type" and "Right type".When order,please indicate side.

DBH Pneumatic Brake Introduction:
The type brake is for horizontal-type installation, it can provides approximately 2 times of braking powder than vertical installation.
Add the expandable shrapnel to guarantee the brake balance, brake-disk thickness also covers from 10mm to 20mm.

B12

Features for Pneumatic Applied Brakes Include:

Compact structure and small size, light. It is easy to control and operate.
Normally-closed type: spring applied and pneumatically released; Normally-opened type, air pressure applied and spring opened, brake force can be adjusted by varying air pressure.
The pneumatic actuator is made in Taiwan with high reliability and quality.
The linings are of inserting installation style and non-asbestos. It can be easy replaced.

When it is not possible to apply a disc with a required diameter, it is enough to apply more than one clamp.

This type of brake is also very suitable in case that work involves a constant pull on the material, but a pressure regulator is required.The assembly of these brakes does not require any particular attention thanks to the new self-aligning system with orthogonal sliding which allows an automatic brake-disc alignment.

Caliper brakes can have two operating modalities:

POSITIVE: when the control produces the braking effect.
NEGATIVE (Spring Applied): the braking effect is obtained when the control is absent. These clamp brakes are mainly used as safety and parking brakes.

Many caliper brakes available; Including:

Hand Operated Caliper brakes
Pneumatically Released Caliper brakes
Duo Caliper brakes possible
Hydrualic release / Hydraulic applied caliper brakes

Standard Size brake discs available and Customised can be manufactured.

Order Details

Item Name	DBH Air Disc Brake
MOQ(Minimum Order Quantity)	1Pc
Lead time	3-5 days after receiving the deposit
Calculated Weight	According to different models
Package	Carton/Wooden Box
Price Term	EXW,FOB, CIF, etc
Payment term	TT,L/C,Western Union
Country of Origin	China
