Describe the role of the correction device
In order to ensure that the lateral position of the printing material is stable before entering the printing unit, the unit-type flexo printing machine often uses an automatic correction device, which can detect the deviation of the lateral position of a certain edge of the printing material and correct it in time. The accuracy can reach ± 0.5 mm. . Generally, for opaque materials such as paper and aluminum foil, photoelectric sensors are often used; for transparent materials such as thin films, ultrasonic sensors are used. Once the printing material enters the printing area and the die-cut rewinding area, the stability of its lateral position is guaranteed by the machine's processing and installation accuracy and the parallelism between the rollers.

Edge Position Control system:

Installation :

Actuator

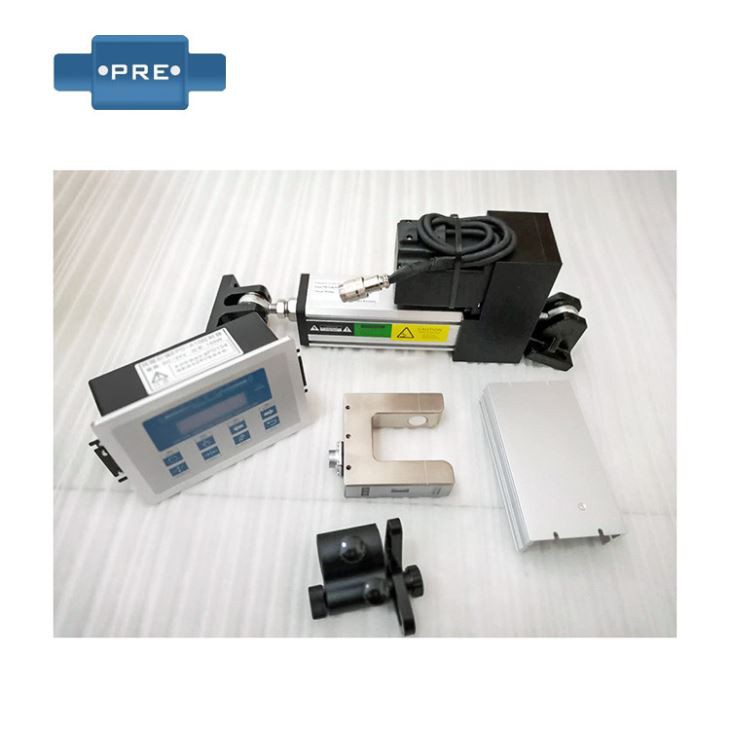

Guide sensor

Main functions of automatic deviation correction device


1: electromechanical drive or hydraulic cylinder can be used as driving power.
2: position the coil quickly and accurately, the width of the coil can reach 1930mm (76.0 ").
3: design of low friction ball sleeve and rotating rod.
4: durable structure design can be used continuously for a long time, greatly reducing the need for maintenance.
5: optional servo alignment to improve Settings and linear coil speed.
6: FIFE® of all standards; Both the sensor and the controller can be used in following the edge, in neutralizing and in rectifying the deviation of the line.
7: there are many different structures and rollers for your choice.
8. Optional mounting bracket and foot rest.
