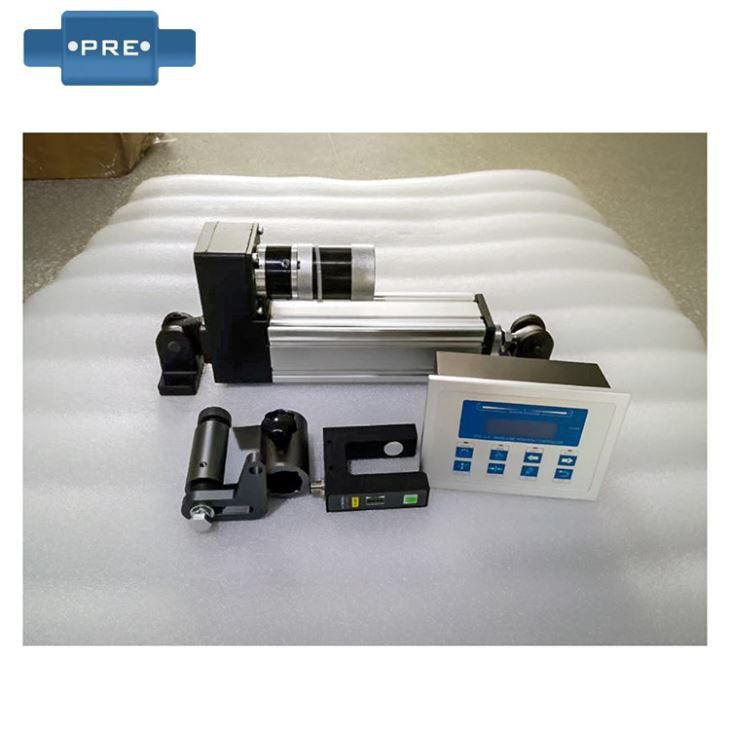

Automatic Guiding System

The servo rectification system adopts the opposite-side and on-line general-purpose photoelectric rectifying electric eye, supplemented by an imported driving device and a highly precise pusher to control the reel material and keep its edges and lines at any position. The device is simple in operation, high in precision, good in stability and wide in application. It is suitable for different materials such as black, mirror, white, transparent film, paper, cloth, aluminum foil, etc. It can be used in various printing machines, such as printing machine. , laminating machine, coating machine, slitting machine, embossing machine, inspection machine, paper machine, bag making machine and dyeing machine. The servo rectification system adopts foreign high-quality ultrasonic transmission and device, and combines software and hardware technology. It can work normally in the environment where the photoelectric sensor can not be used, especially in the environment of high humidity, temperature and dust, basically no routine maintenance and maintenance, no need to debug, normal operation after calibration, aluminum and gold shell, high strength It shall not be damaged, and at the same time it has good shielding properties. It is selected for the edge inspection (for transparent materials, especially for breathable materials such as cloth and non-woven fabrics).

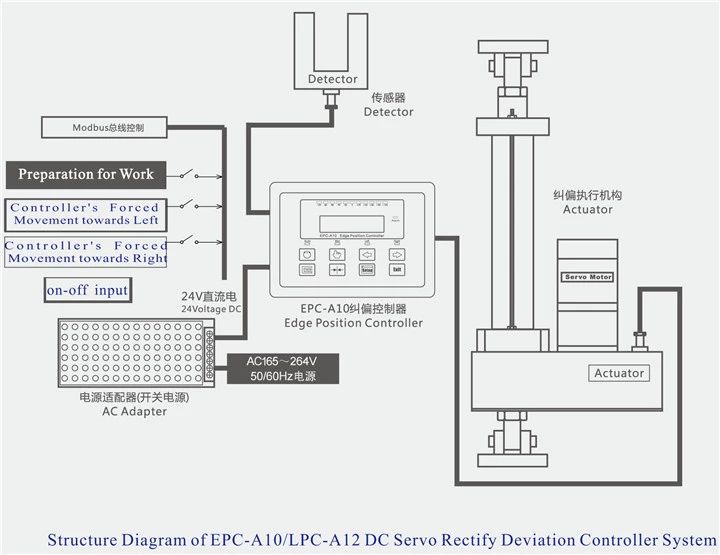

Edge Position Control system:

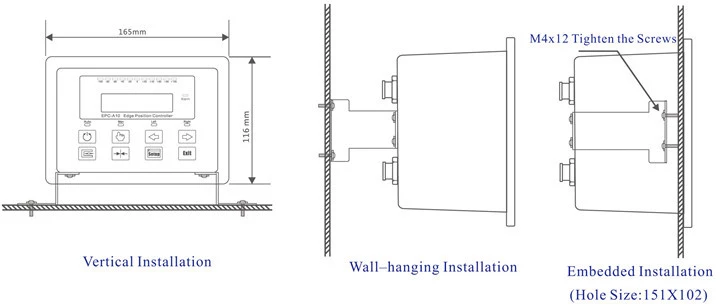

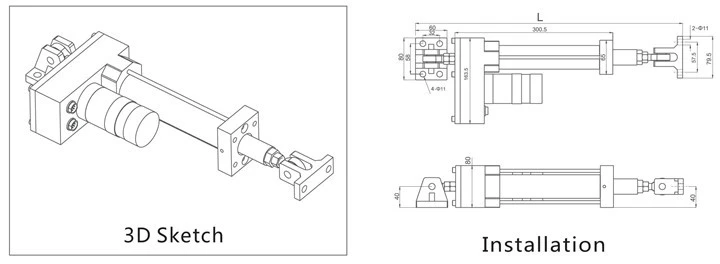

Installation :

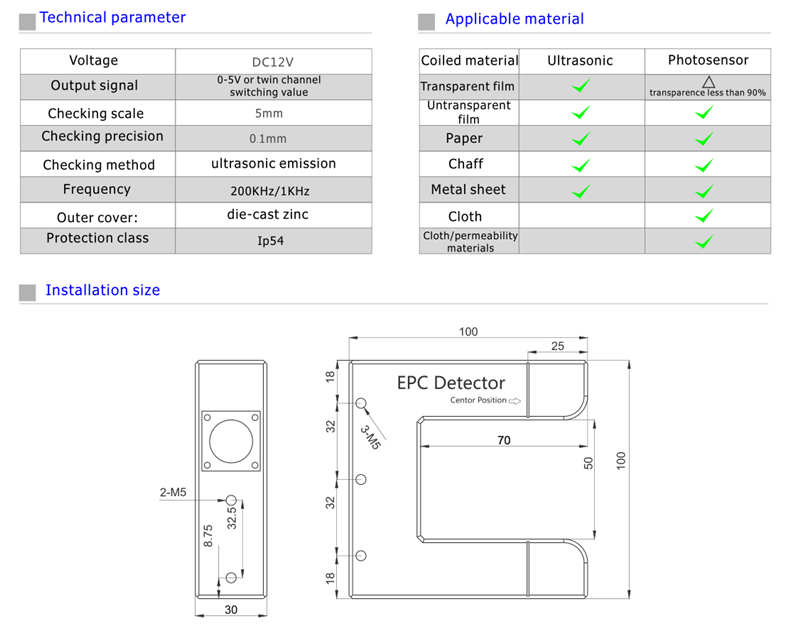

Guide sensor

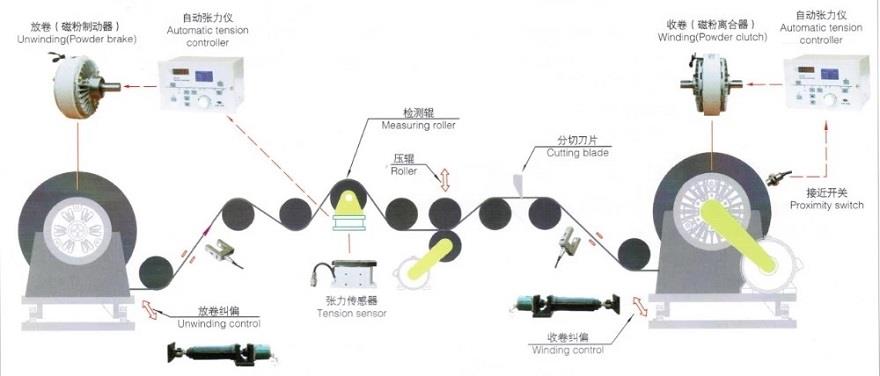

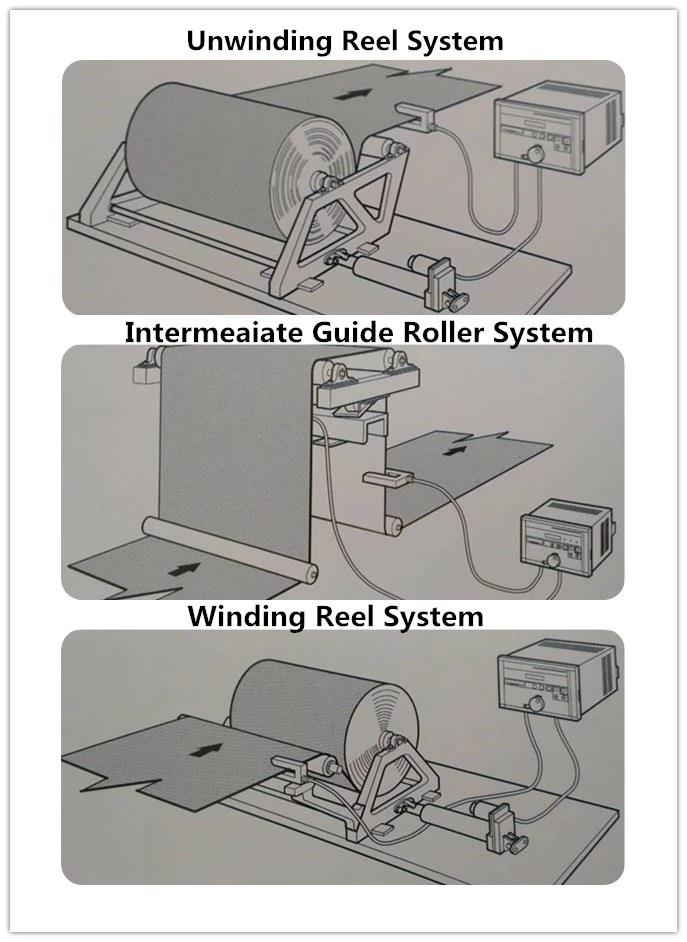

Application

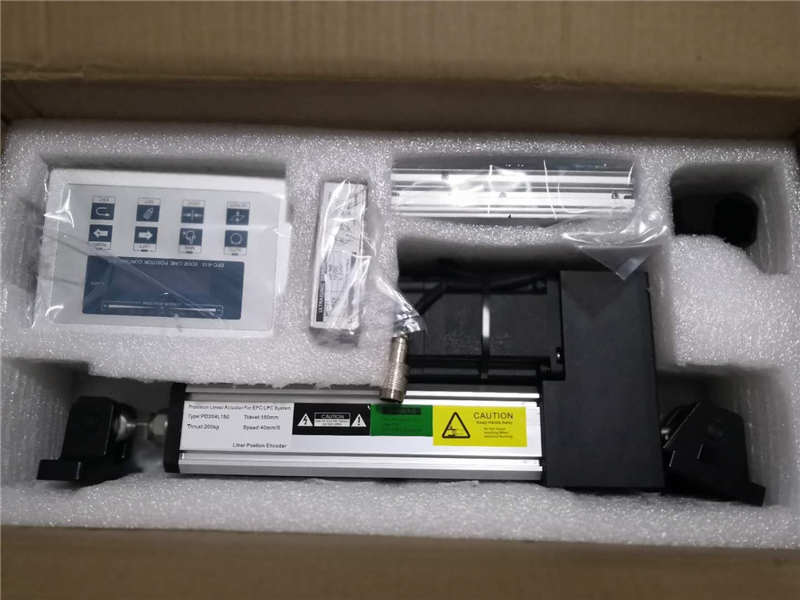

Packing

Order Details
