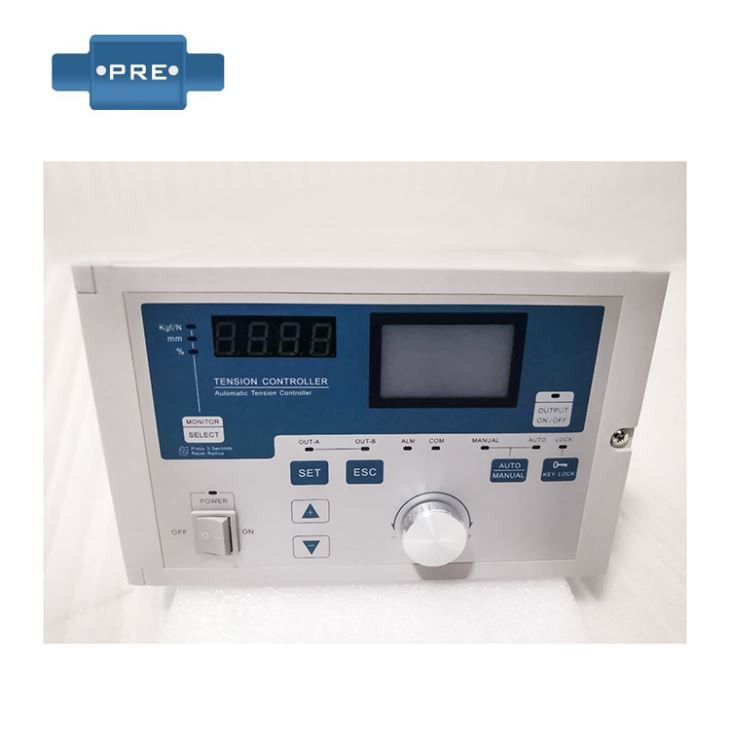

Automatic Tension Controller with Radius

Automatic Tension Controller with Taper and Communication Function

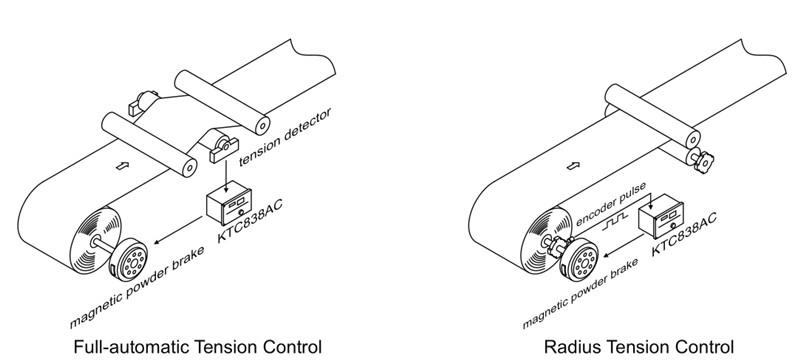

The tension controller KTC-838A is a high-precision, multi-function, all-digital intelligent tension controller that can be combined with a tension detector to form a closed-loop tension control system, or an automatic calculation of tension through a proximity switch/encoder to form an open-loop tension control system. It has the functions of KTC818A and KTC828A at the same time, providing users with more free choices.

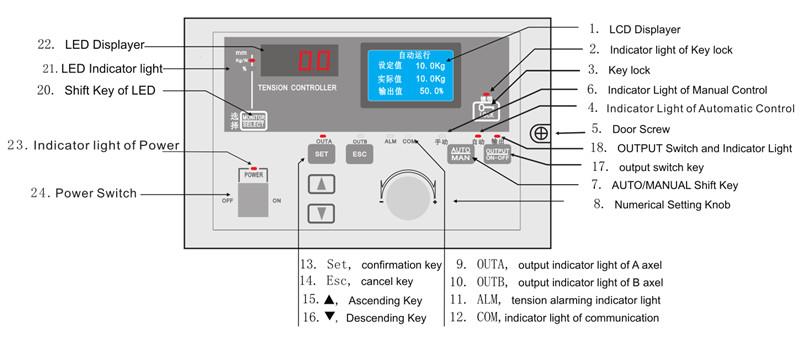

Operating Panel:

KTC-838A tension controller adopts a new graphic liquid crystal display, which shows clearer in Chinese and English. It also outputs 0~24VDC control voltage command for magnetic powder clutch/brake, and can also output 0~10V voltage signal to control inverter, servo motor or other actuators perform high-precision tension control on the coil material. Widely used in printing, packaging, paper, cable, rubber, electronic battery, textile printing and dyeing industries.

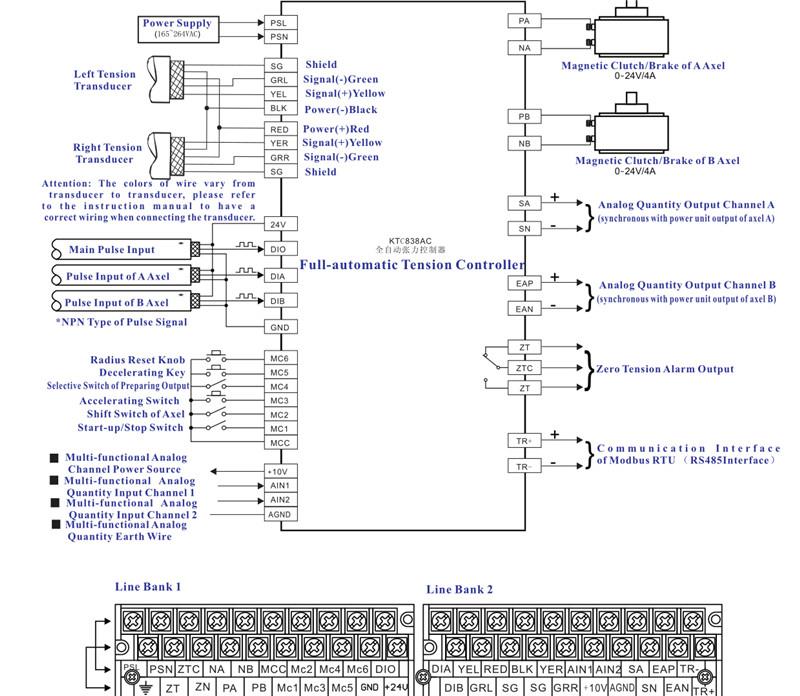

Wiring Diagram:

Parameter:

1. using 32-bit high-speed CPU, graphic LCD display, user-friendly design, easy to operate

2. can choose automatic closed-loop tension control or coil diameter open loop tension control

3. using no over-modulation PI algorithm, tension control is fast and stable

4. support thickness accumulation, ratio method to measure the diameter

5. double station switching, acceleration and deceleration compensation

6. dual 24V / 4A output, can directly drive two brakes / clutch

7. can output 0-10V, 4-20mA drive inverter / servo motor

8. simple installation and commissioning, tension calibration process is simple

9. support standard Modbus communication protocol, all parameters open, connected to PLC / touch screen is very convenient

10. parameter password protection to prevent misuse

11. tension measurement is high stability, no temperature drift

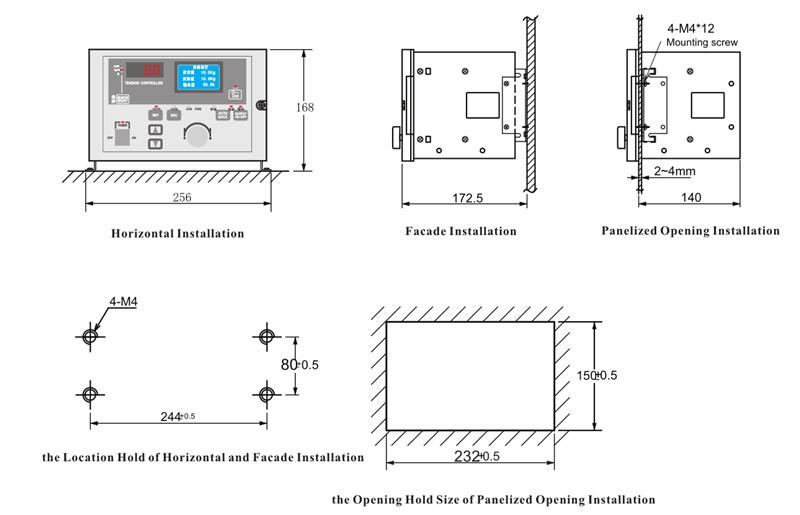

Installation:
