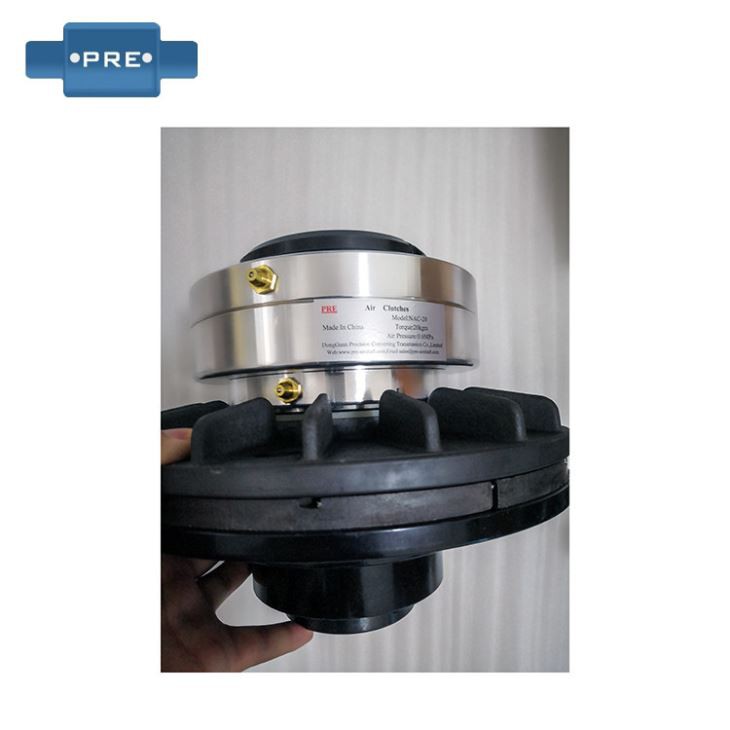

Air Disc Clutch

Pneumatic clutch
1. The effective exothermic "continuous sliding" has a good heat release effect. Because of the use of a heat-dissipating disc with a large heat capacity, it has a large heat capacity and can be used at a high frequency and continuously sliding compared with the electromagnetic type. Since the torque is not stabilized, the electronic components are not used, so that the product does not deteriorate due to overheating, and the torque is not reduced even if the temperature rises.

2. A wide range of torque control torque ratios from 1:15 to 1:880, making it possible to adjust the subtle torque of the machine by changing the air pressure.

●Preventing overload gates ●Tension control ●Smooth start, smooth stop, etc.

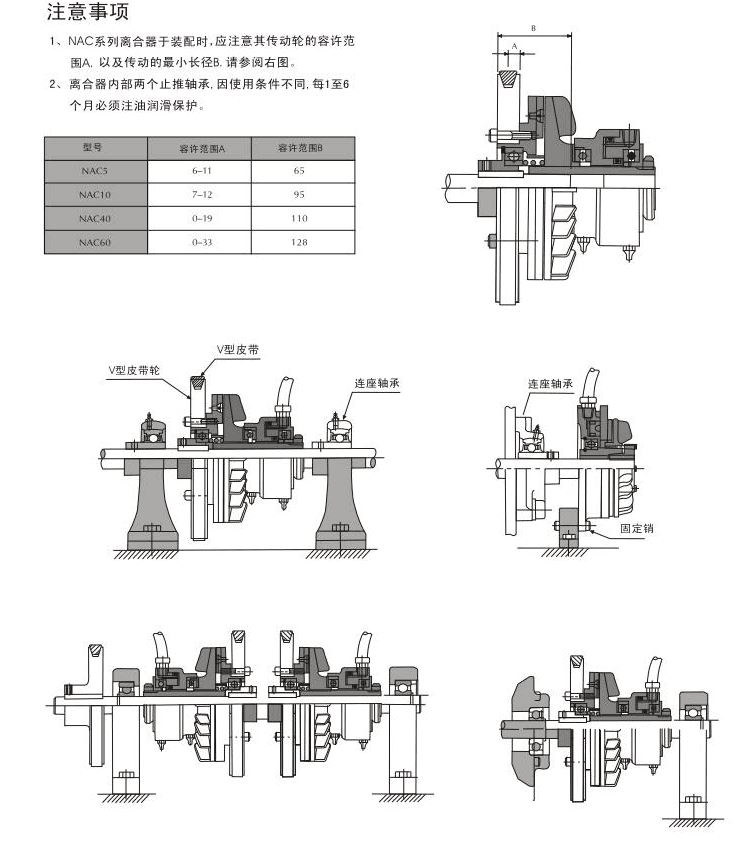

Installation

3. Pneumatic safety
“No electrical sparks are produced”, because no electrical electricity is used, so no electrical sparks are generated, which makes people feel at ease.
Non-asbestos friction plate, the asbestos is not used at all, and the wear resistance and heat resistance are achieved.

4. Compared with the electromagnetic type, the response speed is 20% faster. The smooth connection and the brake transmission torque adjustment are simple, and the power connection and braking can be smoothly performed. The sleek action makes the durability of the machine upward and produces great value.

5. Long life, simple maintenance and long life. The heat release effect is good, the thickness of the friction plate is very large, and the life is 2.5 times to 5 times longer than that of the electromagnetic type. Easy to install and operate, due to its simple construction and integrated structure, it is easy to install and operate. The exchange of friction plates is simple and is designed to be a type that is easy to exchange friction plates.

Product Features
1. Through-shaft clutch, easy to install-----Installation and fixing method is not affected by the position of the air inlet.
2. Suitable for continuous sliding or high frequency use---When continuous sliding, the best heat dissipation effect is good, and it can be used for connection.
Also suitable for tension control or high frequency use, accurate and accurate.
3, buffer start, with soft start characteristics ---- soft start and can be used for overload sliding protection.
4, adjustable torque limiter ----- can be adjusted by air pressure, as a fixed tension brake.
5, a wide range of torque adjustment -------- air pressure adjustment range is wide 0.4-6kgf / m easy to adjust.
6, explosion-proof, non-sparking, safety ----- use of air pressure to act, so it is inherently explosion-proof, will not produce
Electrical sparks, high safety.
7, long life, easy maintenance ----- good heat dissipation, friction plate, wear-resistant and 2-piece replacement capacity.
Application field
1. Printing association----gravure newspaper rotary machine commercial rotary printing machine letterpress printing mechanical paper shell, film printing machine, laminating machine
.
2, canning association ---- molding machine canning machine capping machine filling machine capping machine plastic container manufacturing machinery.
3, rubber manufacturing related ---- tire molding machine calender machine gluing machine cutting tool conveyor rubber belt manufacturing machine.
4, paper processing machine related ----- tool slitting machine paper machine coating machine laminating machine paper machine packaging machine.
5, painting association----painting robot automatic coating equipment paint transport machinery stacking machine filling machine.
6. Powder related----filling mechanical weighing machine packaging and conveying machinery.
7, woodworking related ---- wood machine plywood transport equipment wood processing machine rotary shearing machine turning lathe punch.
8. Fiber Correlation----Twisting Machine Dyeing Machine Forming Machine Glass Fiber Manufacturing Equipment Bending Machine Sewing Machine Sewing Machine.
9, metal processing related----forging press coil processing machine twisting machine various punch bending machinery manufacturing machinery Nc drilling machine wheel into
Model.
10, packaging related ---- packaging machine labeling machine sealer conveyor strapping machine stacking machine.

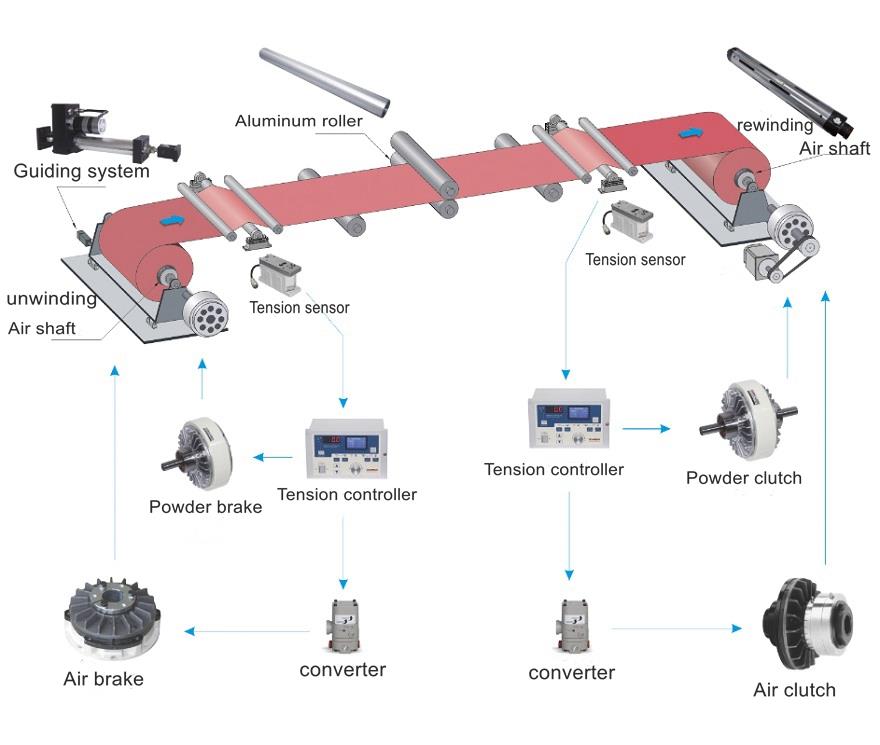

Application

Packing

Order Details
