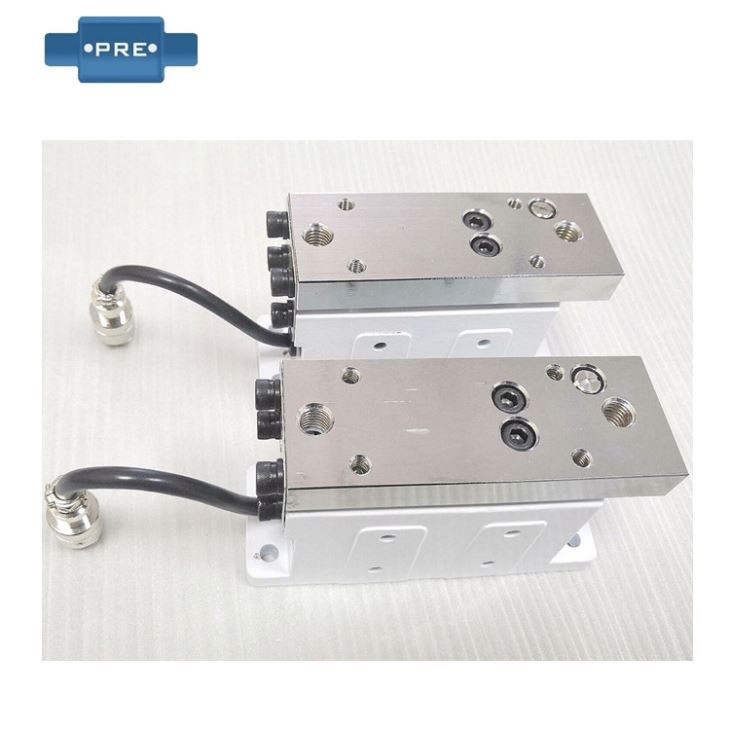

The LX series tension sensor detects the tension by using full-bridge strain gauge detection and processing by integrated circuit, and has the characteristics of low temperature drift, high stability value and good linearity.
Technical Parameters

1. Model: LX-O15SD LX-O30SD LX-O50SD LX-100SD LX-200SD
2, rated load: 15Kg 30Kg 50Kg 100Kg 200Kg
3, working principle: using full bridge strain gauge detection
4, working environment: -10 ~ 60 ° C relative humidity <90% without condensation
5, temperature stability: <0.3% (-10 ~ 60 ° C range)
6, working voltage: 5V
7, full scale output: 200mV
8, weight: about 2Kg

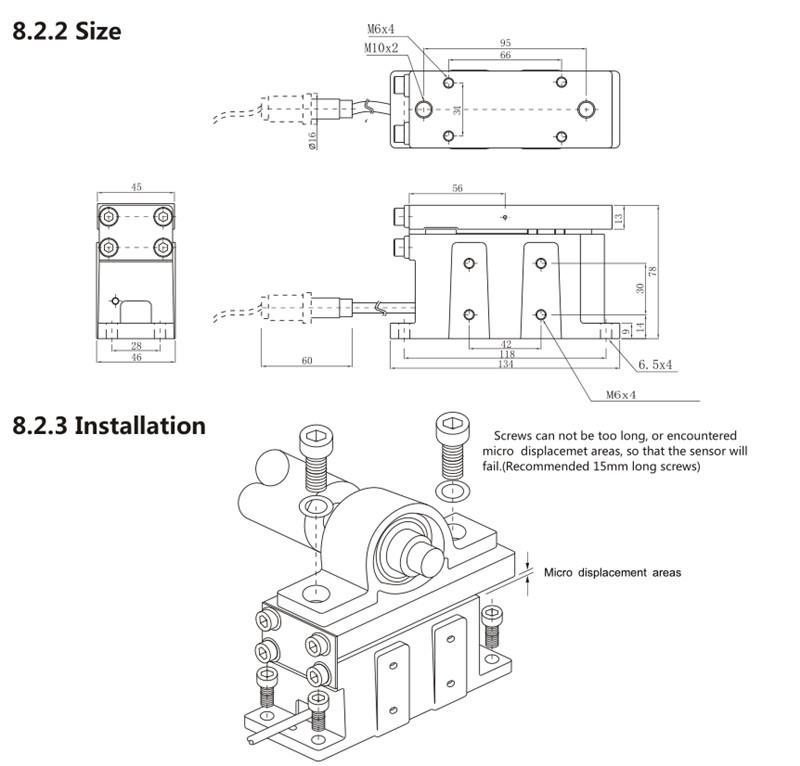

9, use the bearing seat: 204#

Features: The shaft-type tension sensor uses a semiconductor strain gauge to detect the tension of the coil, and has the highest measurement accuracy, reliability and stability in the field of tension measurement. The sensor has built-in overload protection, and each sensor is rigorously tested before leaving the factory, thus ensuring the measurement accuracy, stability and reliability of the product, which is the best choice for high-performance tension control applications in continuous material processing and production.

Overview

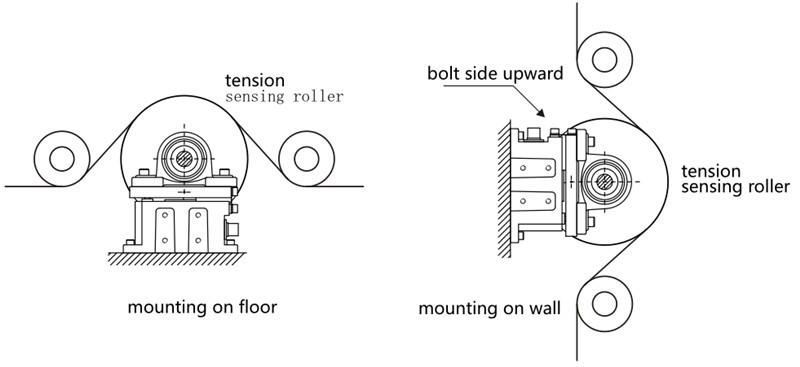

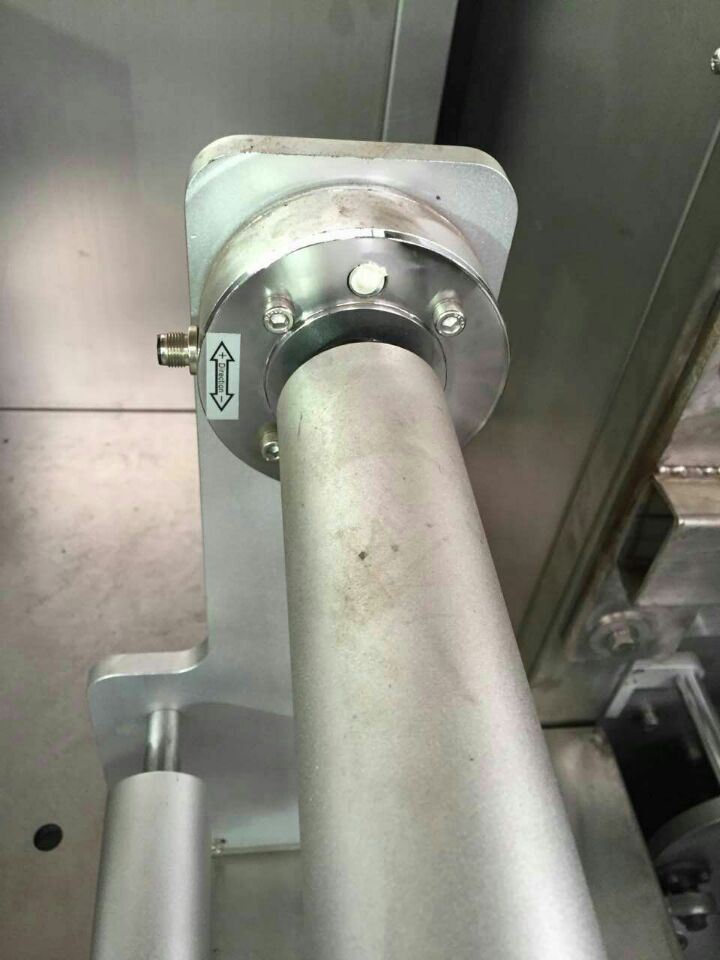

The LC Series Shaft Tension Detector is designed for use with idler rollers or idler rollers. It is available in two sizes and a wide range of rated loads. It is a full-bridge strain gauge for tension detection. It can be applied to the tension detection of different coils. The LC series can be mounted directly on the machine frame or can be mounted securely on the base plate. The compact design and the shaft-through design make it the first choice for customer applications.
Features

1, low hysteresis
2, temperature compensation
3, full bridge strain gauge
4, excellent linearity and stability
5, suitable for the detection of idler roller or live roller
6, overload capacity up to 500% rated load
