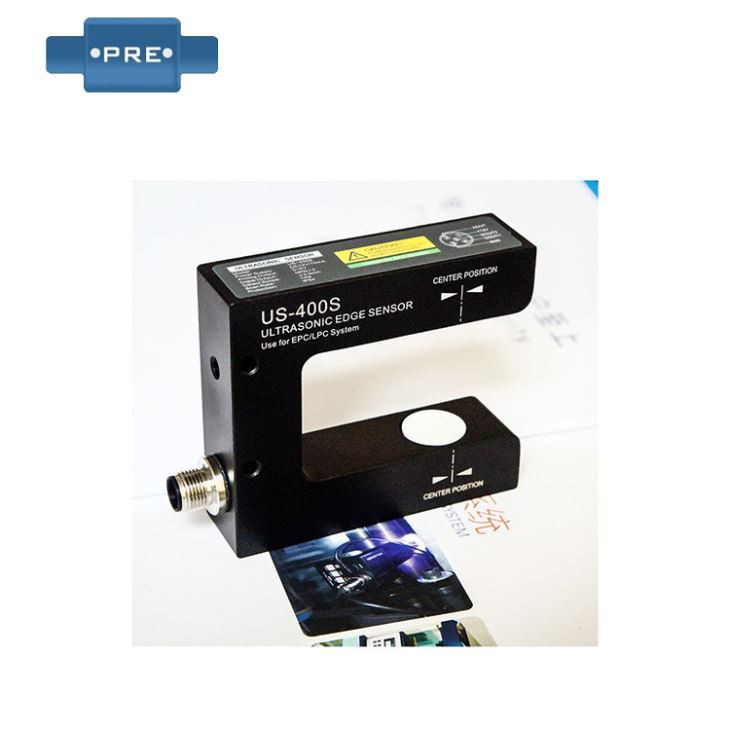

Web Guide System Ultrasonic

Ultrasonic guiding device (ultrasonic guiding sensor) is a winding and unwinding guiding device produced by Dongguan Taiwan Machine. It is composed of rectification controller, rectification sensor, electric drive and rectification guiding mechanism. These four components together form a closed loop. Control system. The guiding sensor detects the edge position of the coil, reads the deviation of the actual position from the set position, and converts the deviation into a voltage signal proportional to it, and sends the signal to the controller. After the controller amplifies and calibrates the signal, it outputs it to the electric drive. The electric drive drives the correcting guide mechanism to perform the guiding action according to the size of the input signal, and guides the coil to a preset position.

The ultrasonic guiding device (ultrasonic guiding sensor) is a mechanical device for guiding the side error of the coil in the forward motion. The displacement guiding is to realize the side correction of the coil by changing the span of the coil at the inlet and the outlet. This correction is made up of a fixed base and one or more rotating devices that act as swinging arms that move around a fixed or virtual point of rotation. The large angle of the rotated zui is ±7.5°. The ideal position of the point of rotation is in the range of the inlet or in the range of no more than 10% during the guide. The guiding device provides the corrective control you need to help your production line run efficiently and efficiently. Combined with appropriate sensors, drivers, and other guiding components, the guiding device can provide high-precision, balanced, closed-loop, high-dynamic response servo system.

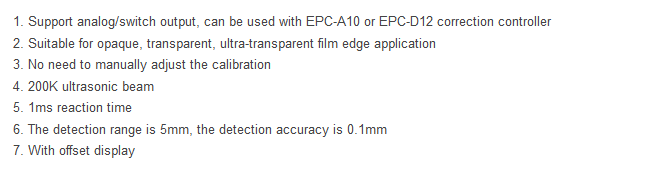

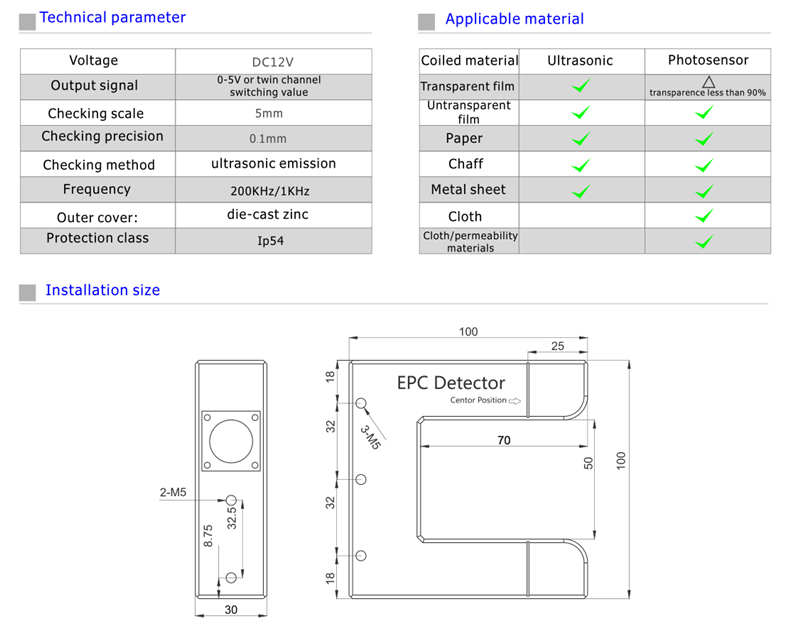

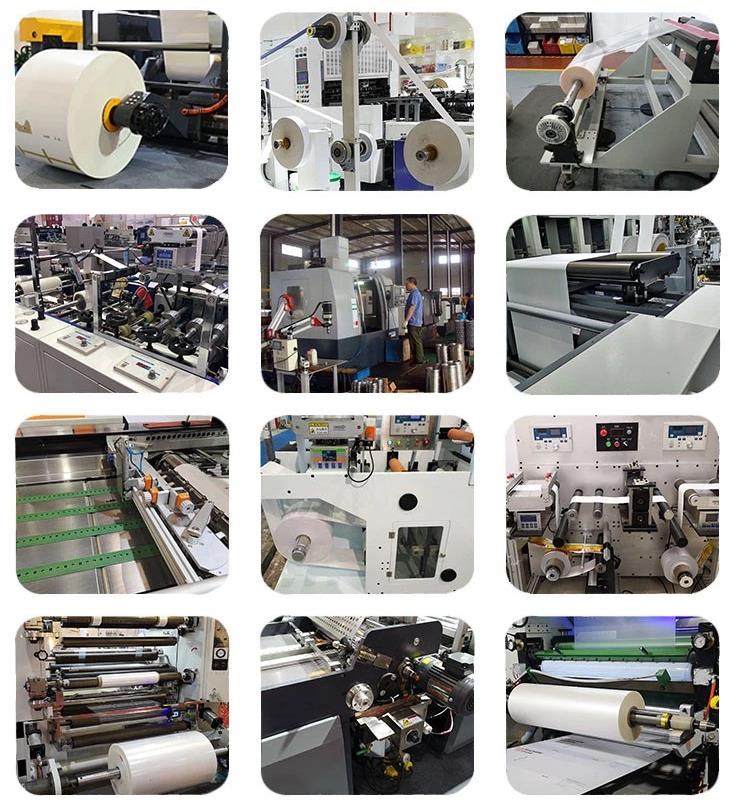

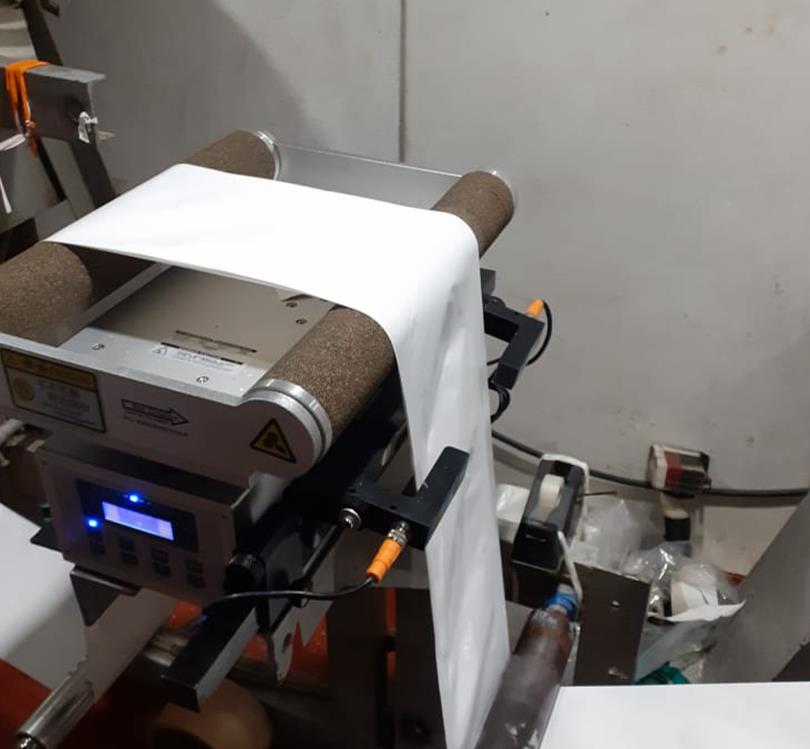

Application

Order Details
