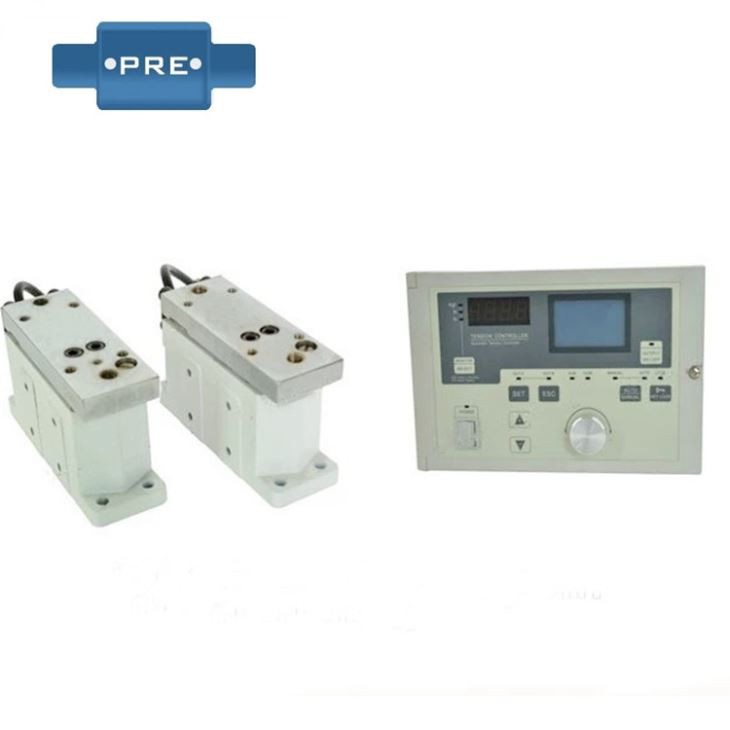

Tension Transducer

Tension Transducer

The anxiety sensor is a sensor that assessments the anxiety. the anxiety is to drag the aluminum foil and roll it onto the center as a wellknown, making use of a sure tensile and tensioning traction to the aluminum foil. The anxiety actuator is a anxiety detector normally equipped with a...

Send Inquiry Chat Now
Product Details

The anxiety sensor is a sensor that assessments the anxiety. the anxiety is to drag the aluminum foil and roll it onto the center as a wellknown, making use of a sure tensile and tensioning traction to the aluminum foil.

The anxiety actuator is a anxiety detector normally equipped with a complete-automatic anxiety controller, a magnetic powder seize, and a magnetic powder brake. it detects the bending diploma of the leaf spring while the burden is applied by means of high precision, thereby detecting the tension. the anxiety sensor has high balance, proper linearity, rapid response, light weight and small size. it is a super detection device for anxiety manage in the course of printing, packaging, movie printing and processing.

Foot Mounted Tension Sensor

Characteristics
With high spring rigidity and high resonance frequency, it is the best choice for high speed production lines. The load displacement is extremely small, which is conducive to the single-sided bonding of thin coils (films, aluminum foils, etc.) on the production line. The overall structure is adopted, and the structure is simple, which is advantageous for accuracy, linearity and hysteresis. With a stopper, the overload performance is good.

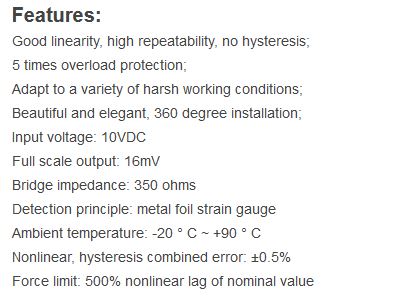

LX series

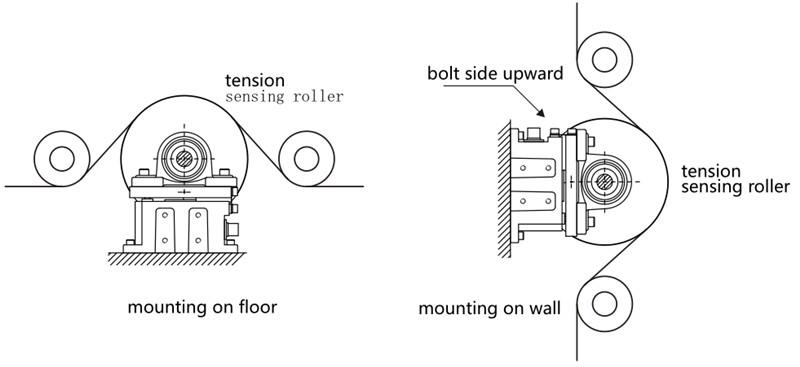

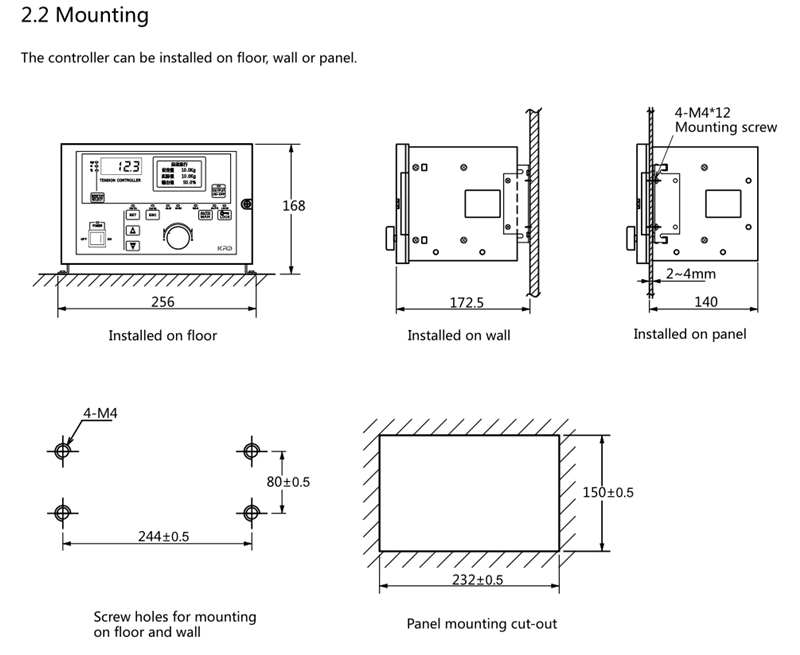

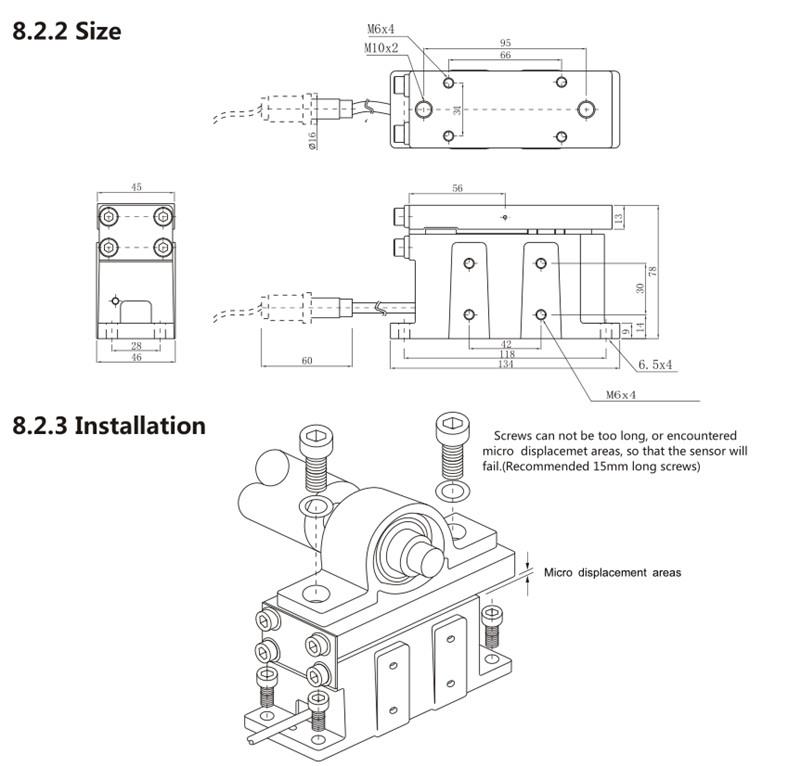

Mounting of Tension Sensors:






Automatic Tension Controller KTC-828A

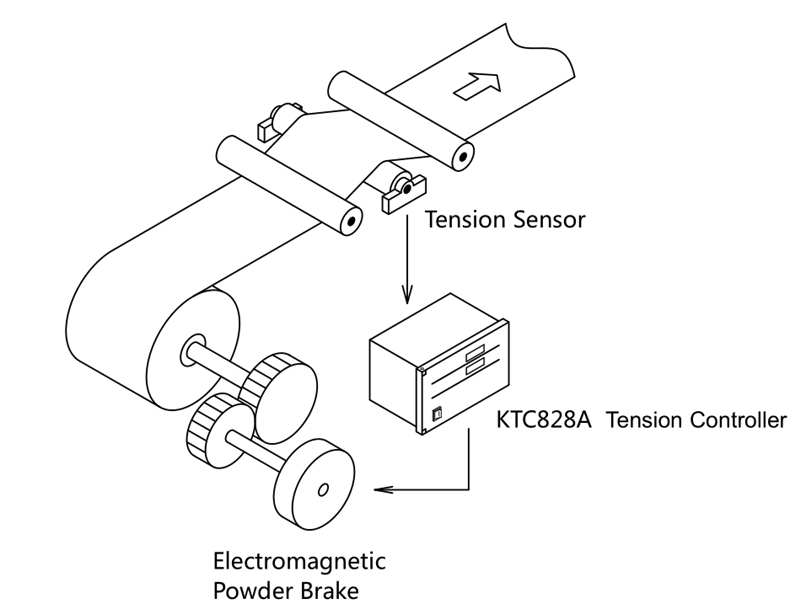

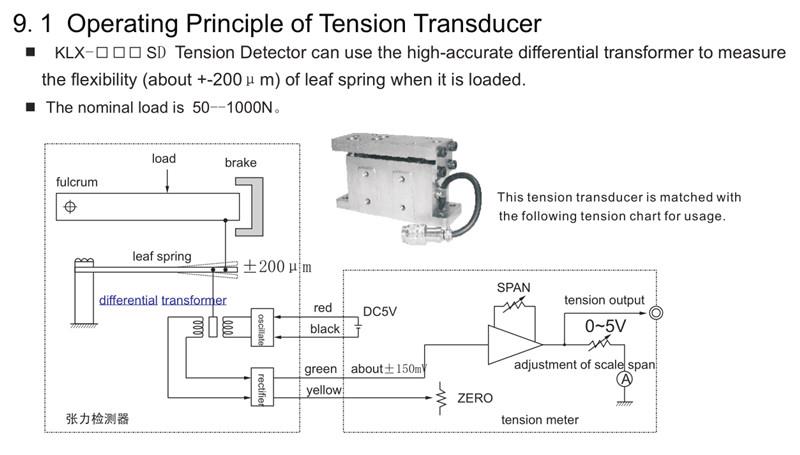

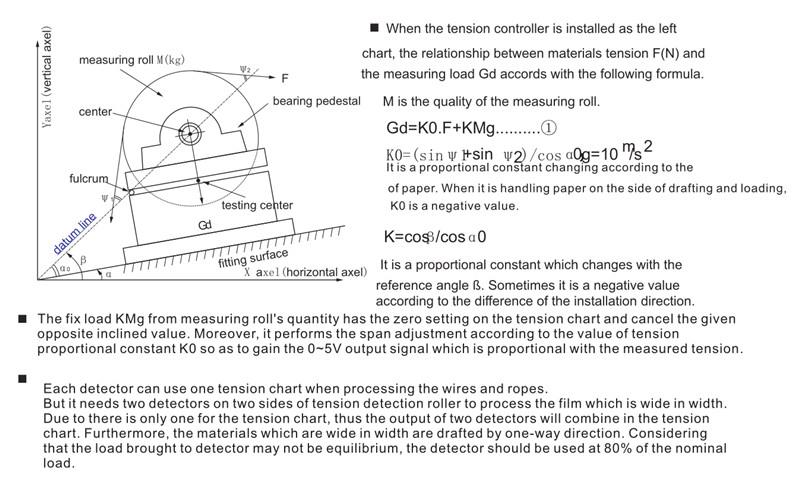

Working Principle:

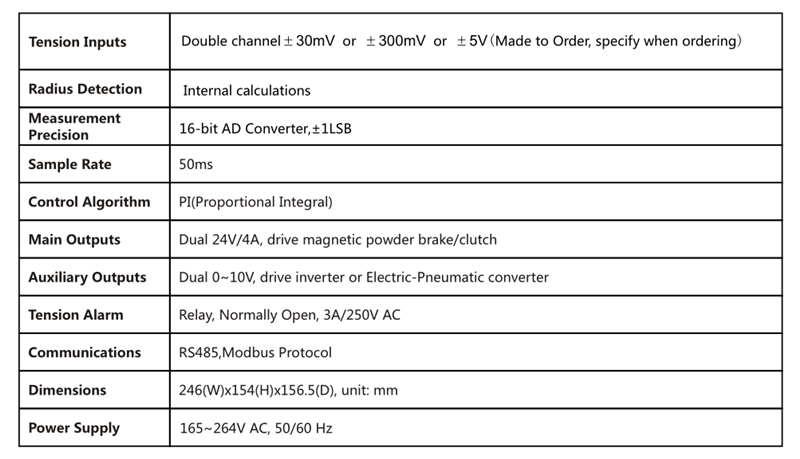

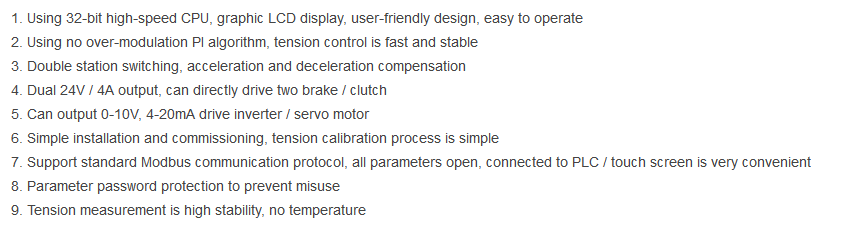

KTC-828A

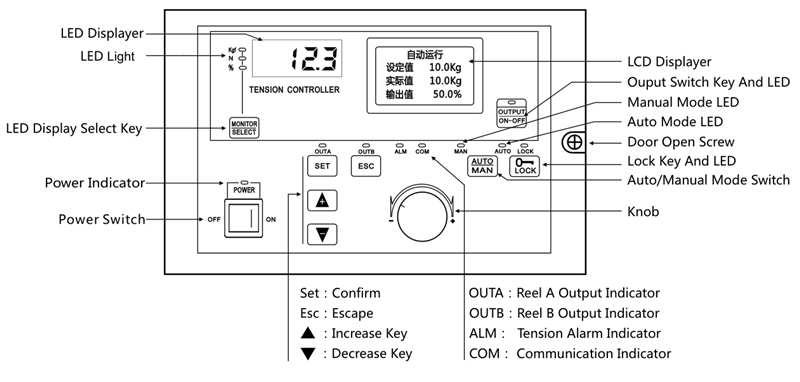

Operating Panel:

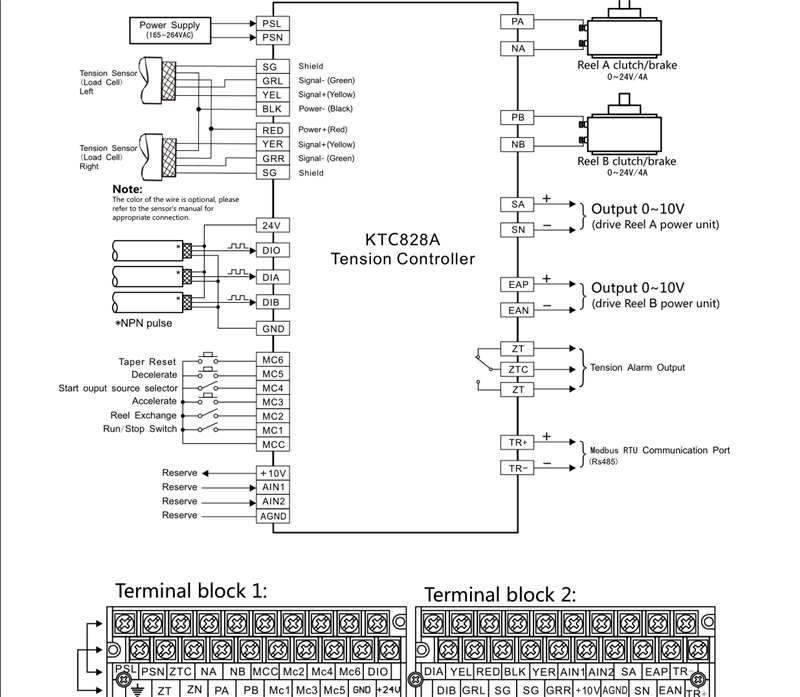

Wiring Diagram:

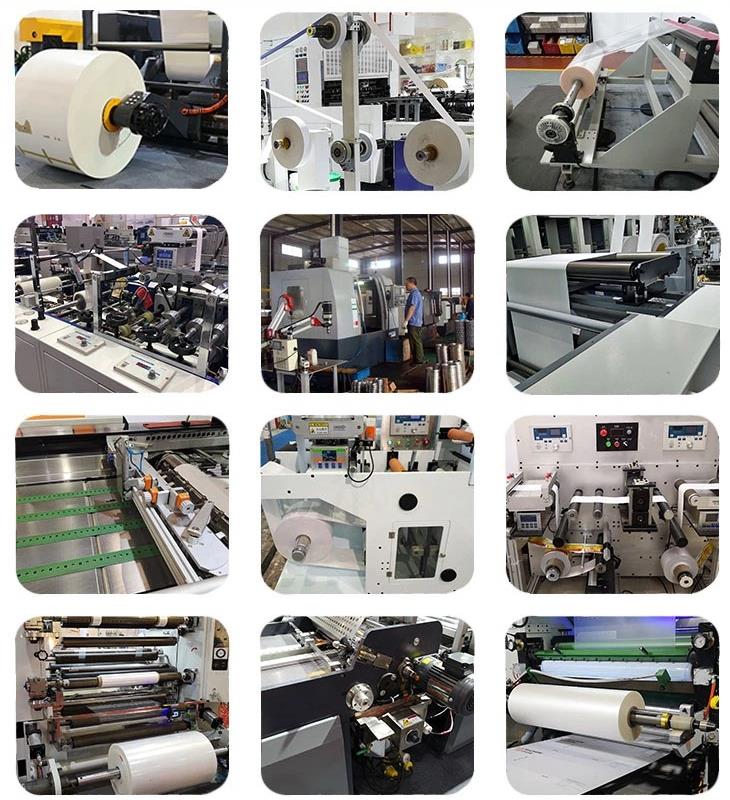

Application

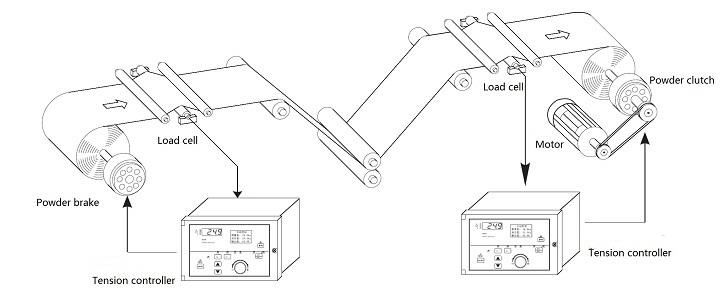

Tension Control

Tension Control


Order Details

Item Name

LX Foot-Mounted Tension Detector

KTC-828A Automatic Tension Controller

MOQ(Minimum Order Quantity)

1Pair(2pcs)

1pcs

Lead time

2 days after receiving the deposit

Calculated Packing Size

20cm*15cm*15cm,4kg/Pair/2pcs

20cm*15cm*15cm,2kg/pc

Package

Carton

Price Term

EXW,FOB, CIF, etc

Payment term

TT,L/C,Western Union

Country of Origin

China
