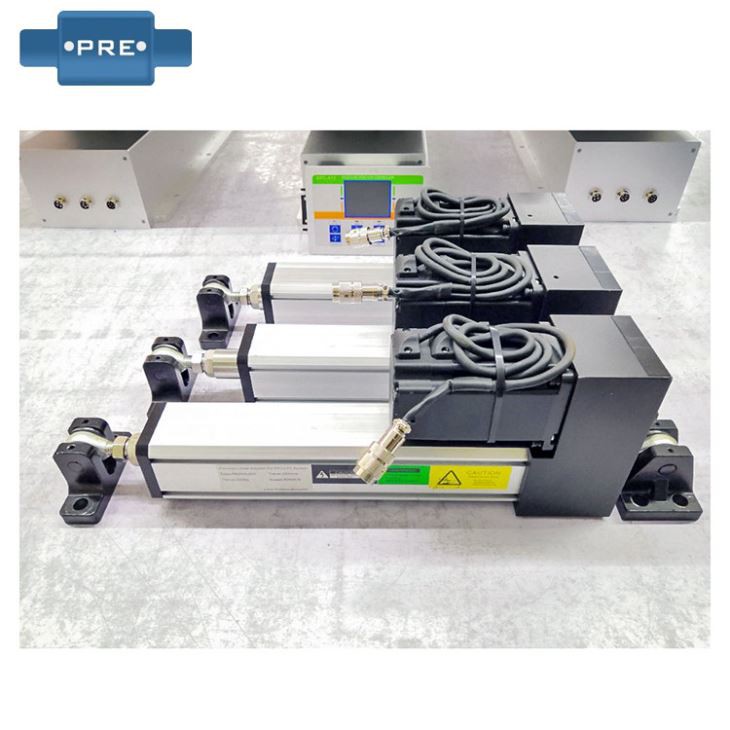

Web Guiding System Application

Guide control refers to the technical operation of the coil produced by the manufacturer during the spraying, printing, punching, laminating, slitting or other coil winding process. The widespread use of the Web Guiding Control System has brought significant benefits to the industry. Steel, corrugated, textile, printing, labeling, labeling, paper, plastic film, building materials, cables, rubber, Automated control of tires, non-woven corrugated paper processing and other industries.

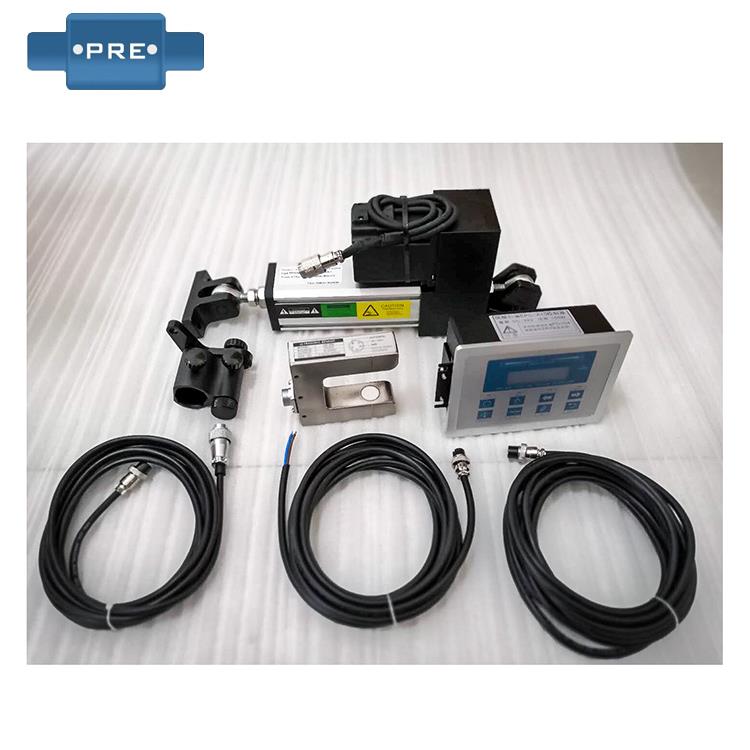

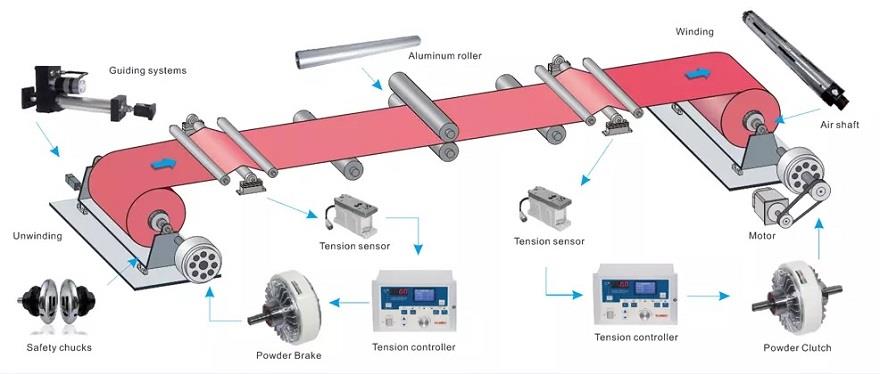

A typical automatic guide system includes a guide controller, a guide sensor, a guide frame and a driver. The schematic diagram of the guide control is as follows:

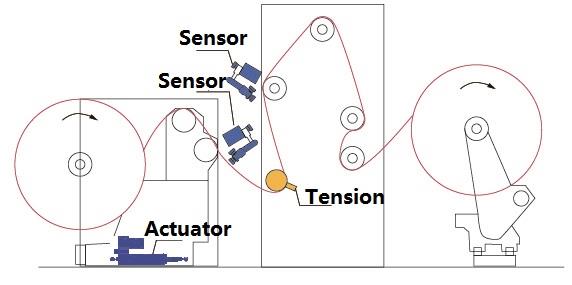

Unwinding correction installation diagram:

Packing:
