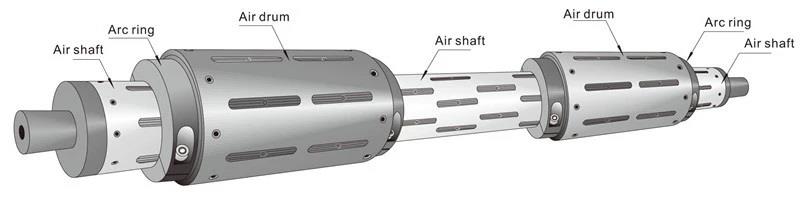

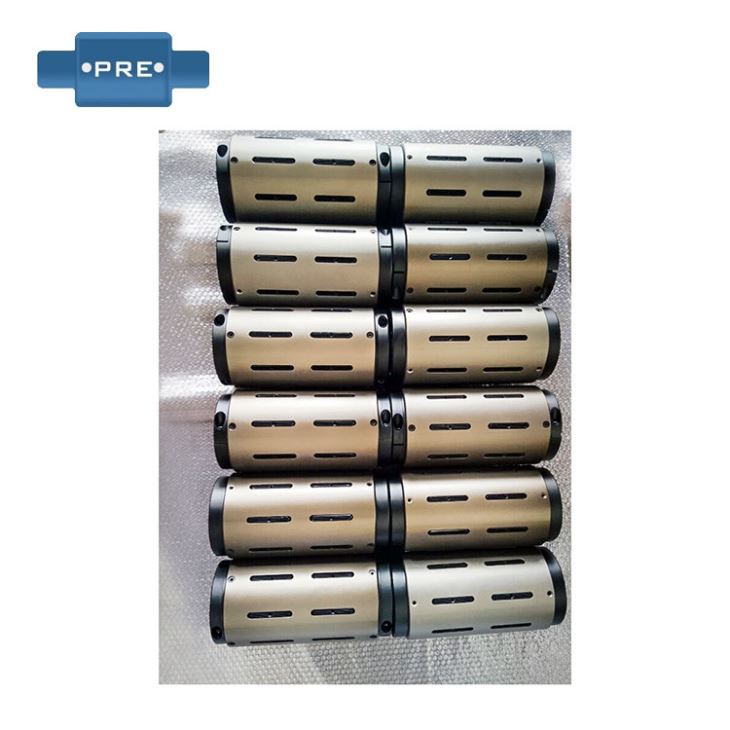

Air Hose Chucks

The riser material is made of high quality aluminum and the surface is oxidized.
Equipped with high quality airbags and quick inflation nozzles.
Good sealing effect, long service life and convenient maintenance.

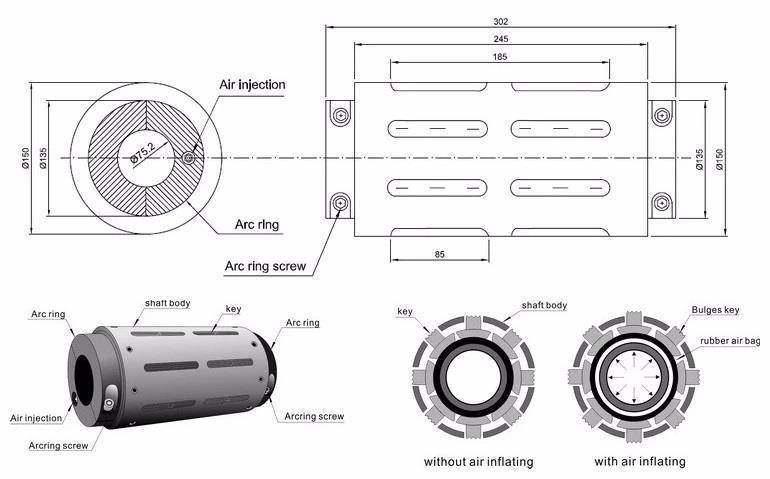

Technique parameter

The inflatable sleeve (additionally referred to as the enlargement joint sleeve, the keyless bearing, and many others.) is a keyless coupling tool whose precept and use is thru the movement of excessive-energy anxiety bolts, among the inner ring and the shaft, the outer ring and the hub. a large tightening pressure is generated to acquire a keyless connection among the system and the shaft. whilst the load is carried out, the mixed strain of the expansion sleeve and the machine member and the shaft and the accompanying friction pressure transmit the torque, the axial pressure or a composite load of the two.
The growth sleeve of the inflatable sleeve is a protracted strip of the through-axis, no segmentation, so there's no slip function. there may be no corresponding slip movement while the anxiety modifications due to the cloth alternate while the strip is cut. whilst the anxiety adjustments or the fabric thickness isn't thin whilst it's miles even, it is straightforward to purpose choppy winding, broken strips, unfastened rolls, and unwinding, resulting in material loss. the winding speed is low, and the work performance is poor. the identical axis cannot acquire the big and small volumes at the same time.

Installation of the inflatable sleeve:
1. the first step we should positioned 3 bolts within the screw hollow of the flange for the duration of installation.
2, the second step we ought to open the internal sleeve of the enlargement sleeve and the jacket
3, the third step after which positioned our growth sleeve into a sure position, after which restore it
Four. the fourth step of tightening is that each bolt is only screwed to 1/4 of the rated torque at a time (notice: the tight collection is bounded via the slit and symmetrically tightened)
5, through the above 4 steps, we can installation the growth sleeve
6. finally, the pinnacle hole screw have to be eliminated. the pinnacle hole screw is easy to disassemble and install, and it does now not work.
