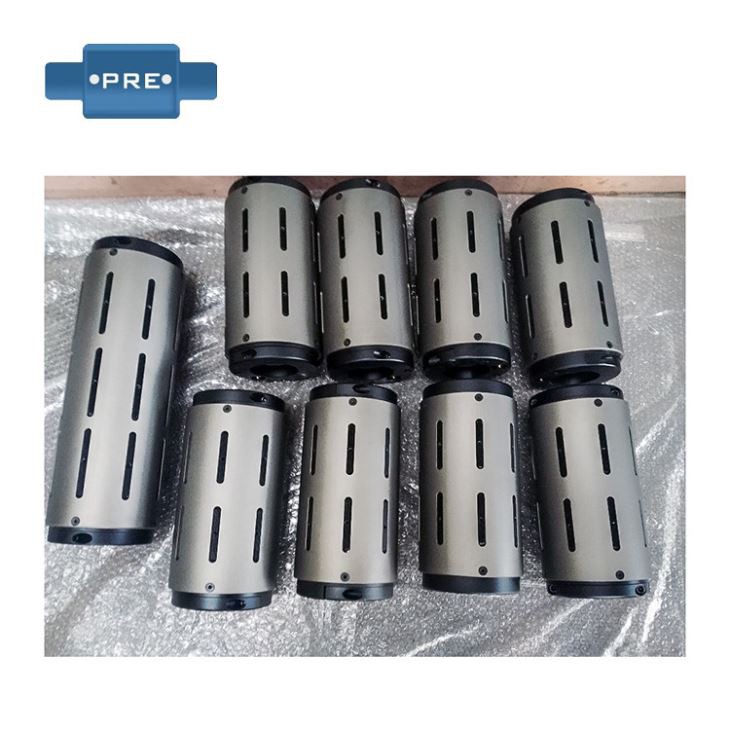

Air Chuck Parts

Air adapter introduction:

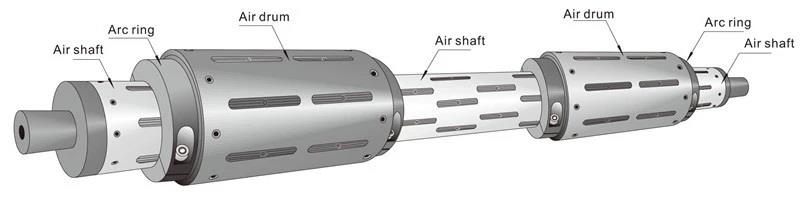

1. Use with the air-expansion shaft without affecting the normal installation of the air-expansion shaft;

2. Fix the inner wall of the inflation jacket by raising the inflation shaft, and the fixed position can be adjusted on the inflation shaft;

3, the design is reasonable, each inflatable jacket is equipped with a locking device, to avoid the situation of the ordinary inflatable sleeve lock is not tight.

It is suitable for small wide slitting and rewinding. It is more convenient to use when changing the core size frequently, which can improve the use efficiency. It can be used only with the inflation shaft to reduce the use cost.

Technique parameter

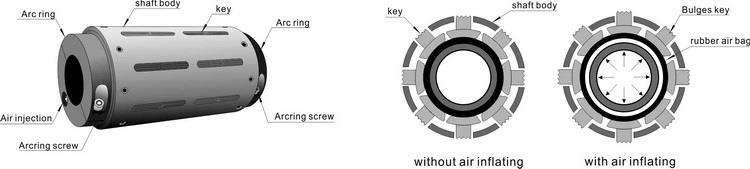

The gas riser sleeve is made of aluminum alloy, and the inner diameter of the gas riser sleeve can be fixed by the gripping force of the gas rising shaft itself, and is used for the large coil tube occasion. Made of aluminum alloy, it is light in weight; it can maintain grip in emergency stop and high torque; easy to handle; long life can be fixed at any point on the shaft. The gas riser jacket material is made of good aluminum and the surface is oxidized. Equipped with a thick airbag and a quick inflation nozzle. Good sealing effect, long service life and easy maintenance.

The inflatable sleeve (additionally referred to as the enlargement joint sleeve, the keyless bearing, etc.) is a keyless coupling device whose principle and use is thru the motion of excessive-strength tension bolts, between the internal ring and the shaft, the outer ring and the hub. a big tightening force is generated to acquire a keyless connection between the system and the shaft. while the weight is carried out, the mixed pressure of the enlargement sleeve and the device member and the shaft and the accompanying friction force transmit the torque, the axial force or a composite load of the two.

Packaging

Order Details
