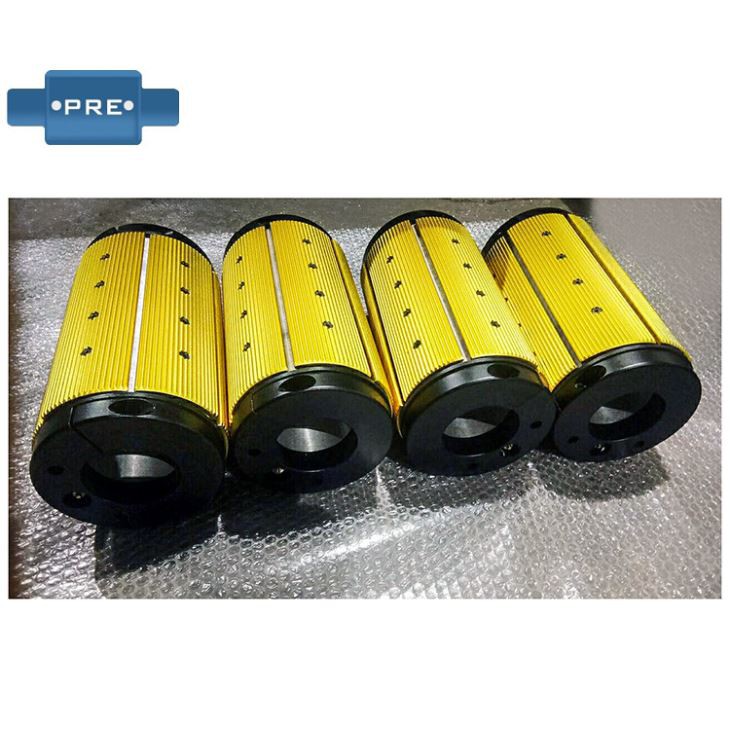

Air Inflator Chuck

Advantages of inflatable sleeve connection
The inflatable sleeve (also known as the enlargement joint sleeve, the keyless bearing, and many others.) is a keyless coupling tool whose precept and use is through the movement of high-strength anxiety bolts, among the inner ring and the shaft, the outer ring and the hub. a huge tightening pressure is generated to achieve a keyless connection between the device and the shaft.
Whilst the weight is applied, the combined strain of the expansion sleeve and the system member and the shaft and the accompanying friction force transmit the torque, the axial pressure or a composite load of the 2.
The expansion sleeve connection has the subsequent blessings: high centering accuracy; convenient set up/adjustment/disassembly; high strength, stable and dependable coupling; protection in opposition to harm for the duration of overload, especially for heavy masses.
Hydraulic growth sleeve the principle working precept of the expansion sleeve is to press the bolt piston to press the grease in the growth sleeve to reap the corresponding working reason. the expansion sleeve has a large transmission torque and has a huge effect. the role of high dynamic stability.
The single cone air enlargement sleeve achieves the reason of labor by adjusting the axial displacement of the cone floor, and the air enlargement sleeve has the characteristics of handy disassembly and meeting and excessive transmission torque.

Technique parameter

Eight capabilities of the inflatable sleeve

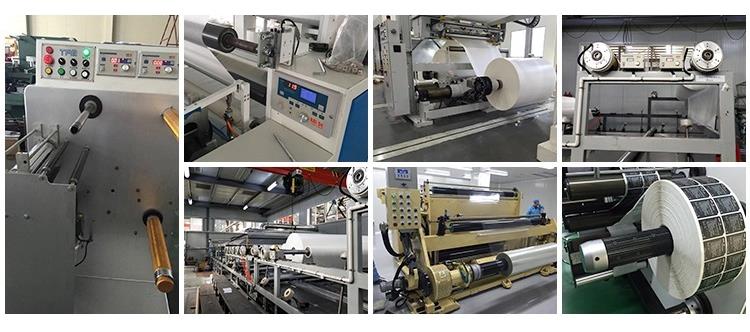

1, a wide variety of packages: inflatable shaft as an impartial design of the elements, from 1 inch to 12 inches, the duration and length are determined by the real needs of the consumer, wherein there are slit printing and rewinding coating, lamination, bag making, papermaking, and so on. or other related middle coiling machines can be implemented to the inflation shaft.
2, cost-effective: the layout of the shaft is designed for practical work, and may be carried out to numerous kinds of coils such as thick and extensive.
Three, lengthy use time, easy preservation: even though the inflatable shaft is a mechanical accent, however every a part of its own structure has a fixed specification, can be used interchangeably, making it smooth to hold. .
Four. single accessories: the air enlargement shaft is a unmarried spare part of the winding and unwinding system. each component in the shape has a hard and fast size and may be disassembled and blended to make maintenance easy and sturdy.
5. professionalism: there are professional engineers and technicians to conduct marketplace research on the design and installation of the air-growth shaft.
6. large bearing capacity: the air-expansion shaft may be designed in line with the real model, the usage of great metal and increasing the bearing ability. for instance, metal materials with a weight of greater than 1 ton can be used.
7. short working time: keeping apart and putting the coiled tube takes best 2 seconds of inflating and deflation. it is simple and handy to region the coiled tubing, secure and applicable. all of the equipments for winding and unwinding can be implemented. shafts. the air shaft can be up to 6 meters or more, and the shortest can be numerous hundred millimeters.

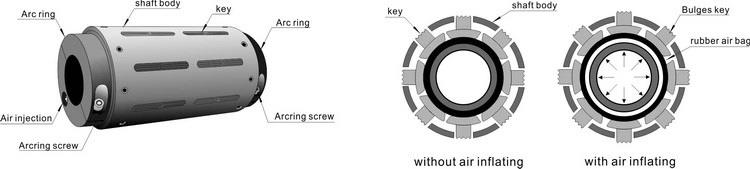

8. the important thing kind air expansion shaft expands from a single key bar, and the fulcrum spreads to every key bar to balance the force, and may be carried out to articles with heavy mechanical load bearing capability.

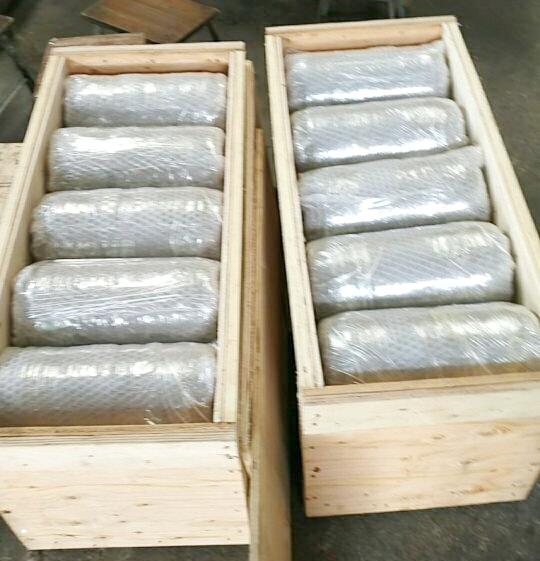

Packaging

Order Details
