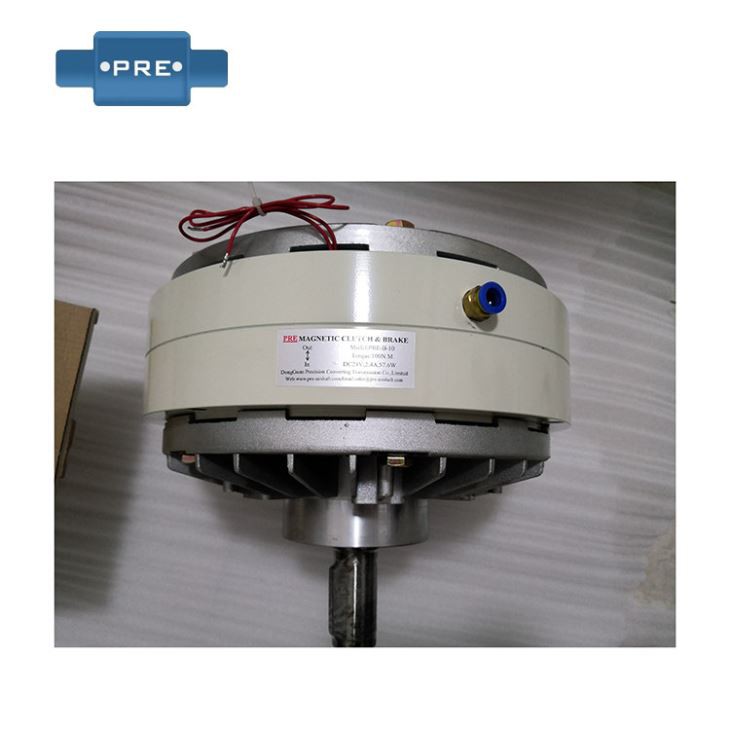

Uniaxial Magnetic Powder Brakes

Features:

1. Control of high-precision torque control torque is very wide, and high control precision, to convery torque and exciting current into the correct proportion, can achieve high-precision control.

2. Superior durability, long life and heat-resistant, abrasion resistant, abrasion resistance, oxidation, corrosion resistance super alloy powder, long life.

3. Magnetic characteristics superior stability constant torque characteristic good magnetic powder and the binding force between particles mutual stability, sliding torque is very stable, with no relation to the relative number of revolutions, can endure constant torque

4. Continuous sliding operation using the cooling effect of thermal deformation and excellent in uniform cooling structure, together with the magnetic powder high heat resistance to allow coupling and braking power and power sliding, smooth sliding operation can not cause vibration

5. Link sleek, non-shock link the impact when small, can not impact the smmoth start and shop. And resistance torque is extremely small, does not cause unwanted heat.

6. Suitable for high frequency operation fast and agile response to special cooling structure for the use of high-frequency operation

7. Lightweight, maintenance-free, long life type concise lighter, use high temperature of the coil and special grease bearings, and wear as spcial tratment for the armature prone to wear impose, extend the using life.

Usage:

1.Buffer starting, stopping: Sleek feature uses links and buffering effect when given torque characteristics, namely the acceleration stability and peak torque shock does not occur

2.Continuous sliding, tension control

3.Torque limit Used

4.high-speed response with

5.the power absorbed by

6.positioning stopping

7.with a simulated load

Magnetic powder brakes are widely used for braking of different purposes in various machines.

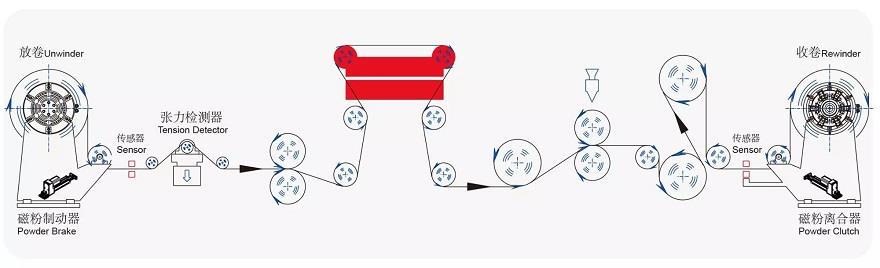

Magnetic powder clutch (magnetic powder brake) is used for tension control, overload protector, torque loader, etc. such as printing machine, winder, paper machine, wire drawing machine, metal calender, film processing machine, textile machinery, etc.; The engine, hydraulic reducer, etc. are loaded during the loading experiment.

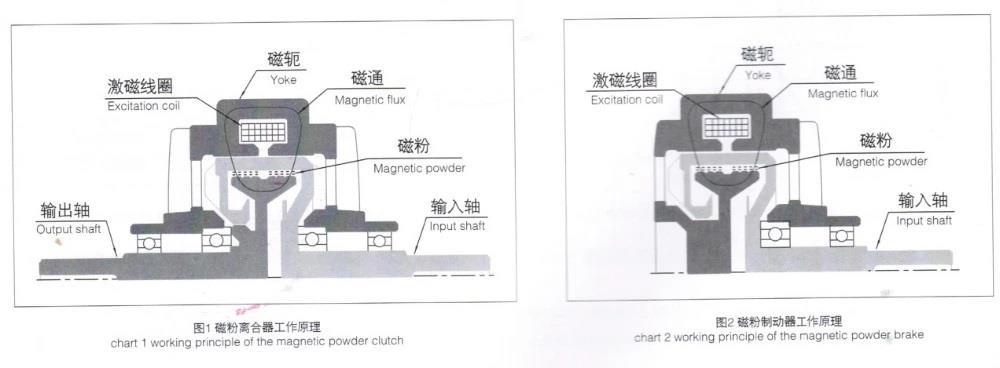

The magnetic powder clutch transmits torque according to the electromagnetic principle and using magnetic powder. It has a linear relationship between the excitation current and the transmission torque. It can transmit a certain torque regardless of the slip, and has the advantages of fast response, simple structure, no pollution, no noise, no impact vibration and energy saving. It is a multi-purpose, high-performance automatic control component. Magnetic powder brakes are widely used for braking, power test loading, and unwinding tension control for various purposes in various machines. Magnetic powder clutches are widely used for buffer starting, speed regulation, overload protection, and tension control for winding in winding systems.
