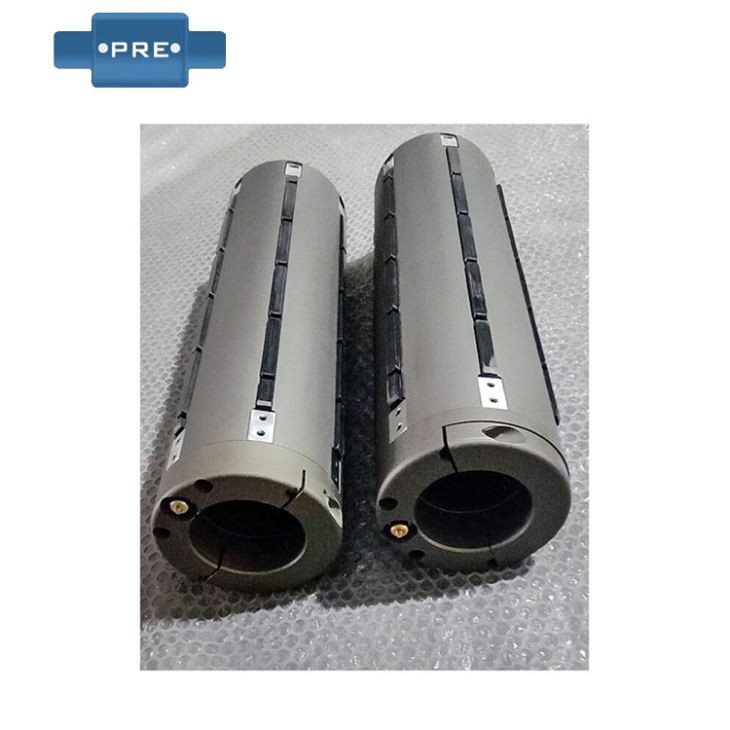

Air Pressure Chuck

The gasoline riser sleeve specially contains a the front sleeve, a rear sleeve, a cylinder frame, an inner tube, an air bag, a convex keyboard and so forth. the riser fabric is manufactured from top notch aluminum, oxidized at the floor, prepared with first rate airbags and fast inflation nozzles. particular sealing effect, prolonged provider existence and handy preservation.

Benefits: moderate weight and accessible loading and unloading.

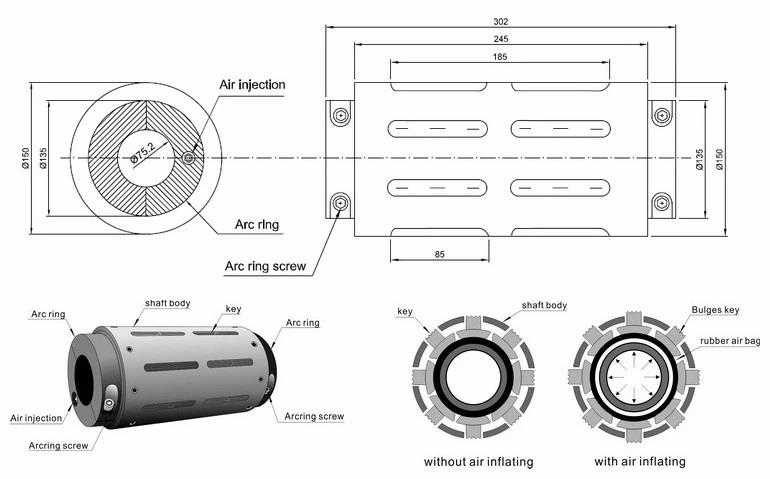

Technique parameter

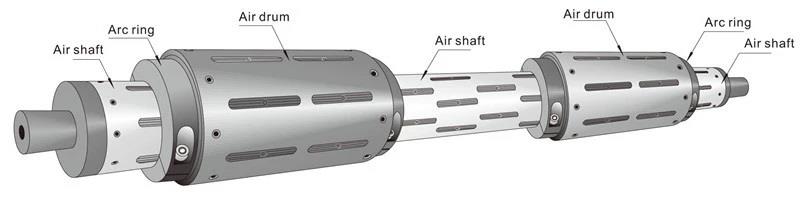

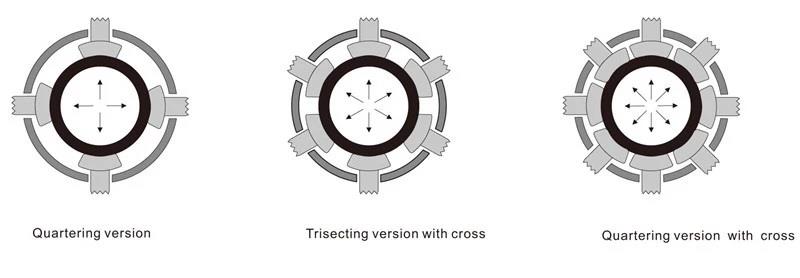

Pneumatic sleeves are widely used within the packaging film industry, and the principle size of the inflatable sleeve is three inches to 6 inches. therefore, the inflation sleeves are used together with the inflation shaft. inside the case of the shape form of the inflation sleeve, there are a button kind inflation sleeve; a plate type inflation sleeve; a rubber inflation sleeve. it's far broadly used in the packaging and printing enterprise, and is extensively identified and loved by means of clients.

1, can be customized according to size requirements;
2, the inflation and deflation time is as fast as 2 seconds to complete;
3, 1 to 1 free technical guidance selection service;
4. The type of inflation shaft needs to be specified;
5. Specify the external dimensions and nozzle position;
6. Mark the important dimensional tolerances on the shaft head;
7, flexible expansion, expansion and contraction flexibility;
8, high-quality rubber liner and fast charge and exhaust nozzle;
9. Good sealing effect and long service life;
10. Issue official drawings and confirm the production of both parties;

Inflatable sleeve component connection check
1. Is the connection wire between the electrical cabinet and the equipment damaged? Is there a split or hazard in the corner of the cable?
2. Is the power line and signal line placement reasonable? Is the cable connection accurate and reliable?
3. Is the machine power supply line reliably grounded? Is the specification of the grounding wire meeting the requirements?
4. Is the grounding of the signal shielding line accurate? Is the wiring on the terminal board robust and reliable? Is the system ground wire reliable?
5. Is the system bus and extension cable now accurately connected? Is the connector plug completely pierced and tightened? Is the module address setting (if required) accurate?
6. Are there any short-circuit or inaccurate connections between the control loops of all low-voltage PLC inputs (such as DC24V and high-voltage (such as AC220V)?
7. Is there any "short circuit" appearance of the output of all PLCs? and many more.

Packaging

Order Details
