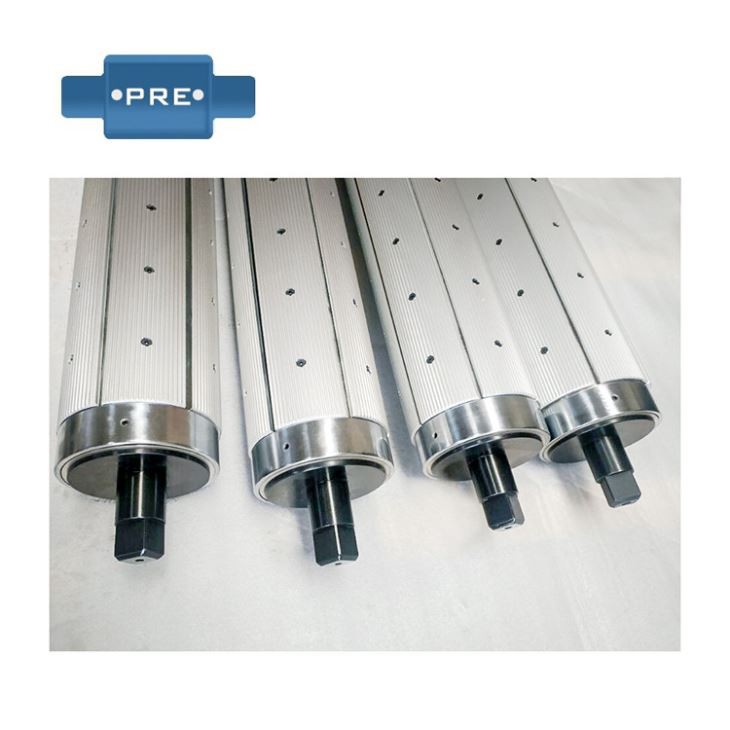

Air Shaft Apartment

Introduction to the principle and installation of the inflation shaft

The principle of the use of the inflation shaft: it is a special type of winding, the reel, that is, the shaft that can be expanded after the high pressure is inflated, and the shaft whose part of the surface is quickly retracted after deflation is called the inflation shaft. Only the user-supplied air source is required, and the air pressure is controlled within the range of 6-8 kg. When the reel core needs to be locked, as long as the inflatable handle is inflated against the air nozzle on the inflation shaft, the reel core unloading needs to be relaxed. When squeezing, press the sliding air core on the air nozzle to deflate.
Inflatable shaft installation and use items:
1. Ensure that the compressor that controls the gas pressure is in a stable state, and directly install the filter on the compressor and the air expansion shaft to avoid impurities blocking the air pipe and causing air leakage;
2. The direction of entry of air should be vertical to prevent damage to the valve;
3. When exhausting, you must use the standard exhaust port. It is forbidden to use tools such as sharp hammer to avoid air leakage.
4. Install pressure gauge and pressure control device, and the air pressure is controlled at 3-8kg/cm;
5, be careful to avoid the valve;
6. When replacing the air nozzle, please use the socket wrench. If there is a fault inside, you need to contact the professional if you need to disassemble.

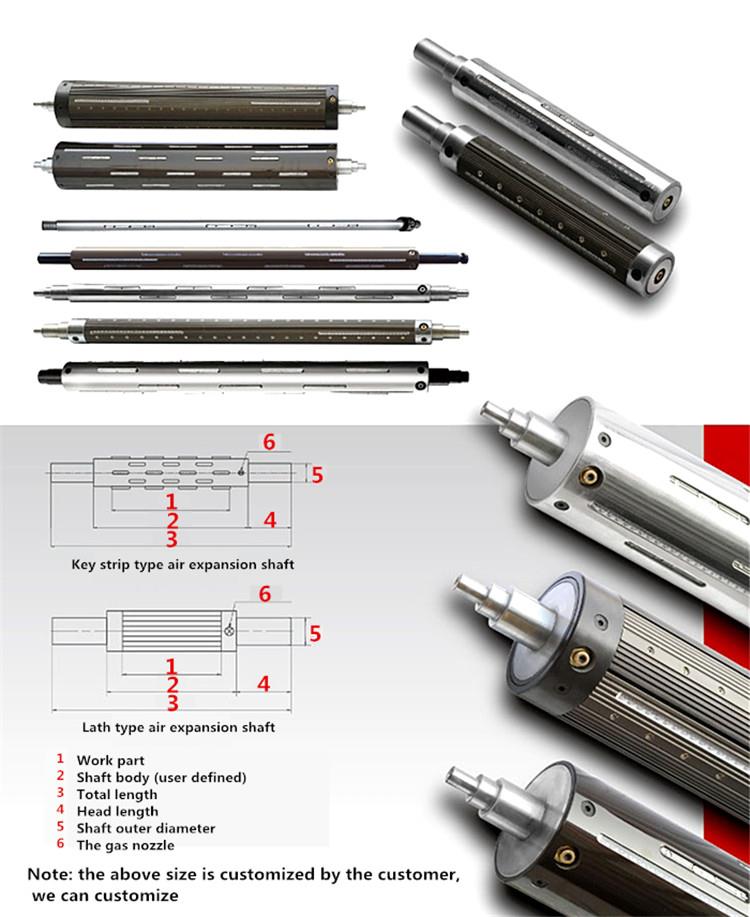

The primary distinction and feature of the important thing bar type air enlargement shaft and the slat type air expansion shaft

 the application range of the key bar kind air growth shaft includes: the key bar type air growth shaft expands from a unmarried key bar, the fulcrum spreads to each key bar, balances the force, and the air expansion shaft can be carried out to articles with heavy mechanical load bearing capability. for instance: material, paper, movie, revealed rely, leather, composite substances, and many others., suitable for coating, slitting, printing, rewinding, composite, paper making, bag making, plastics and different related equipment retractable reels, can successfully improve work efficiency .

   the slat-kind air-up shaft expands from the whole plate, and the fulcrum is frivolously disbursed, and the force is uniform. it is able to be used for excessive-precision mechanical or mild-weight articles, including: drying device, flexo printing machine. , gravure device, trademark printing device, and so forth.

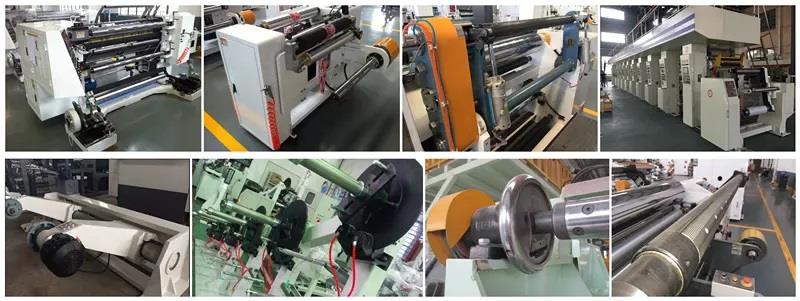

    different equipment: coating machine, leather machine, placing system, embossing gadget, slitting device, die reducing system, rewinding machine, paper tube system, bag making gadget, laminating machine, laminating device, movie blowing machine, foaming device, laminating machine, embossing machine, paper system, non-woven gadget, fabric inspection device, bronzing gadget, battery equipment, etc. cabinet, how to be aware of cast off eddy currents.

 the important thing bar kind air growth shaft and the slat kind air expansion shaft at the winding unwinding device need to be distinctly strong in the belt pressure device, so that you can reduce the vibration and ensure the printing satisfactory. the primary technical requirement for belt pressure is: correctly installation the belt at the shaft without skewing and swinging. the assembled v-belt have to be perpendicular to the axis of rotation of the pulley. the anxiety of the belt need to be enough to ensure the touch among the belt and the pulley. there is sufficient friction on the floor to obtain excessive transmission performance.

    the winding and unwinding gadget uses a v-belt to transfer the power of the motor into the device. whilst repairing the key-type air-expanding shaft and the slat-kind air-up shaft, the following inspection and adjustment ought to be accomplished on the belt-driven system. the relative role between the pulleys is closely related to the working situation of the transmission on the inflatable shaft. excessive offset will make the anxiety of the belt uneven and accelerate the damage of the belt. therefore, for the pulleys shifting to every different, for the duration of the maintenance process, it should be checked. its relative position and adjustment is appropriate.

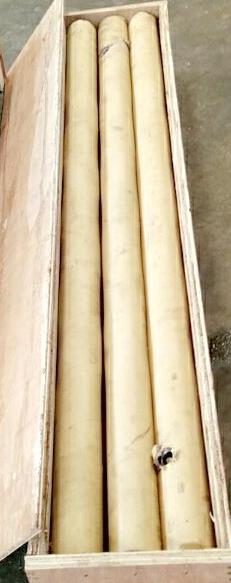

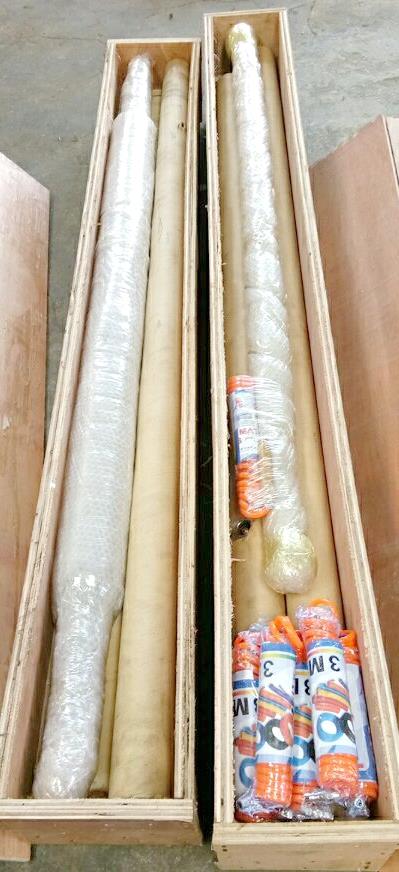

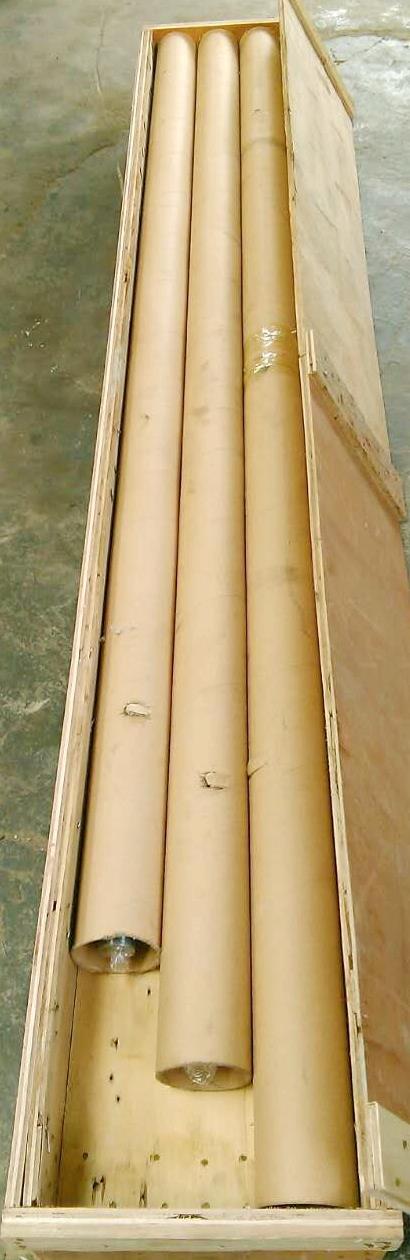

Packing

Order Details
