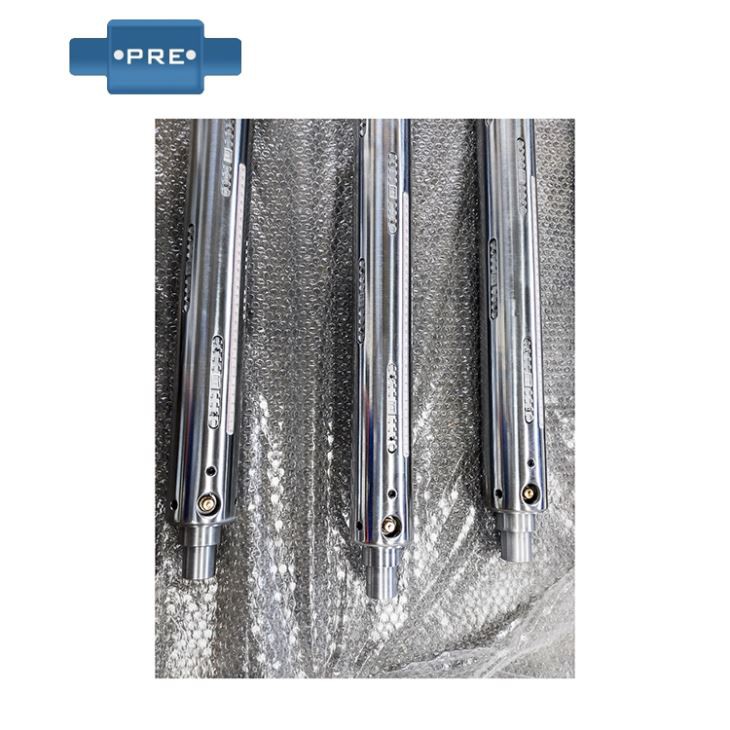

Differential Rewind Shafts

The inflation shaft is also called the inflation roller, which is common in the paper coating and printing industries.

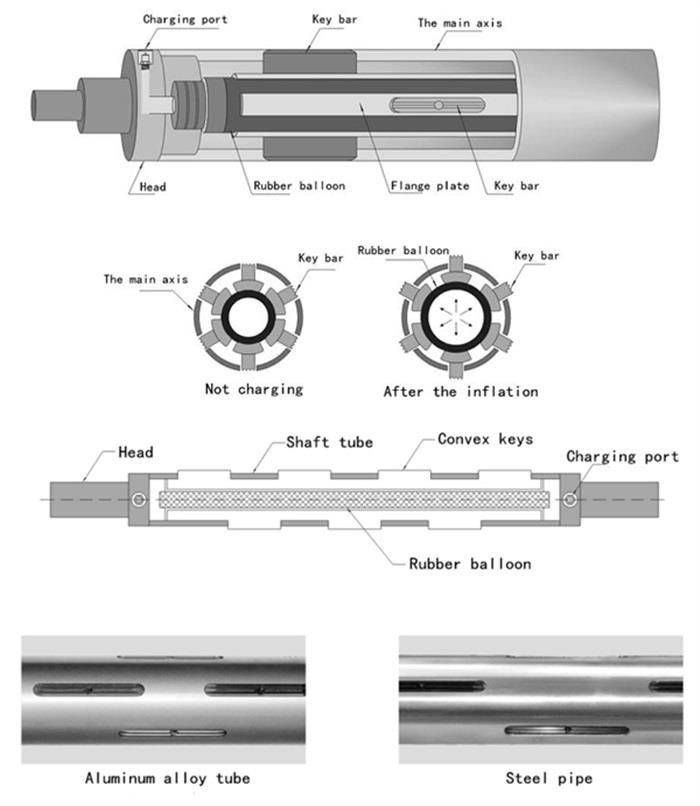

A kind of winding and reeling. After the compressed air is inflated, the key strip on the surface of the shaft can be raised (the shaft diameter is increased), and the key strip on the surface after deflation is quickly retracted (recovery of the shaft diameter) for tightening the core.
The surface of the gas-increasing axis is regularly distributed with some collets (protruding), and the collet is retracted when there is no compressed air.
The surface of the shaft is flush, and the paper tube or other tube on the fashion, then the compressed air is introduced into the shaft, which is the top of the chuck, and the solid
The paper tube or other tube can be wound around the paper tube with the film, sheet, fiber, etc.

On other pipes.

Inflatable shaft characteristics
1, a wide range of applications: Inflatable shaft as an independent design of parts, from 1 inch to 12 inches, the length and length are determined by the customer
Need to be sure, where there are strips, printing, rewinding, coating, lamination, making, making, etc., for the equipment or other related centers.
Machinery, can be applied to the furnace shaft of the factory.
2, cost-effective: The design of the shaft is designed for practical work, and can be applied to various types of coils such as thick and wide.
Third, long use time, simple maintenance: Although the inflatable shaft is a mechanical accessory, but each part of its own construction
All have fixed specifications and can be used interchangeably to make it easy to maintain. Our factory has strict requirements on the quality of various components of the air shaft.
The product quality is absolutely guaranteed.
4. Single fitting: The inflatable shaft is a single part of the winding and unwinding machine. Each part in the structure has a fixed gauge.
The size of the grid can be combined and decomposed to make maintenance easy and durable.
V. Professionalism: The factory specializes in the production of air-expansion shafts, and has professional engineers and technicians to design and install the air-expansion shafts.
Field research.
6. Large bearing capacity: The air shaft can be designed according to the actual model, using high-quality steel and increasing the load capacity. For example, bearing weight
More than 1 ton can be made of steel.
7. Short working time: Separating and placing the coil tube can be completed in 2 seconds of inflation and deflation.
It is safe and applicable. Applicable to the equipment for winding and unwinding, the air shaft can be applied. The inflation shaft can be up to six Meters or more, up to a few hundred millimeters, are based on customer needs.
8, the key type air expansion shaft expands from a single key bar, the fulcrum spreads to each key bar, balances the force, and can be applied to mechanical collection.
A roll with a heavier load.
The integral metal frame excavates a box-type window at the fixed end of the cantilever mandrel operating side to ensure printing.The structural rigidity of the platform, the bearing seat is mounted on the inside of the movable steel block, and the steel block is driven by a high-precision ball screw, the screw
The moving position is on the center line of the plate mandrel, and linear guides are respectively mounted on the upper and lower ends of the box window for fixed movement.
Steel blocks to ensure the stability of the printing platform during high-speed operation. In this design, the mandrel is fixed entirely from Moving, the movement of the entire screw and the locking of the shaft end eliminate the artificial factors. Mobile steel block passes two straight lines
The guide rail is fixed to the frame, and the thrust of the center impression cylinder against the plate roller is caused by the movement of the screw on the center line of the platen mandrel
And the driving force along the direction of the ball screw acts on the center of the plate mandrel, forming only a small partial pressure, and

The force of the force acts only on the center of the plate mandrel and there is no torque on the support frame.

Technique parameter

Application

Name: plate air expansion shaft, six-piece air expansion shaft, tile air expansion shaft, but the working principle is the same, the user must specify the type of air expansion shaft, the outer dimensions, and the important axis on the axis when ordering the air expansion shaft. The tolerance class and order quantity of the size, if otherwise specified, will be indicated separately.

Features: Aluminum alloy tile, flexible expansion and contraction, high-quality rubber liner and fast filling and exhausting nozzle, good sealing effect, long service life, detachable shaft head, convenient maintenance. After inflation, the expansion part is a plate, usually up to a height of 4mm to 5mm (such as 3 inches in diameter before expansion, 74mm to 75mm, diameter can be 78mm to 79mm after expansion), special expansion height, separately required, 3 inch plate Expansion shaft, usually using a coiled tube inner diameter of 76mm.

Applicable: The expansion of the plate type air expansion shaft is the whole plate, the fulcrum is evenly distributed, and the force is uniform. It can be applied to machines with high precision of winding or lighter articles, such as electronic materials and battery materials. Foamed cotton, plush, paper, non-woven fabric, etc., suitable for coating, slitting, printing, rewinding, composite, paper making, bag making, plastic and other related machinery retractable reels, especially suitable for paper tubes When there is a higher roundness requirement or a surface retracting roll, the work efficiency and product quality can be effectively improved. Plate type inflatable shaft detailed description
