Air Shaft Manufacturers

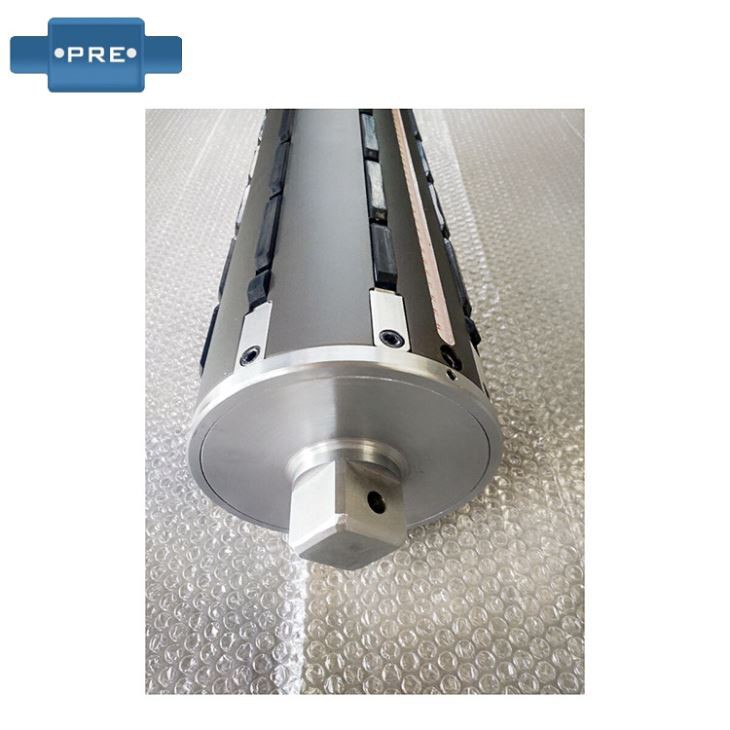

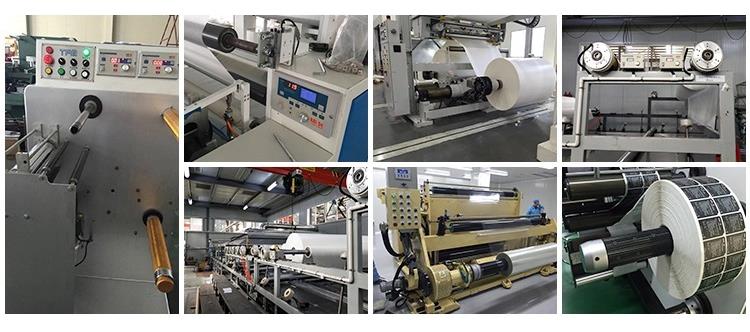

Winding Air Shaft for slitter re-winder machine, used as duplex shaft winder (center winding type).

Features:

• Reel holding are possible at any position across

• No-time lost in re-positioning cores

• It can run at very high speed

• It is capable of compensating speed variation due to gauge variation with multi cores

Specifications:

• Load: 2.5 tons Max

• Suitable for Core I.D.: dia 4”, 6”, 8”

• Length as required

• Speed up to 1000 meters/Min

• Minimum 20 mm core

• Suitable for core materials: Steel, Thermoplastics, Paper

Core holding is initiated mechanically and not pneumatically in this lug type shaft. Excellent performance is delivered even for heavy load and higher speed. Positive gripping and core centering are achieved with the help of cam/lug design. Easy handling of cores with uneven inside diameter. Key and alien cap bolt prevent any shearing of journals pipe assembly. Above price may vary as per customer requirement related to OD/ID and length etc.

Packing

Order Details
