Aluminum Alloy Guide Roller

Aluminum alloy guide roller features

High strength, low resistance, light weight, smooth rotation, no rust, good abrasion and corrosion resistance, especially suitable for packaging, printing, plastic, electronic battery and other precision machinery industries. And there are a variety of structural forms to choose: no shaft type, with shaft type, cross thread type, etc.

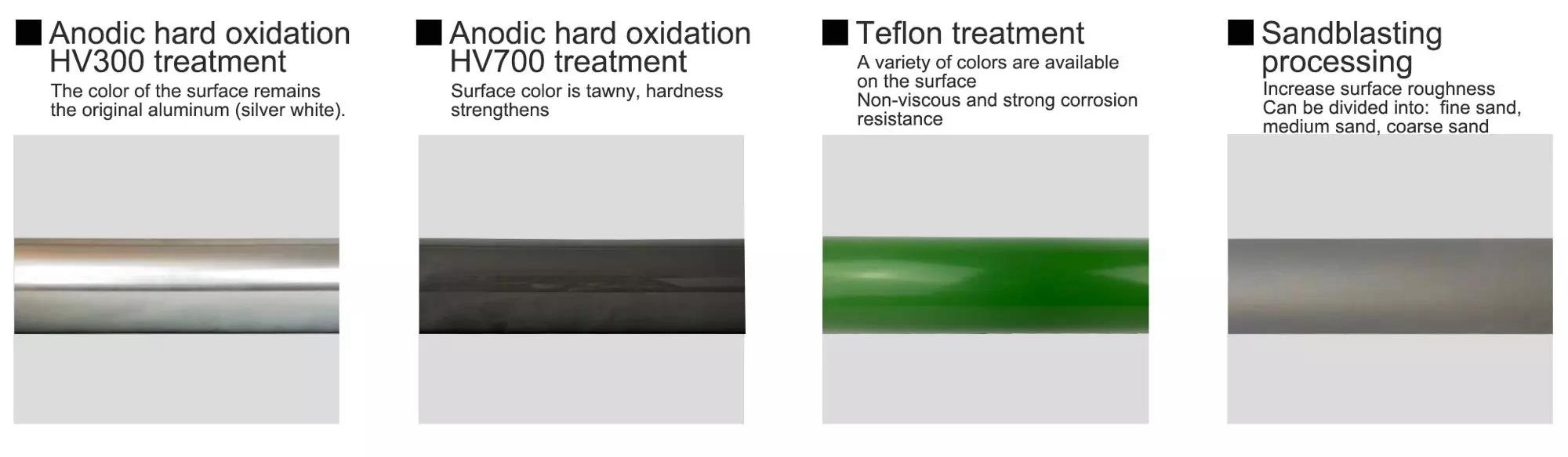

Surface treatment of aluminum guide roller::

1. Ordinary anodized (natural/white) surface hardness HV300.

2, high hardness anodized (tan) surface hardness HV700.

3, TEFLON(black or green) surface hardness HV700.

4. Sand blasting (20 eyes \60 eyes \80 eyes \120 eyes)

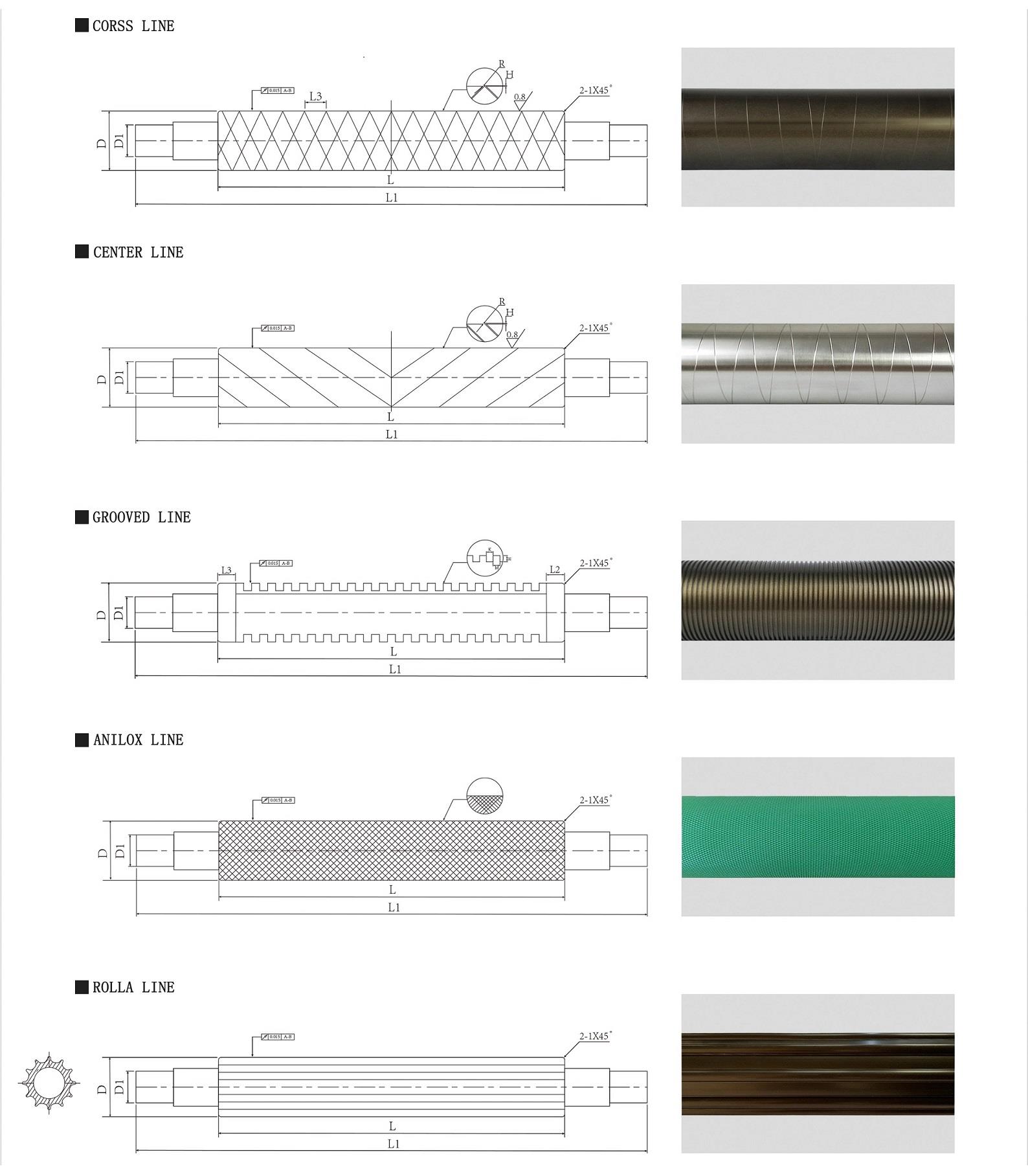

5. The groove roller and cooling roller are customized according to the requirements of the drawing.

6. Knurling (tooth pitch according to drawing requirements)

7. Dynamic balance G2.5 (within 3g) and G6.3 (within 10g).

8. Surface finish 0.8-1.6.

Aluminum guide roller product function:

The aluminum guide roller is also called aluminum alloy guide roller. It is made of excellent aluminum alloy data (6063-T5), and is made into a tube type (from 30mm to 220mm in outer diameter). It has a reinforced rib structure and high strength. And the application of fine equipment and special tools interrupts the surface finishing, so that the surface is lubricated, the coaxiality reaches 0.02mm, the whole axis is processed within 2g by computer balance correction processing, the shaft end special process and joint export bearing, can be under high speed operation Easy to run. According to the family's unsuitable demand, its appearance can also be specially treated: sand blasting, reticulation, Teflon and special hardening treatment HV700, which has excellent scratch resistance and wear resistance.

Aluminum guide roller features:

Aluminum guide roller has high strength, low resistance, light weight, sensitive migration, no rust, wear and corrosion resistance. Aluminum alloy guide roller manufacturers are especially used in fine machinery industry such as printing, packaging, plastics, electronic batteries and various types of rolls. Material processing home.

The aluminum guide roller is made of excellent aluminum and has been processed by the predecessor's processing technology. Dongguan Xinke Machinery Co., Ltd. (Taiwan Hangang Enterprise) is affiliated to Taiwan Motor Active Chemical Factory, which is engaged in the production and sale of paper, film and film. Peripheral equipment for the control of the web of textiles, rubber, etc., such as air-up shaft, air-expansion shaft/safety chuck, edge tracker (edge machine), aluminum guide roller, magnetic powder braker and radiator , receiving and discharging materials linkage system, tension control device and other related printing, lamination, slitting, rewinding, coating, gluing, extrusion, lamination and other home mechanical parts.

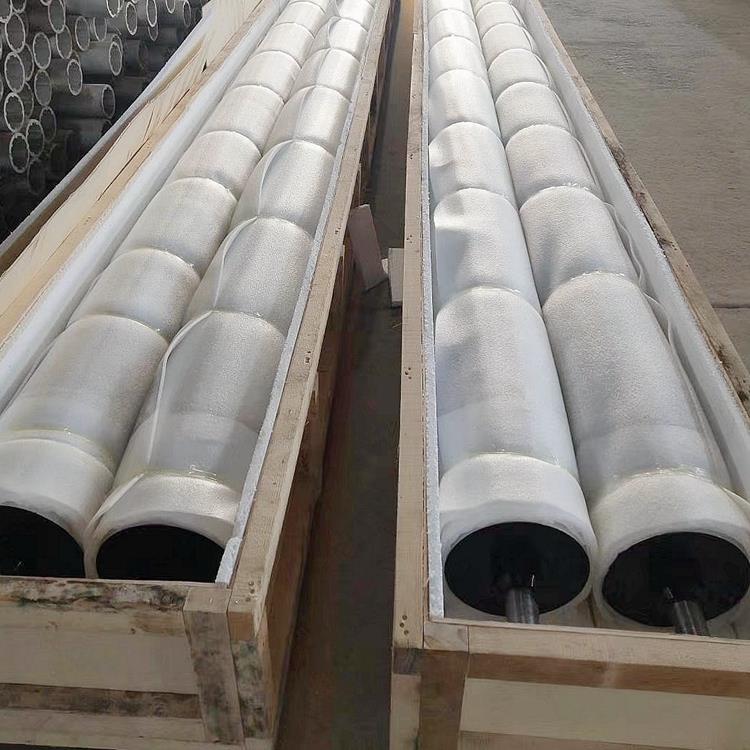

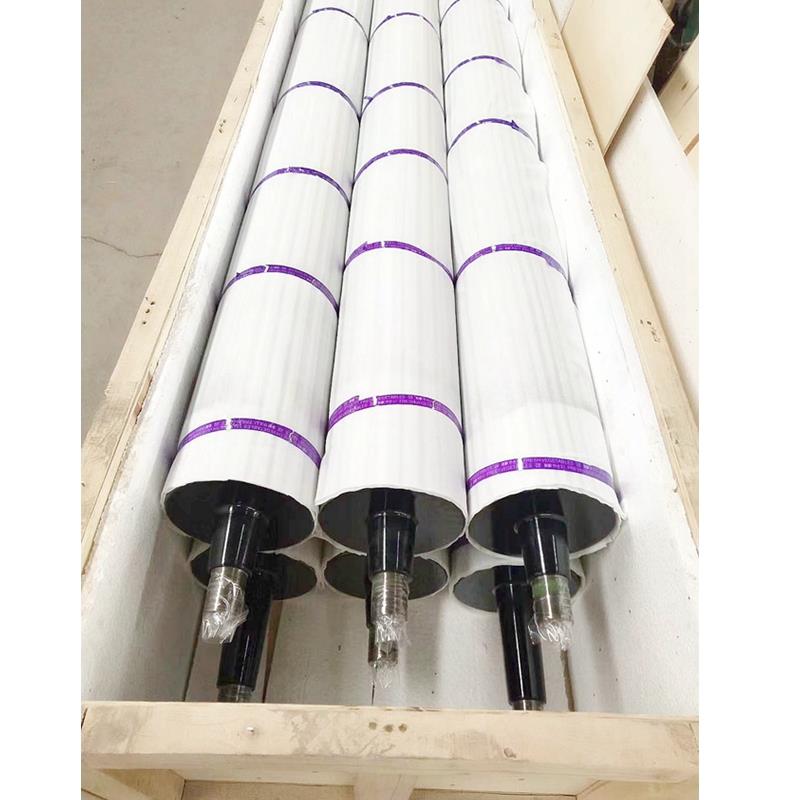

Packing

Order Details
