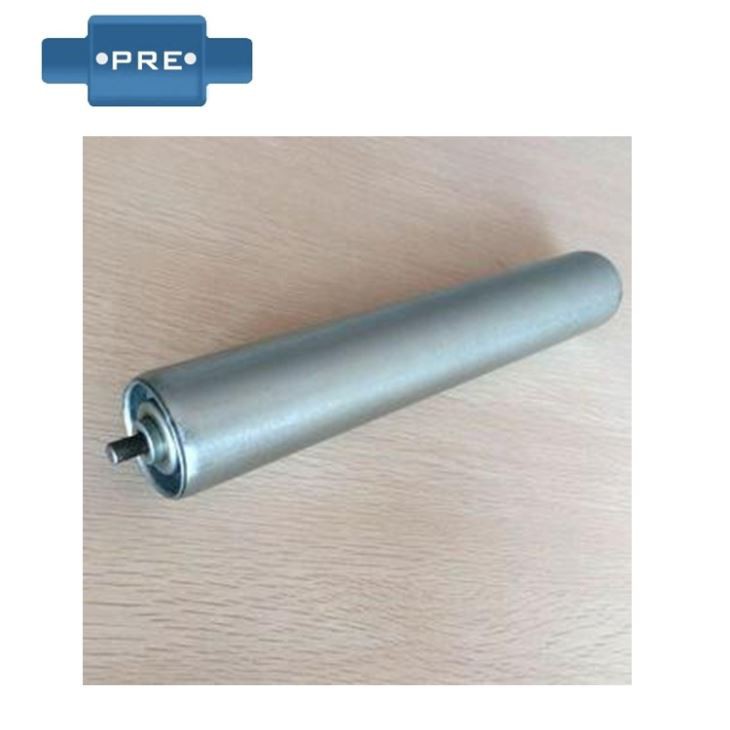

Gravity Conveyor Roller

Name: Gravity Conveyor Roller
Brand: Precision Converting Co.,Limited
SKU: 77946637

Parameters. Here are some types of gravity conveyor roller we made. Packing Order Details

Send Inquiry Chat Now

Product Details

Roller Dia	Shaft Dia	Tube Thickness	Roller Length	Tube structure	Surface treatment	Erecting structure
Φ16	Φ6	1.2,1.5	50-1500	PVC, Coat rubber, Carbon steel , Stainless steel , Aluminium alloy	galvanization\ chromeplate\ skin glue\ plastic\ injection	a.spring shaft b.mandrel shaft c.inside thread shaft d.outside thread shaft e.oblate tenon shaft f.semicircular tenon shaft
Φ20	Φ8	1.5,2.0	50-1500
Φ25	Φ8,10	1.5,2.0	50-1500
Φ30	Φ8,10	1.5,2.0	50-1500
Φ32	Φ10,12	1.5,2.0	50-1500
Φ38	Φ10,12	1.5,2.0	50-1500
Φ50	Φ12	1.5,2.0	50-1500
Φ60	Φ12,15	1.5,2.0	50-1500
Φ76	Φ15,20	2.5,3.0	80-1500
Φ89	Φ20,25	3.0,4.0	80-1500
Φ108	Φ25,30	3.5,4.0	100-1500	Coat rubber, Carbon steel , Stainless steel ,
Φ127	Φ30,35	4.0,4.5	200-1500
Φ152	Φ35,40	4.0,5.0	200-1500
Φ159	Φ40,45	5.0,6.0	200-1500
Φ200	Φ50,60	5.0,6.0	200-1500
Φ500	Φ80	8.0,10.0	200-1500
Φ800	Φ100	10.0,12.0	200-1500

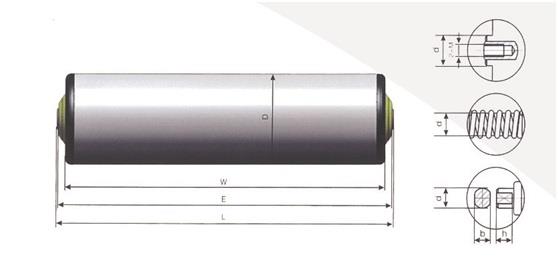

drawing

Parameters.

Tube’s diameter and thickness (D X t)	Shaft diameter (d)	Spring loaded	Female thread	Flat milling	E dimension (E)	bXh
32X1.0	12	L=W+31	L=W+10	L=W+31	E=W+9	10X10
38X1.0/1.5	12	L=W+31	L=W+10	L=W+31	E=W+9	10X10
50X1.2/1.5/2/3	12/15	L=W+31	L=W+10	L=W+31	E=W+9	10X10
60X1.5/2/3	12/15/20	L=W+41	L=W+10	L=W+41	E=W+11	16X10
76X2/3	15/20	L=W+41	L=W+10	L=W+41	E=W+11	16X10
All these parameters can adjust according to customer’s requires.

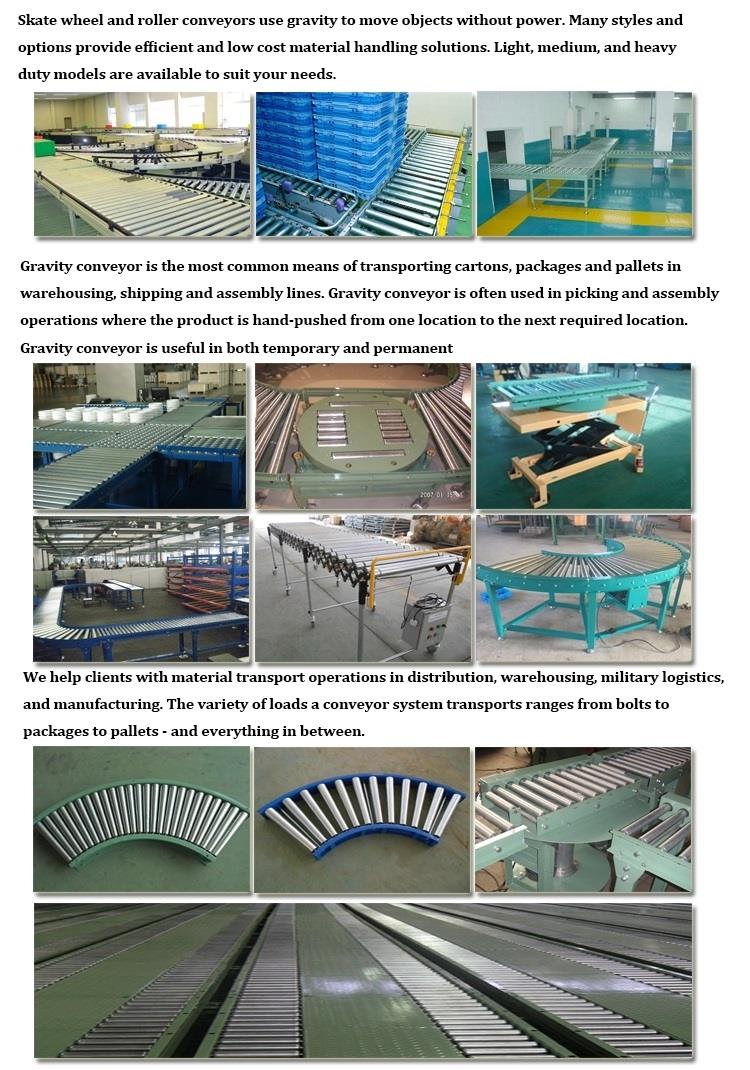

rollers

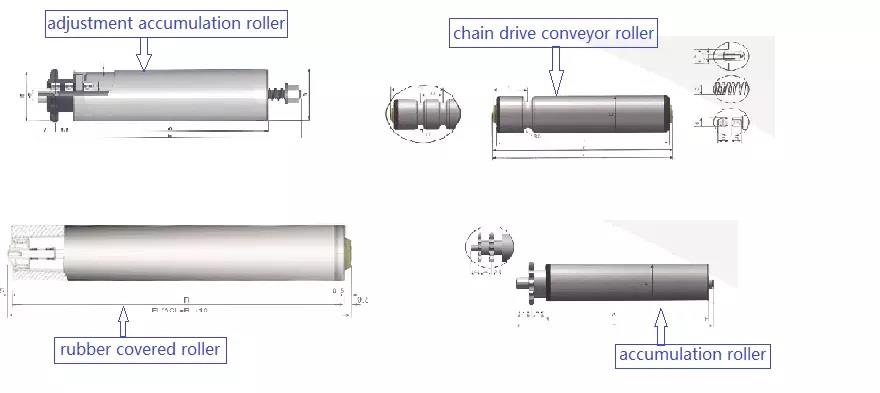

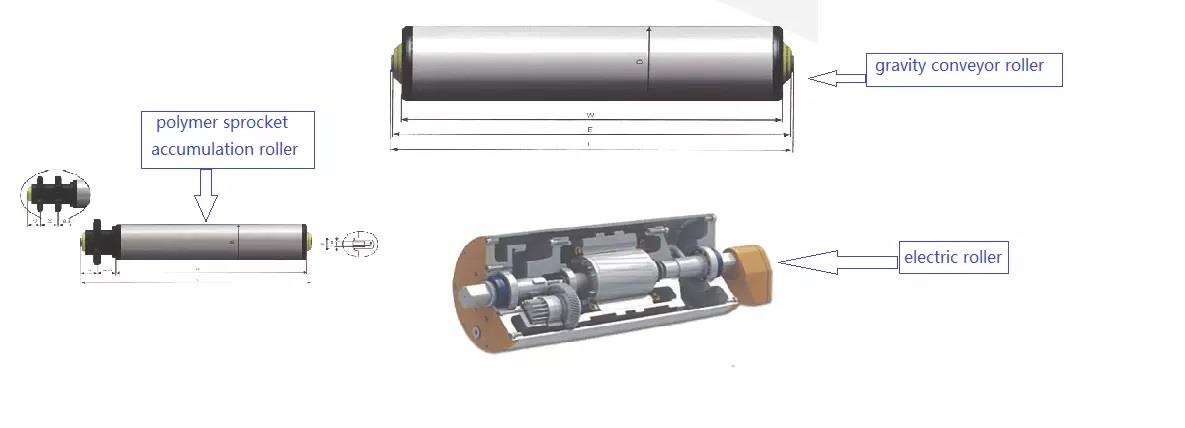

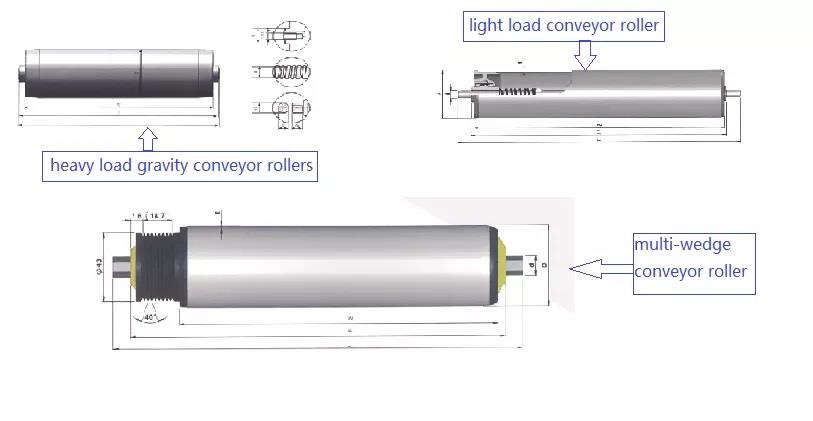

Here are some types of gravity conveyor roller we made.

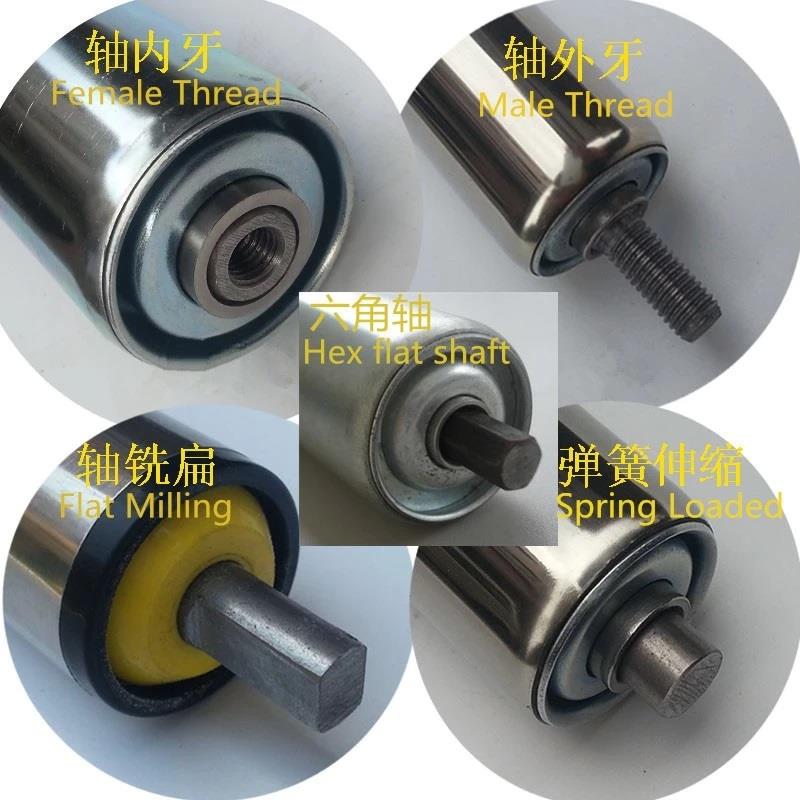

types

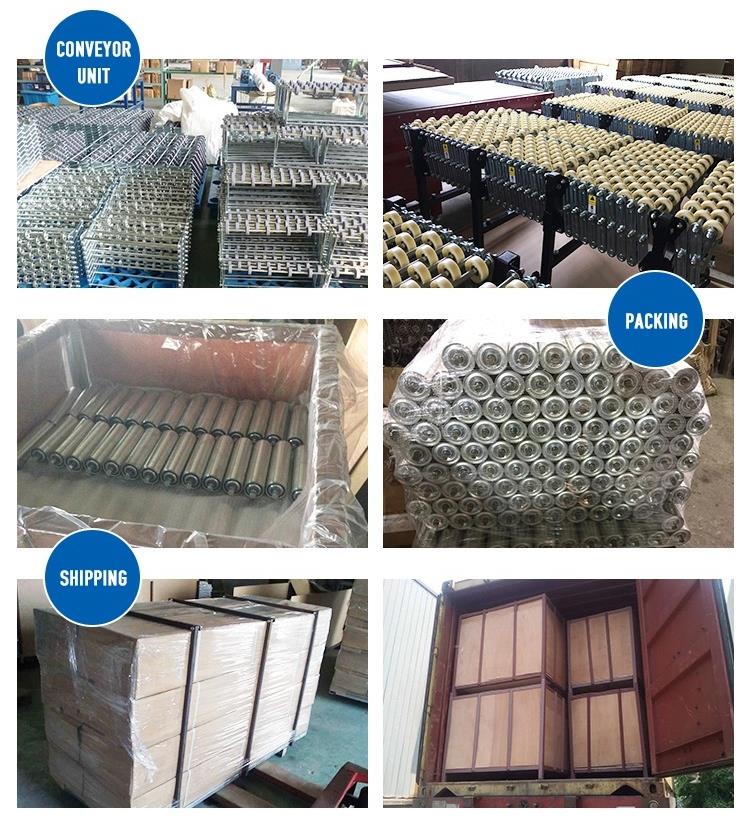

Packing

packing

Order Details

Item Name	Gravity Conveyor Roller
MOQ(Minimum Order Quantity)	1PC
Lead time	10-15 days after receiving the deposit
Calculated Weight	Need to calculate
Package	Wooden Box
Price Term	EXW, FOB, CIF, etc
Payment term	TT,L/C,Western Union
Country of Origin	China
