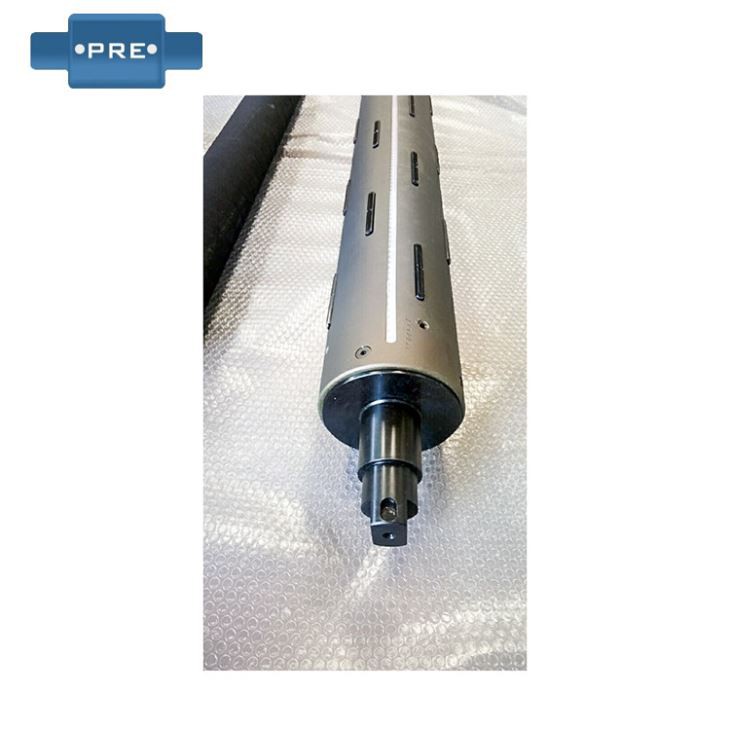

Air Shaft Parts

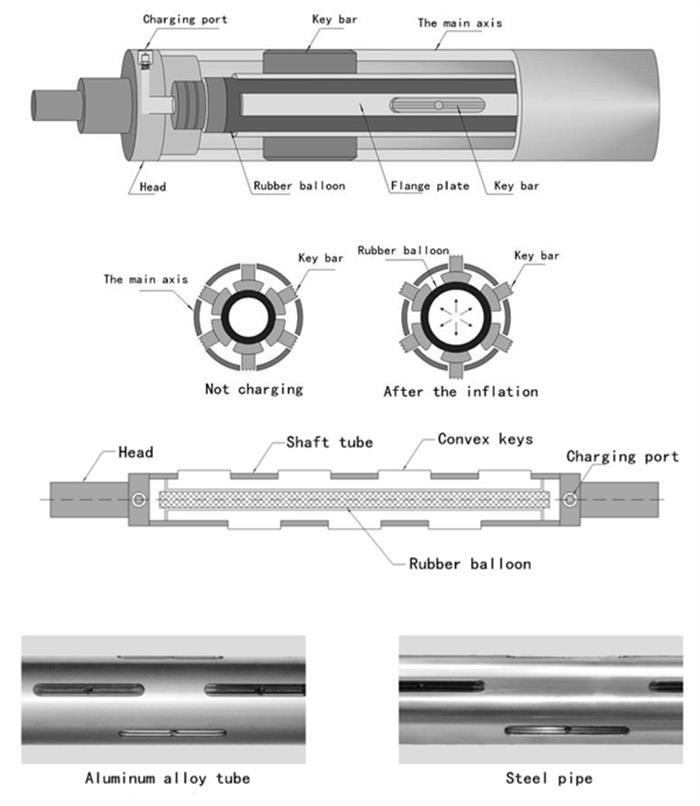

Key strip inflation shaft introduction:
1. The special copper nozzle is effective to resist the pollution in the compressed gas, and the nozzle replacement is quick and convenient;
2. The main body is made of all steel and carries more than 1 ton.
3. It is suitable for use in the case of ultra-high load bearing requirements.

When is the case for a bar-type air pressure shaft?
1. When the weight of the product that needs to be wound is heavy;
2. When the winding material does not need to be cut or single-width wide;
3. When the wall of the web or other material used in the product has a thick wall or good quality.


What issues should I pay attention to when using the key bar air pressure shaft?
1. It is necessary to keep the air pressure in the air shaft continuously sufficient;
2. When winding or unwinding, if there are parts at both ends that are not covered by the core, apply the empty core to cover the empty part;
3. The air pressure shaft must be placed horizontally when not in use, and should not be suspended or erected to avoid deformation of the shaft body caused by collision.

What are the materials and forms of the key bar pneumatic shaft?
1. Under normal circumstances, the main core tube of the pneumatic shaft has two kinds of steel and aluminum alloy;
2, the material of the shaft head is generally steel, or aluminum alloy can be used according to customer requirements to reduce the weight of the air shaft;
3, the surface key bar is generally 100MM long steel key, you can also customize the rubber key or other material key bar according to customer requirements;
4, the customer has special quality requirements, you can customize the entire type of long-key bar type pneumatic shaft.

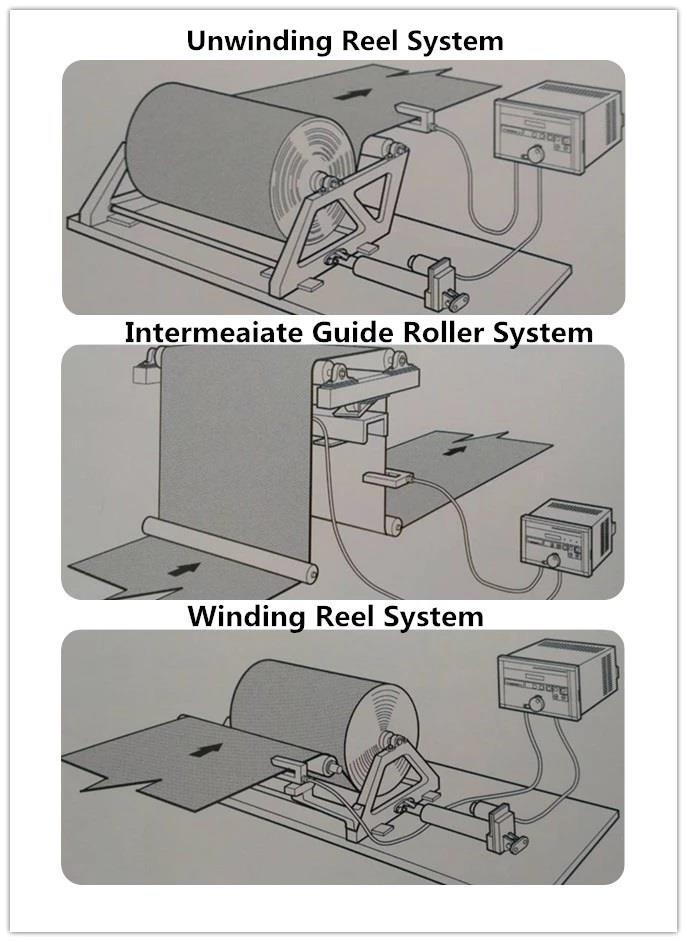

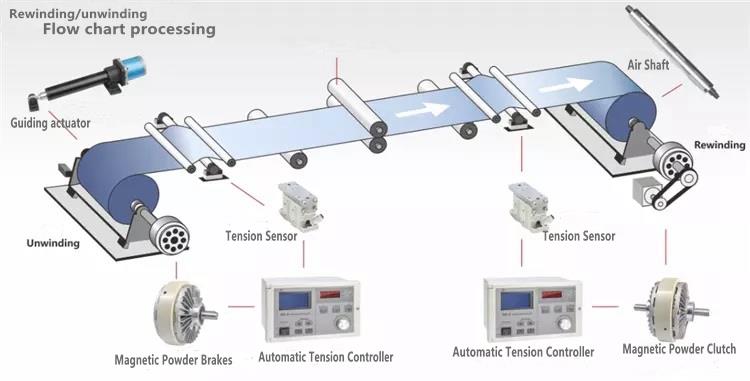

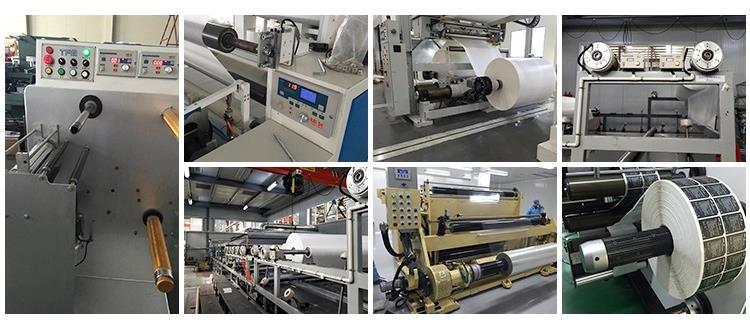

Application

Packing

Order Details
