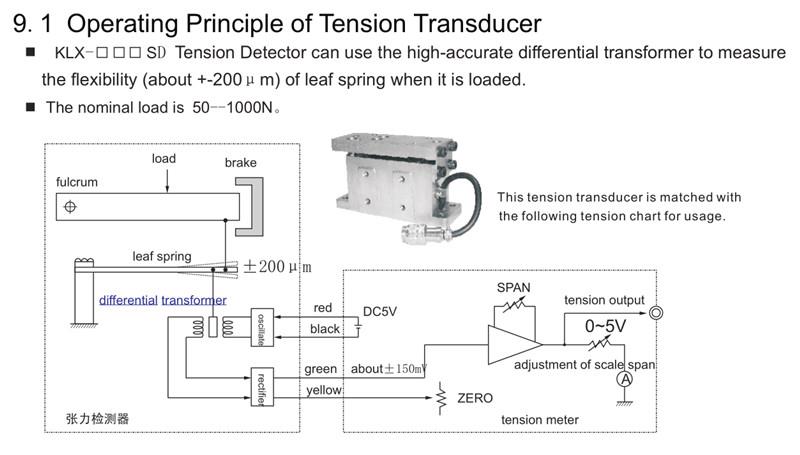

Tension sensor, english: anxiety pick-up, tension sensor is the device used to degree the anxiety cost of the coil all through the anxiety manipulate process. for the pharmaceutical and strain gauge type, the tension strain gauge and the compression strain gauge are linked collectively in a bridge manner. whilst the outside stress is applied, the resistance price of the stress gauge is likewise changed, and the price of the change might be proportional to the significance of the tension. the micro-displacement type applies a load by an external force to cause displacement of the leaf spring, and then detects the anxiety thru a differential transformer. for the reason that displacement of the leaf spring is extremely small, about ±two hundred μm, it's miles called a micro-displacement kind anxiety detector. in addition, it's miles in addition divided into: the shaft desk, the shaft kind, the cantilever type, and so forth.

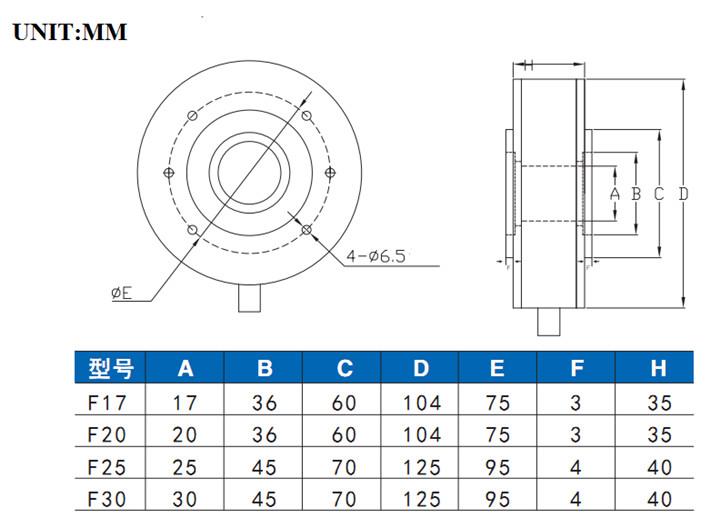

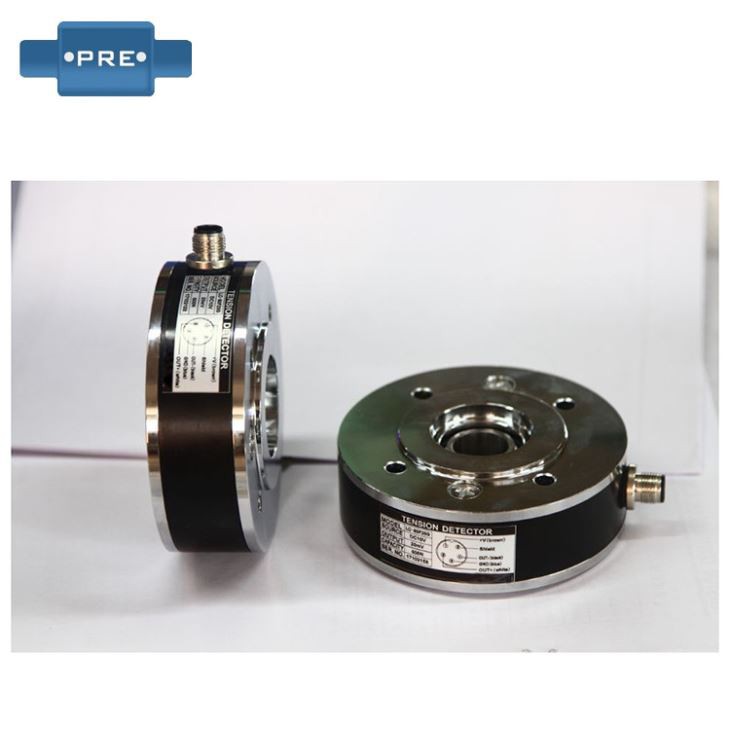

LC series Through-Hole Tension Detector

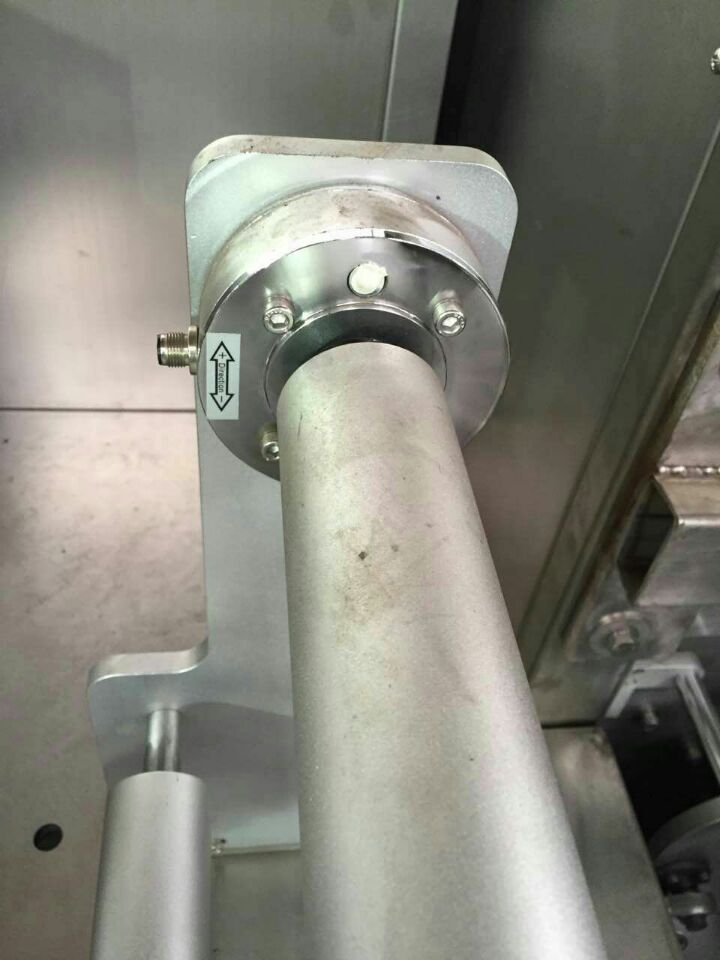

Installation:

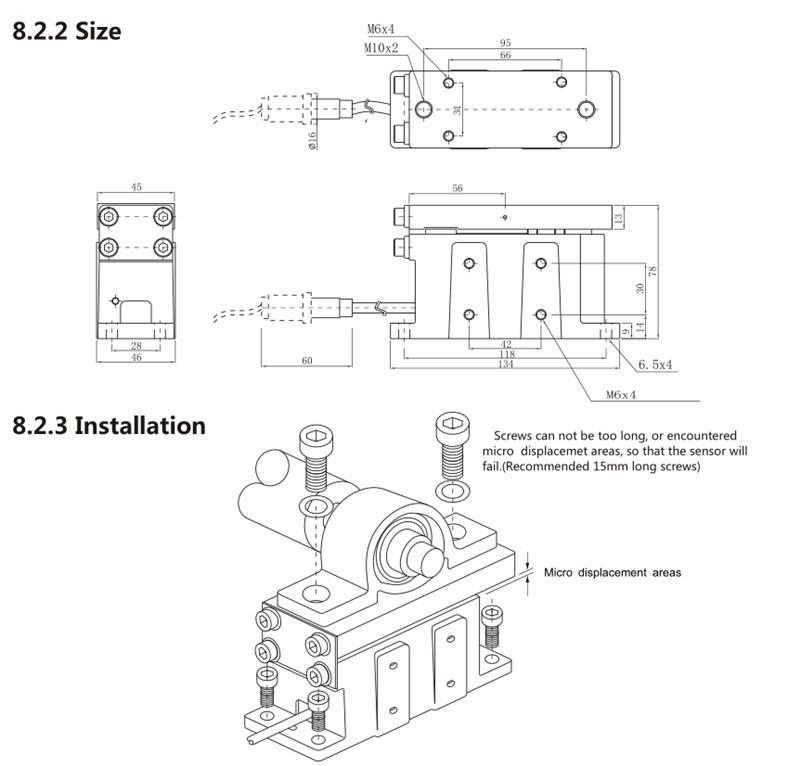

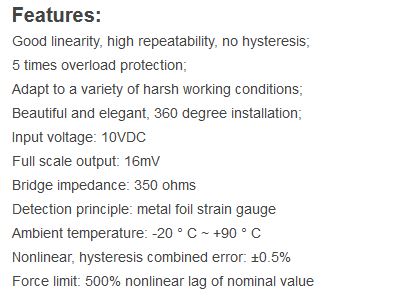

LX series Foot Mounted Tension Sensor

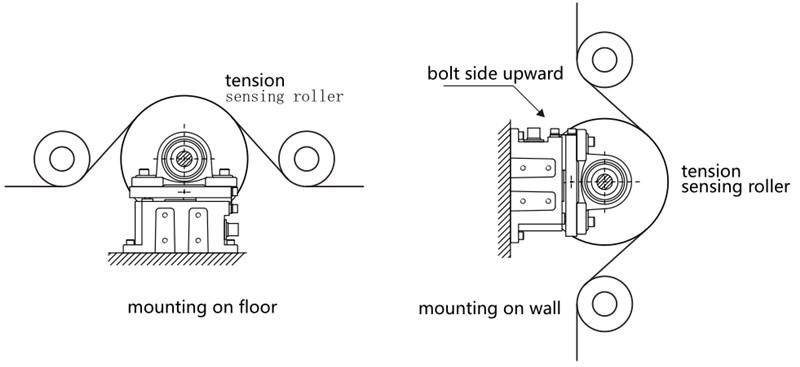

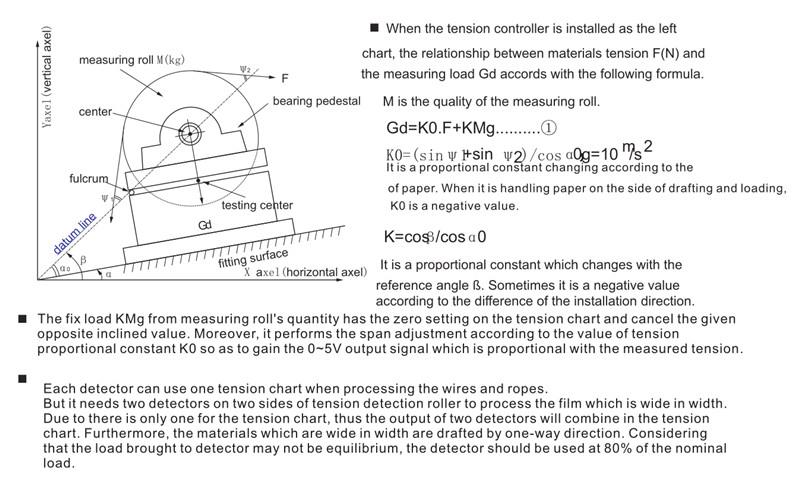

Mounting of Tension Sensors:

Order Details
