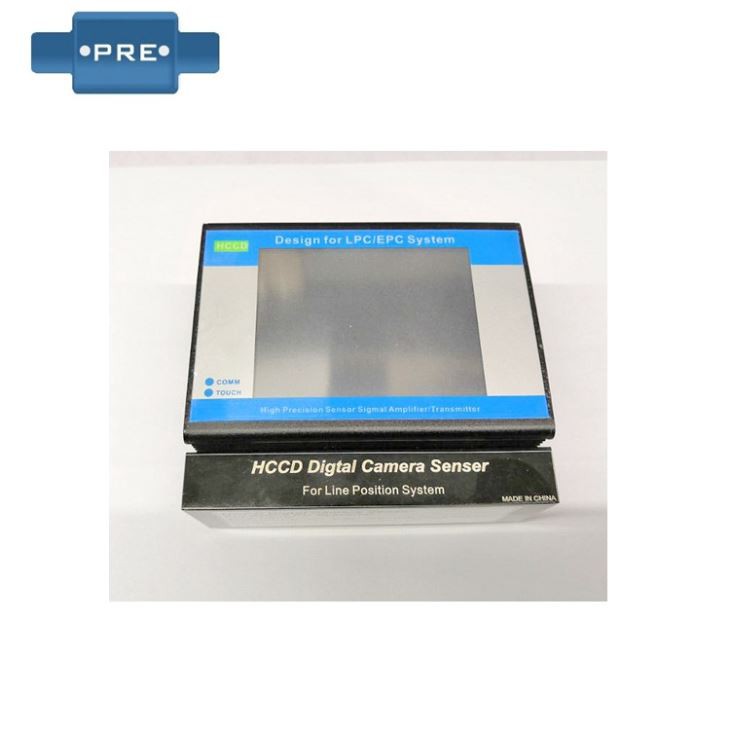

CCD Linear Sensor For Web Guide System

Full color display, directly showing material lines.
High-speed color CCD photo imaging, not affected by ambient light.
Can chase print lines, color edges, transparent edges, combined graphics.

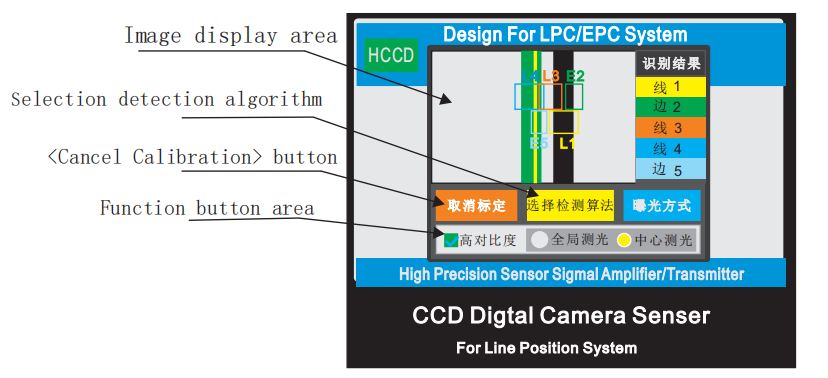

Touch operation with automatic edge finding function for easy operation.

Features

1. High precision

a. Accuracy: 0.02mm

b. The finest trace: 0.2mm

c. Detection range: 20mm

2. High speed

Reaction time: 2ms

3. High stability

Full metal housing, high-speed digital communication to ensure freedom from outside interference

4. Powerful performance

Can chase and chase

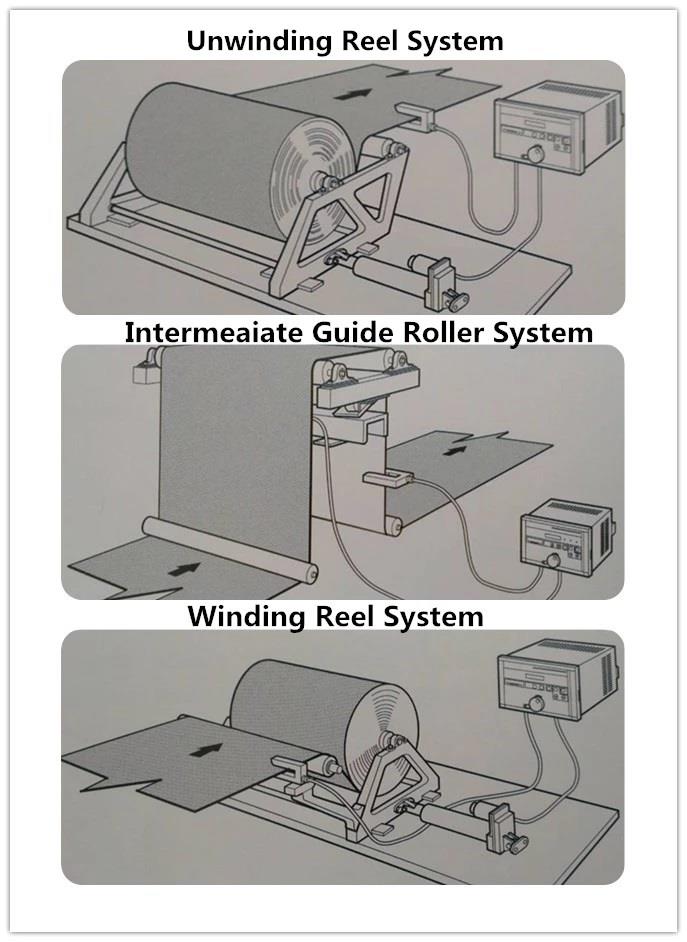

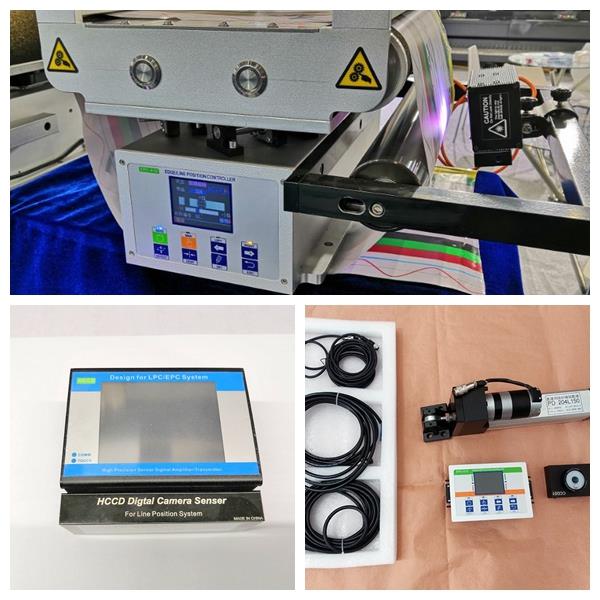

CCD Guide sensor picture. Applicable to all kinds of high-precision edge detection/detection line correction systems, such as slitting machine, compound machine, pc flexo printing machine, and various winding systems, etc. It can also be applied to the displacement, velocity and acceleration of objects to be detected. , external shape, size and other occasions, the scope of application and its wide range.

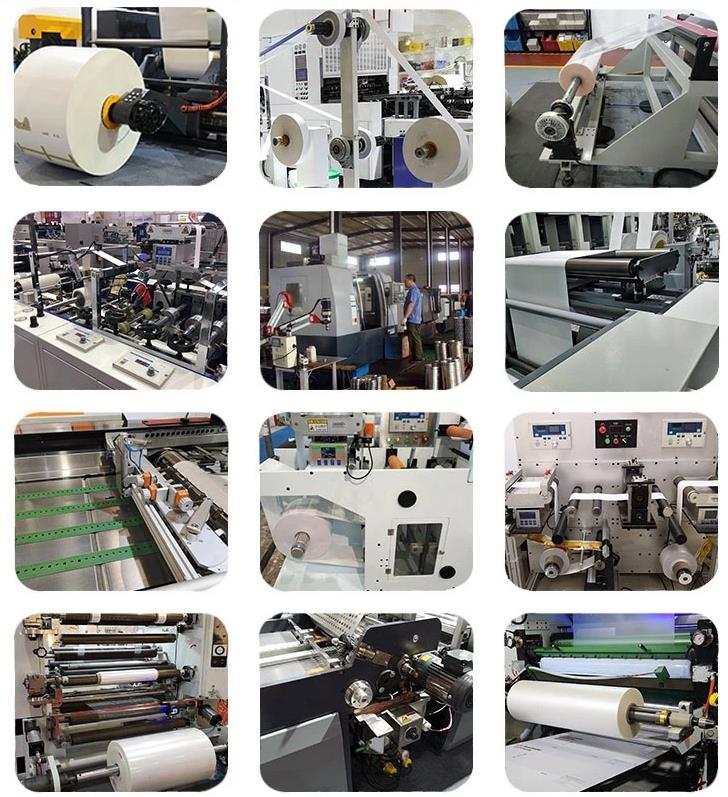

Application

Order Details
