Slip Rings

The application of the sliding material shaft of the precious material metal foil greatly improves the quality rate and reduces the production cost. Special production costs. Special paper is the earliest application of this technology.

Slip axis, has been widely used in plastic film (including electronics, capacitors, battery film, plastic wrap, packaging, composite film); metal foil (copper foil, aluminum foil, etc.); paper roll;
The slitting and winding of the PVC sheet material. It is currently being extended to other fields, other industries, and other special materials for cutting and winding. The form of the winding has a central take-up, surfaceCoiling, surface center winding. The following focuses on the center of the coil take-up and take-up shaft. There are four main structural forms: center air pressure slip shaft, pneumatic side pressure slip shaft, and mechanical side pressure.
Slip axis, inflatable shaft.

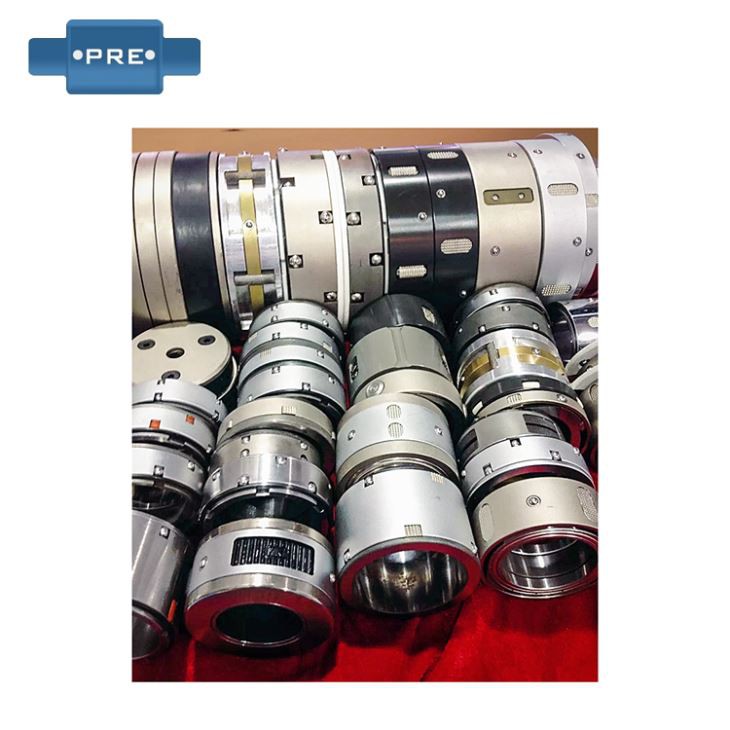

Slip ring
Body outer diameter Φ75.4 Action diameter Φ77.5/max Applicable paper tube inner diameter Φ76.2±0.2 Inner diameter Φ45 unidirectional ring standard width 40, other 35, 40, 50 two-way
The ring is the narrowest 43,
Other widths, optional other outer diameter sizes, can be designed according to customer needs.

Inflatable shaft maintenance:
1. In the process of using the air-expansion shaft, pay attention to the air humidity of the air shaft of the air-expansion shaft. If the humidity is too high, the airbag inside the air-expansion shaft will be very wet, and the air-expansion shaft will also be corroded;
2. After the air shaft is used, the air inside should be drained to avoid the expansion of the air shaft for a long time, and the service life of the air shaft is increased;
3. In the process of using the inflation shaft, if the nut above the inflation shaft is found to be loose, it is necessary to handle the tightening at the first time to prevent some parts from falling off the airbag or causing production delays, Major issues arise.
