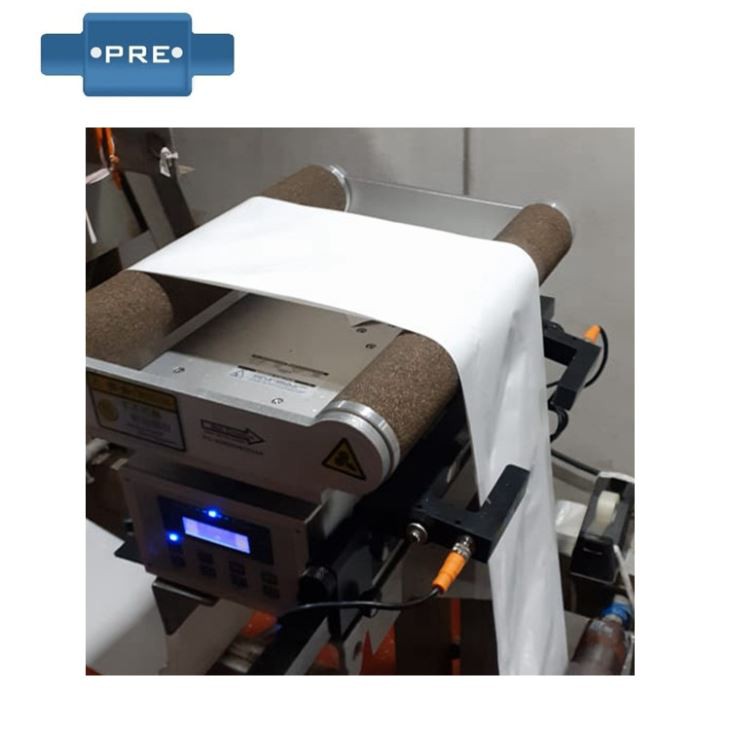

Center Guiding System

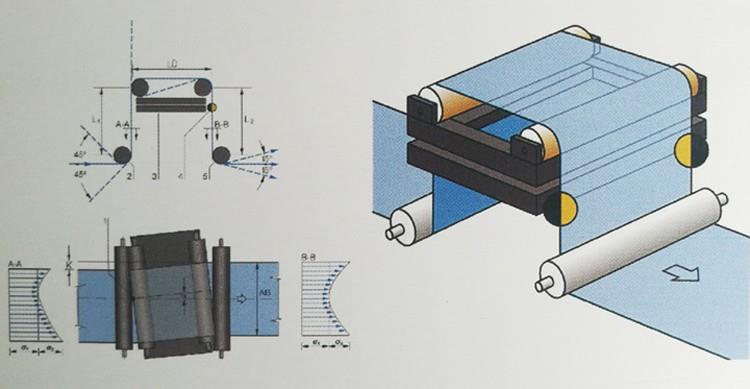

The guiding mechanism, the inter-travel guide mechanism, and the intermediate rectification system ensure continuous and precise control of various types of strip materials in various production processes, and limit waste and downtime to a minimum. PRE's corrective products will ensure that your machine is running at full speed.

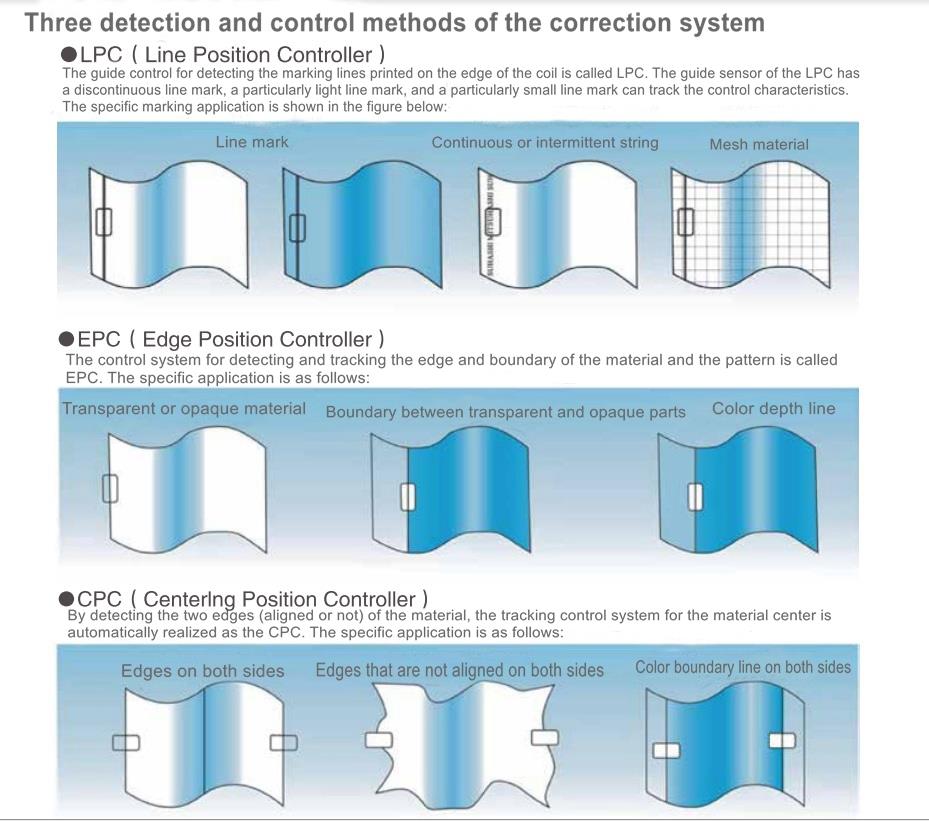

The CPC centering control system is to ensure that the steel strip is always in the center of the production line, so there are two position sensors. For example, in the centering system on the uncoiler, the position sensors are located at the two edge positions of the running steel strip. In order to meet the requirements of edge detection of different width steel strips, a set of sensor moving devices is installed.

The guiding mechanism, the inter-vehicle guide mechanism, and the main application fields of the intermediate guide system are:
Tire rubber industry: forming machine, carcass ply pre-correction, sidewall pre-redirection, laminating drum common template rectification, inner liner pre-redirection, bi-directional stretching machine, film blowing machine, industrial belt laminating machine guide.

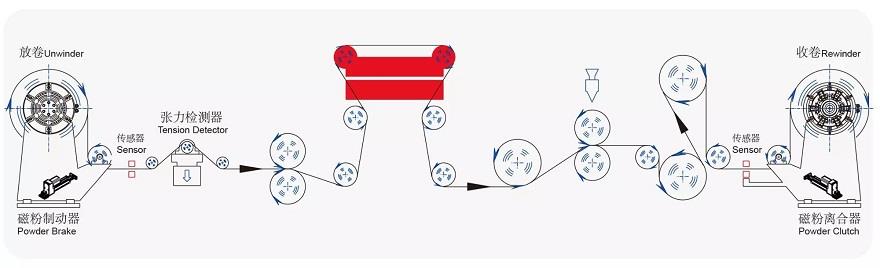

Packaging and printing paper industry: satellite rotary printing machine guide, concave plate printing machine guide, inspection machine guide, slitting and rewinding machine guide, coating machine guide, etc.
Battery industry: lithium battery coating machine, lithium battery slitting machine, lithium battery rolling machine, battery laminating machine.

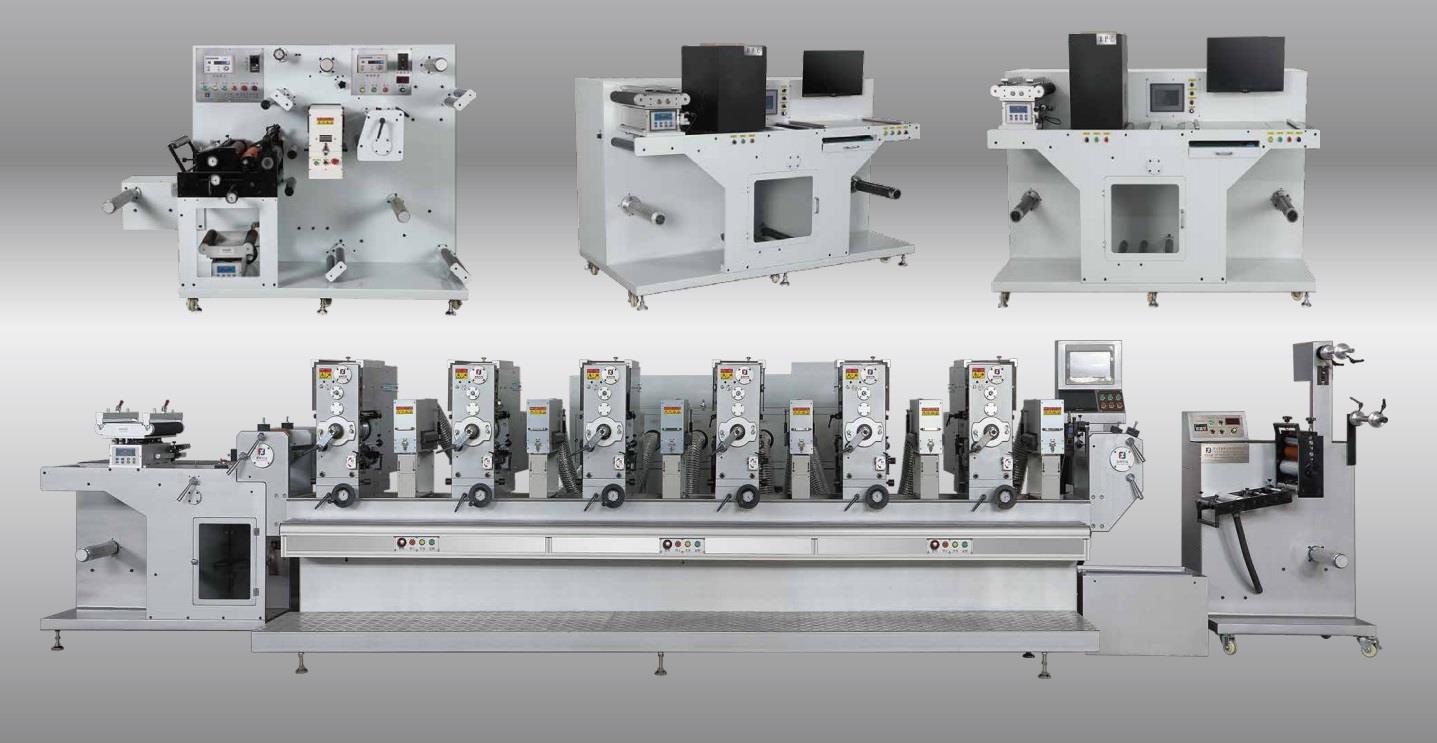

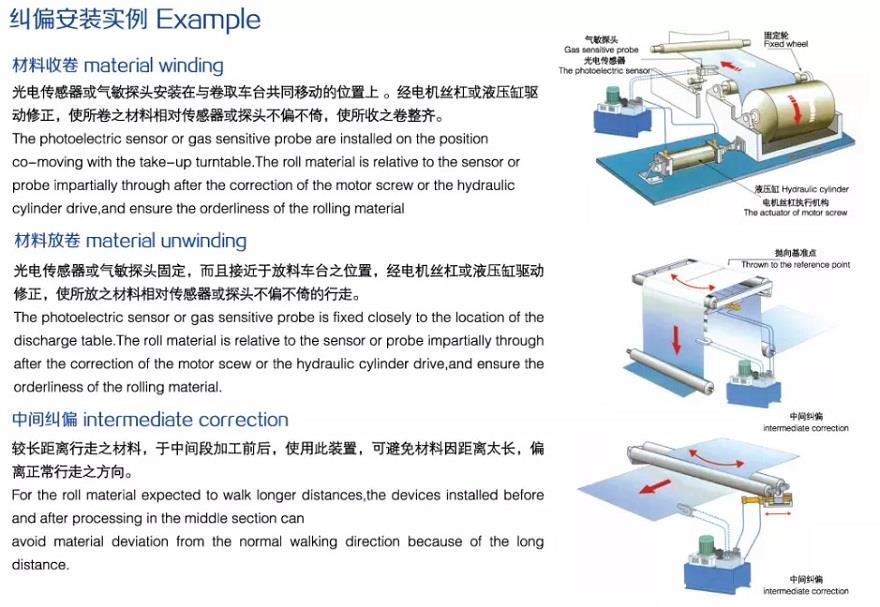

Application

Packing

Order Details
