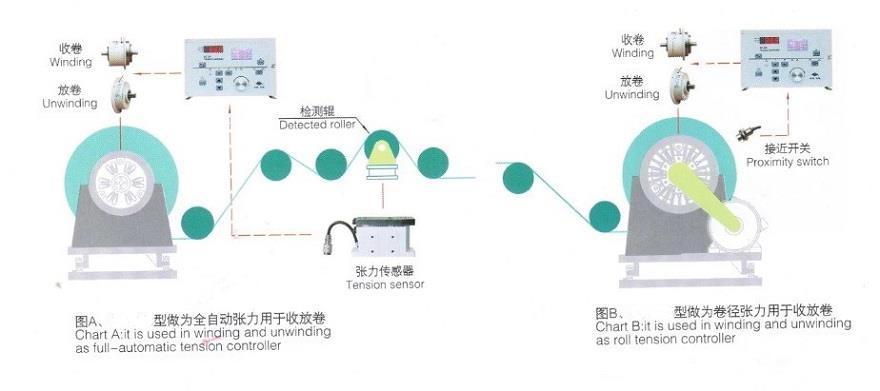

Semi-automatic mode: The ultrasonic diameter principle is used to automatically detect the winding diameter, thereby adjusting the winding tension. In essence, it is a semi-closed-loop control of tension, which can not only automatically measure the winding and control torque output, but also has a buffer start. Anti-loose and inertia compensation. The implementation cost of this solution is low, so it is widely used in mid-range machinery.

Features

1. The man-machine interface is superior, simplified, traditional, English display selection, and the working status is displayed in real time.
2, using 32-bit CPU, high speed, high precision, strong anti-interference ability, high reliability.
3. The differential and strain tension sensors can be arbitrarily selected for user convenience.
4. Unique “calculation taper” technology to achieve linear taper tension control.
5. Unique acceleration and deceleration automatic detection technology to realize automatic tension adjustment under acceleration and deceleration.
6, with "level", "speed", "automatic start" three start mode functions.
7, with dual-axis switching, pre-acceleration control.

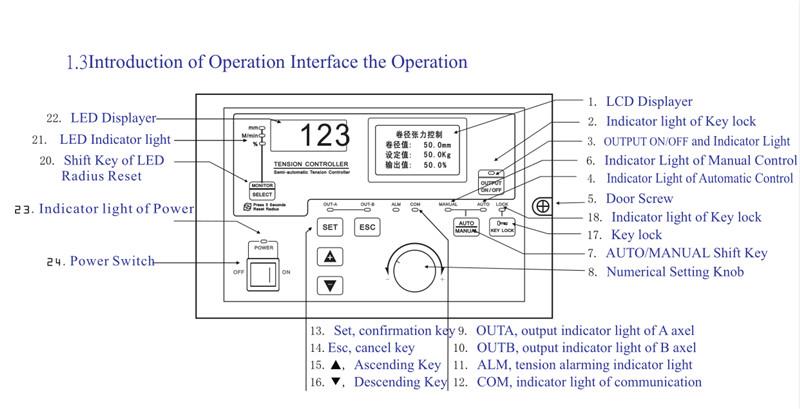

8. It has the function of displaying various parameters and working status at the same time on LED and LCD.
9, with automatic / manual bumpless switching.
10, with set tension automatic save function.
11, with parameter password protection, key lock function to prevent misuse.
12. Military-grade overheating and overcurrent protection switching power supply, long-term reliable operation.

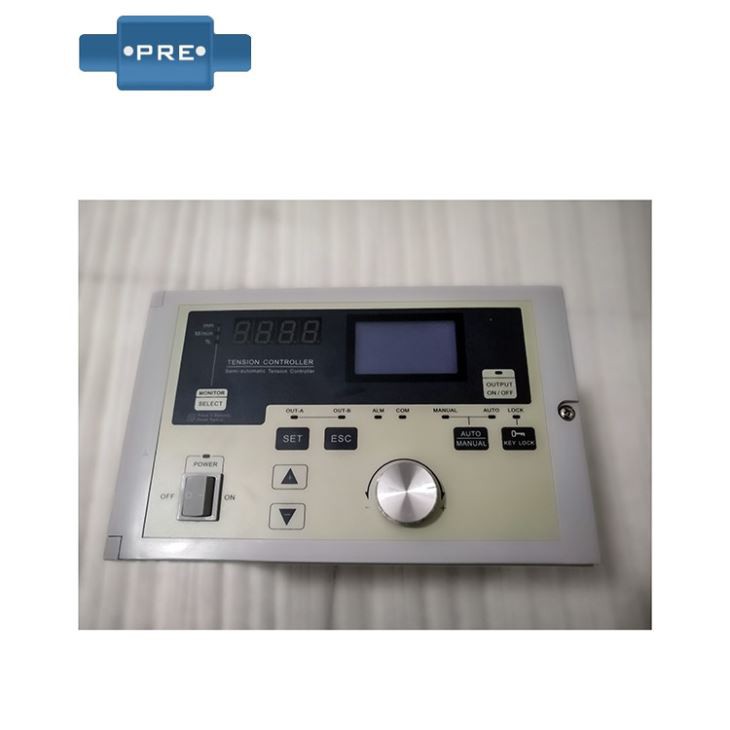

Semi Automatic Tension Controller: KTC818A

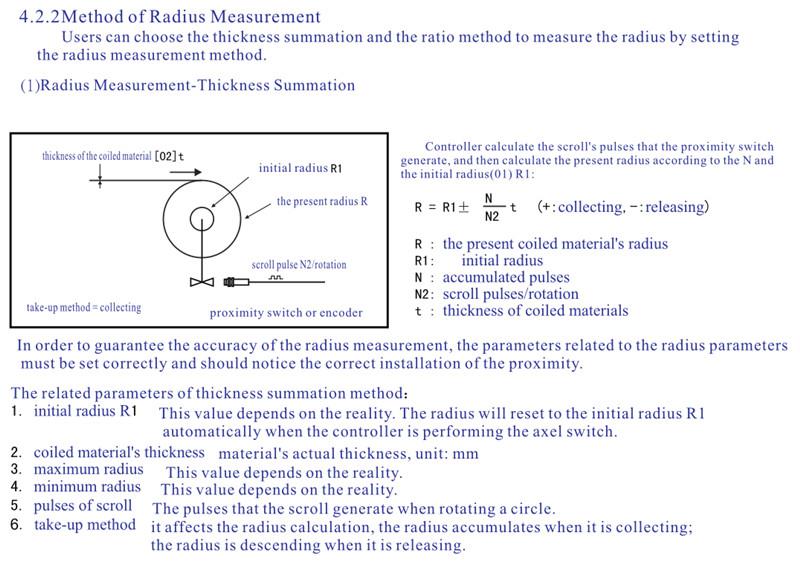

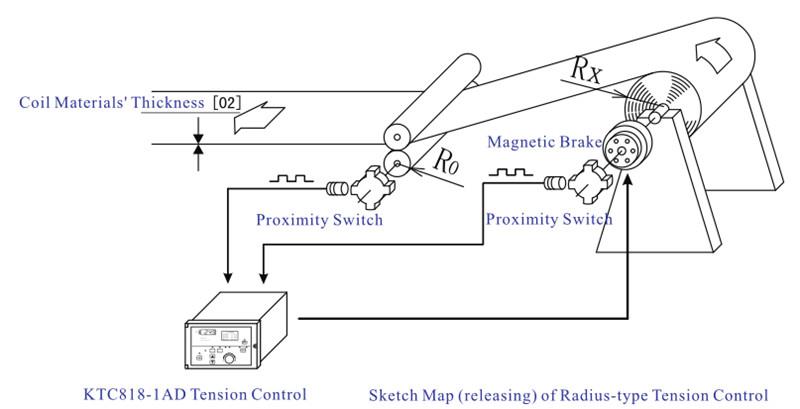

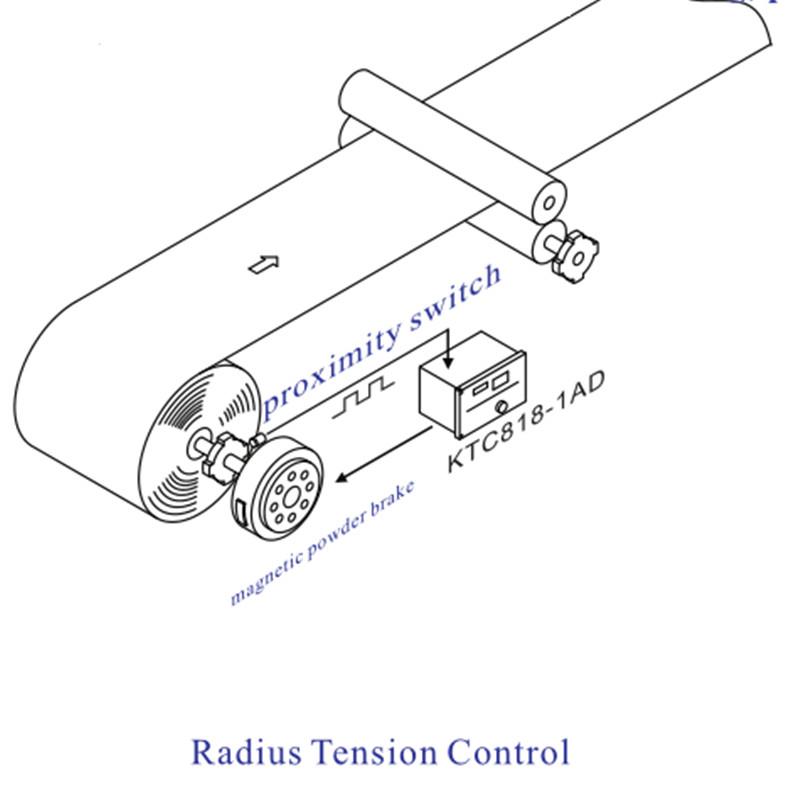

Radius Tension Control: KTC-818D

Application

Order Details
