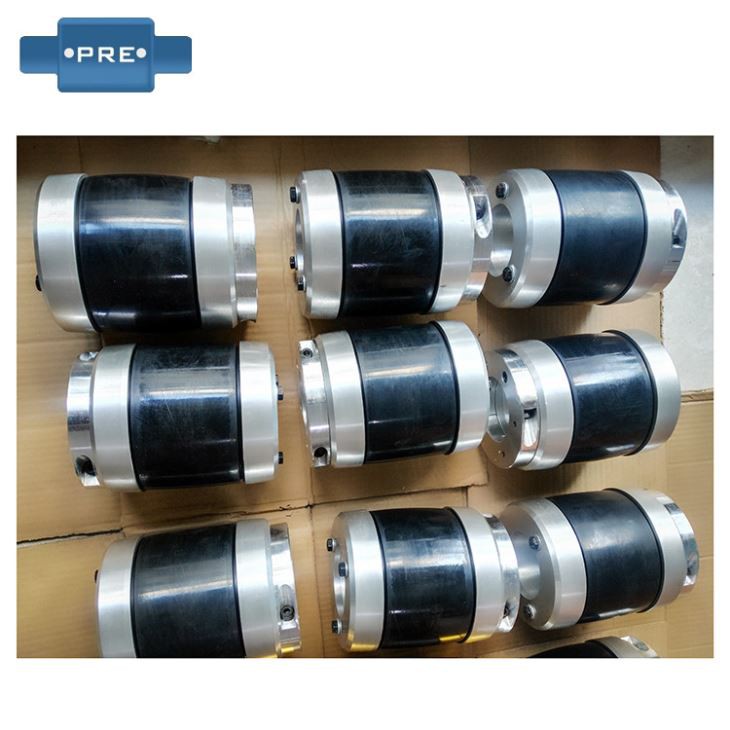

Core Chucks And Shafts

Any machine with winding, unwinding and slitting can be applied to the air-expansion shaft, even the light metal industry.

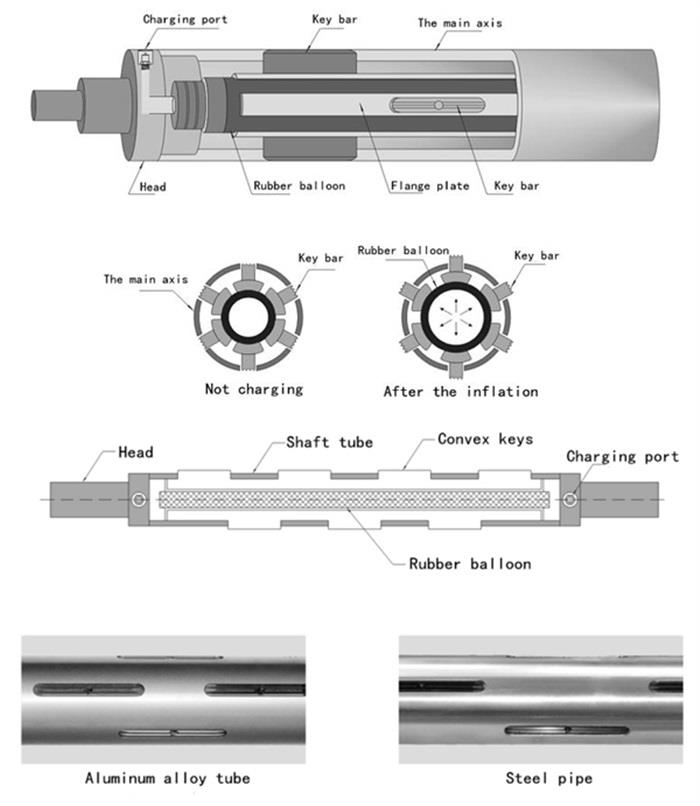

The inflation shaft is a unique sort of winding, that is the reel, that is, the shaft that may be expanded after the high strain is inflated. the shaft whose part of the floor is quick retracted after deflation is referred to as the inflation shaft. the air-enlargement shaft is extraordinarily convenient and brief to use. it simplest wishes the user to deliver the air supply. the air strain is controlled inside the variety of 6-eight kg. when the paper tube needs to be inflated, as long as the air rod is inflated against the air nozzle above the inflation shaft. while it's far finished, whilst you need to sell off the fabric, press the air core on the air nozzle to launch the air, and then fill and release the gas in 2 seconds.

Technique parameter

Inflatable shaft performance characteristics:

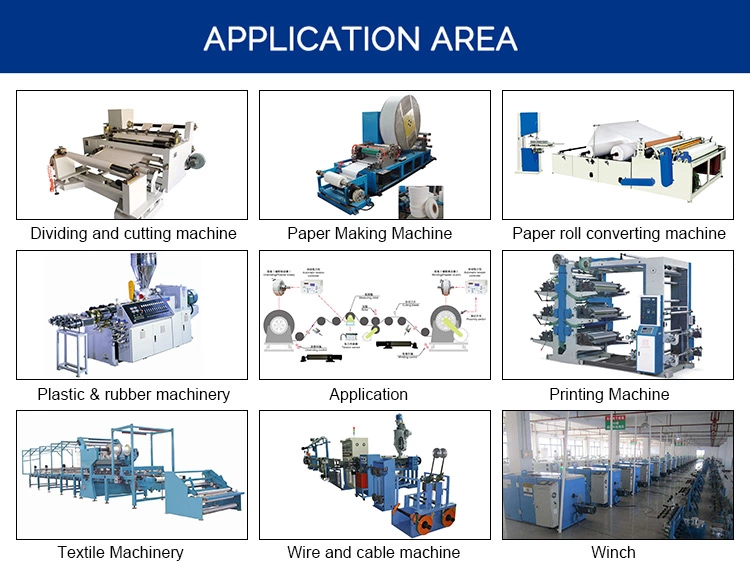

1. Wide application: Inflatable shaft as an independent design part, from 1 inch to -12 inches, the length and length are determined by the actual needs of the customer, where there are slit printing and rewinding coating, lamination, bag making, papermaking, etc. Or the mechanical expansion of other related centers, can be applied to the furnace shaft of the factory.

2. Cost-effective: The design of the shaft is designed for practical work. It can be applied to various types of coils such as thick and wide. 3. Long use time and simple maintenance: Although the inflation shaft is a mechanical accessory, its own structure Each part has fixed specifications and can be used interchangeably for easy maintenance. Our factory has strict requirements on the quality of various accessories of the air shaft, and the product quality is absolutely guaranteed.

3. Single fittings: The inflatable shaft is a single component of the winding and unwinding machine. Each part of the structure has a fixed size and can be disassembled and combined to make maintenance easy and durable.

4. Industry: The factory specializes in the production of air-expansion shafts, and professional engineers and technicians use the design of the air-expansion shaft for market research.

5. Large bearing capacity: The air shaft can be designed according to the actual model, using high-quality steel and increasing the load capacity. For example, steel materials with a weight of more than 1 ton can be used.

6. Short working time: Separating and placing the coil tube can be completed in 2 seconds of inflation and deflation. It is easy and convenient to place the coil tube. It is suitable for all kinds of machines and equipment for winding and unwinding.

Packing

Order Details
