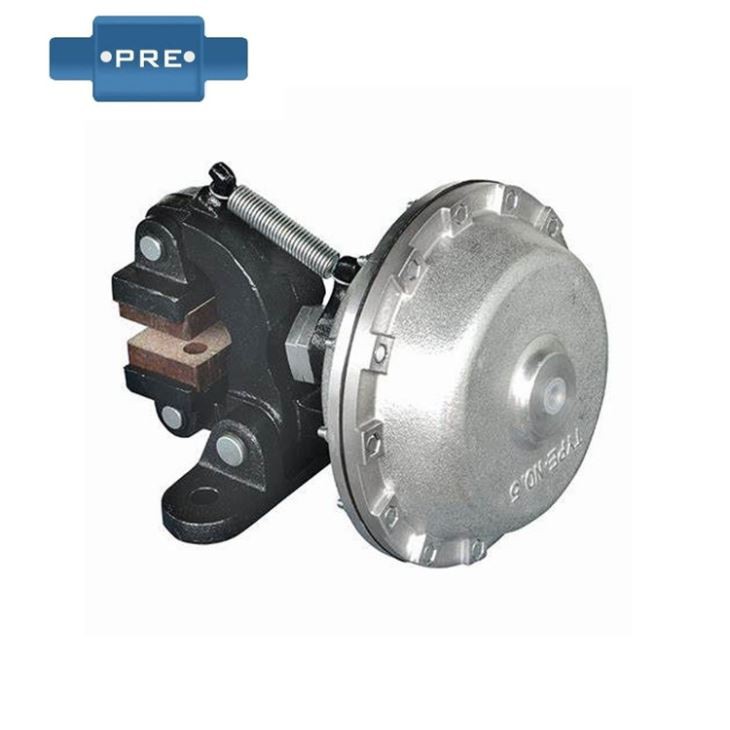

DBG Hydraulic Disc Brake

Air Disc Brake,Pneumatic Disc Brake(Pneumatic Applied/Sprig Release Brake)

Pneumatically Applied Brakes are best suited for light to medium stopping duties and for tensioning applications where a high degree of control is required.Pneumatic Disc Brakes are widely used for speed reducing, stopping/braking of the low or medium torque driving mechanism. The brakes can also be applied as tension brake on winding machineries, such as: paper-web tension control, news paper publishing tension control, steel unwind control, wire and cable reel unwind tension etc.

Features for Pneumatic Applied Brakes Include:

• Compact structure and small size, light. It is easy to control and operate.

• Normally-closed type: spring applied and pneumatically released; Normally-opened type, air pressure applied and spring opened, brake force can be adjusted by varying air pressure.

• The pneumatic actuator is made in Taiwan with high reliability and quality.

• The linings are of inserting installation style and non-asbestos. It can be easy replaced.

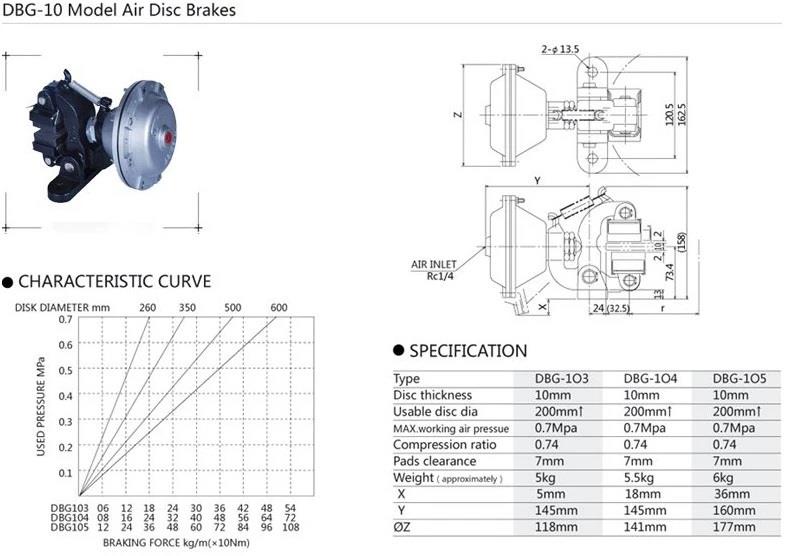

Air pressure disc brake DBG series

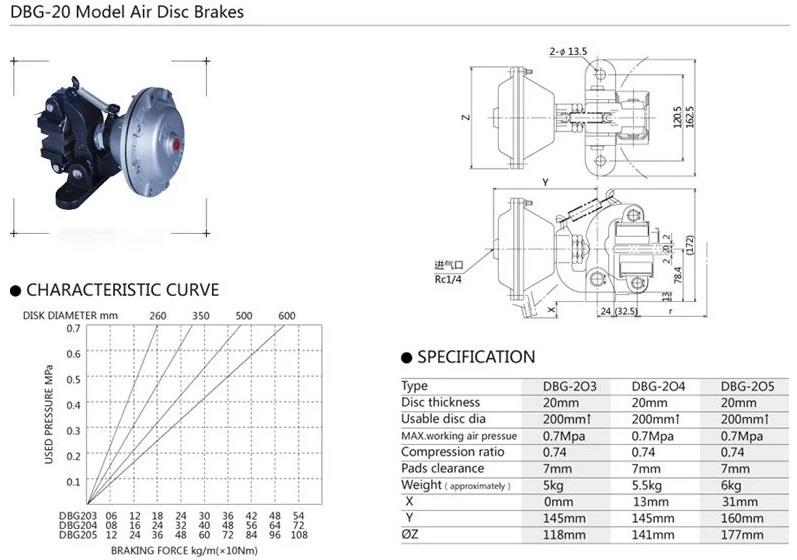

Economical disc brakes provide a stable, effective and adjustable braking force. The vertical installation saves space and the open friction surface is excellent in heat dissipation. Easy to replace friction components, without asbestos, brake disc thickness 10mm-20mm optional. Water resistance, dust resistance, high temperature resistance, high durability and stable performance. It uses air pressure action, no electric spark, anti-riot, safe and reliable. The braking force can be adjusted arbitrarily and the braking torque range is wide. The heat dissipation effect is good, the friction plate is resistant to friction and has two pieces, and the replacement is easy. Conventional model: DBG-103/104/105 DBG-203/204/205

Air pressure disc brake DBG use range:
Disc brakes are widely used in various types of work machinery, packaging and printing machinery, tire rubber, cable, paper machinery, wire yang, stranding machine, coiling Yang, trimming, discharging, positioning, tension control and other occasions.


Air pressure disc brake DBG features:
The DBG type pneumatic brake utilizes air pressure adjustment to adjust torque over a wide range and is suitable for emergency braking and tension control. With the manual brake, the compression spring can be braked for a long time without air pressure, and the necessary torque can be arbitrarily adjusted. The torque ranges from 2 to 36500 N.M.

Model:DBG

Type:Disk type pneumatic brake

The main features:

1.Water resistance, dust resistance, high temperature resistance, high durability and stable performance.

2.Use air pressure action, no electrical spark, with explosion-proof, safe and reliable.

3.The braking force can be adjusted arbitrarily, the braking moment range is wide.

4.The heat dissipation is good. The friction plate is resistant to friction and the replacement is easy.

Standard Size brake discs available and Customised can be manufactured.

Application:

Disk type pneumatic brake is suitable for working machinery, construction machinery, steel rolling machinery, wire drawing and stranding machine Yang Yang, coiling Yang, gate type crane and crane, papermaking machinery, ship Yang heavy car, trimming, feeding, positioning, tension control, etc.
