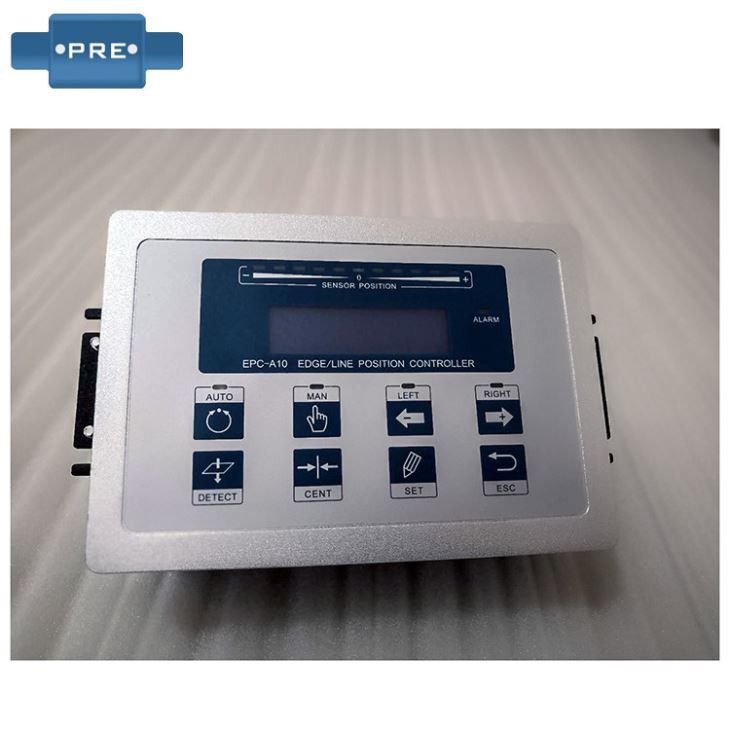

Edge Guide Controllers

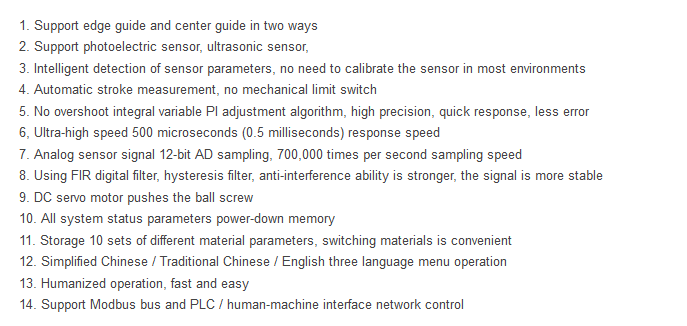

Web Guiding Controller Feature:

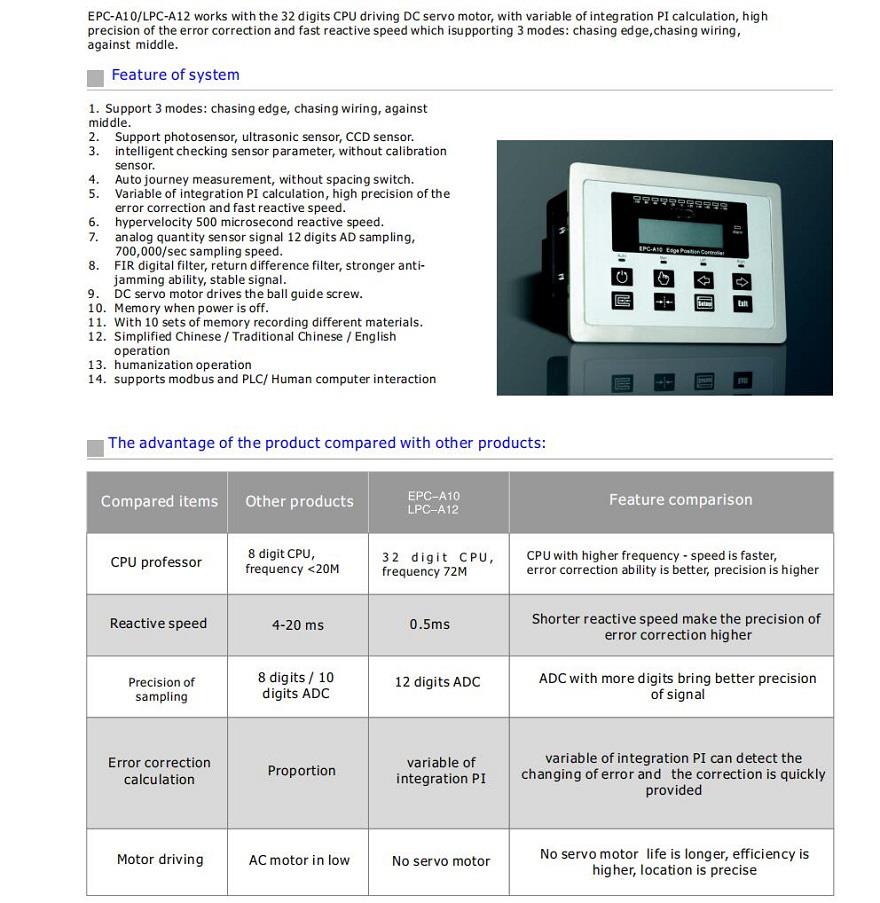

Servo Edge Postion Controller EPC-A10/LPC-A12 adopts the high-speed 32-bit CPU drive DC servo driver and no-overshot integral variable PI adjustable algorithm. It is of high deviation rectification and fast reaction. In addition, it supports three operation modes: the edge-following, line-following and center-alignment mode.

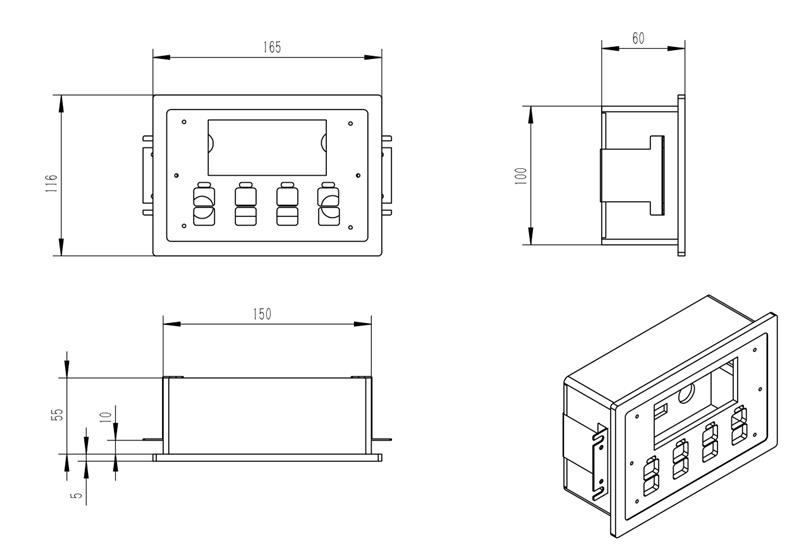

EPC-A10 Web Guide Controller Dimension:

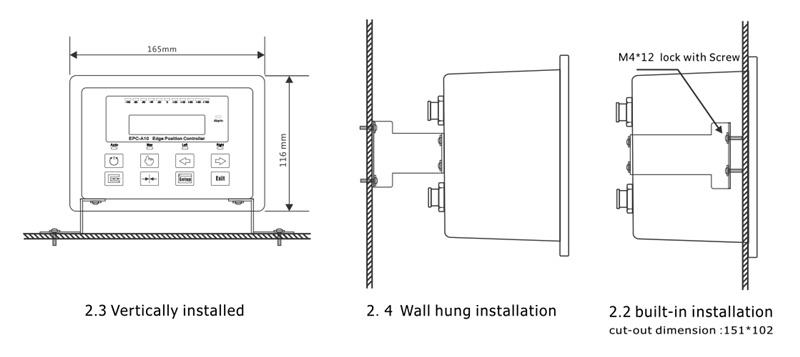

Installation:

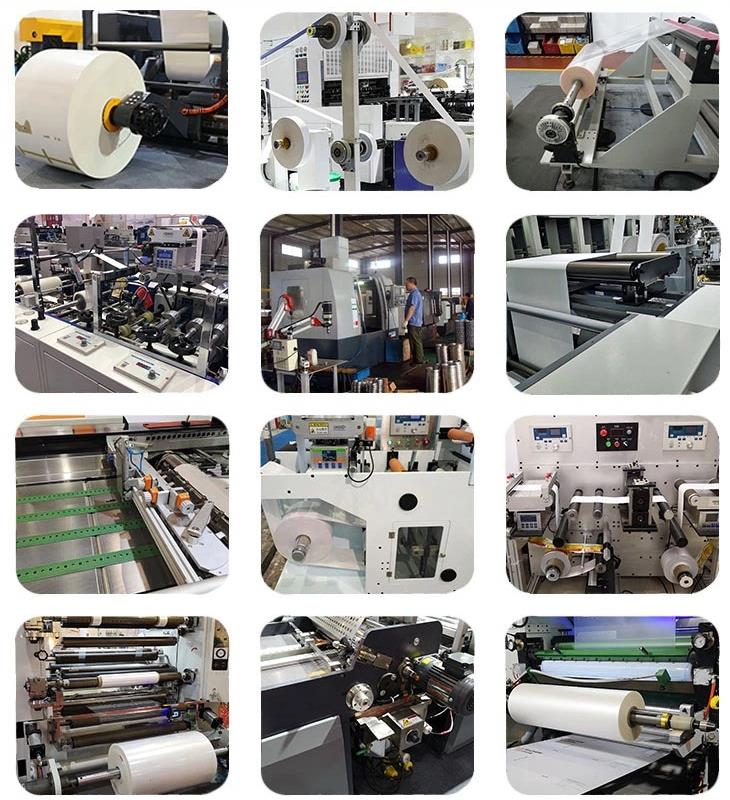

Application

* Printing systems: conveyors and in-feeders

*Wood-working systems: saws, wood-working machine, laminators
* Office equipment: electronic copy machines, calculators, fax machines, coin counters, printers
* Testing systems: lab machines, durability testers, measuring systems
* Food processing systems: meat cutting machines, cookie making machines, canning machines, noodle making machines
* Others: speed reducers, electroplating machinery, physics and chemistry machines, paper-making machines, pulp processing machines.

Order Details
