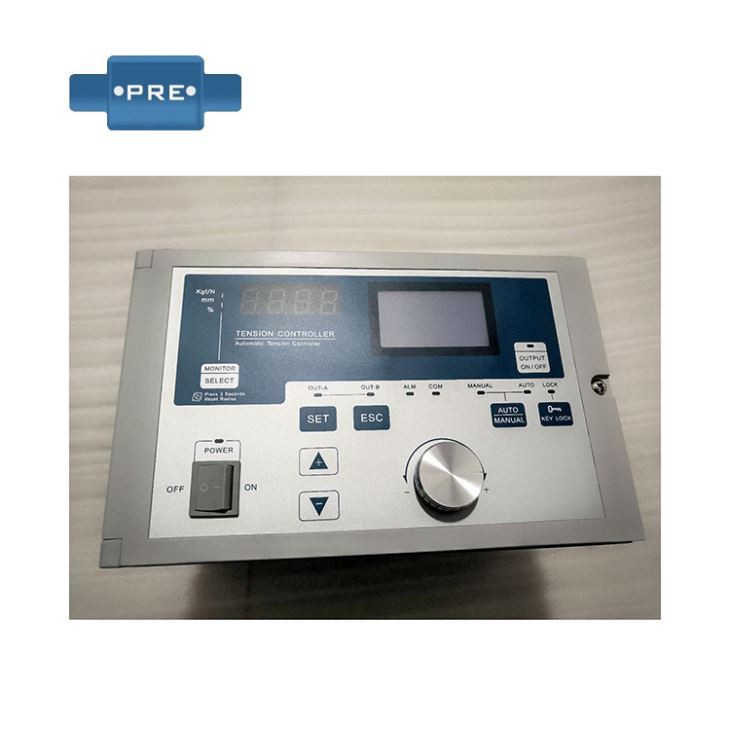

Film Tension Control

Automatic Tension Controller with Taper and Communication Function

KTC-838AC  Operating principle:
Includes acceleration, deceleration, and regular pace of the gadget. if the anxiety is inadequate, the fabric is excessively deformed; if the tension is just too massive, the uncooked material is effortlessly damaged.

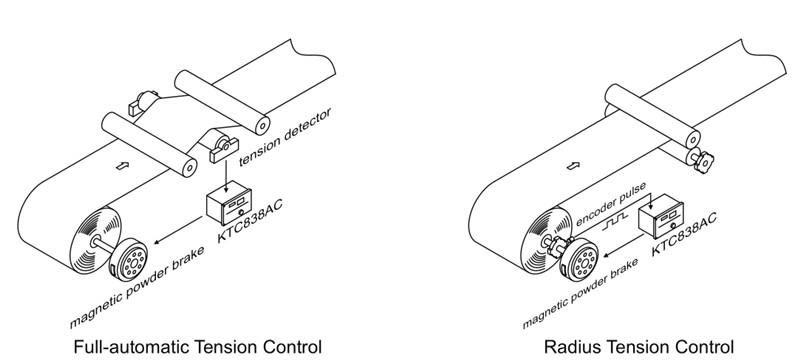

An ordinary tension manipulate device consists typically of anxiety controllers, anxiety readers, anxiety detectors, brakes and clutches. in line with the loop, it is able to be divided into open loop, closed loop or free loop anxiety control device; according to the tracking method of different coils, it can be divided into ultrasonic type, floating type, monitoring arm kind, and so on.

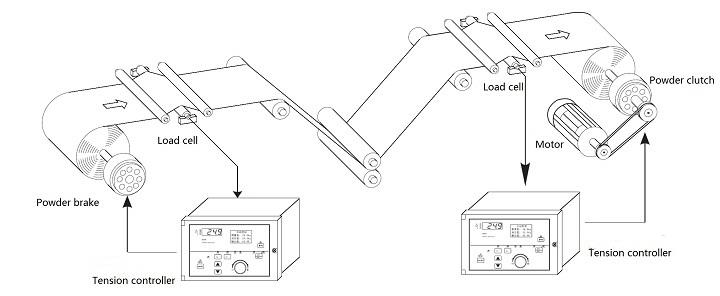

In addition to the tension controller, the tension control system is equipped with important components such as tension sensor, magnetic powder brake and magnetic powder clutch.

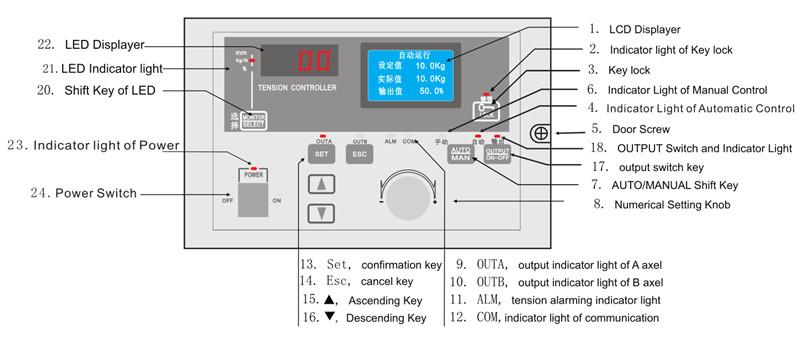

Operating Panel:

Parameter:

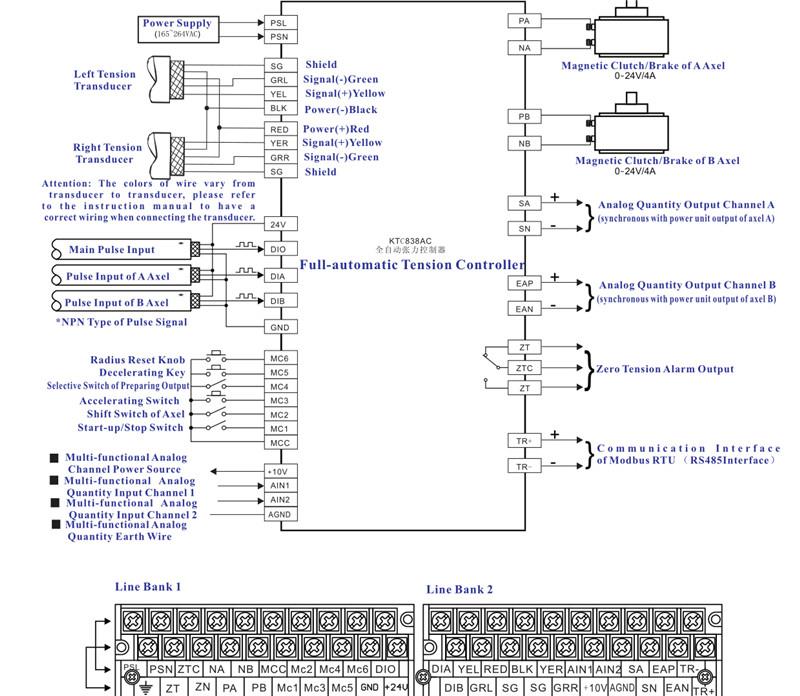

Wiring Diagram:

Tension controller wiring precautions:
1. susceptible wires which includes input sign traces, transfer input and output terminals, and output electricity should be away from strong electricity strains including instrument energy strains and strength resources to keep away from sign interference.

2. notice that the weak sign terminals such as enter signal, transfer enter and output terminal, and output strength supply ought to no longer be connected to sturdy energy, otherwise the whole device could be burned.

3. connect the tension sensor signal in line with the perfect wiring diagram. if you need to connect two tension sensors, you must take note of the signal polarity cannot be related incorrectly, otherwise the displayed measurement fee will be erroneous.

4. if best one anxiety sensor is connected, the enter terminal without the anxiety signal should be shorted.

5. the tension sensor defend twine have to be connected to the sg terminal.

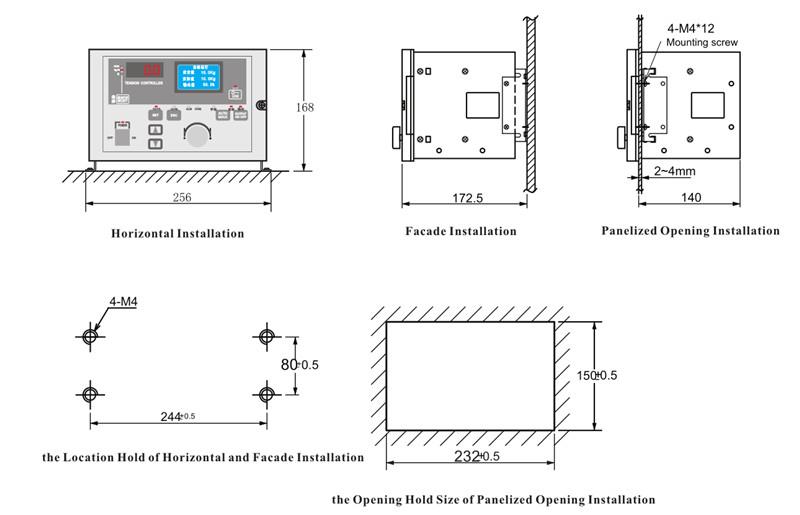

Installation:

Application

Vital role
In many industries of commercial manufacturing, winding manage issues are regularly encountered. as an example, inside the production system of paper, textiles, plastic film, electric cord, revealed remember, magnetic tape, metal strip twine, and so forth., the unwinding and winding anxiety of the strip or cord is important to the satisfactory of the product, and constant tension manipulate is needed for this cause. that is, the product is subjected to highest quality tension in the course of the winding process and stays unchanged throughout. if the tension is simply too big, it'll purpose tensile deformation of the processed material; if the anxiety is too small, the stress between the layer and the layer of the wound fabric will be deformed, resulting in unwinding and affecting the processing first-rate. within the strip take-up device, the anxiety control device occupies an critical position and it's far quite complicated.
