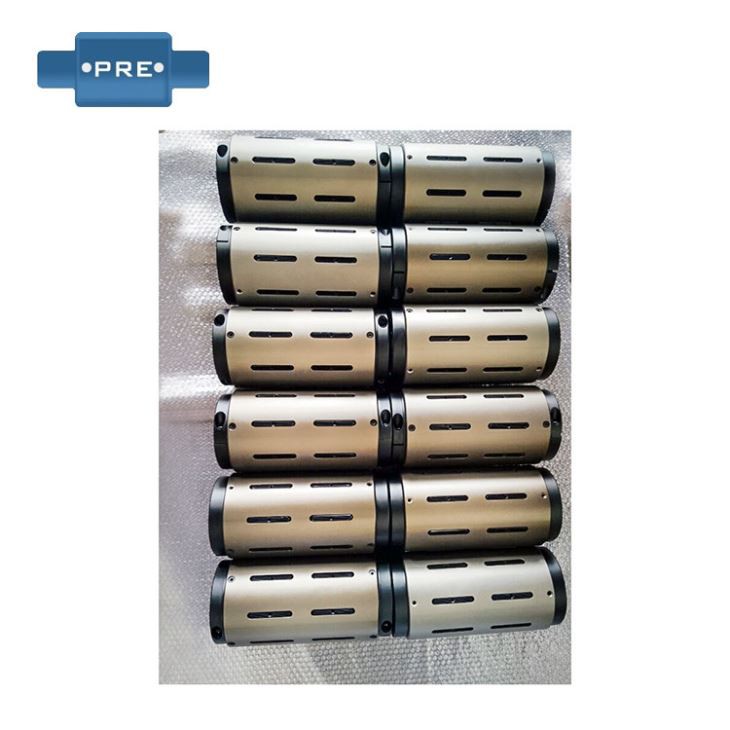

Expanding Collet Chuck

Introduction to the inflation sleeve:

Uses: The inflatable sleeve is suitable for the retraction of related machinery such as coating, printing, rewinding, paper making, plastics, etc. Especially in the case where the three- or six-inch gas-increasing shaft frequently uses light load, it shows its superiority. The inflatable sleeve can be moved and fixed at any position of the inflation shaft. Two inflatable sleeves can be used instead of the six-inch inflatable shaft, and the quality is light, and the loading and unloading is convenient.

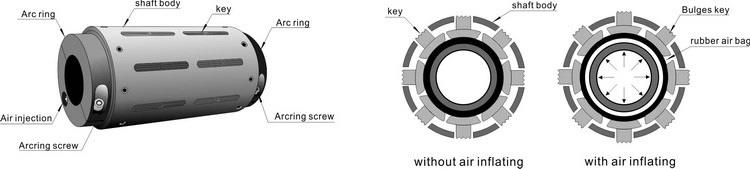

Structural features: The inflatable sleeve mainly consists of front sleeve, rear sleeve, cylinder, inner tube, air bag, convex keyboard and other parts. The expansion sleeve material is made of high-quality aluminum, the surface is oxidized, and the high-quality airbag and quick inflation nozzle are arranged. Good sealing effect, long service life and convenient maintenance.

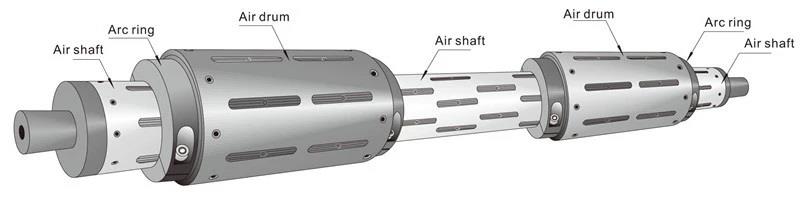

Inflatable sleeve: sleeved on both ends of the 3-inch inflatable shaft, used to take up the raw material with a larger inner diameter, which can be moved at any position of the inflation shaft. The principle is equivalent to the inflation shaft.

Technique parameter

Structural features:

1.The inflatable sleeve is mainly composed of front sleeve, back sleeve, barrel body, inner tube, air bag, convex keyboard and other parts.
2.The rising sleeve material is made of high quality aluminum with oxidized surface.
3.Equipped with high quality air bag and quick inflatable nozzle.
4.Good sealing effect, long service life and convenient maintenance.

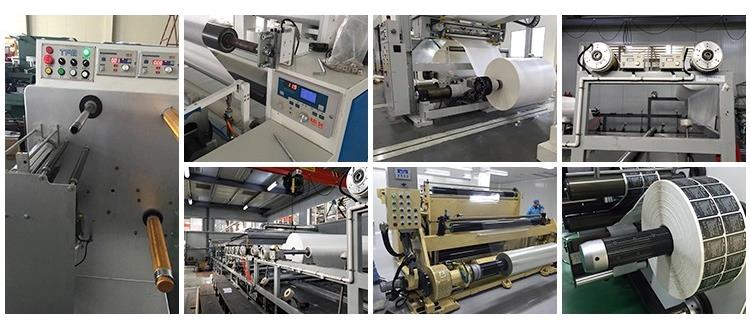

Application example:

Packaging

Order Details
