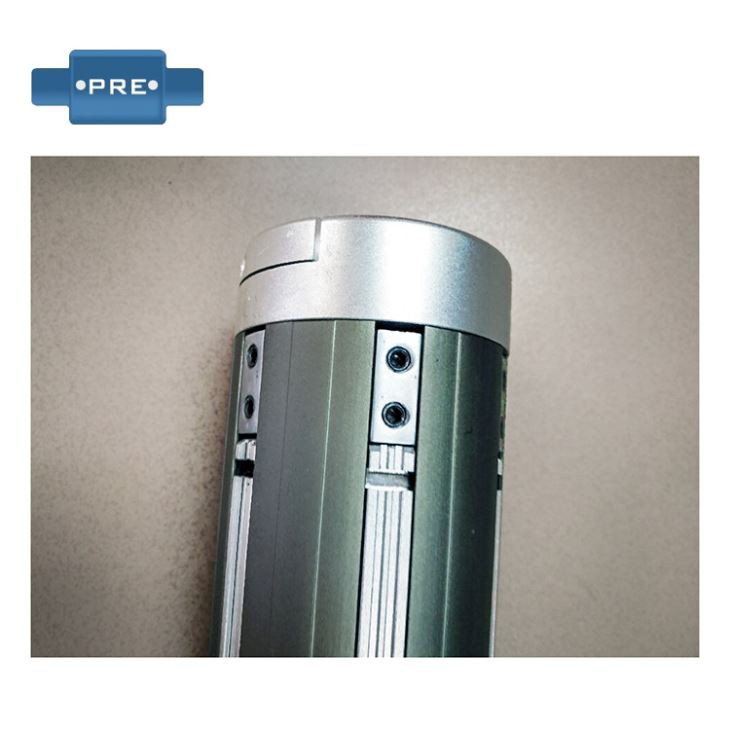

Expansion Chuck

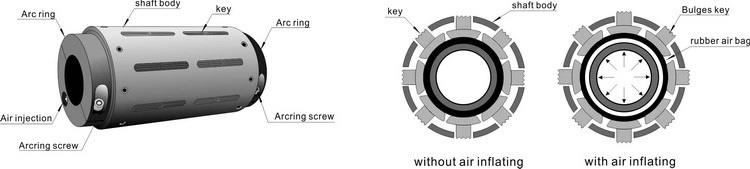

The inflatable sleeve or "flat sleeve" mainly consists of the front sleeve, the rear sleeve, the cylinder, the inner tube, the airbag, the convex keyboard and the like. The inflatable sleeve is suitable for the retraction of related machinery such as coating, printing, rewinding, paper making, plastics, etc. Especially in the case where the three- or six-inch gas-increasing shaft frequently uses light load, it shows its superiority.

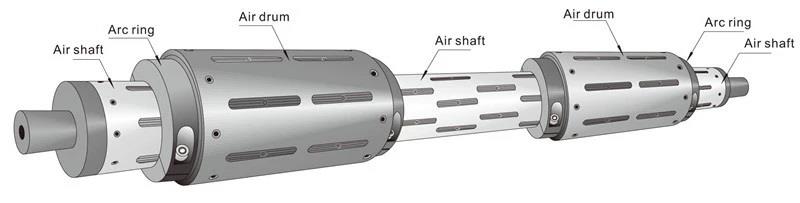

The inflatable sleeve material is made of high quality aluminum and the surface is oxidized. Equipped with high quality airbags and quick inflation nozzles. Good sealing effect, long service life and convenient maintenance. The outer diameter of the inflatable sleeve is Φ150mm, the outer diameter of the action is Φ155mm, and the paper tube is Φ152.4±0.2mm. The length of the main body is 250MM. Two inflatable sleeves can be used instead of the six-inch air-up shaft, and the quality is light and easy to replace.

Technique parameter

Installation inspection of the expansion chuck

1. Is the electrical cabinet installed, fixed, and sealed good? Is it effective to prevent cutting fluid or powder from entering the cabinet? Is the air filter (if installed) clean?
2. Is the internal fan, heat exchanger and other components that are electrically rejected to work properly? Has the dust cover (dustproof paper) on the PLC been removed?
3. Whether the PLC module inside the electrical cabinet, the surface of other control devices, or the internals of the wired head, screws, dust, metal powder, etc. enter?
4. Is the number of modules and components of the control system complete? Are the modules and components installed firmly and reliably?
5. Is the module address setting (if needed) correct?
6. Is the button on the system operation panel damaged? Is the installation reliable? Is the setting position correct?
7. Has the noise suppressor for electromagnetic components such as relays, electromagnets, and motors been installed as required?

Application

Packaging

Order Details
