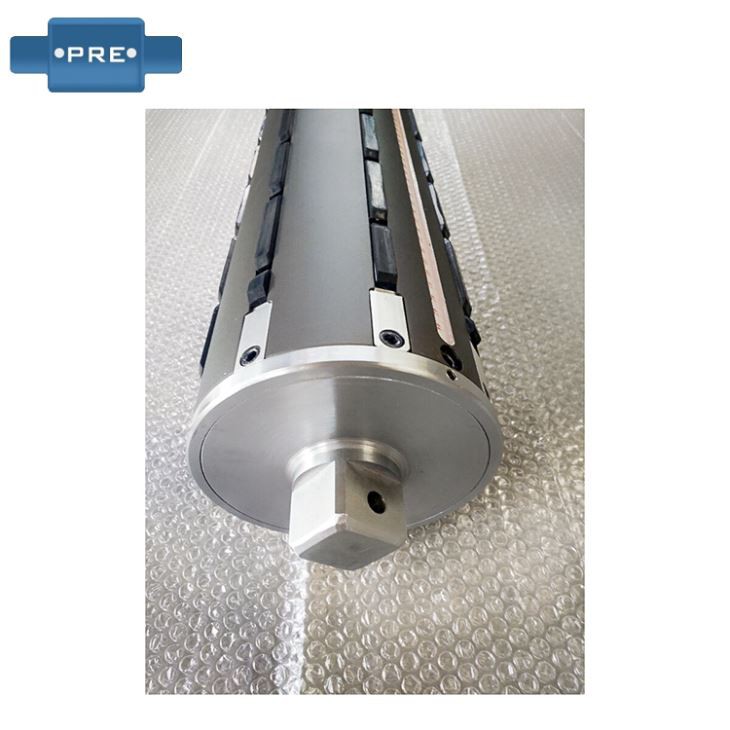

Multi Bladder Shaft

1. The main body of the lug type air shaft utilize the hard chromium plating steel pipe;it has aluminum sharps with flexible scabalilit;deploying high quality rubber bladder and rapid aerating and exhausting air nozzle with good sealing effect and long service life;The air shaft has removable shaft with simple maintenance.

2. The shaft as a whole expands and contracts, and is suitable for coreless or multiple-core (slitter,etc) applications. The torque is uniform across the face width (lower torque transmission than the parallel lug type).

Advantages of Multi Bladder Type Pneumatic Air Shaft

1. Inflatable job a short time, separated from the air shaft and place the paper tube just three seconds to inflate and deflate, nor do they need any parts sub negligent shaft side that is able to work closely with the paper tube bite.

2. Paper tube placement simple: inflatable and deflated operation, mobile and fixed any position paper tube in the axial plane.

3. Carrying heavy: May be the actual needs of customers, to determine the size of the shaft diameter, and the use of high strength steels hard to make it carry the weight increase.

4. Economic efficiency: shaft design for a particular function, for thick, thin, wide, narrow tubes have encountered all kinds of paper of all applications.

5. Maintenance is simple, use a long time: a single air shaft parts, each part in its construction Jieyou fixed specifications, can exchange it with, it is convenient.

Technique parameter

Application:

Order Details
