Automatic guide device technical features
The intermediate roller controls the running direction of the belt, and the rollers on both sides do not damage the belt edge. The reaction force generated by the tendency of the belt deviation is corrected to achieve rebalancing. Quickly calibrated, synchronized, and does not require a power actuator. Self-balancing, simple installation, convenient adjustment, reliable performance and long service life.

The intermediate roller controls the running direction of the belt, and the rollers on both sides do not damage the belt edge.

The reaction force generated by the tendency of the belt deviation is corrected to achieve rebalancing. Quickly calibrated, synchronized, and does not require a power actuator.

Self-balancing, simple installation, convenient adjustment, reliable performance and long service life.

Advantages of automatic guide:
The structure is reasonable, the old and new rollers are interchangeable, the rectification resistance is small, the power consumption is reduced, the action is reliable, the reflection is sensitive, and the belt is forwardly moved and the power is automatically and repeatedly corrected for a long time, which is suitable for working in a harsh environment without fail. No lag, the product is rugged and easy to repair. The belt can be always centered; because the equipment adopts the high-precision polyurethane energy-efficiency roller developed by the company, the life of the conveyor is greatly extended. The roller not only has high strength, strong sealing, flame retardant, antistatic and resistance. Corrosion, light weight, low frictional resistance, long service life, etc., its load carrying capacity is 2 times higher than similar products, its friction and anti-corrosion performance is more than 10 times under the same conditions, dustproof and waterproof performance is improved compared with similar products. % and more than 50%.

The function of the guide system is relatively powerful, and it can perform the corresponding correction work well. Nowadays, the application of the web guide system is relatively extensive, and its variety is widely used in many industries. Here is mainly to take the rectification system on the opposite side of the uncoiler as an example, briefly introduce:
This kind of guide system is a kind of system that combines light, machine, electricity and liquid. It uses high-tech products and has many functions. For example, its response speed is relatively fast, the measurement accuracy is also high, and the performance is relatively stable. Not so, its service life is also very long.
The stripping system of the strip is well controlled for unwinding and unwinding of steel and non-ferrous metals, etc. Its correcting performance is better, and it can be processed in color coating, pickling, continuous annealing and the like.
The reversing system on the opposite side of the unwinding is mainly a loop servo control system, which can test some predetermined targets accordingly. In addition, this servo control can convert the signal into high-power hydraulic energy, and let the cylinder move accordingly until it is adjusted.
These are the relevant introductions of this kind of guide system, and the scope of use of the guide system is constantly expanding.

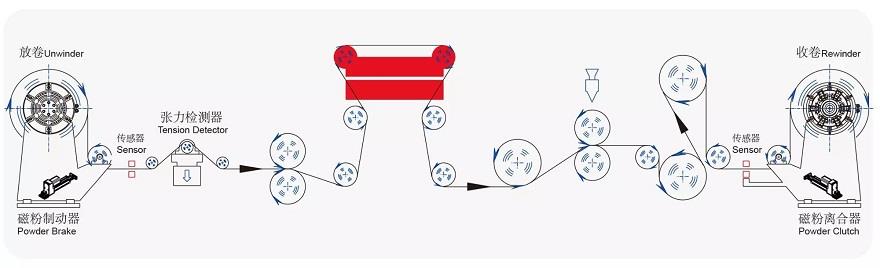

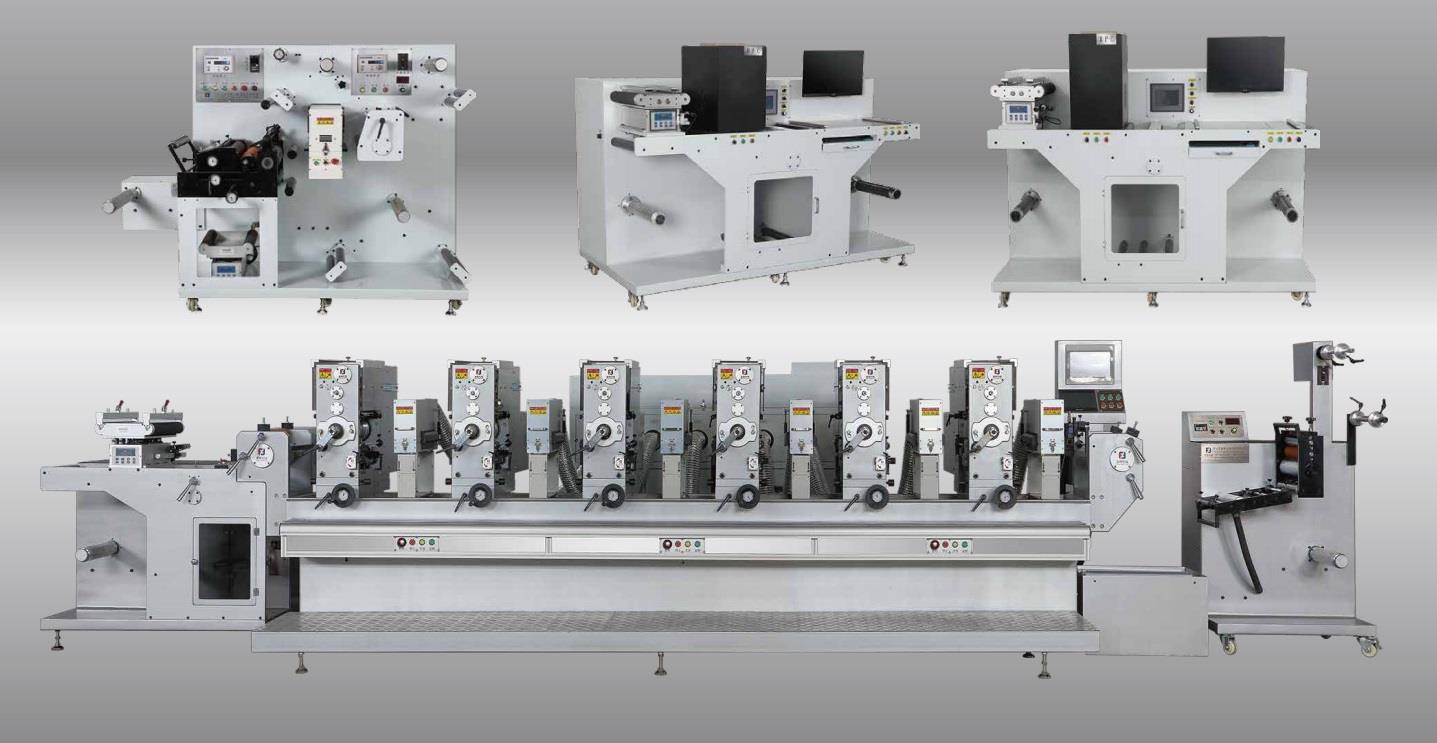

Application

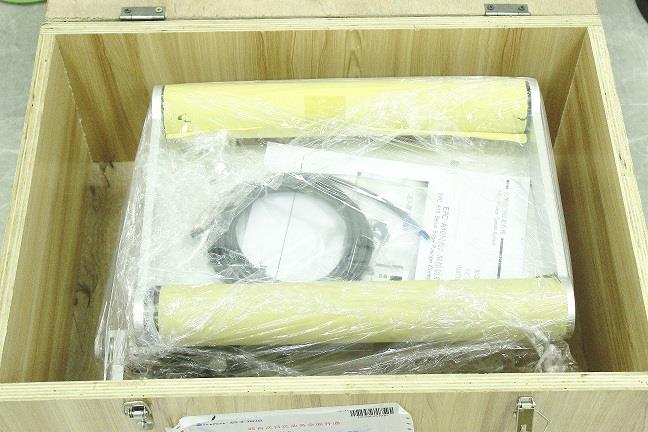

Packing
