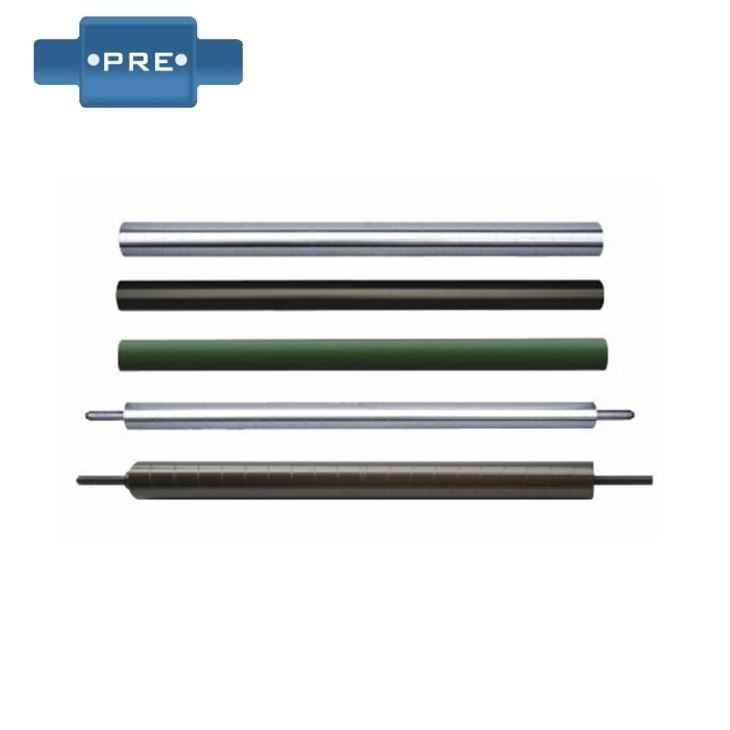

Guide roller

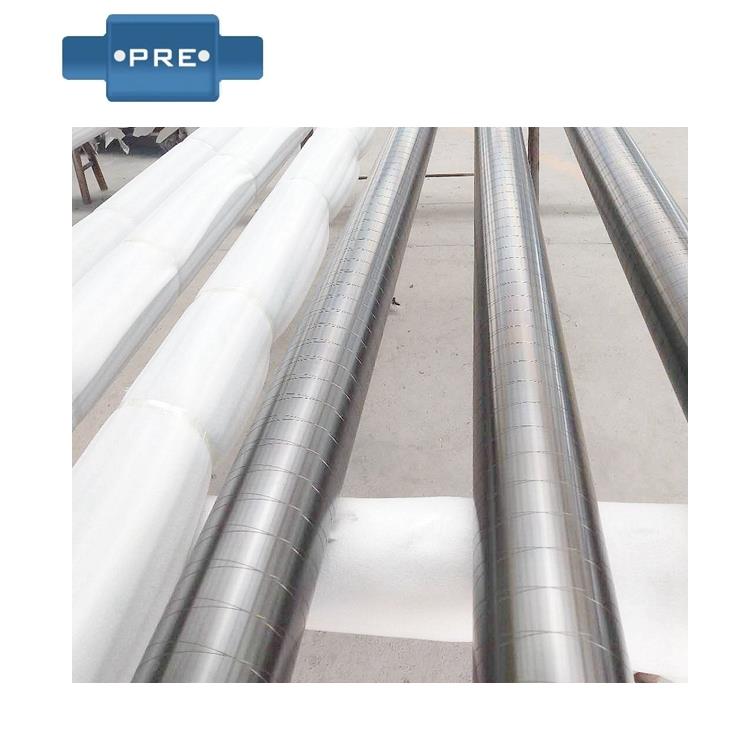

The aluminum guide roller is also called aluminum alloy guide roller. It is made of high quality aluminum alloy material (6063-T5), which is suitable for printing, packaging, plastic and electronic batteries.

Common classification of rollers for aluminum guide rolls
After the roll is formed, it needs surface treatment or coating such as painting, galvanizing, TEFLON spraying, rubber coating, chrome plating, ceramic spraying and oxidation for the purpose of rust prevention, corrosion resistance, wear resistance and support.
Classified by size, aluminum guide rolls have large rolls such as papermaking machinery (up to 10 meters in length and 1500mm in diameter), and there are small flat rollers for belt conveyors on automatic assembly lines (generally in 1). Within the length of the meter, the diameter is also within 159mm)
According to the action, the aluminum guide roller has a roller on the digital laser printer to ensure the transmission accuracy, and a calender roller on the papermaking machine that functions as a pressure filter, and has a support roller that does not require high dimensional accuracy. There are rollers for heat exchange, and rollers for heavy pressure filtration, which are not listed.
Roller diameter selection: 25mm, 32mm, 38mm, 42mm, 50mm, 57mm, 60mm, 76mm, 80mm, 89mm. Roller material selection: carbon steel galvanizing, carbon steel chrome plating, carbon steel rubber, aluminum alloy, stainless steel, ABS, etc.
Roller type selection: no power roller, single chain roller, double chain roller, "O" belt roller, conical roller, grooved roller. Roller fixing method: spring press type, inner shaft type, full flat type, through shaft pin hole type.
